| Item | Rotary Vane Pump |
|---|---|
| Body Material | Brass |
| Drive | Slotted With Plastic Coupling 1143 |
| Dry Suction Lift | 3.28 ft. |
| Dry Weight | 2.75 lbs. |
| Flow Rate @ 100 Psi | 100 GPH |
| Flow Rate @ 150 Psi | 98 GPH |
| Flow Rate @ 200 Psi | 96 GPH |
| Flow Rate @ 250 Psi | 94 GPH |
| Flow Rate @ 50 Psi | 102 GPH |
| Grade | Grade 303 |
| Hp | 21/50 hp |
| Hp @ 100 Psi | 1/5 hp |
| Hp @ 150 Psi | 7/25 hp |
| Hp @ 200 Psi | 7/20 hp |
| Hp @ 250 Psi | 21/50 hp |
| Hp @ 50 Psi | 13/100 hp |
| Inlet Size | 3/8" |
| Max. Flow Rate | 100 GPH |
| Max. Motor Speed | 2400 RPM |
| Max. Operating Pressure | 60 psi |
| Max. Operating Temp. | 160°F |
| Max. Relief Pressure | 250 psi |
| Max. Viscosity | 100 cPS |
|---|---|
| Min. Operating Temp. | -4°F |
| Min. Rpm | 1000 RPM |
| Mounting Type | Clamp On |
| Noise Level | 60 dBA |
| Outlet Size | 3/8" |
| Outlet Type | NPT |
| Ph Range | 6 pH |
| Relief Valve Pressure | 60 psi to 99 psi |
| Rotation | Clockwise |
| Rotor Material | Stainless Steel |
| Seal Material | Carbon Ceramic |
| Self Priming Wet | 6 ft. |
| Series | 1 Series |
| Shaft Material | Stainless Steel |
| Static Pressure | 100 psi |
| Strainer Area | 3.25 sq. in. |
| Strainer Type | Integral 100 Mesh Wire |
| Tds Resolution | 5000 ppm |
| Valve Configuration | Standard Non External Adjust |
| Valve Type | Solid Ultem |
| Wet Suction Lift | 6.6 ft. |

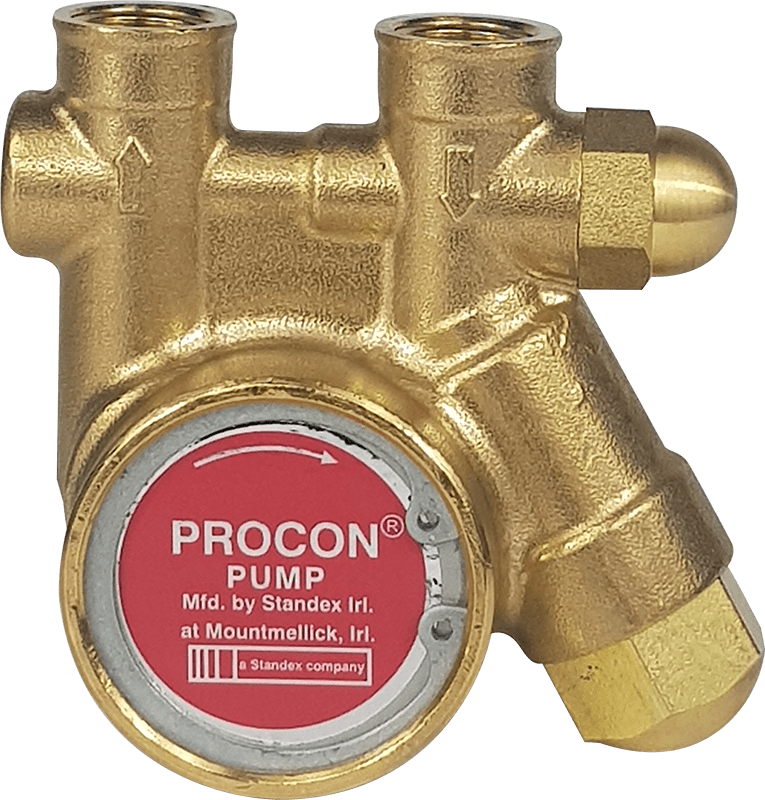

Procon 101C100F11BC rotary vane pump uses vanes mounted on a rotor to create a vacuum or positive pressure within the pump's chamber. This positive displacement pump is used for liquid transfer, refrigeration, beverage dispensing and various other operations.
| Height (cm) | 9.78 |
|---|---|
| Length (cm) | 8.71 |
| Width (cm) | 9.25 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 1.0935 |
Rotary vane pumps offer consistent flow rates, low pulsation and self-priming capabilities and relatively require low maintenance compared to other pump types.
The materials used in the pump's construction, such as brass, make it suitable for food-grade applications.
The flow rate of this Procon 101C100F11BC pump is 100 gallons per hour (300 litres per hour).
| Style | Model | Mounting Type | Max. Flow Rate | Max. Operating Pressure | Seal Material | Shaft Material | Flow Rate @ 150 Psi | Flow Rate @ 200 Psi | Flow Rate @ 50 Psi | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 111A035F11CA | Carbonator Clamp | 35 GPH | 150 psi | Carbon, Ceramic | Stainless Steel | 33 GPH | 31 GPH | 37 GPH | $145.25 | |
| A | 111A100F11AA | Clamp On | 100 GPH | 150 psi | Carbon Ceramic | Stainless Steel | 98 GPH | 96 GPH | 102 GPH | $145.25 | |
| A | 111A140F11AA | Carbonator Clamp | 140 GPH | 150 psi | Carbon, Ceramic | Stainless Steel | 139 GPH | 137 GPH | 143 GPH | $145.25 | |
| A | 141A140F11AA | Carbonator Clamp | 140 GPH | 150 psi | Carbon, Ceramic | Brass | 139 GPH | 137 GPH | 143 GPH | $153.81 | |
| A | 141A125F11AA | Carbonator Clamp | 125 GPH | 150 psi | Carbon, Ceramic | Stainless Steel | 124 GPH | 122 GPH | 128 GPH | $153.81 | |
| B | 101b100F11BC | Clamp On | 100 GPH | 60 psi | EPDM, Nitrile | Stainless Steel | 98 GPH | 96 GPH | 102 GPH | $92.20 |
