| Item | Tap |
|---|---|
| 55% Thread Drill Size | #51 |
| 65% Thread Drill Size | 1.68 mm |
| 75% Thread Drill Size | 1.65 mm |
| Class Of Fit | Class 3B |
| Coolant Fed | Non-Coolant Through |
| Cutting Direction - Machining | Right Hand |
| Dimension Type | Imperial |
| Extended Neck | Yes |
| Features | Produces No Chips |
| Finish | TiCN Coated |
| List Number | 16250 |
| Material | Cobalt |
| Material Grade - Machining | Grade 16250 |
| No. Of Pieces | 1 |
| Number Of Flutes | 0 |
| Number Of Pieces | 1 |
| Overall Length | 1 49/64" |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Hardened Steel, Stainless Steel, Steel |
| Primary Material Application Iso Code | H, M, N, P |
| Secondary Material Application | Hardened Steel, Nickel, Titanium |
| Secondary Material Application Iso Code | H, S |
|---|---|
| Shank Dia. | 1/8" |
| Shank Length | 1 3/8" |
| Spiral Direction | Neutral |
| Square Size | 0.109" |
| Tap Chamfer | Modified Bottom, Semi Bottom |
| Tap Finish | TiCN |
| Tap Grouping | Tap |
| Tap Length Standard | DIN |
| Tap Material | Cobalt |
| Tap Shank Standard | ANSI |
| Tap Style | Thread Forming |
| Tap Type | Thread Forming |
| Thread Direction | Right Hand |
| Thread Length | 5/16" |
| Thread Limit | H2 |
| Thread Limit/class Of Fit | H2, 3B |
| Thread Size | #1-64 |
| Thread Standard | UNC |
| Thread Type | Coarse |
| Threads Per Inch | 64 |
| Height (cm) | 0.76 |
|---|---|
| Length (cm) | 6.35 |
| Width (cm) | 0.76 |
| Country Of Origin | JP |
|---|---|
| Weight (kg) | 0.0045 |
| Style | Model | Thread Length | Overall Length | Number Of Flutes | Thread Size | 75% Thread Drill Size | Thread Limit | Tap Chamfer | Shank Dia. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

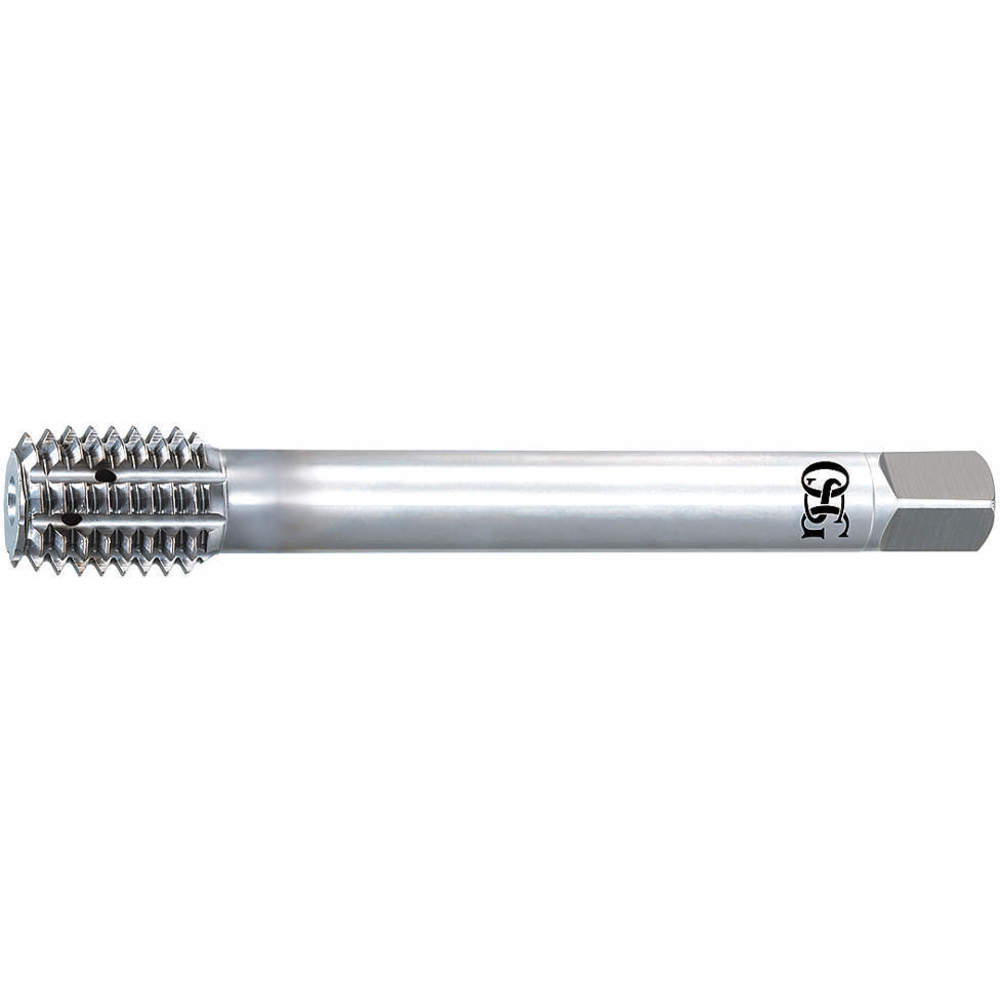

| A | 1605034107 | 1" | 4 29/32" | 4 | 3/4"-10 | 17.7 mm | H7 | Modified Bottom, Semi Bottom | 37/64" | $513.61 | |
| B | 1615008255 | 12 mm | 90 mm | 3 | M8 x 1.25 | L | D5 | Modified Bottom, Semi Bottom | 8.07 mm | $141.06 | |
| B | 1615016151 | 20 mm | 100 mm | 4 | M16 x 1.5 | 15.2 mm | D11 | Modified Bottom, Semi Bottom | 12.19 mm | $382.61 | |
| C | 1635010015 | 15 mm | 90 mm | - | M10 x 1 | 9.5 mm | D5 | Modified Bottom, Semi Bottom | 9.67 mm | $151.41 | |

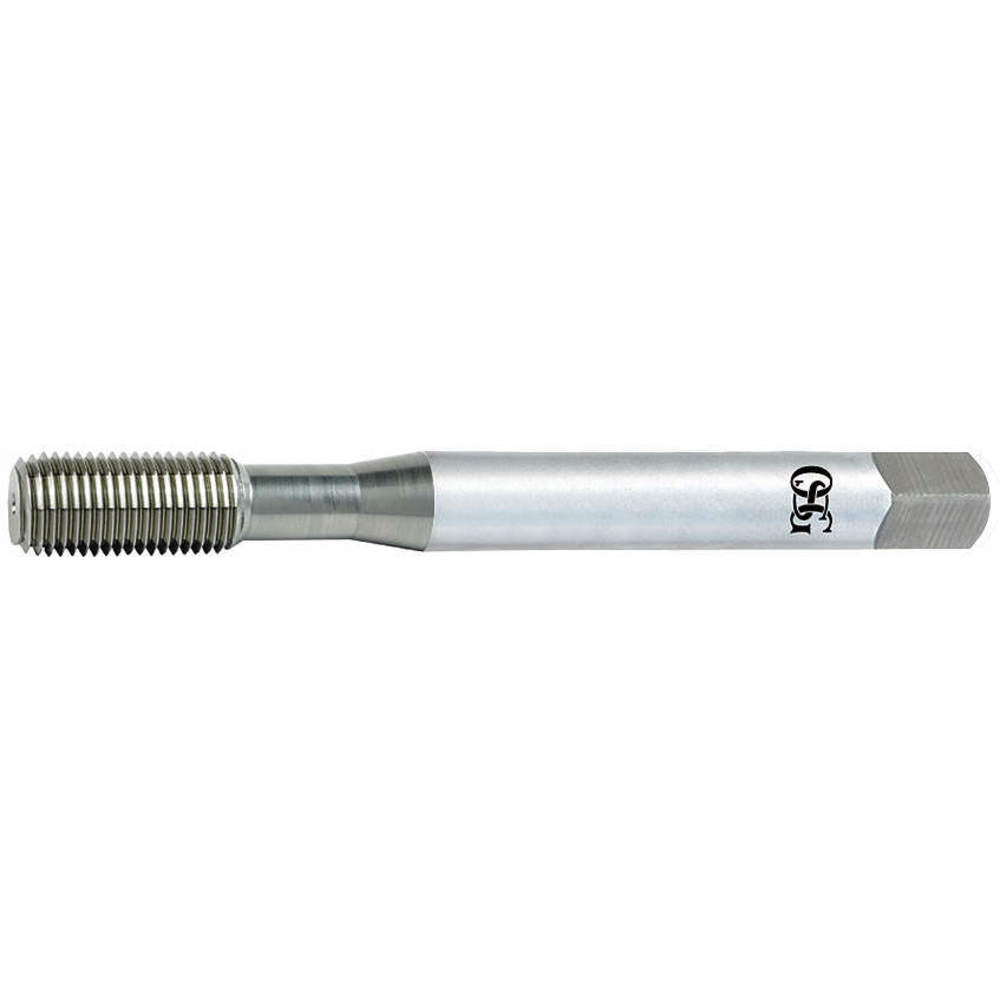

| D | 1400105808 | 1/4" | 1 55/64" | - | #4-40 | 2.52 mm | H2 | Plug | 9/64" | $34.60 | |
| D | 1400107308 | 1/4" | 1 55/64" | - | #4-48 | 2.32 mm | H5 | Plug | 9/64" | $34.60 | |
| D | 1400158808 | 1/2" | 2 23/64" | - | #10-32 | 4.4 mm | H12 | Modified Bottom, Semi Bottom | 3/16" | $33.26 |
