NEWSTRIPE 10003068 RollMaster 5000 Line Striper for Parking Lots & Pavements

Item: AG8GZH
Model: 10003068
Cross Ref: 19ZN17
Check Availability
In Stock.

Get it by Thursday, Feb 5

£9.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates

We deliver to your doorstep under DAP terms. Customs clearance is for your account

$2,178.75
10% off
$1,960.88 /unit (ex. VAT)
Add To Cart
Request Quote

Unlock 30-day payment terms

Business customers can apply for Net 30
No fees, No interest, Fast approval.

Payment

Delivery

Specifications

Item Striping Machine
Application Method Roller
Capacity 5 gal.
Compatible Container Size 5 gal.
Compatible Fluid Type Paints
Compatible Surface Material Pavement
Control Hand Operated, Handle Mounted Spray Controls
Flow Rate - Maximum 0.2 GPM
Gun Activation Manual
Height 44"
Includes 4" Roller Kit
Length 50"
Line Width - Maximum 4"
Line Width - Minimum 2"
Operating Pressure - Maximum 15 psi
Operating Voltage 12V
Overall Length 4.16 ft.
Paint Type Water Base Or Oil Base Paints
Power Source Battery
Product Type Walk-Behind Line Striper
Pump Type Peristaltic Pump , Roller Driven
Series ROLLMASTER 5000 Series
Striper Type Walk Behind
Width 28"

Product Details

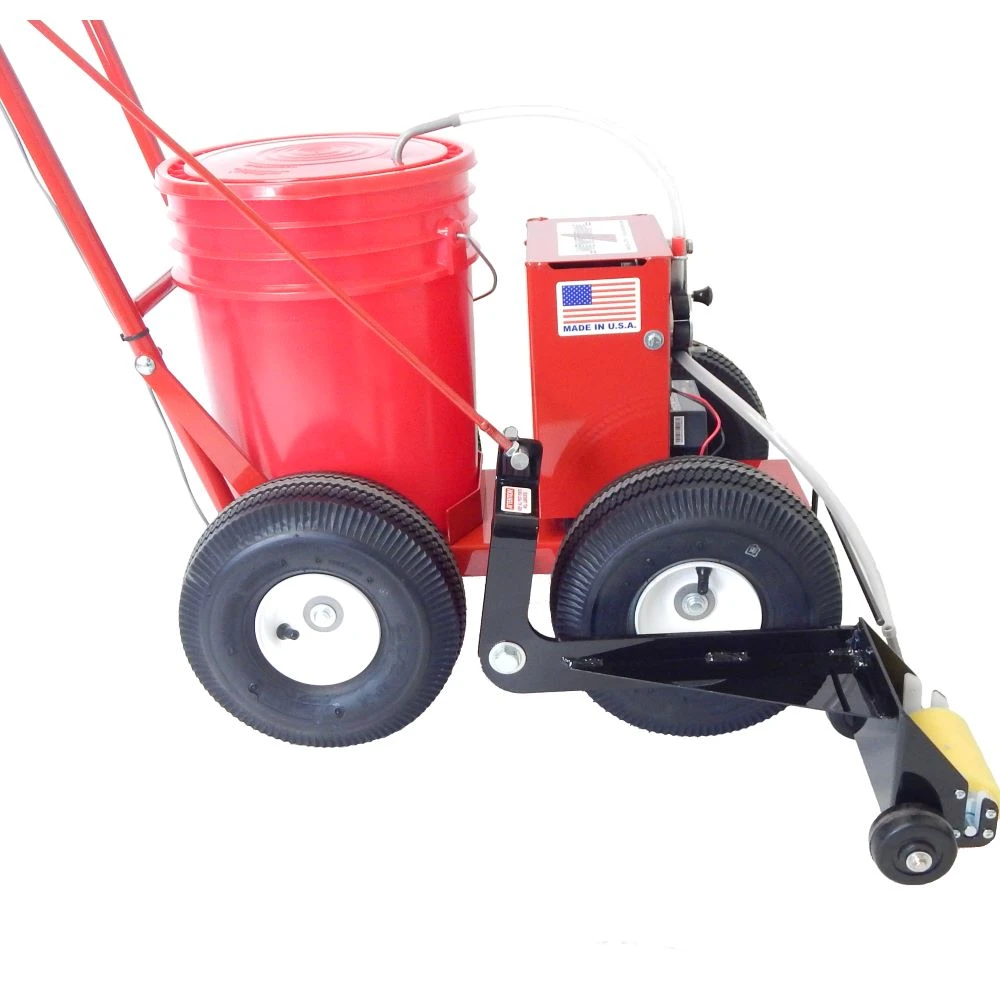

Newstripe 10003068 paint striping machine is used to spray or roll stripes and other markings on paved surfaces, asphalt or grassy areas like athletic fields.

Shipping Information

Height (cm) 58.42
Length (cm) 91.44
Width (cm) 55.88
Country Of Origin US
Weight (kg) 29.25

Working Mechanism

  • Delivers paint from a standard paint can directly to the foam roller, allowing you to apply a 2000-ft-long stripe using 5 gallons of paint.
  • Owing to the heavy-duty wheels, you can apply straight lines easily on a variety of terrains.
  • Just collapse the handle to take it anywhere.

Features

  • Newstripe 10003068 striping machine features a spill-proof design & a foldable handle for easy storage & job site portability.
  • It is equipped with a fool-proof tubing squeeze pump that delivers paint to the foam roller?that lasts?up to a mile, offering effective and efficient paint transfer.
  • This RollMaster 5000 parking lot striping machine provides quick and easy clean-up by simply rinsing the roller mandrel and tubes.
  • It comes with a 4-inch roller kit containing a battery charger & instruction manual.
  • This line striper features a no-overspray design, allowing users to stripe within 2 inches of vehicles or walls.

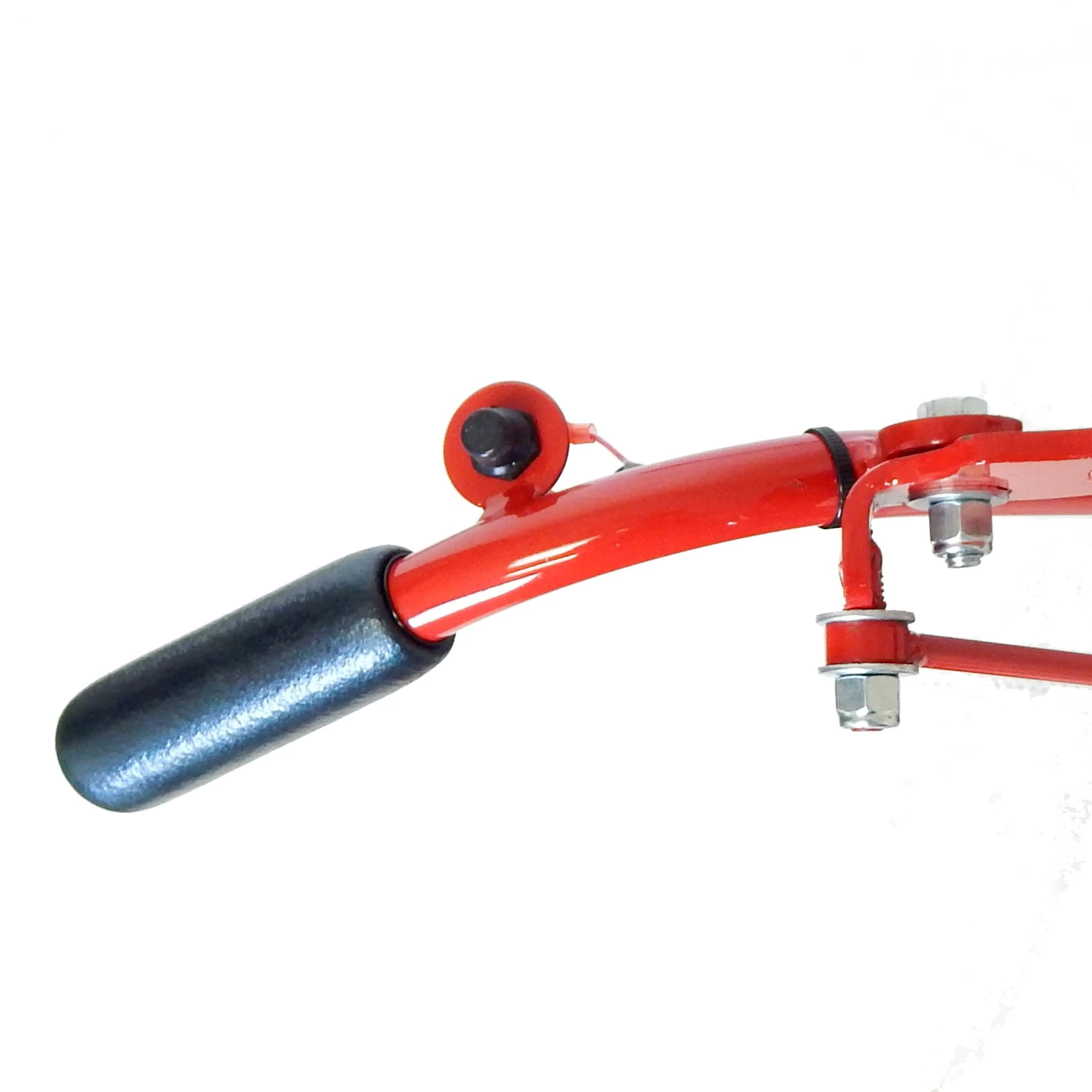

  • It comes with an electrical single-button switch for easy control of paint flow.

Compatible Accessories

  • Newstripe 10000027 O-Ring: This O-ring can replace the existing worn-out O-ring to maintain a proper seal around the mandrel tube.
  • Newstripe 10001461 Roller Kit: This 12-piece pack of rollers and discs is suitable for replacing rollers on site.

Documentation

Frequently Asked Questions

When should Newstripe 10003068 paint striping machine be used?

Striping should be completed immediately after the concrete has been laid and set.

What makes these machines more effective than hand painting lines?

Striping machines deliver uniformity of lines that is hard to achieve when hand painting lines.

How many lines can I stripe with this RollMaster 5000 parking lot striping machine?

It can stripe 2000 feet of line with a single 5-gallon pail.

How to install the paint hose on this Newstripe 10003068 striping machine?

  • Place the pail lid on the 5-gallon pail and position it on the back of the chassis.
  • Insert the longer end of the dip tube through the lid hole.
  • Then, open the pump trough by pressing the trough pin and squeezing the sides.
  • Install the paint hose with the short end above the red bead and the long end below.
  • Connect the hose: short end to the dip tube and long end to the mandrel tube.
