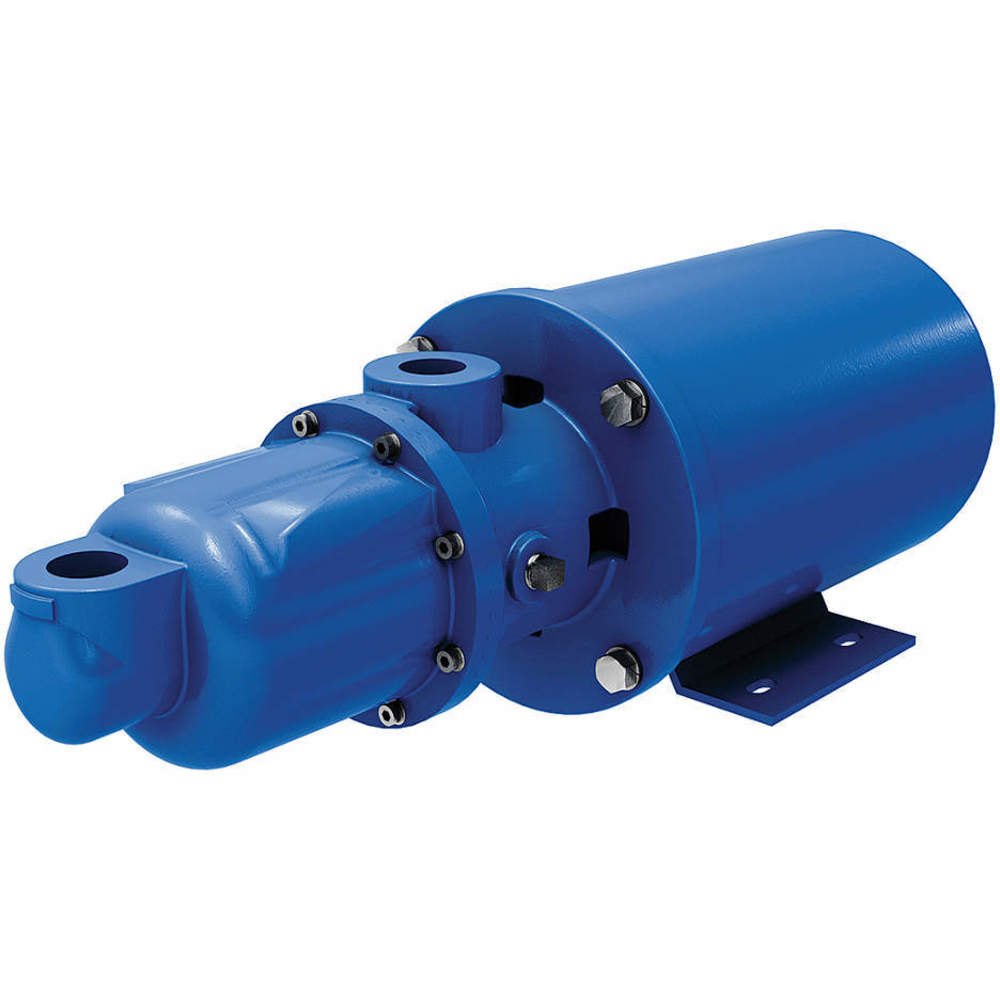

| Item | Motorized Progressive Cavity Pump |
|---|---|
| Application | Abrasive Slurries, Bridge Deck Flooding, Coatings, Dirty Oil, Drum Transfer, Feed Additives, Industrial Waste, Irrigation, Lubricants, Sewage Sampling, Swimming Pool Water |
| Body Material | Cast Iron |
| Discharge Connection Size | 1 1/2" |
| Discharge Connection Type | NPT |
| Discharge Port Size | 1 1/2" |
| Discharge Port Type | NPT |
| Flow Rate @ Max. Rpm And 0 Psi | 24 GPM |
| Flow Rate @ Min. Rpm And 0 Psi | 2.139 GPM |
| Frequency | 60 Hz |
| Height | 8 1/5" |
| Inlet Size | 1 1/2" |
| Intake Connection Size | 1 1/2" |
| Intake Connection Type | NPT |
| Length | 25 2/9" |
| Max. Discharge Pressure | 50 psi |
| Max. Fluid Temperature | 160°F |
| Max. Hp | 1 1/4 hp |
| Max. Media Temp. | 160°F |
| Max. Motor Speed | 1750 RPM |
| Max. Pressure | 50 psi |
| Max. Rpm | 1750 RPM |
| Max. Solid Dia. | 9.5 mm |
| Max. Viscosity | 20000 cPS |
| Media Temperature Range | 10°F to 160°F |
| Min. Fluid Temp. | 10°F |
|---|---|
| Min. Pressure | 0 psi |
| Min. Rpm | 150 RPM |
| Motor Mounting Type | Close Coupled |
| Mounting Type | Close Coupled |
| Outlet Size | 1 1/4" |
| Outlet Type | NPT |
| Overall Height | 8.1" |
| Overall Length | 25.2" |
| Overall Width | 6" |
| Particle Size | 9.5 mm |
| Phase | 3 |
| Pump Operation Type | Motorized |
| Required Hp @ Higher Rpm | 1 1/4 hp |
| Required Hp @ Lower Rpm | 3/64 hp |
| Rotor Material | Stainless Steel |
| Seal Material | Carbon, Ceramic |
| Seal Type | Mechanical |
| Series | 300 Series |
| Stator Material | Buna N |
| Suction Port | 1 1/2" NPT |
| Voltage | 208/230/440V AC |
| Voltage Type | Motorized |
| Width | 6" |
| Height (cm) | 31.75 |
|---|---|
| Length (cm) | 82.55 |
| Width (cm) | 31.75 |
| HS Code | 8413600040 |
|---|---|
| Weight (kg) | 31.95 |
| Style | Model | Voltage | Phase | Inlet Size | Outlet Size | Required Hp @ Lower Rpm | Required Hp @ Higher Rpm | Height | Flow Rate @ Min. Rpm And 0 Psi | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 33259 | 115/230V AC | Single | 3/4" | 3/4" | 1/32 hp | 1/2 hp | 7 7/8" | 0.471 GPM | $2,387.71 | |
| A | 33359 | 115/230V AC | Single | 3/4" | 3/4" | 1/32 hp | 1/2 hp | 7 7/8" | 0.835 GPM | $2,385.11 | |
| A | 34459 | 115/230V AC | Single | 3/4" | 3/4" | 3/64 hp | 1/2 hp | 7 7/8" | 1.483 GPM | $2,431.94 |
