| Item | Hydraulic Power Unit |
|---|---|
| Application | Auto Hoists Power Unit |
| Built-in Features | Load Holding Check Valve And Adjustable Relief Valve |
| Circuit Design | Single Acting |
| Control Valve Configuration | 2-Way/2-Position |
| Frame Design - Hydraulic Power Units | Compact |
| Full Load Amps | 18.5A |
| Hp | 2 hp |
| Hz | 50/60 Hz |
| Max. Pressure | 2400 psi |
| Mounting | Vertical |
| Mounting Orientation - Power Units | Vertical |
| Mounting Position | Vertical |
| Nominal Flow | 2 GPM |
|---|---|
| Number Of Phases | 1 |
| Number Of Stages | 1 |
| Overall Height | 12 3/16" |
| Overall Length | 38 3/16" |
| Overall Width | 10 5/32" |
| Phase | 1 |
| Power Source - Power Units | Ac Power |
| Pressure Port Thread Size | 9/16"-18 |
| Reservoir Capacity | 3.8 gal. |
| Rpm | 3600 RPM |
| Voltage | 208/230V AC |
| Height (cm) | 29.21 |
|---|---|
| Length (cm) | 114.3 |
| Width (cm) | 29.97 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 23.4 |
| Style | Model | Voltage | Nominal Flow | Max. Pressure | Reservoir Capacity | Overall Height | Overall Width | Full Load Amps | Overall Length | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

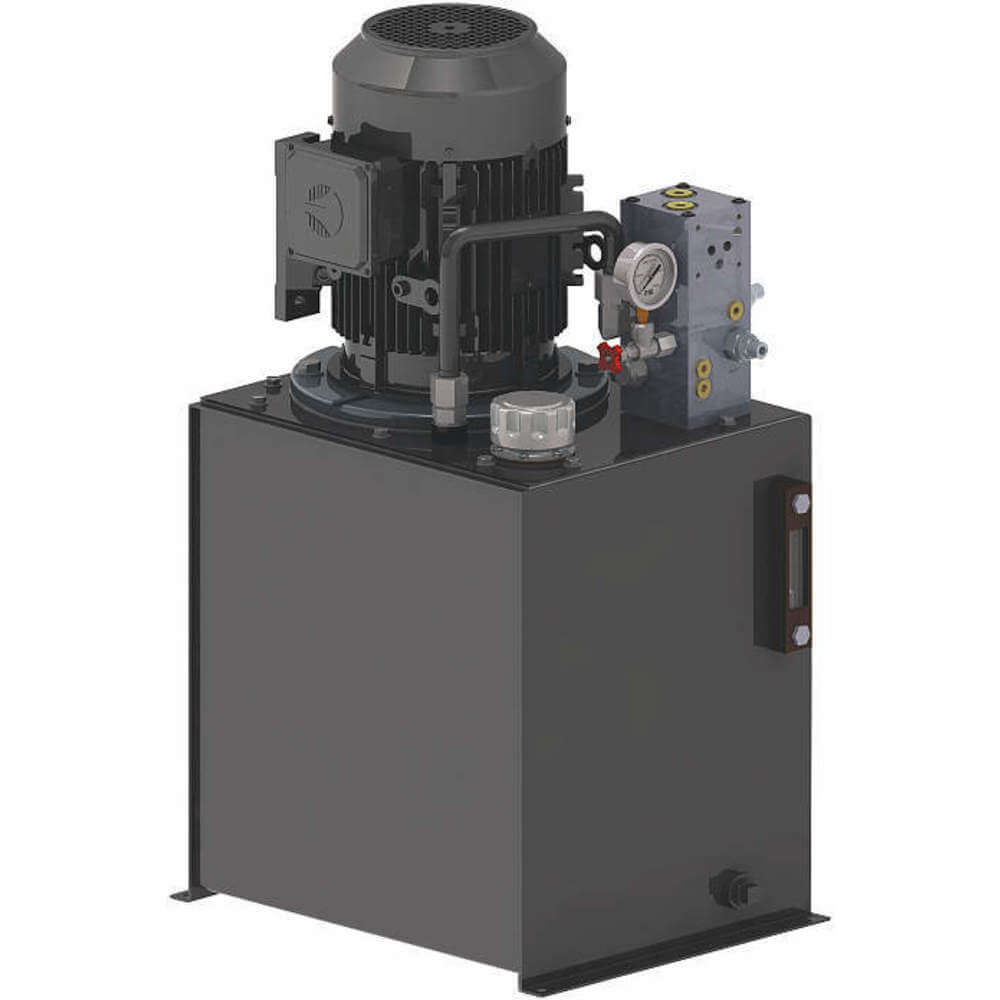

| A | T92C405C93F0-01 | 208-230/460V AC | 2.8/11 GPM | 2500 psi | 15 gal. | 35" | 15" | 13.7-12.4/6.2A | 20" | $4,461.71 | |

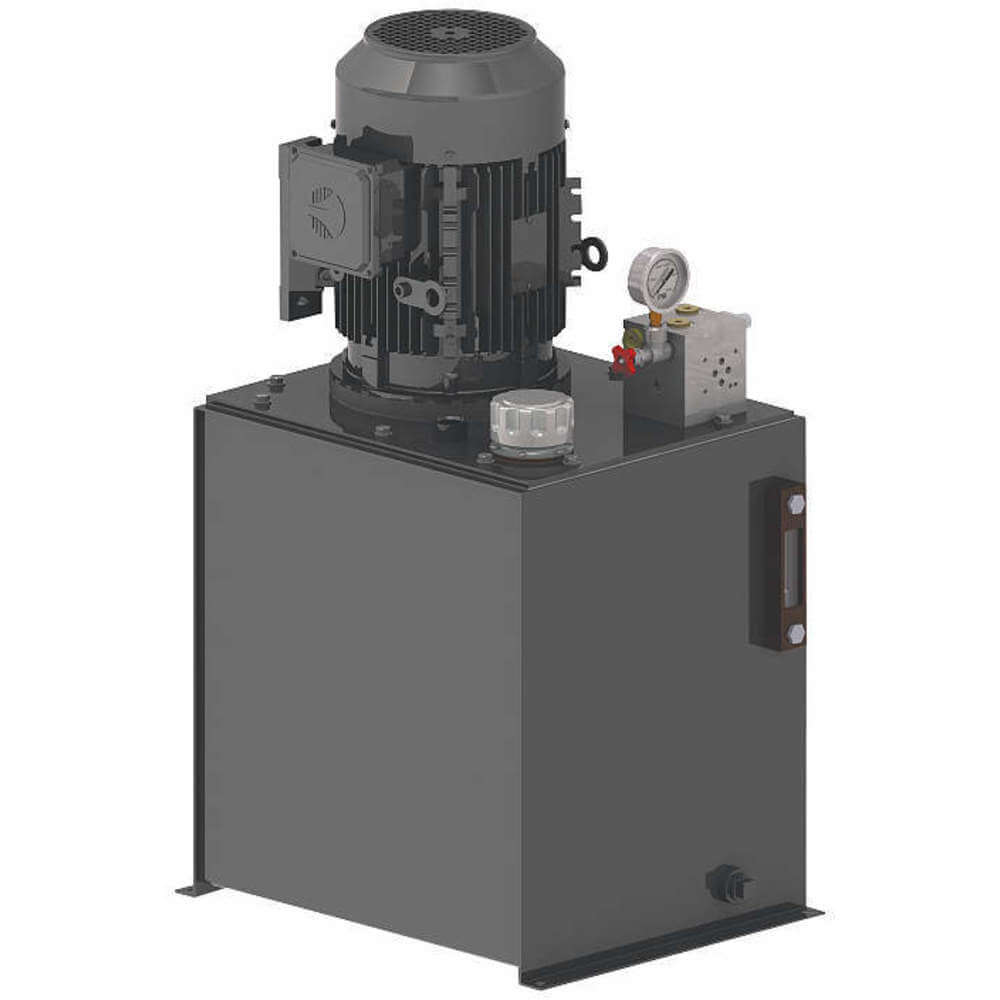

| B | T56C405R02S0-01 | 208-230/460V AC | 2.3 GPM | 3000 psi | 15 gal. | 35" | 17" | 13.7-12.4/6.2A | 20" | $3,425.98 | |

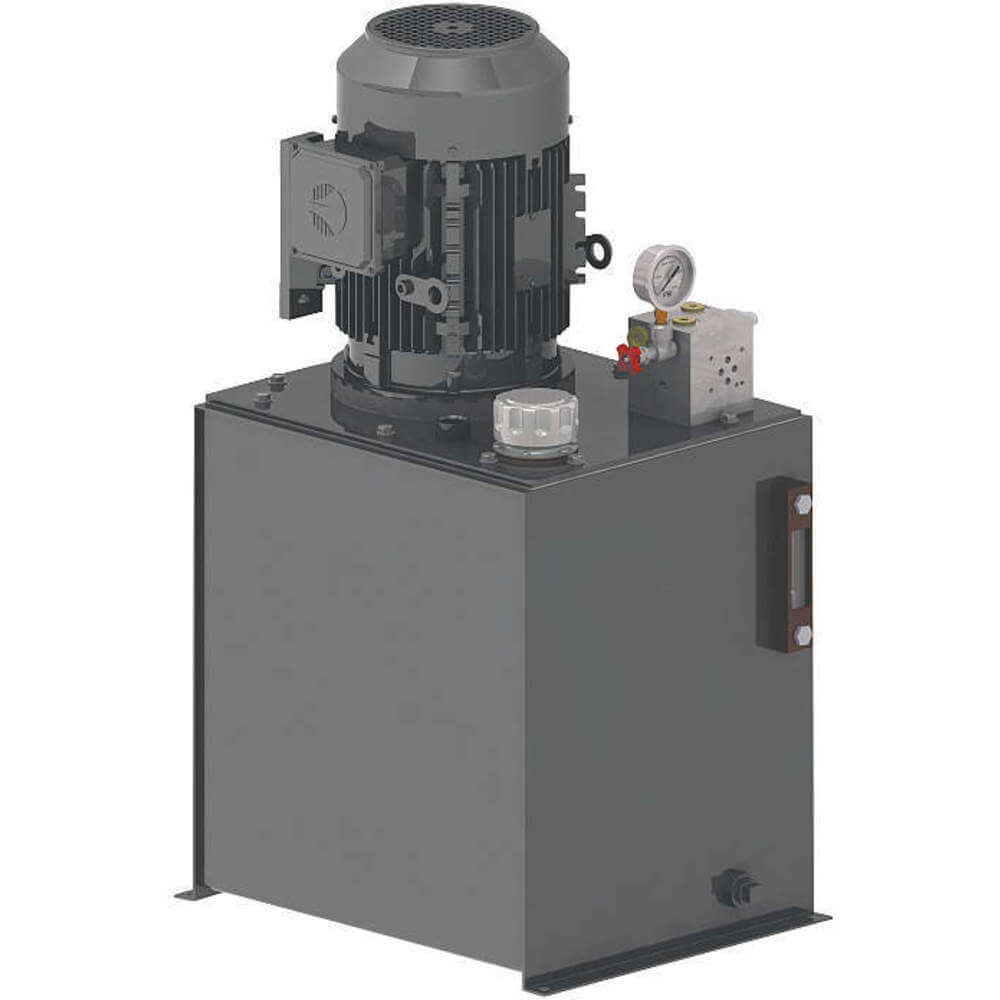

| C | T58C405R02S0-01 | 208-230/460V AC | 3.7 GPM | 2000 psi | 15 gal. | 35" | 17" | 13.7-12.4/6.2A | 20" | $3,489.72 | |
| D | T16C405C02F0-03 | 208-230/460V AC | 4.4 GPM | 1550 psi | 15 gal. | 35" | 17" | 13.7-12.4/6.2A | 20" | $3,856.37 | |

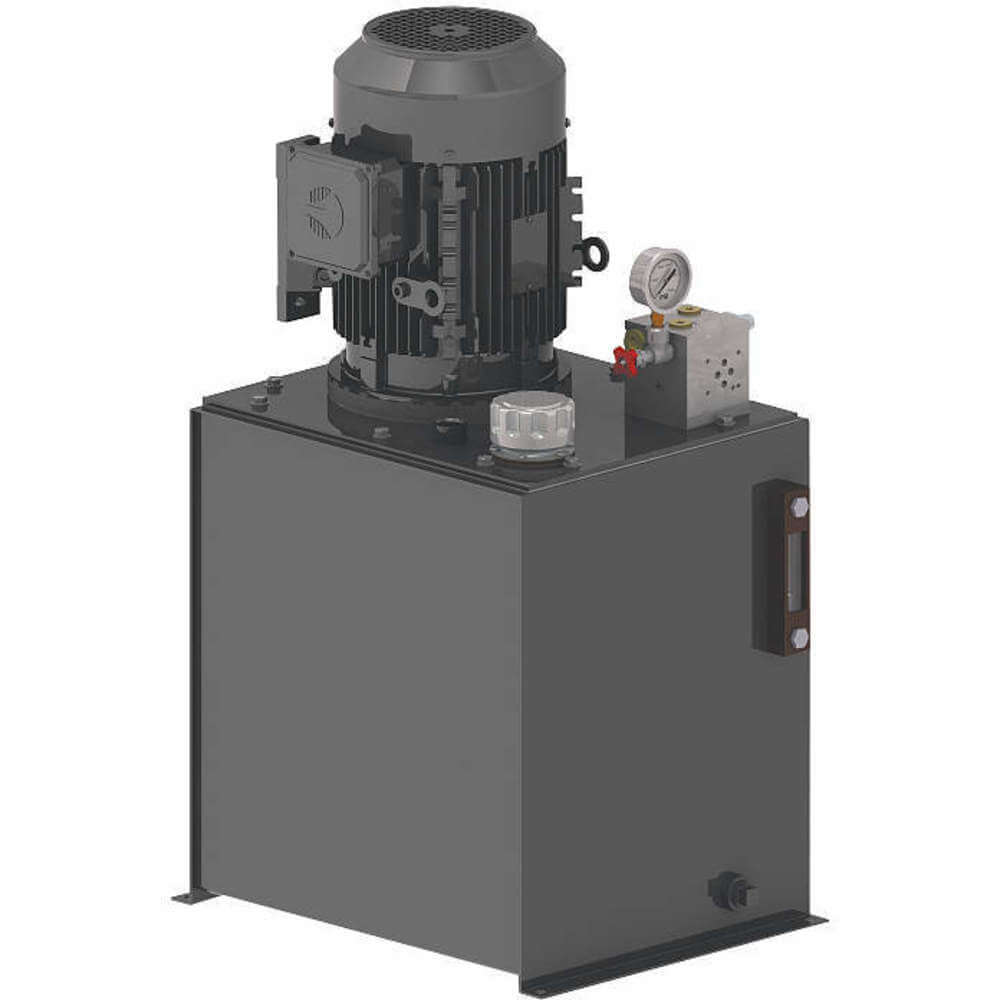

| E | T64C405C02F0-01 | 208-230/460V AC | 5 GPM | 1400 psi | 15 gal. | 35" | 17" | 13.7-12.4/6.2A | 20" | $3,798.59 | |
| F | T65C355A03B0-01 | 208-230/460V AC | 6.9 GPM | 600 psi | 15 gal. | 35" | 17" | 8.5-7.6/3.8A | 20" | $3,630.10 | |
| F | T65C405C03B0-01 | 208-230/460V AC | 6.9 GPM | 1000 psi | 15 gal. | 35" | 17" | 13.7-12.4/6.2A | 20" | $3,888.08 |
