| Item | 3-Phase Line Monitor |
|---|---|
| Amps Rating | 10A |
| Base Shape | Octal |
| Base Type | Octal |
| Base Type - Plug In Relay | Octal |
| Body Depth | 2.9" |
| Body Height | 2.4" |
| Body Width | 1.7" |
| Contact Form | SPDT |
| Contact Rating (ac) | 10A @ 277V |
| Contact Rating (dc) | 7A @ 30V |
| Current Rating | 10A |
| Electrical Connection Type | Pin |
| Electrical Operating Durability | 100000 |
| For Use With | Sensors |
| Frequency | 50/60 Hz |
| Input Voltage | 190-500V AC |
| Max. Switching Voltage | 550V |
| Maximum Switching Capacity | 40 VA |
| Mechanical Operating Durability | 10000000 |
| Monitored Parameters | Overvoltage, Phase Loss, Phase Reversal, Phase Unbalance, Undervoltage |
| Number Of Contacts | 1 |
| Number Of Pins | 8 |
| Number Of Pins - Relay | 8 |
| Number Of Pins/terminals | 8 |
|---|---|
| Overall Depth | 2 2/5" |
| Overall Height | 3" |
| Overvoltage | Fixed 110% Of Line Voltage Setting |
| Phase | 3 |
| Phase Loss Sensitivity | Yes |
| Phase Loss Time Delay | 0.1 sec. |
| Phase Reversal | Yes |
| Phase Reversal Time Delay | 0.1 sec. |
| Phase Unbalance | 2% to 10% |
| Phase Unbalance Time Delay | 0.3 sec. to 30 sec. |
| Power Consumption | 40 VA |
| Power Rating | 3 VA |
| Protection | Phase Loss, Phase Reversal, Undervoltage, Overvoltage, Voltage Unbalance |
| Relay Mounting | Plug In |
| Relay Mounting Style | Socket |
| Resistive Contact Amp Rating | 10A |
| Restart | Auto, Manual |
| Restart Time Delay | 1 sec. to 300 sec. |
| Socket Code | A |
| Type | Voltage Sensing |
| Undervoltage | 460-600V AC |
| standard | CE CERTIFIED, CULUS LISTED, CURUS |
| Height (cm) | 6.1 |
|---|---|
| Length (cm) | 7.37 |
| Width (cm) | 4.32 |
| HS Code | 8536490080 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.225 |
| Style | Model | Contact Form | Number Of Pins | Input Voltage | Number Of Contacts | Current Rating | Amps Rating | Phase | Ac Voltage | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | PAP208 | SPDT | 8 | 208V AC | 1 | 10A | 10A | 3 | - | $105.10 | |
| B | PAP240 | SPDT | 8 | 240V AC | 1 | 10A | 10A | 3 | - | $98.16 | |

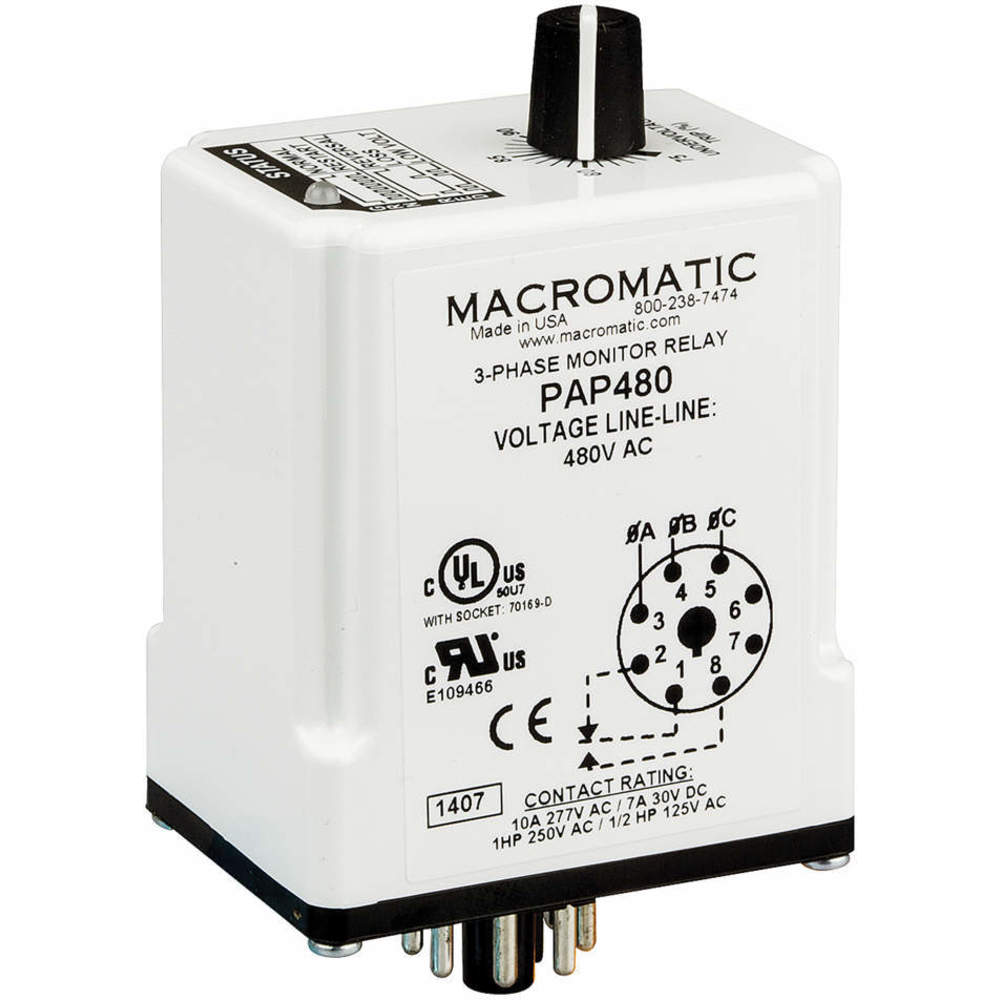

| C | PAP480 | SPDT | 8 | 480V AC | 1 | 10A | 10A | 3 | - | $97.20 | |

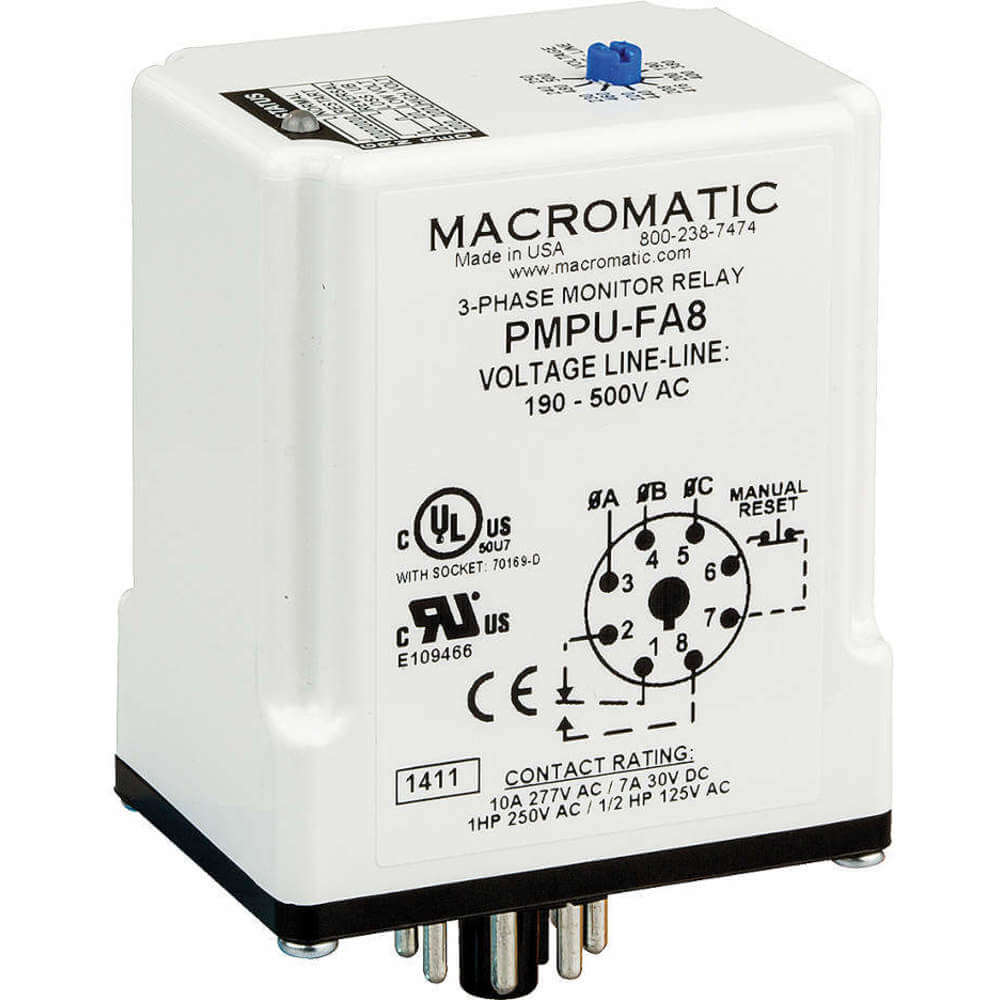

| D | PMPU-FA8 | SPDT | 8 | 208-480V AC | 1 | - | 10A | 3 | - | $122.69 | |
| E | VWKE120A | SPDT | 5 | 120V AC | 1 | 15A | 15A | 1 | - | $73.36 | |

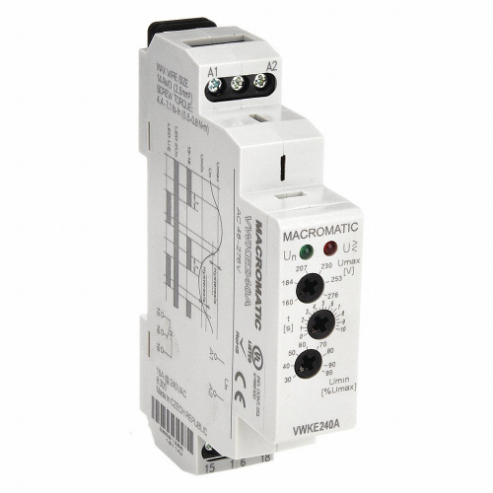

| F | VWKE240A | SPDT | 5 | 240V AC | 1 | 15A | 15A | 1 | - | $108.57 | |

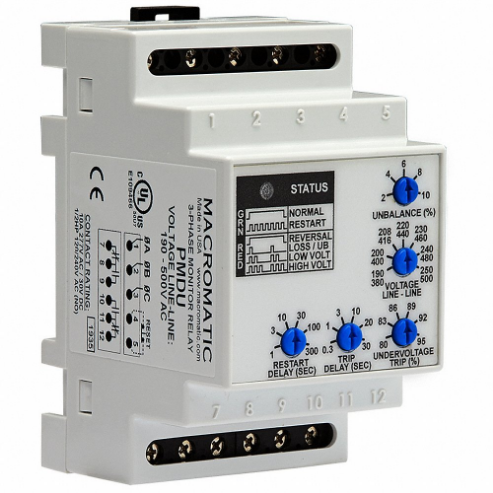

| G | PMDU | DPDT | - | 190-500V AC | 2 | 10A | - | 3 | - | $229.66 |
