| Item | Metric Motor |
|---|---|
| Amps | 10A |
| Assembly | M1040938 |
| Drive End Bearing Size | 6201-13 |
| Drive End Bearing Type | Ball |
| Duty Cycle | S1 |
| Efficiency | 76.5% |
| Explosion Proof | Brake Motors |
| Form Factor | 1 |
| Frame | 63D |
| Frame Length | 6.43" |
| Frame Size | 63D |
| Full Load Torque | 135 oz.-in. |
| Grease Type | Polyrex EM |
| Height | 7 1/4" |
| Hp | 1/4 hp |
| Inertia | 7.2 oz./sq. in. |
| Insulation Class | Class F |
| Ip Rating | IP54 |
| Kw | 0.18 kW |
| Length | 12.13" |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
|---|---|
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Mounting Type | B5 |
| Nameplate Rpm | 1800 RPM |
| Opp. Drive End Bearing Size | 6201-13 |
| Opp. Drive End Bearing Type | Ball |
| Outline | M1030347 |
| Output Kw | 0.18 kW |
| Packaging | M1307020.02 |
| Power | 0.18 kW |
| Rotation | Reconn |
| Rotation Type | Reconn |
| Rpm | 1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 0.437" |
| Shaft Length | 0.905" |
| Test Card | 01 |
| Thermal Protection | No Protection |
| Type | G63-9 |
| Voltage | 24V |
| Winding | MD34247 |
| Height (cm) | 18.42 |
|---|---|
| Length (cm) | 30.81 |
| Width (cm) | 19.38 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 5.4 |
| Style | Model | Hp | Nameplate Rpm | Frame | Mounting Type | Rpm | Shaft Dia. | Efficiency | Full Load Torque | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

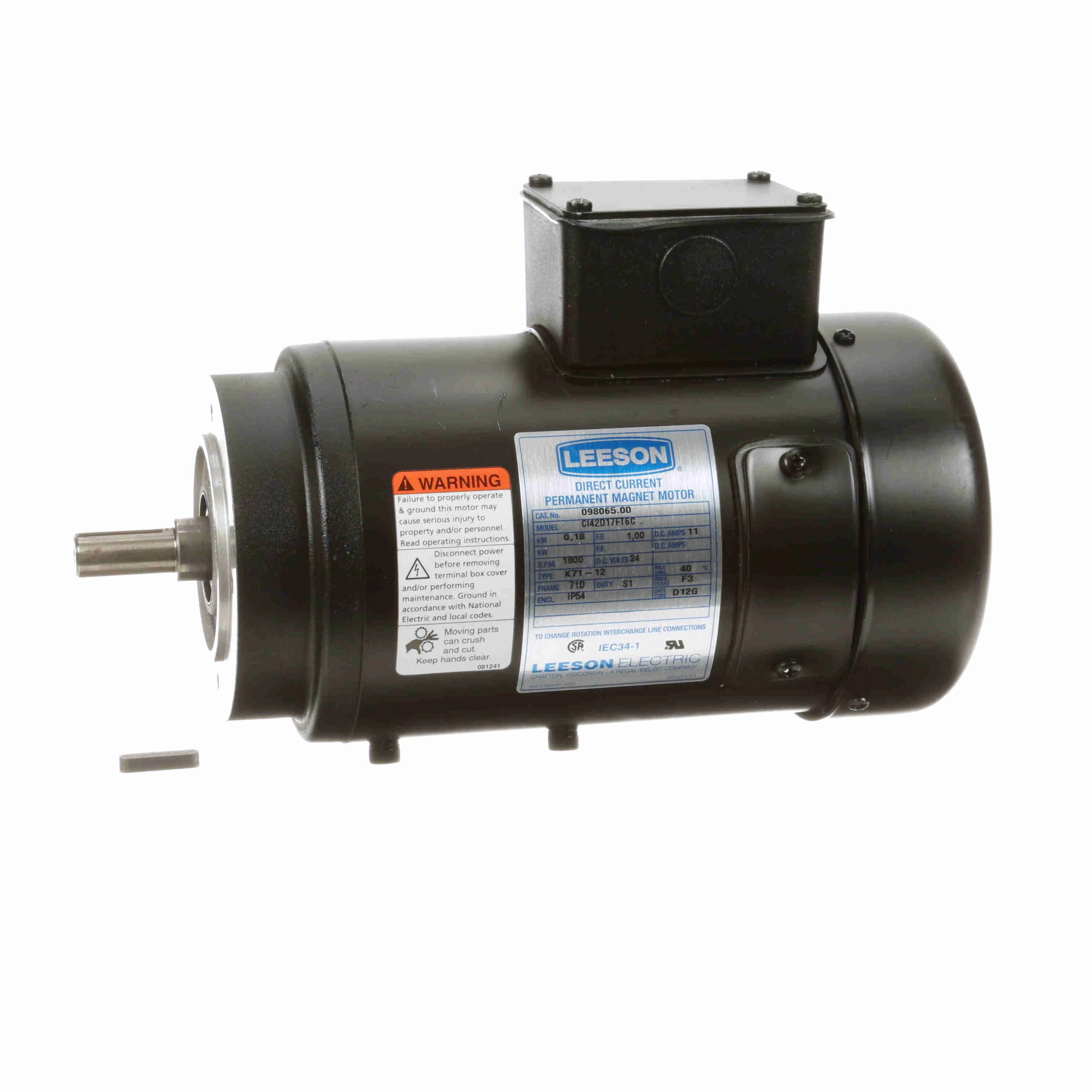

| A | 098065.00 | 1/4 hp | 1800 RPM | 71 | Special | 1700-1800 RPM | 0.562" | 67.5% | 8.8 lbs.-in. | $637.94 | |
| B | 098066.00 | 1/2 hp | 3000 RPM | 71 | Special | 3000 RPM | 0.562" | 72.2% | 10.5 lbs.-in. | $283.64 | |

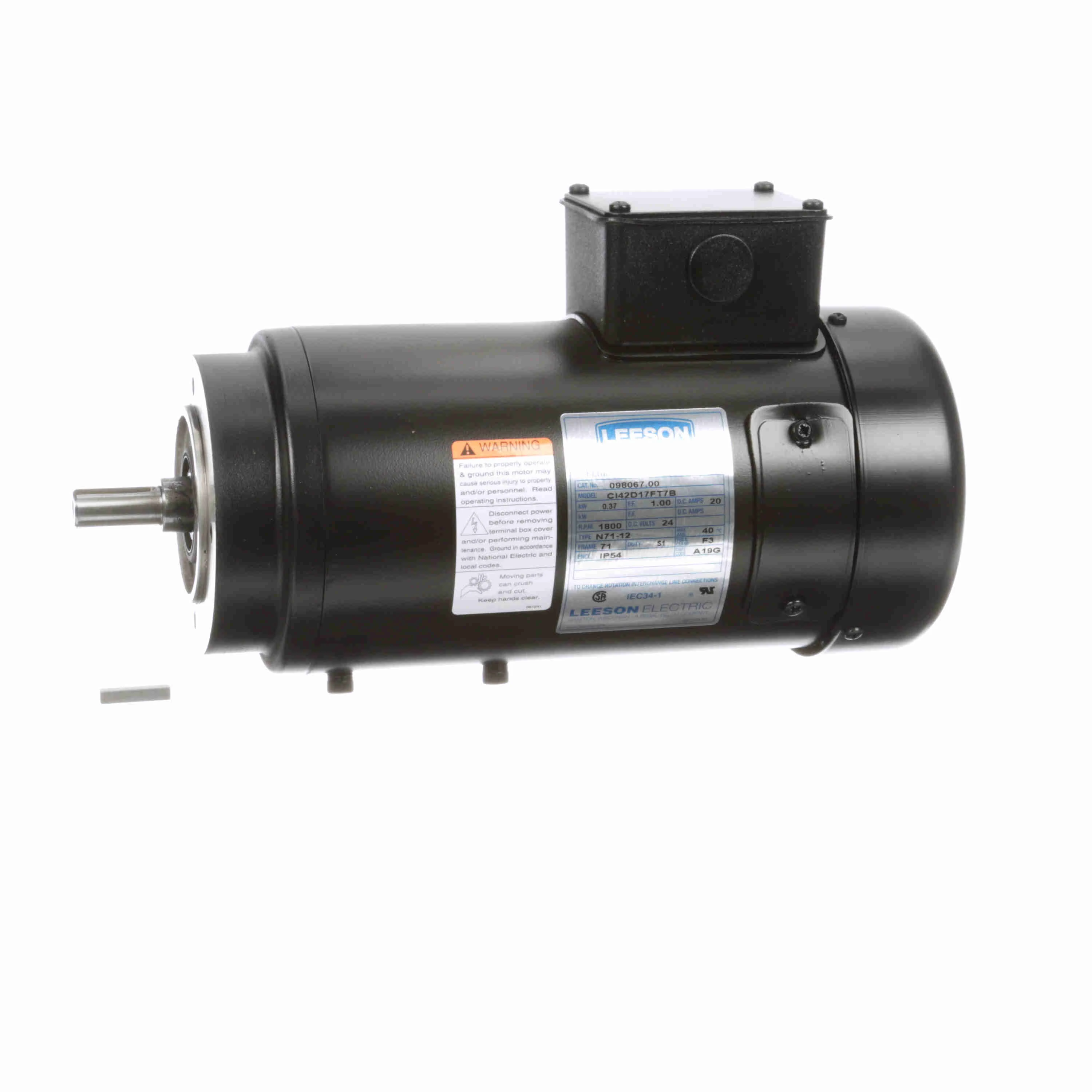

| C | 098067.00 | 1/2 hp | 1800 RPM | 71 | Special | 1700-1800 RPM | 0.562" | 76.9% | 17.5 lbs.-in. | $723.96 | |
| D | 108456.00 | 1 hp | 3000 RPM | 80 | Special | 3000 RPM | 3/4" | 77.4% | 21 lbs.-in. | $786.99 | |

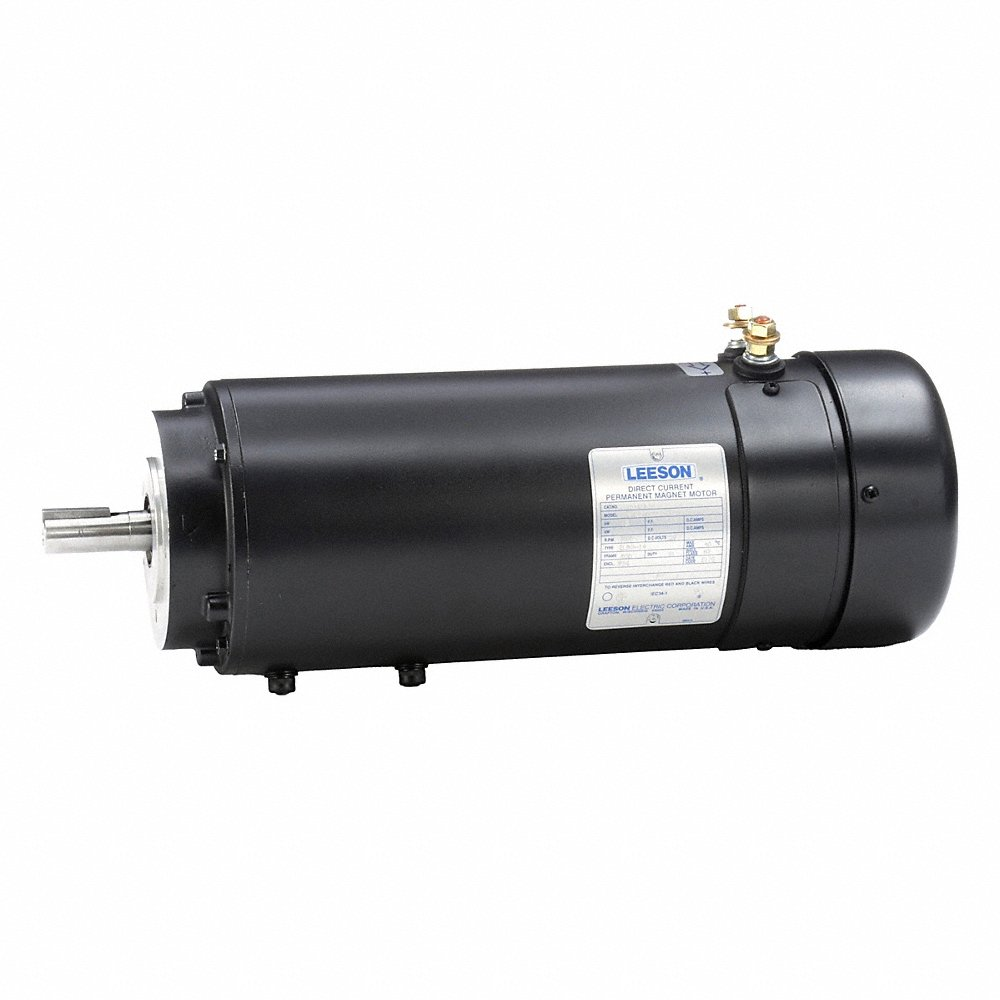

| E | 108458.00 | 2 hp | 3000 RPM | 80D | Special | 3000 RPM | 3/4" | 82.7% | 42 lbs.-in. | $1,142.87 | |

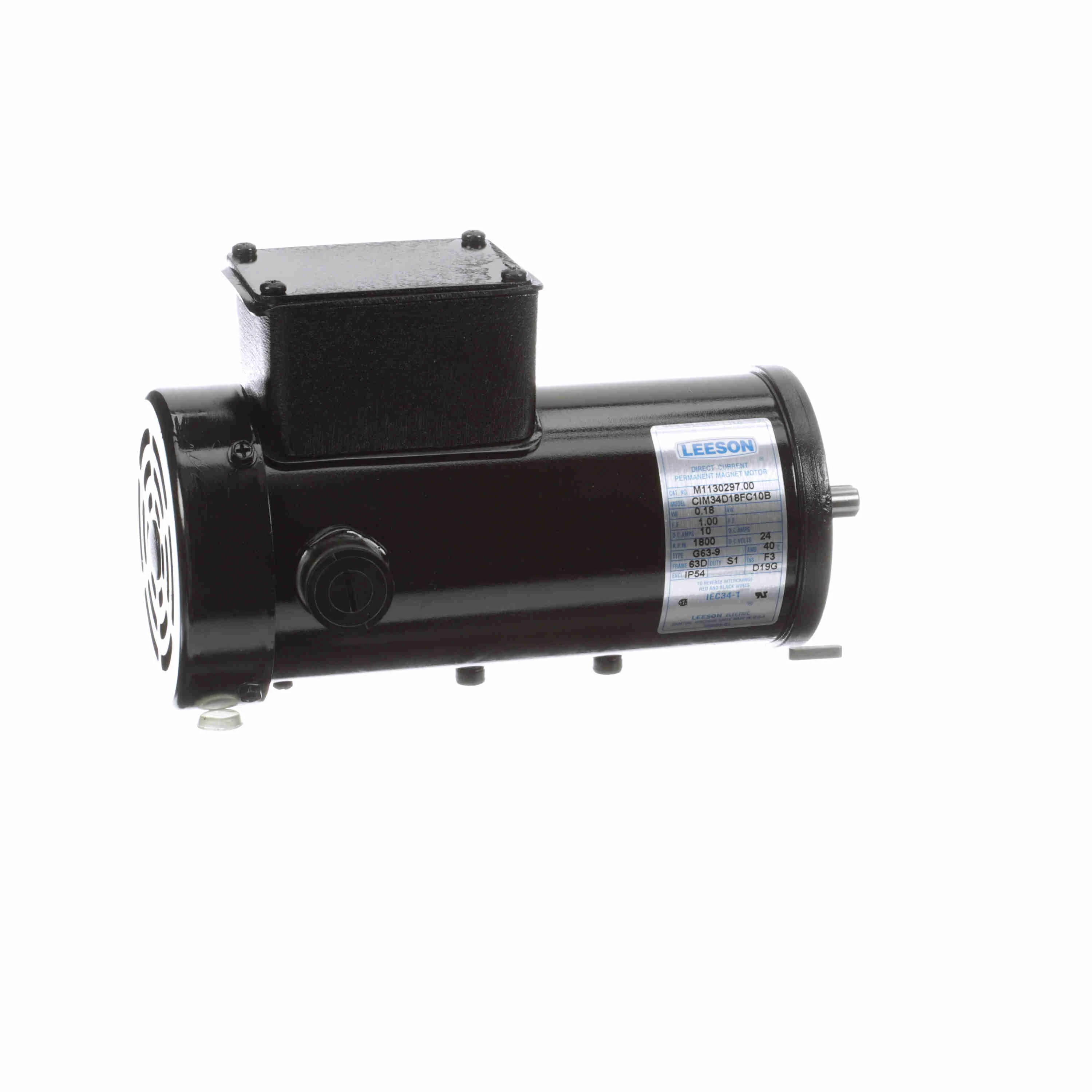

| F | M1130297.00 | 1/4 hp | 1800 RPM | 63D | B14 | 1700-1800 RPM | 0.437" | 76.5% | 135 oz.-in. | $700.53 |
