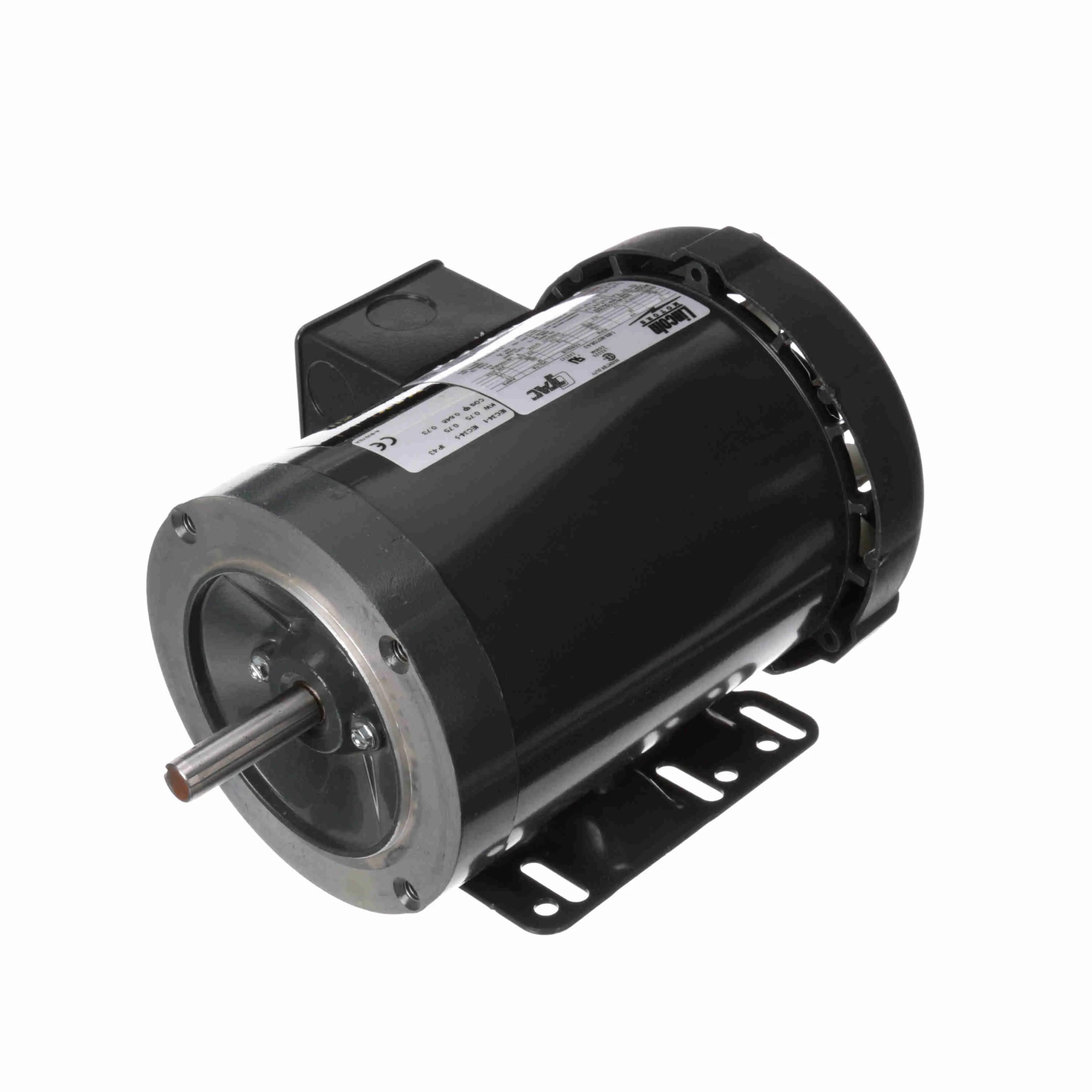

| Item | Vector Motor |
|---|---|
| Ambient Temp. | 40°C |
| Amps | 1.8/3.6A |
| Assembly/box Mounting | F1 Only |
| Cc Number | Exempt |
| Code | L |
| Constant Torque | 2000:1 |
| Curvepoint | Break Down |
| Design | INV, L |
| Design Code | B |
| Drive End Bearing Size | 203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 77% |
| Efficiency @ 100% | 77% |
| Electrical Type | Squirrel Cage, Inverter Duty |
| Enclosure Type | Tefc |
| Frame | 56HC |
| Frame Length | 7 3/5" |
| Frame Material | Rolled Steel |
| Frame Size | 56HC |
| Frame Suffix | Hc |
| Frequency | 50/60 Hz |
| Full Load Amps | 1.9/3.8A |
| Hazardous Location | Not Available |
| Height | 8 3/25" |
| Hp | 1 hp |
| Insulation Class | Class F |
| Inverter Load Ratio | 10:1 |
| Inverter Load Type | Constant |
| Ip Code | 43 |
| Kw | 0.75 kW |
| Length | 16.38" |
| Load | 1 |
| Lubrication | Standard |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
|---|---|
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Squirrel Cage Inverter Rated |
| Mounting Type | Rigid |
| Nameplate Rpm | 1800/1500 RPM |
| Nema Rating | NEMA 56 |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 203 |
| Opp. Drive End Bearing Type | Ball |
| Outline | A-100109LN-706 |
| Output Kw | 0.75 kW |
| Overall Length | 12 8/25" |
| Packaging | B |
| Paint | Standard |
| Phase | 3 |
| Power | 0.75 kW |
| Power Factor | 68.4 |
| Protection | No Protection |
| Resistance Main | 17.9 ohms |
| Rotation Type | Reversible |
| Rpm | 1730 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Speed Range | Not Available |
| Starting Method | Inverter Only |
| Synchronous Rpm | 1800/1500 RPM |
| Thermal Protection | Thermostat |
| Torque | 12.7 lbs.-ft. |
| Torquepct | 423 |
| Type | TS |
| Voltage | 230/460V |
| Winding | ZT406 |
| Height (cm) | 20.62 |
|---|---|
| Length (cm) | 41.61 |
| Width (cm) | 26.67 |
| Country Of Origin | MX |
|---|---|
| Weight (kg) | 12.15 |
