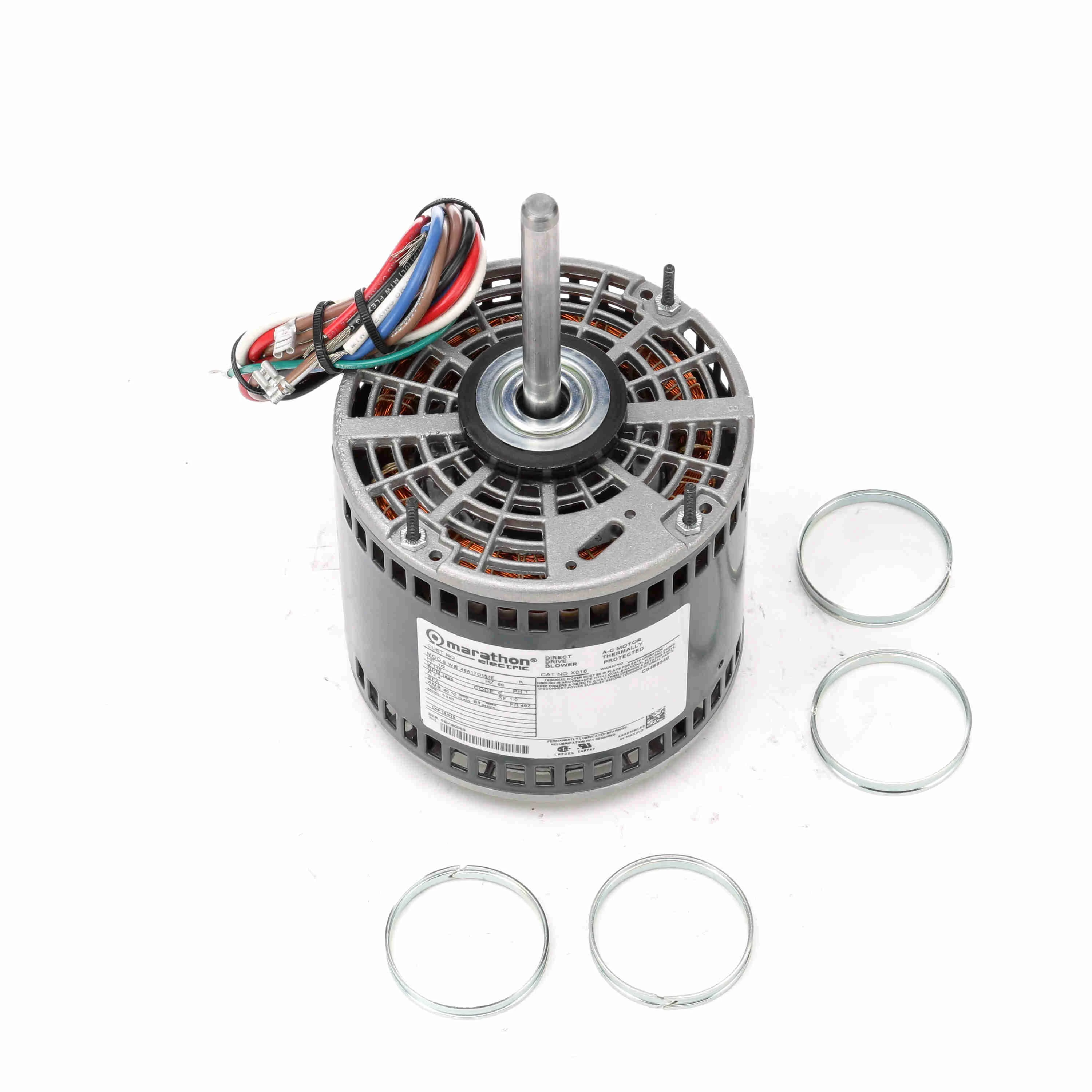

| Item | HVAC Motor |
|---|---|
| Ambient Temp. | 40°C |
| Assembly | F1 Only |
| Bearing Type | Ball |
| Body Dia. | 5 11/16" |
| Bolt Circle Dia. | 5 1/8" |
| Capacitor Required | 2MDV9 |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Efficiency | Not Applicable |
| Enclosure Type | Open Air Over |
| Frame | 48Z |
| Frequency | 60 Hz |
| Full Load Amps | 7.4A |
| Full Load Efficiency | 72% |
| Hp | 1/2 hp |
| Insulation Class | Class B |
| Lead Length | 30" |
| Length Less Shaft | 6 3/16" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Ring, Stud |
| Motor Service Factor | 1 |
|---|---|
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Automatic |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Resilient Ring Extended Studs |
| Nameplate Rpm | 1625 RPM |
| Nema Design | No Design Code |
| Nominal Efficiency | 0.72% |
| Number Of Shafts | 1 |
| Number Of Speeds | 3 |
| Overall Length | 10 1/4" |
| Phase | 1 |
| Power | 0.37 kW |
| Resilient Ring Dia. | 2 1/4" |
| Ring To Ring Center | 5 13/16" |
| Rpm | 1625 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 4 1/16" |
| Shaft Orientation | Horizontal |
| Standards | Csa (Lr2025), Ul (E6312) |
| Stud Size | #8-32 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
| Warranty | 1 yr. |
| Height (cm) | 16.81 |
|---|---|
| Length (cm) | 28.09 |
| Width (cm) | 17.14 |
| HS Code | 8501404040 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 7.2 |
| Style | Model | Hp | Motor Mounting Position | Frame | Shaft Length | Voltage | Motor Enclosure Design | Motor Thermal Protection | Nameplate Rpm | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 048A11O1674 | 1/2 hp | Horizontal | 48Y | 5" | 115V AC | Open Air Over | Automatic | 1075 RPM | $256.91 | |
| B | 048A8O183 | 1/3 hp | Horizontal | 48Y | 5 1/2" | 230V AC | Open Air Over | Auto | - | $373.50 | |
| C | 048A11O787 | 3/4 hp | Horizontal | 48Z | 4.06" | 115V AC | - | - | - | $344.21 | |
| D | 048A11O1755 | 1/2 hp | Horizontal | 48Y | 4.06" | 115V AC | Open Air Over | Automatic | 1075 RPM | $407.75 | |
| E | 048A11O1769 | 1/3 hp | Horizontal | 48Z | 4.06" | 115V AC | Open Air Over | Automatic | 1075 RPM | $261.90 | |
| F | 048A11O2046 | 3/4 hp | Horizontal | 48Z | 4.06" | 208-230V AC | Open Air Over | Automatic | 1075 RPM | $481.00 | |
| G | 048A11O1351 | 1/3 hp | Horizontal | 48Y | 4.06" | 277V AC | Open Air Over | Automatic | 1075 RPM | $391.27 |
