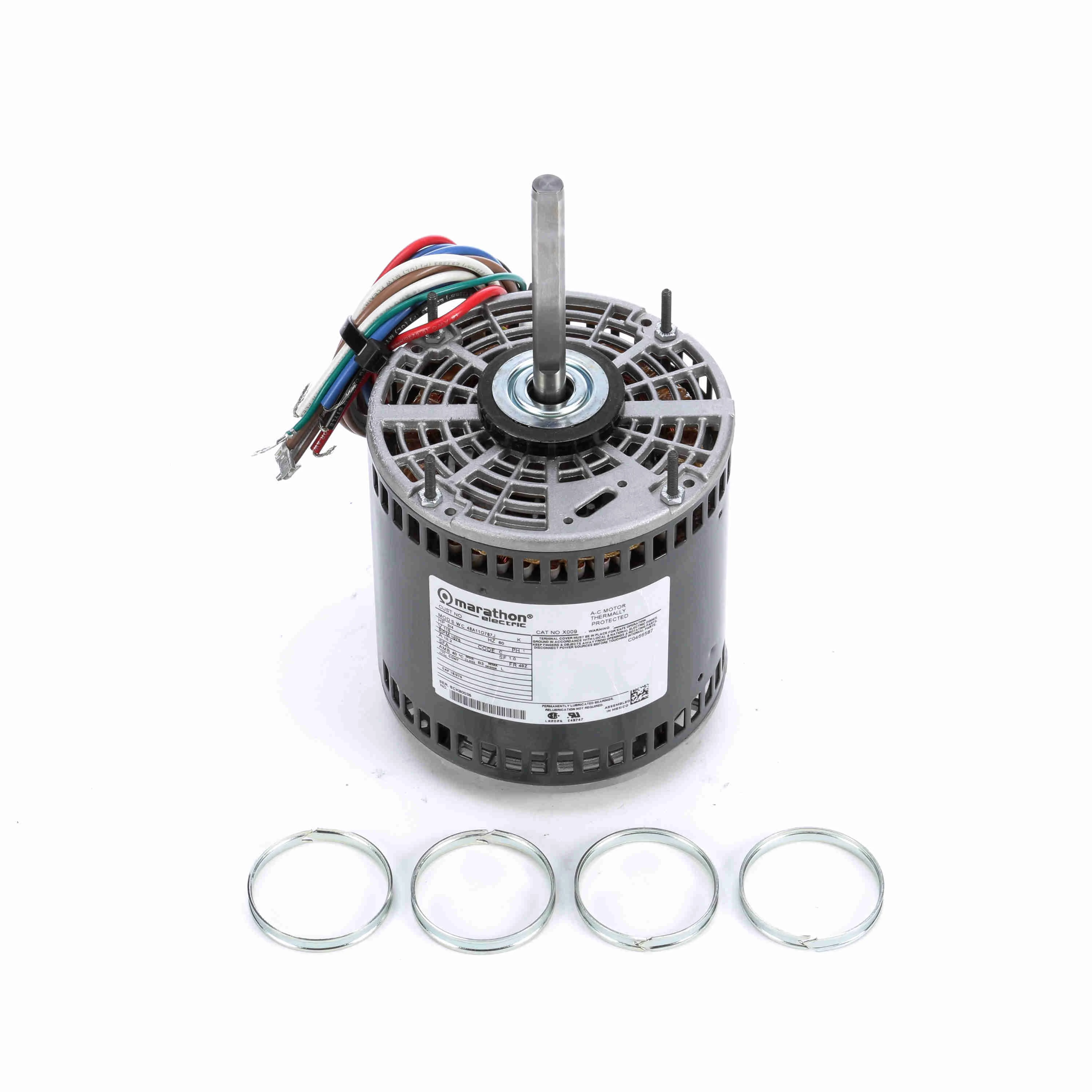

| Item | HVAC Motor |
|---|---|
| Ambient Temp. | 40°C |
| Conduit Box Position | F1 Only |
| Design | L |
| Duty Cycle | Continuous |
| Efficiency | 64% |
| Enclosure Type | Open Air Over |
| Frame | 48Z |
| Frequency | 60 Hz |
| Full Load Amps | 10.2A |
| Hp | 3/4 hp |
| Insulation Class | Class B |
| Motor Mounting Position | Horizontal |
| Motor Shaft Rotation | Selective CCW |
|---|---|
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Resilient Ring Extended Studs |
| Number Of Speeds | 3 |
| Phase | 1 |
| Rpm | 1075 RPM |
| Service Factor | None |
| Shaft Dia. | 1/2" |
| Shaft Length | 4.06" |
| Shaft Orientation | Horizontal |
| Thermal Protection | Automatic |
| Voltage | 115V AC |
| Height (cm) | 17.63 |
|---|---|
| Length (cm) | 33.66 |
| Width (cm) | 17.78 |
| HS Code | 8501404040 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 9 |
| Style | Model | Hp | Motor Mounting Position | Frame | Shaft Length | Voltage | Motor Enclosure Design | Motor Thermal Protection | Nameplate Rpm | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 048A11O1674 | 1/2 hp | Horizontal | 48Y | 5" | 115V AC | Open Air Over | Automatic | 1075 RPM | $256.91 | |
| B | 048A8O183 | 1/3 hp | Horizontal | 48Y | 5 1/2" | 230V AC | Open Air Over | Auto | - | $373.50 | |
| C | 048A11O1755 | 1/2 hp | Horizontal | 48Y | 4.06" | 115V AC | Open Air Over | Automatic | 1075 RPM | $407.75 | |
| D | 048A11O1769 | 1/3 hp | Horizontal | 48Z | 4.06" | 115V AC | Open Air Over | Automatic | 1075 RPM | $261.90 | |
| E | 048A17O153 | 1/2 hp | Horizontal | 48Z | 4 1/16" | 115V AC | Open Air Over | Automatic | 1625 RPM | $302.44 | |
| F | 048A11O2046 | 3/4 hp | Horizontal | 48Z | 4.06" | 208-230V AC | Open Air Over | Automatic | 1075 RPM | $481.00 | |
| G | 048A11O1351 | 1/3 hp | Horizontal | 48Y | 4.06" | 277V AC | Open Air Over | Automatic | 1075 RPM | $391.27 |
