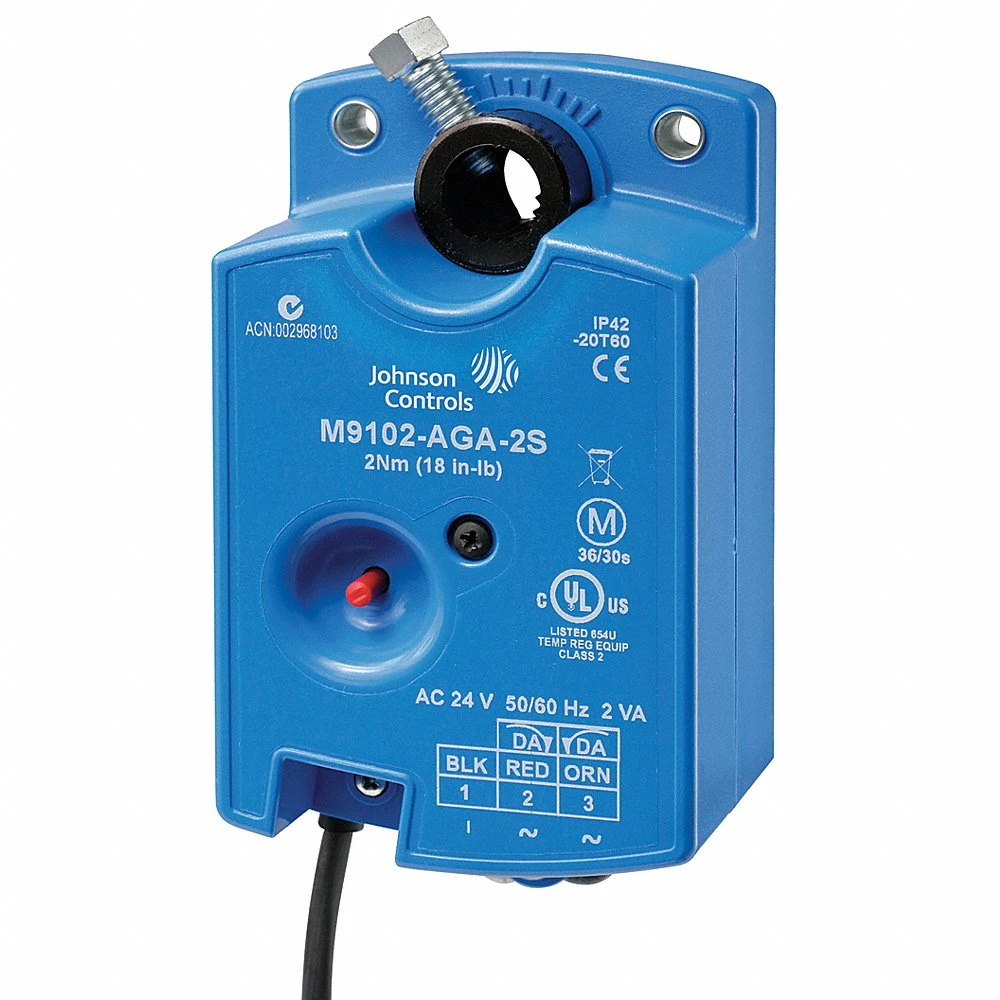

JOHNSON CONTROLS M9102-AGA-2S Floating Actuator 18 Torque

Item: AD4HEM

Model: M9102-AGA-2S

Cross Ref: 41P462

Check Availability

In Stock.

Get it by Thursday, Feb 12

£9.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates

Signal Type

Electrical Connections

We deliver to your doorstep under DAP terms. Customs clearance is for your account

$98.41 /unit (ex. VAT)

Add To Cart

Request Quote

Business customers can apply for Net 30
No fees, No interest, Fast approval.

Payment

Delivery

Specifications

Item	Electric Actuator
Ambient Temp. Range	140°F
Application	Damper
Control Signal	Floating Point
Depth	2 1/4"
Electrical Connection Type	Hardwired
Electrical Connections	Cable
For Shaft Dia.	1/2"
For Shaft Diameter	1/2"
For Shaft Height	3/8"
For Shaft Shape	Round, Square
For Shaft Width	3/8"
For Use With Building Automation Systems	Building Automation System Compatible
Height	5 5/32"
Includes	Anti-Rotation Bracket
Input Voltage	24V AC
Ip Rating	IP42
Maximum Operating Temperature	140°F
Minimum Operating Temperature	-4°F
Mounting Type	Direct Mount
Nema Rating	2
Number Of Auxiliary Switches	0

Overall Depth	2 1/4"
Overall Height	5 1/8"
Overall Width	2 7/8"
Plenum Rating	Plenum Rated
Power Consumption	2.1 VA
Product Type	Actuator
Rated Torque	18 lbs.-in.
Return Action	Non-Spring Return
Shaft Rotation	CW/CCW
Signal Type	Floating Point
Spring Return	No
Stroke Deg.	90°
Stroke Degree	93°
System Application	Dampers, Vav Boxes, Zone Valves
Time To Close	30 sec.
Timing	30 sec.
Torque	18 lbs.-in.
Type	Non Spring Return
Valve Application	Damper
Voltage	24A AC
Width	2 13/16"
Standards	C-TICK MARK AUSTRALIA, CE CERTIFIED, CSA CERTIFIED C22.2 NO. 139, EMC DIRECTIVE 2004/108/EC, GUIDE NO. XAPX FOR USA AND CANADA, NZ EMISSIONS COMPLIANT, UL LISTED 60730-1, UL LISTED E4436
