| Item | Electromechanical Timer |
|---|---|
| Amps | 40A |
| Applicable Ac Voltage Ranges | 208-277V AC |
| Application | Lighting |
| Body Color | Gray |
| Body Material | Metal |
| Color | Gray |
| Compatible Lighting | HID, LED |
| Contact Form | SPST |
| Contact Hp @ 120v | 2 hp |
| Contact Hp @ 240v | 5 hp |
| Current Rating | 40A |
| Day Skipper | No |
| Depth | 3" |
| Display Qty | 1 |
| Enclosure Type | Steel |
| Features | Manual Override |
| Finish | Gray |
| Has Manual Override | Yes |
| Has Manual Override Cvl | Yes |
| Height | 7 3/4" |
| Horsepower @ 120v - Maximum | 2 hp |
| Horsepower @ 240v - Maximum | 5 hp |
| Indoor/outdoor | Indoor |
| Indoor/outdoor Usage | Indoor |
| Length | 7 3/4" |
| Max. On/off Cycles | 12 |
| Maximum Power Consumption | 3 W |
| Min. Time Setting | 1 hr. |
|---|---|
| Minimum On Off Time | 1 hr. |
| Minimum On/off Times | 1 hr. |
| Mounting | Keyhole |
| Mounting Style | Surface |
| Nema Enclosure Rating | 1 |
| Number Of Circuits | 1 |
| Number Of Poles | 1 |
| Number Of Trippers - Maximum | 2 |
| Number Of Trippers Included | 2 |
| Operating Temperature - Maximum | 130°F |
| Operating Temperature - Minimum | -40°F |
| Overall Depth | 3 7/16" |
| Overall Height | 7 7/8" |
| Overall Width | 5 1/8" |
| Power Consumption Max W | 3 W |
| Product Type | Timer |
| Series | T100 Series |
| Skipper Wheel | Not Included |
| Skipper Wheel Operation Mode | Not Included |
| Time Setting - Max. | 24 hrs. |
| Time Setting - Maximum | 24 hrs. |
| Timer Extra Features | Manual Override |
| Timing Interval | 1 hr. |
| Voltage | 208-277V AC |
| Width | 5" |
| Wiring Option | Terminals |
| Standards | CCSAUS, CULUS |
| Height (cm) | 20 |
|---|---|
| Length (cm) | 8.73 |
| Width (cm) | 13.02 |
| HS Code | 9107008000 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 1.17 |
| Style | Model | Max. On/off Cycles | Min. Time Setting | Contact Form | Max. Time Setting | Enclosure Material | Depth | Number Of Poles | Number Of Trippers Included | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | T7401B | 3 | 3.5 hrs. | SPST | 21 hrs. | - | 4" | 4 | 14 | $463.23 | |
| B | T7401BC | 3 | 3.5 hrs. | SPST | 21 hrs. | - | 4" | 4 | 14 | $1,365.20 | |
| C | T2005 | 6 | - | SPDT | 22 hrs. | - | 3" | 1 | 84 | $473.27 | |
| D | T1905E | 48 | 15 min. | SPDT | 23.75 hrs. | - | 3" | 1 | 96 | $304.90 | |
| E | T101 | 12 | 1 hr. | SPST | - | - | 3" | 1 | 2 | $163.50 | |

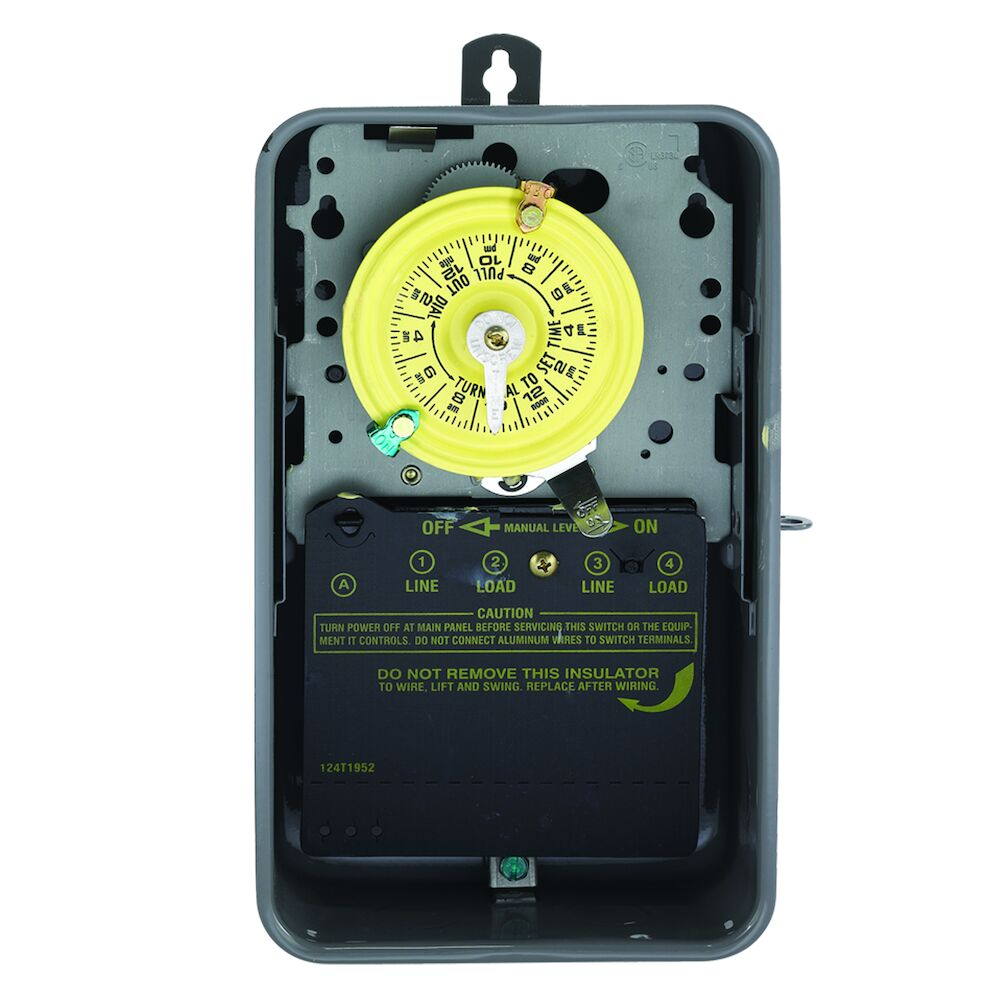

| F | T103 | 12 | 1 hr. | DPST | - | - | 3" | 2 | 2 | $157.99 | |
| G | T171 | 12 | 1 hr. | SPST | - | - | 3" | 1 | 2 | $275.37 |
