| Item | Large Basic Snap Switch |
|---|---|
| Ac Contact Rating | 15A @ 250V |
| Actuation Type | Pin Plunger |
| Actuator Length | 2" |
| Actuator Style | Plunger |
| Actuator Type | Pin Plunger |
| Actuator Type - Snap Action Switch | Pin, Plunger |
| Amps Rating | 15A |
| Body Depth | 0.7" |
| Body Height | 1" |
| Body Material | Phenolic |
| Body Width | 1.94" |
| Center Mounting Hole Distance | 1" |
| Connection | Solder Terminal |
| Depth | 0.7" |
| Depth - Snap Action Switch | 0.7" |
| Differential Travel | 0.0003" |
| Differential Travel - Maximum | 0.0003" |
| Display Qty | 1 |
| Electrical Connection | Solder |
| Electrical Connection - Snap Action Switch | Solder Lug |
| Head | Plunger |
| Head Action | Spring Return, Standard |
| Height | 1" |
| Height - Snap Action Switch | 1" |
|---|---|
| Length | 2" |
| Lever Actuator Length - Snap Action Switch | Not Applicable |
| Max. Pretravel | 0.3 mm |
| Mounting Hole Diameter | 1/8" |
| No. Of Contact Form | 2 , NO/NC |
| Operating Force | 2.5N |
| Operating Force - Maximum | 9 ozf |
| Operating Temp. | 85°C |
| Operating Temperature - Maximum | 185°F |
| Operating Temperature - Minimum | -67°F |
| Operator Configuration | Pin |
| Over Travel | 0.005" |
| Overall Depth | 0.7" |
| Overall Height | 1" |
| Overall Width | 1.94" |
| Pre-travel | 0.012" |
| Release Force | 4 ozf |
| Series | BZ Series |
| Standards | Csa, Ul Listed |
| Temp. Range | 85°C |
| Terminal Type | Solder |
| Voltage | 115V AC |
| Watertight | No |
| Height (cm) | 6.35 |
|---|---|
| Length (cm) | 12.7 |
| Width (cm) | 12.7 |
| HS Code | 8536509055 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 0.0225 |
| Style | Model | Ac Contact Rating | Electrical Connection | Release Force | Max. Pretravel | Over Travel | Terminal Type | Differential Travel | Amps Rating | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

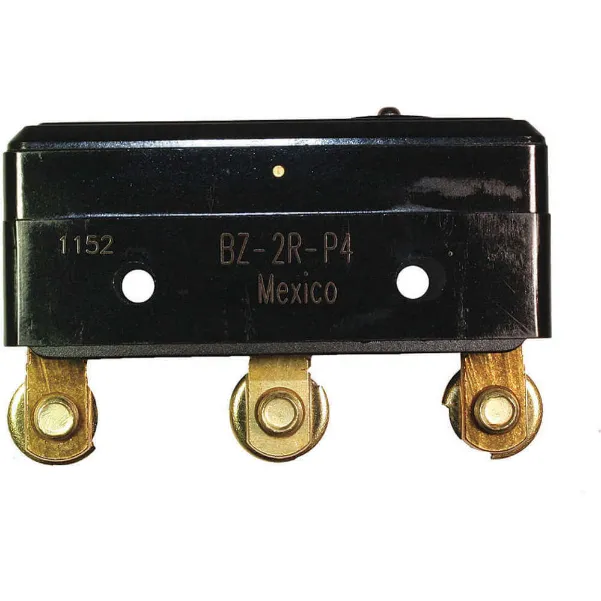

| A | BZ-2R-P4 | 15A @ 125 To 480V | Screw | 4 ozf | 0.015" | 0.005" | Screw | 0.0004" to 0.002" | 15A | $38.49 | |
| B | DT-2R-A7 | 10A @ 125V, 10A @ 250V | Screw | 2 ozf | 0.075" | 0.005" | Screw | 0.04" to 0.06" | 10A | $326.01 | |

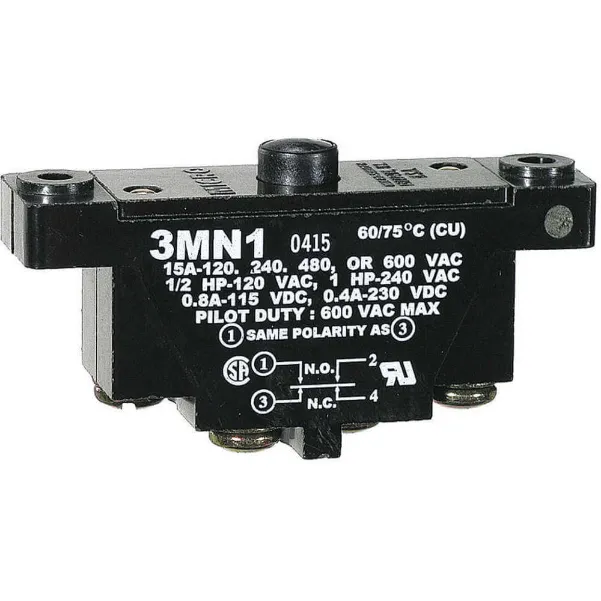

| C | 3MN1 | 15A @ 480V | Screw | 6 ozf | 0.06" | 2/25" | Screw | 0.015" to 0.025" | 15A | $173.63 |
