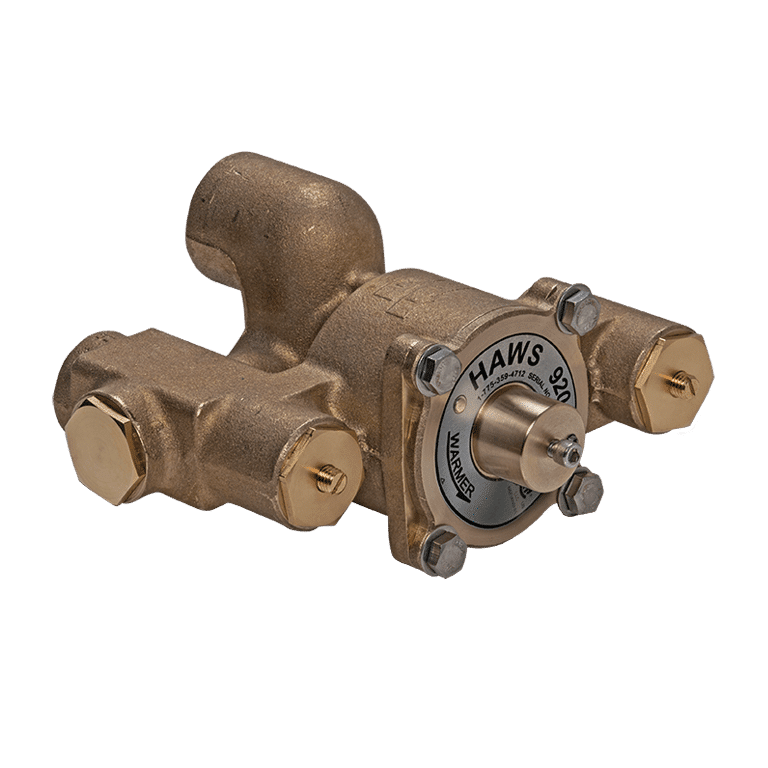

| Item | Emergency Mixing Valve |
|---|---|
| Color | Yellow |
| Depth | 8" |
| Features | Deposits Resistant, Flow Range Of 1 To 31 Gpm (117.3 L), Mixing Chamber, Shuttle Design |
| Fits Brand | Haws |
| For Equipment Type | Eyewash, Shower |
| For Use With | Eyewashes, Showers |
| Height | 6 3/4" |
| Inlet Pipe Gender | Female |
| Inlet Pipe Size | 1" |
| Inlet Pipe Thread Type | NPT |
| Length | 7" |
| Material | Brass |
| Max Flow Rate | 31 GPM |
|---|---|
| Max Inlet Pressure | 125 psi |
| Max Inlet Temp | 180°F |
| Max Water Output Temp | 90°F |
| Minimum Water Output Temperature | 60°F |
| Outlet Pipe Gender | Female |
| Outlet Pipe Size | 1 1/4" |
| Outlet Pipe Thread Type | NPT |
| Valve Features | Cold Water Bypass |
| Valve Material | Brass |
| Width | 4 1/2" |
| standard | ANSI Z358.1, ASSE 1071, CALIFORNIA HEALTH AND SAFETY CODE 116875 (AB 1953-2006), CSA B125.3, NSF/ANSI 372, NSF/ANSI 61-SECTION 8 |
| Height (cm) | 19.56 |
|---|---|
| Length (cm) | 26.16 |
| Width (cm) | 18.8 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 2.0351 |
| Style | Model | Height | Depth | Inlet Pipe Size | Outlet Pipe Size | Material | Color | Inlet Pipe Gender | Inlet Pipe Thread Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 9201E | 5 3/8" | 7 5/8" | 1 1/4" | 1 1/4" | Brass | Yellow | Female | NPT | $3,001.47 | |
| B | 9201EFE | 5 1/4" | 6 1/8" | 1/2" | 3/4" | Brass | Yellow | Female | NPT | $1,996.27 | |
| C | 9202E | 4 7/8" | 10 1/8" | 1 1/4" | 1 1/4" | Brass | Yellow | Female | NPT | $2,918.07 | |
| D | TWBS.EWE | 6 1/2" | 6 3/4" | 1/2" | 3/4" | Brass | Yellow | Female | NPT | $4,388.37 | |
| E | TWBS.HF | 9 5/8" | 12 7/8" | 2" | 2" | Brass | Yellow | Female | NPT | $8,615.59 | |
| F | TWBS.SHE | 9 5/8" | 11" | 1 1/4" | 1 1/4" | Brass | Yellow | Female | NPT | $7,114.11 | |
| G | 9201EW | 3 1/2" | 5" | 1/2" | 1/2" | Brass | Yellow | Female | NPT | $690.47 |
