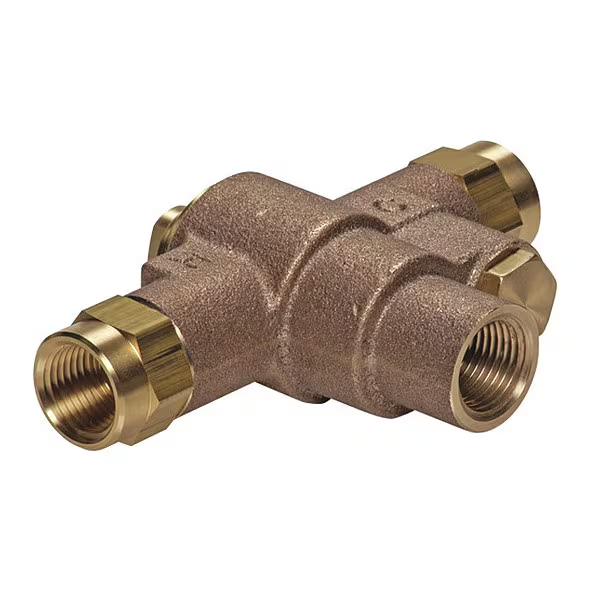

| Item | Emergency Mixing Valve |
|---|---|
| Color | Yellow |
| Depth | 5" |
| Features | Deposits Resistant, Flow Range Of 1 GPM To 10 GPM (37.9 L), Mixing Chamber, Shuttle Design |
| Fits Brand | Haws |
| For Equipment Type | Eyewash |
| For Use With | Single Eyewash |
| Height | 3 1/2" |
| Inlet Pipe Gender | Female |
| Inlet Pipe Size | 1/2" |
| Inlet Pipe Thread Type | NPT |
| Material | Brass |
| Max. Flow Rate | 10 GPM |
| Max. Inlet Pressure | 125 psi |
| Max. Inlet Temp. | 180°F |
|---|---|
| Max. Water Output Temp. | 90°F |
| Minimum Water Output Temperature | 60°F |
| Outlet Pipe Gender | Female |
| Outlet Pipe Size | 1/2" |
| Outlet Pipe Thread Type | NPT |
| Overall Height | 3 1/2" |
| Overall Width | 1 5/8" |
| Sub-brand | Axion |
| Valve Features | Cold Water Bypass |
| Valve Material | Brass |
| Width | 1 5/8" |
| standard | ANSI Z358.1, ASSE 1071, CSA B125.3, CSA CERTIFIED |
| Height (cm) | 6.6 |
|---|---|
| Length (cm) | 12.19 |
| Width (cm) | 17.53 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 0.324 |
| Style | Model | Height | Depth | Inlet Pipe Size | Outlet Pipe Size | Material | Color | Inlet Pipe Gender | Inlet Pipe Thread Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 9201E | 5 3/8" | 7 5/8" | 1 1/4" | 1 1/4" | Brass | Yellow | Female | NPT | $3,001.47 | |
| B | 9201EFE | 5 1/4" | 6 1/8" | 1/2" | 3/4" | Brass | Yellow | Female | NPT | $1,996.27 | |
| C | 9201H | 6 3/4" | 8" | 1" | 1 1/4" | Brass | Yellow | Female | NPT | $3,943.19 | |
| D | 9202E | 4 7/8" | 10 1/8" | 1 1/4" | 1 1/4" | Brass | Yellow | Female | NPT | $2,918.07 | |
| E | TWBS.EWE | 6 1/2" | 6 3/4" | 1/2" | 3/4" | Brass | Yellow | Female | NPT | $4,388.37 | |
| F | TWBS.HF | 9 5/8" | 12 7/8" | 2" | 2" | Brass | Yellow | Female | NPT | $8,615.59 | |
| G | TWBS.SHE | 9 5/8" | 11" | 1 1/4" | 1 1/4" | Brass | Yellow | Female | NPT | $7,114.11 |
