| Item | Blower/Fan Motor |
|---|---|
| Ambient Temperature | 40°C |
| Amps | 11/6.7A |
| Bearing Type | Ball |
| Body Dia. | 5 5/8" |
| Capacitor Required | No |
| Drive End Bearing | Ball |
| Duty | Continuous Air Over |
| Duty Cycle | Continuous |
| Electrical Type | Electronically Commutated Motor |
| Frame | 48 |
| Frame Length | 6.32" |
| Frame Material | Rolled Steel |
| Frame Size | 48 |
| Frame Suffix | Not Available |
| Frequency | 60 Hz |
| Full Load Amps | 11/6.7A |
| Hp | 1 hp |
| Includes | 115V AC White Jumper And HV AC System ID Label |
| Insulation Class | Class B |
| Lead Length | 42" |
| Length Less Shaft | 7 13/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | ECM |
| Motor Frame Material | Aluminum |
| Motor Mounting Type | Band |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
|---|---|
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Type | ECM |
| Mounting | Round |
| Mounting Type | Belly Band |
| Nameplate Rpm | 1075 RPM |
| No. Of Shafts | 1 |
| No. Of Studs | 4 |
| Opp Drive End Bearing | Ball |
| Output Hp | 1 hp to 1/2 hp |
| Output Kw | 0.75 kW |
| Overall Length | 12 3/4" |
| Phase | 1 |
| Poles | 12 |
| Rotation | CW/CCW |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Diameter | 0.5" |
| Shaft Extension | 4.92" |
| Shaft Length | 4 15/16" |
| Shaft Type | Flat |
| Speed | 1075 RPM |
| Thermal Protection | Electronic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115/230V AC |
| Motor Thermal Protection | None |
| Standards | UL RECOGNIZED (1004) |
| Height (cm) | 20.32 |
|---|---|
| Length (cm) | 40.64 |
| Width (cm) | 20.32 |
| HS Code | 8501316000 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 9 |
| Style | Model | Voltage | Hp | Motor Mounting Type | Frame | Shaft Dia. | Shaft Length | Motor Shaft Rotation | Motor Sub Application | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

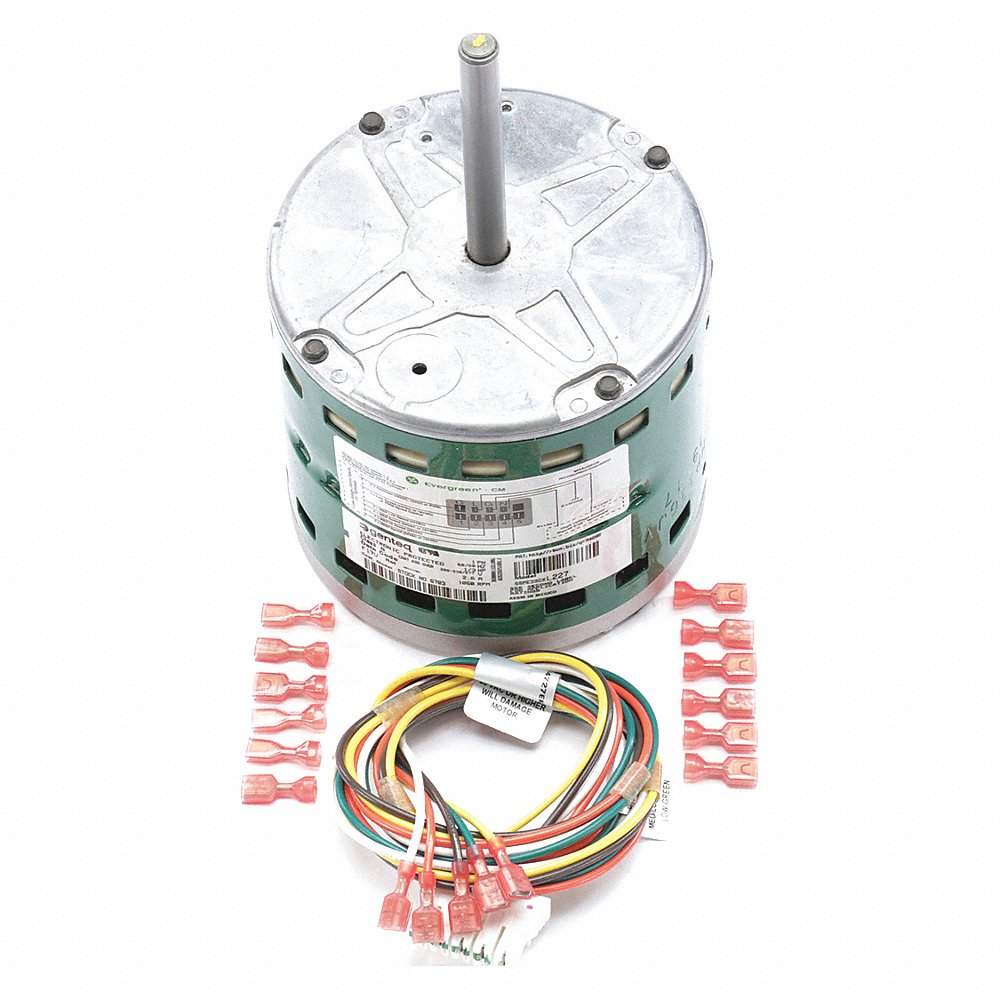

| A | 6703 | 208-230/277V AC | 1/3 hp | Face | 48 | 1/2" | 3 15/16" | Clockwise/Counter Clockwise | Direct Drive Fan/Blower | $562.48 | |
| B | 6705 | 208-230/277V AC | 1/2 hp | Face | 48 | 1/2" | 3 15/16" | Clockwise/Counter Clockwise | Direct Drive Fan/Blower | $618.24 | |

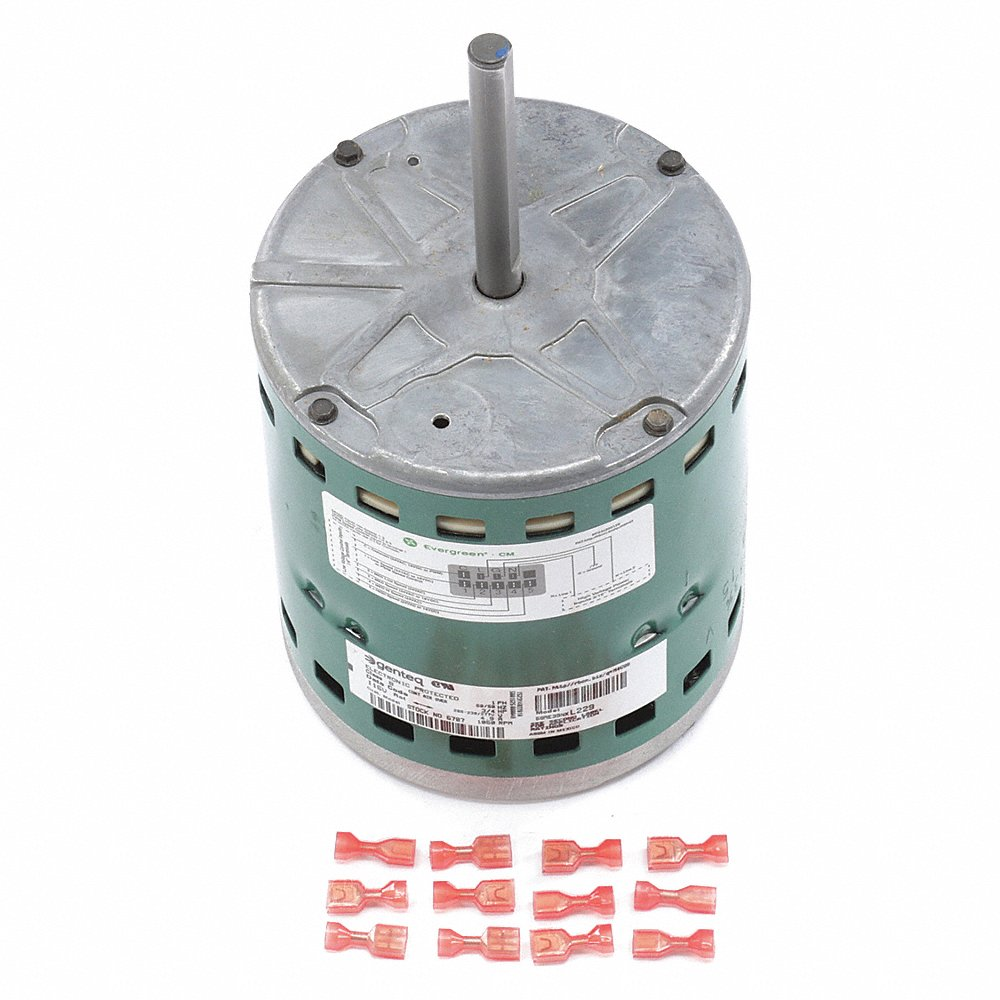

| C | 6707 | 208-230/277V AC | 3/4 hp | Face | 48 | 1/2" | 3 15/16" | Clockwise/Counter Clockwise | Direct Drive Fan/Blower | $713.51 | |

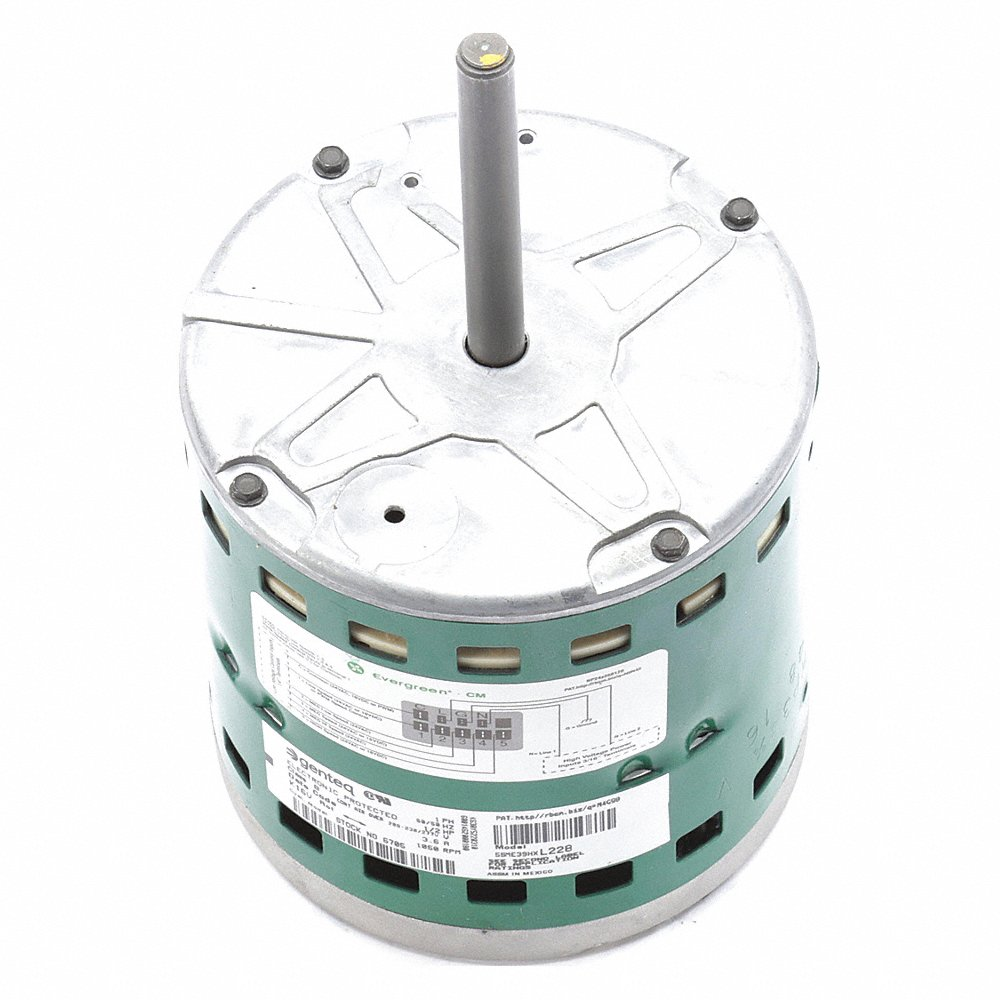

| D | 6005 | 115/230V AC | 1/2 hp | Band | 48 | 1/2" | 4 15/16" | Clockwise/Counter Clockwise | Direct Drive Fan/Blower | $588.26 | |
| E | 5SME59BVA2037 | 208-230V AC | 1/15 hp | Ring, Stud | 3.3 | 5/16" | 2 5/8" | Clockwise Lead End | Refrigerator/Freezer | $425.69 | |

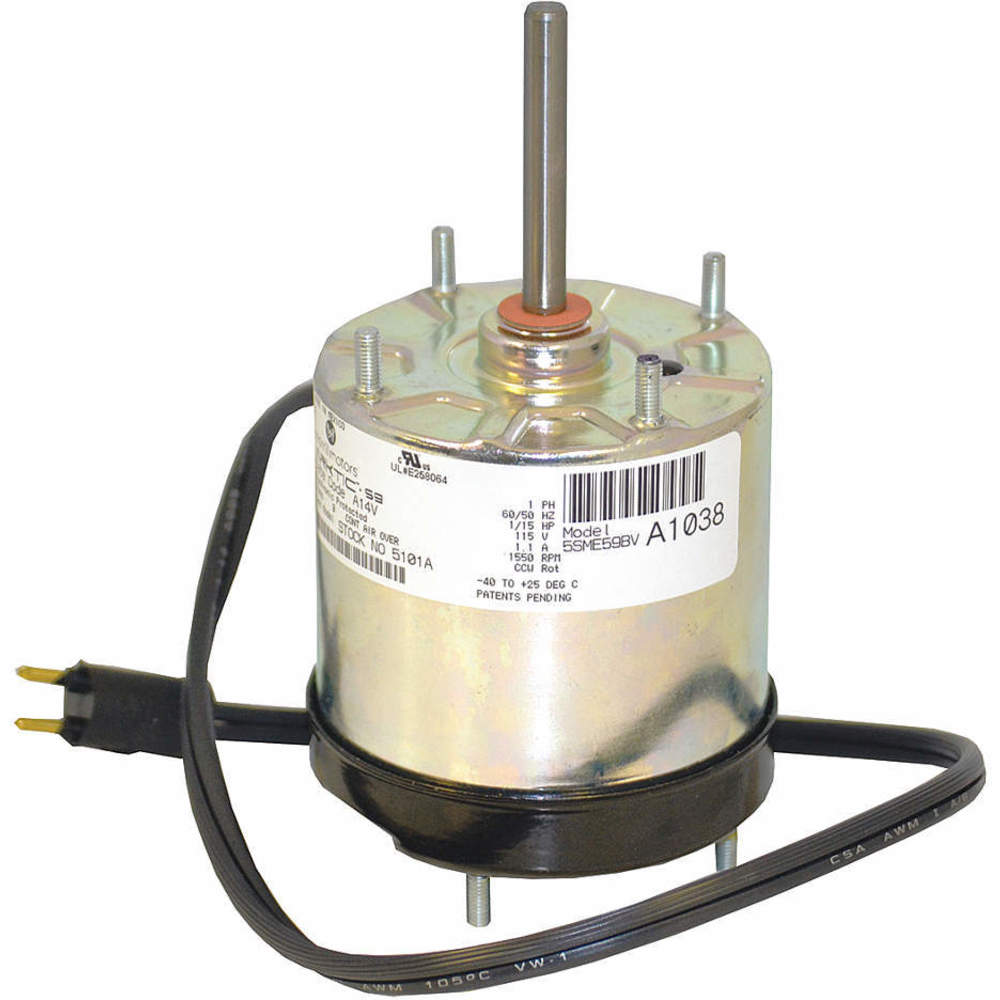

| F | 5SME59BVA2039 | 208-230V AC | 1/15 hp | Ring, Stud | 3.3 | 5/16" | 2 5/8" | Counter Clockwise Lead End | Refrigerator/Freezer | $400.23 | |
| E | 5SME59BVA1036 | 115V AC | 1/15 hp | Ring, Stud | 3.3 | 5/16" | 2 5/8" | Clockwise Lead End | Refrigerator/Freezer | $390.01 |
