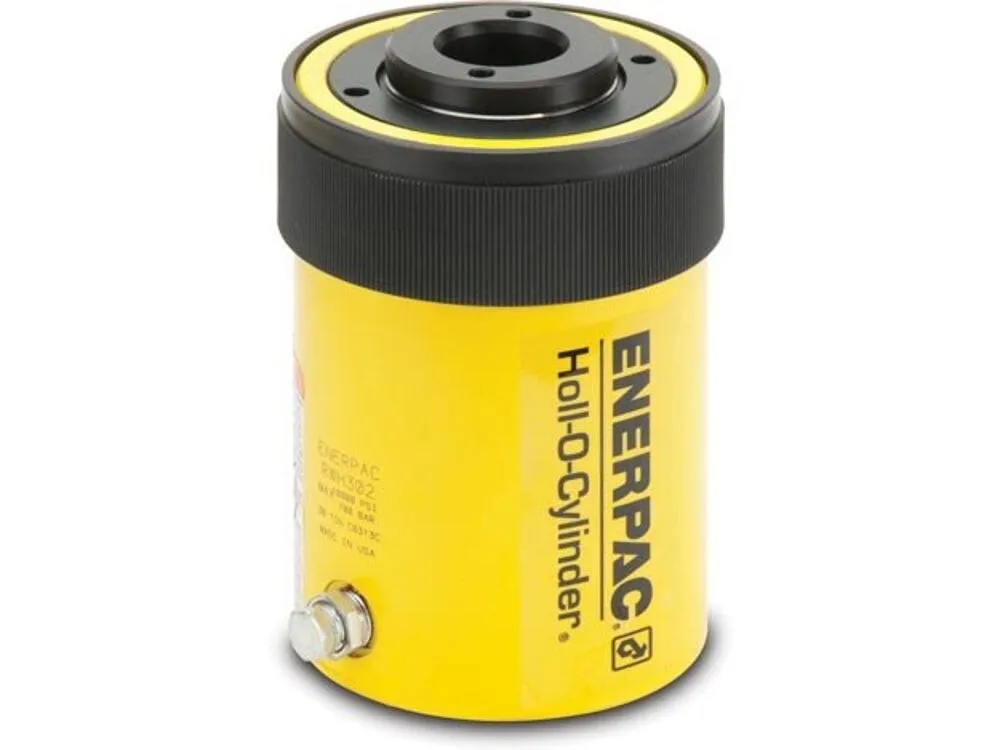

| Item | Hydraulic Cylinder |
|---|---|
| Base Bolt Circle Dia. | 2 1/2" |
| Base Mounting Thread Size | 3/4"-16 |
| Body Material | Steel |
| Bolt Circle Dia. | 2 1/2" |
| Center Hole Dia. | 1.31" |
| Collar Thread Size | 4 1/2"-12 |
| Cylinder Type | Hollow Plunger |
| Dimension A | 6 13/25" |
| Dimension B | 5 13/25" |
| Dimension D1 | 4.49" |
| Dimension F | 2.54" |
| Dimension J | 0.19" |
| Dimension K | 1.31" |
| Dimension T | 22/25" |
| Dimension U | 3.62" |
| Dimension Z | 0.62" |
| Effective Push Area | 7.22 sq. in. |
| Extended Height | 6.12" |
| Handle | No |
|---|---|
| Material | Steel |
| Max. Cylinder Capacity Advance | 36000 lbs. |
| Max. Operating Pressure | 5000 psi |
| Max. Push Capacity | 18 ton. |
| Nominal Capacity | 18 ton. |
| Nominal Stroke Length | 1" |
| Oil Capacity | 18 cu. in. |
| Oil Capacity Push | 18 cu. in. |
| Outside Dia. | 4 1/2" |
| Plunger Dia. | 1.31" |
| Plunger Thread Size | 3/4"-16 |
| Plunger Type | Hollow |
| Promotion Restriction | Not Eligible For Promotion |
| Retracted Height | 5.12" |
| Single Acting/double Acting | Single Acting |
| Stroke Length | 1" |
| Thread Size | 3/4"-16 |
| Weighing Capacity | 18 ton. |
| Height (cm) | 20.32 |
|---|---|
| Length (cm) | 15.24 |
| Width (cm) | 14.99 |
| HS Code | 8412210075 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 9.675 |
