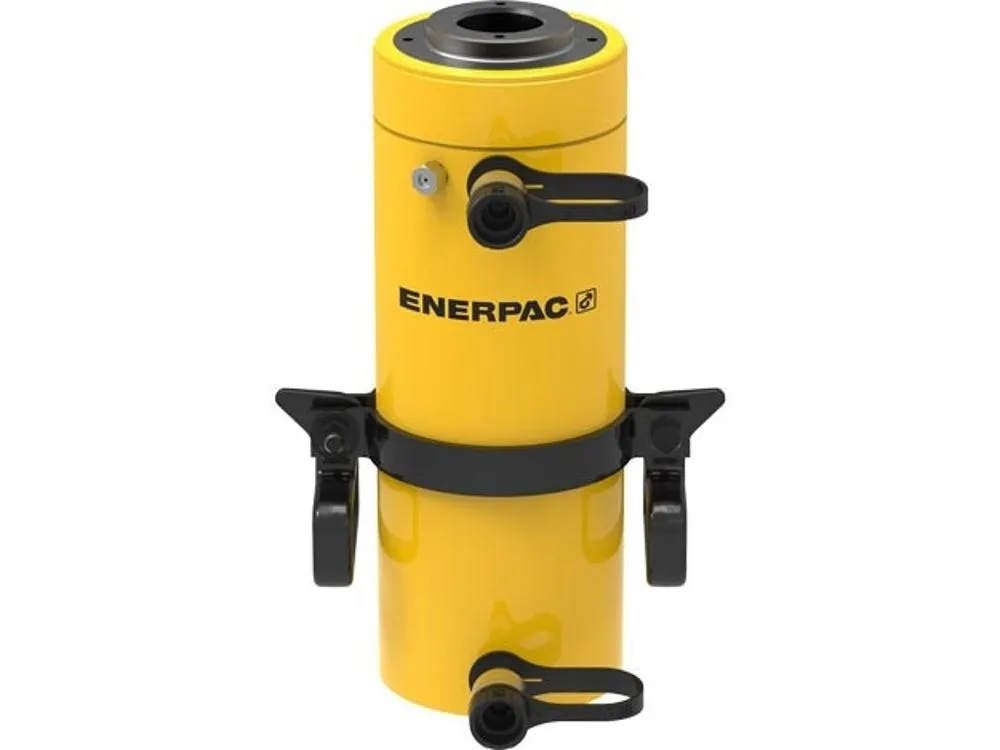

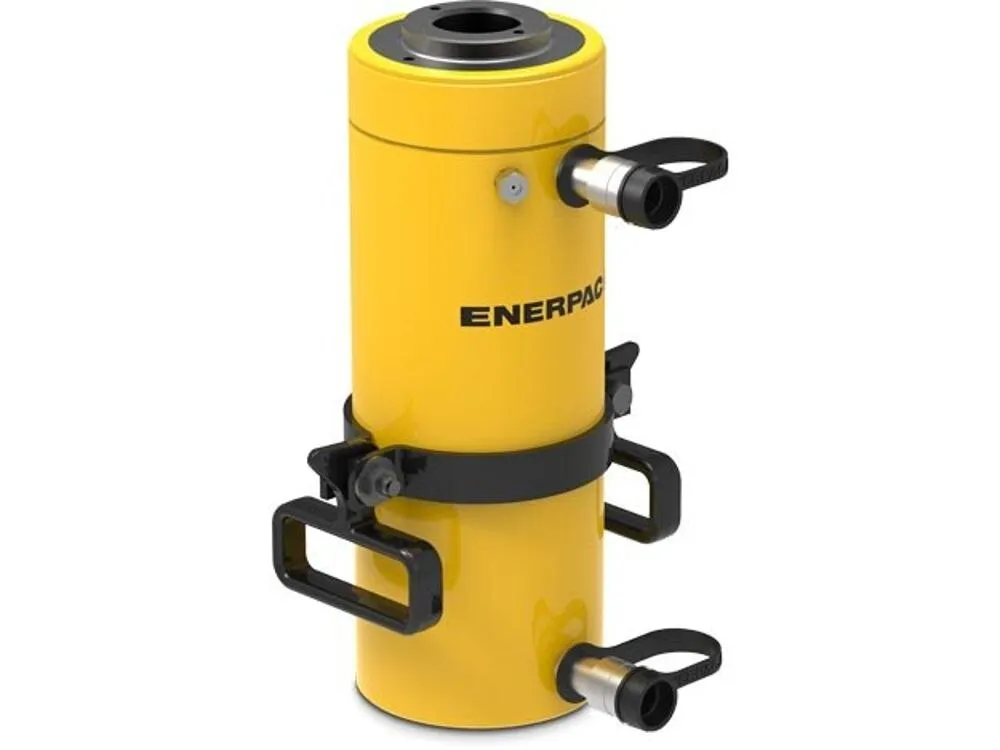

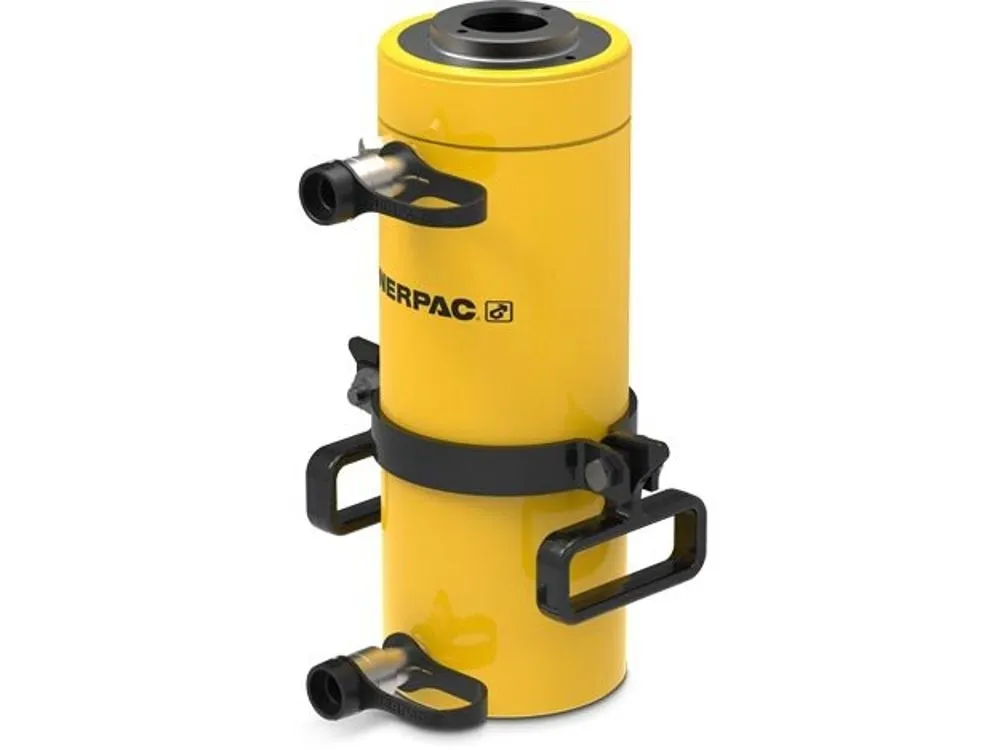

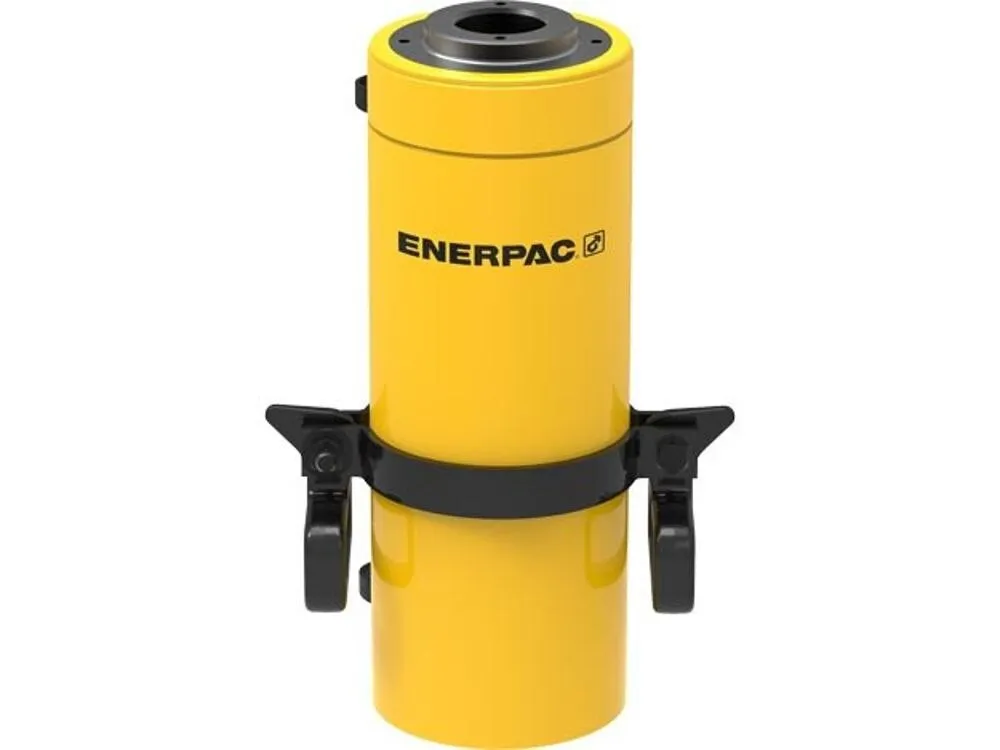

| Item | Hydraulic Cylinder |
|---|---|
| Base Bolt Circle Dia. | 5.12" |
| Base Mounting Holes Thread Size | 1/2"-13 |
| Base Mounting Thread Size | 1/2"-13 |
| Base To Advance Port | 1 1/4" |
| Body Material | Steel |
| Bolt Circle Dia. | 5 3/25" |
| Center Hole Dia. | 2.13" |
| Collapsed Height | 17 1/4" |
| Collar Thread Length | 1.91" |
| Collar Thread Size | 6 1/4"-12 |
| Cylinder Bore | 4 22/25" |
| Cylinder Type | Hollow Plunger |
| Effective Push Area | 12.73 sq. in. |
| Extended Height | 27.38" |
| Finish | Paint |
| Handle | Yes |
| Includes | Dust Cap, Female Coupler |
| Material | Steel |
| Max. Operating Pressure | 10000 psi |
| Max. Push Capacity | 60 ton. |
|---|---|
| Nominal Capacity | 60 ton. |
| Nominal Stroke Length | 10" |
| Oil Capacity | 128.94 cu. in. |
| Oil Capacity Push | 128.94 cu. in. |
| Outside Dia. | 6 1/4" |
| Plunger Dia. | 3.63" |
| Plunger Thread Length | 3/4" |
| Plunger Thread Size | 2 3/4"-16 |
| Plunger Type | Hollow |
| Promotion Restriction | Not Eligible For Promotion |
| Retracted Height | 17.25" |
| Saddle Diameter | 3.61" |
| Saddle Protrusion From Plunger | 1/2" |
| Series | RRH Series |
| Single Acting/double Acting | Double Acting |
| Stroke Length | 10 1/8" |
| Thread Size | 1/2"-13 |
| Top To Retract Port | 2.63" |
| Weighing Capacity | 60 ton. |
| Height (cm) | 22.86 |
|---|---|
| Length (cm) | 50.8 |
| Width (cm) | 22.86 |
| HS Code | 8425420000 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 50.985 |
