| Item | Hydraulic Cylinder |
|---|---|
| Base Bolt Circle Dia. | 2.31" |
| Base Mounting Holes Bolt Circle | 2.31" |
| Base Mounting Holes Thread Depth | 3/4" |
| Base To Advance Port | 1" |
| Body Material | Steel |
| Bolt Circle Dia. | 2.31" |
| Center Hole Diameter | 2 1/4" |
| Collapsed Height | 10 3/4" |
| Collar Thread Length | 1.94" |
| Collar Thread Size | 3 5/16"-12 |
| Cylinder Bore | 2 14/25" |
| Cylinder Type | General Purpose |
| Effective Push Area | 5.16 sq. in. |
| Extended Height | 17" |
| Handle | No |
| Includes | Coupler, Dust Cap |
| Material | Steel |
| Max. Operating Pressure | 10000 psi |
| Max. Push Capacity | 25 ton. |
| Nominal Capacity | 25 ton. |
| Nominal Stroke Length | 6" |
|---|---|
| Oil Capacity | 32.23 cu. in. |
| Oil Capacity Push | 32.23 cu. in. |
| Optional Tilt Saddle Addition To Collapsed Height | 0.59" |
| Optional Tilt Saddle Dia. | 1.97" |
| Outside Dia. | 3.38" |
| Plunger Dia. | 2 1/4" |
| Plunger Internal Thread Size | 1 1/2"-16 |
| Plunger Thread Length | 1" |
| Plunger Thread Size | 1 1/2"-16 |
| Plunger Type | Solid |
| Promotion Restriction | Not Eligible For Promotion |
| Retracted Height | 10.75" |
| Saddle Diameter | 1.97" |
| Saddle Max. Tilt Angle | 5° |
| Saddle Protrusion From Plunger | 0.41" |
| Single Acting/double Acting | Single Acting |
| Stroke Length | 6 1/4" |
| Thread Size | 1/2"-13 |
| Weighing Capacity | 25 ton. |

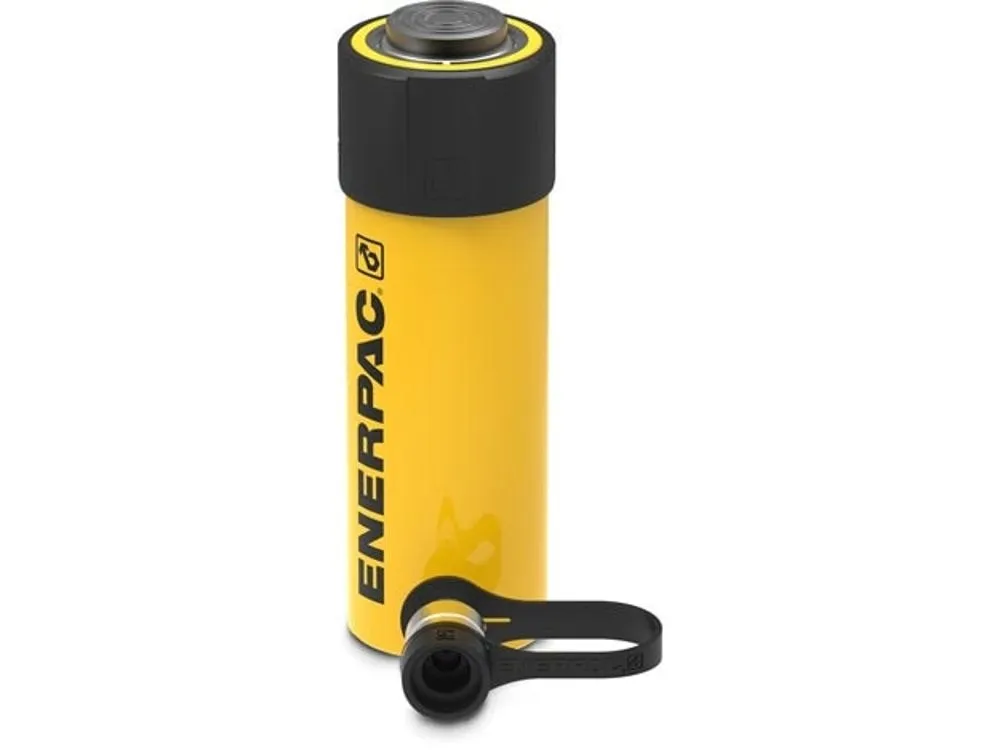

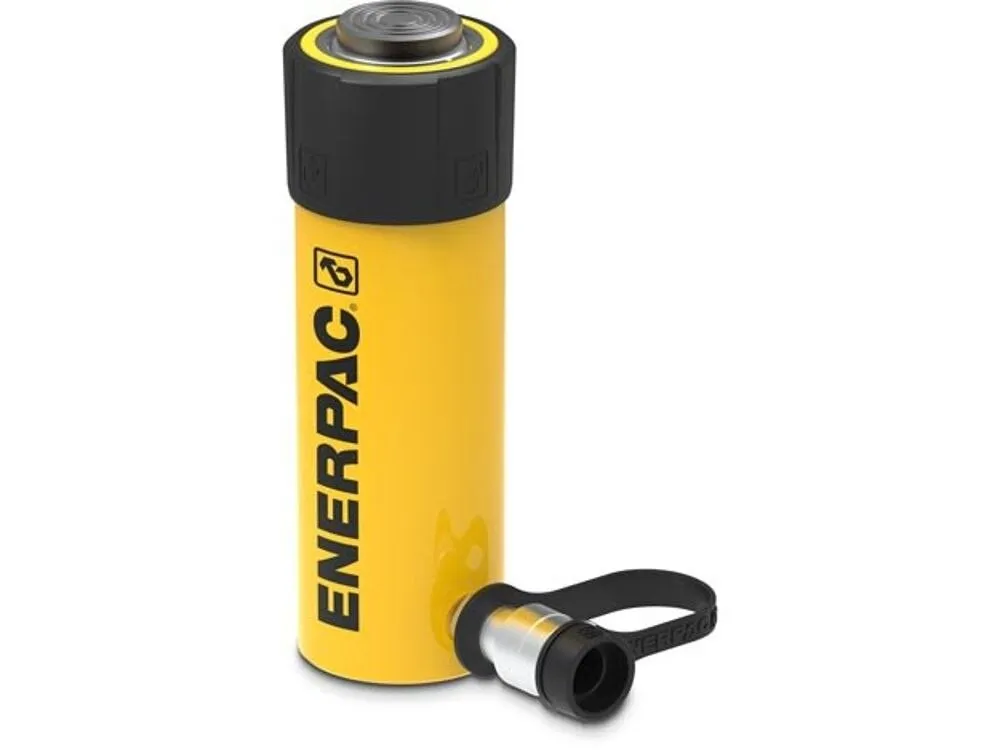

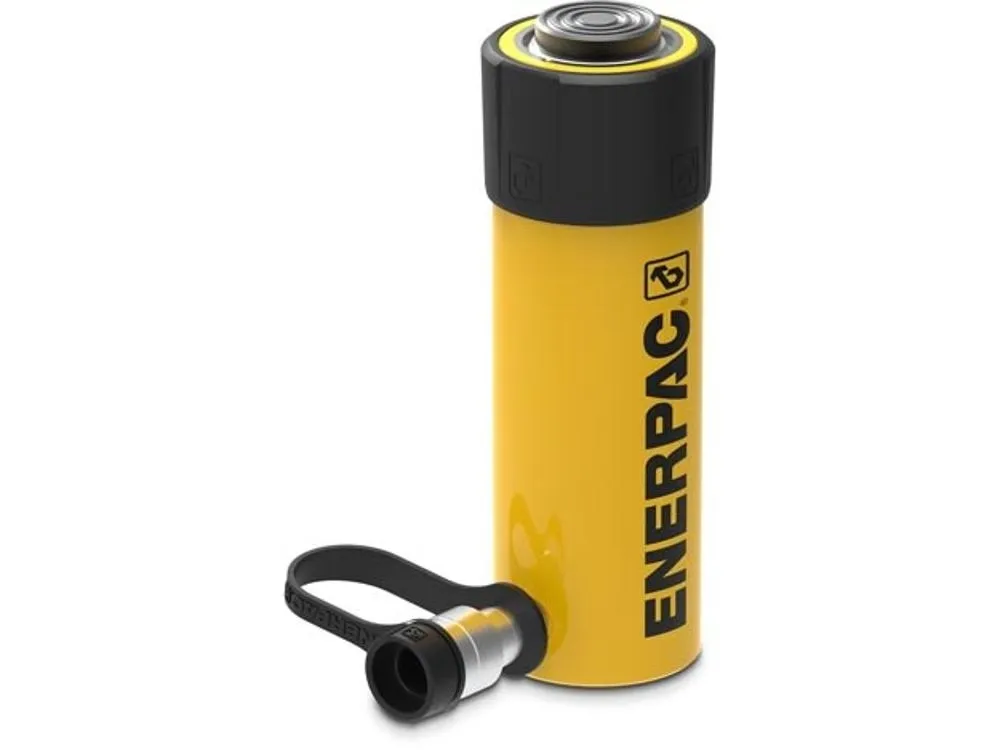

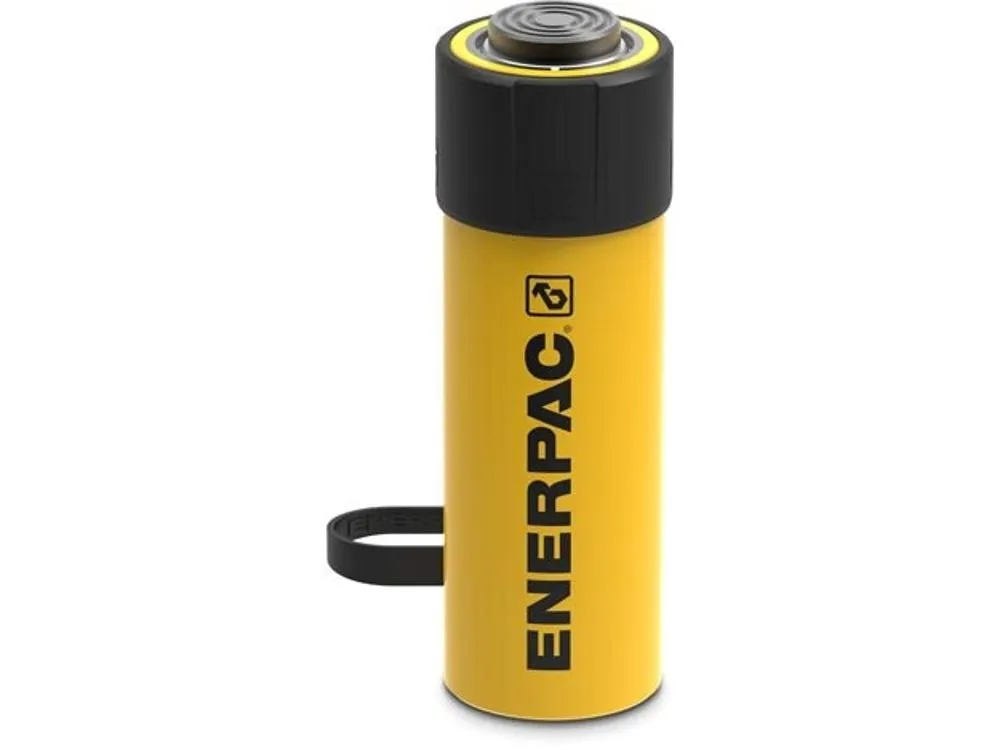

Enerpac RC-256 hydraulic cylinder is designed to lift heavy loads in any position. They have general-purpose rams attached to a hydraulic pump to lift heavy loads with minimal effort. These hydraulic cylinders are beneficial in marines and many offshore engineering applications.
| Height (cm) | 31.75 |
|---|---|
| Length (cm) | 16.26 |
| Width (cm) | 8.59 |
| HS Code | 8412210075 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 10.26 |
Enerpac general purpose hydraulic cylinder can produce up to 10000 psi.
Enerpac RC-256 general purpose hydraulic cylinder is a single-acting cylinder.
This hydraulic cylinder can lift loads weighing up to 25 tonnes.
| Style | Model | Stroke Length | Retracted Height | Outside Dia. | Handle | Oil Capacity | Cylinder Bore | Weighing Capacity | Collar Thread Length | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | RC10010 | 10 1/4" | - | 7" | Yes | 211.45 cu. in. | 5.13" | 100 ton. | 1 3/4" | $11,501.15 | |
| B | RC1512 | 12" | 16.69" | 2 3/4" | No | 37.7 cu. in. | 2" | 15 ton. | 1.19" | $3,662.72 | |
| C | RC7513 | 13 1/8" | 19.38" | 5 3/4" | Yes | 208.74 cu. in. | 4 1/2" | 75 ton. | 1 3/4" | $10,355.62 | |
| D | RC756 | 6 1/8" | 11.25" | 5 3/4" | Yes | 97.41 cu. in. | 4 1/2" | 75 ton. | 1 3/4" | $7,455.89 | |
| E | RC1006 | 6 5/8" | 14.06" | 7" | Yes | 136.67 cu. in. | 5.13" | 100 ton. | 1 3/4" | $6,923.30 | |
| F | RC1012 | 12" | 15.75" | 2 1/4" | No | 26.84 cu. in. | 1.69" | 10 ton. | 1.06" | $1,672.71 | |
| G | RC1014 | 14" | 17.75" | 2 1/4" | No | 31.31 cu. in. | 1.69" | 10 ton. | 1.06" | $1,703.60 |
