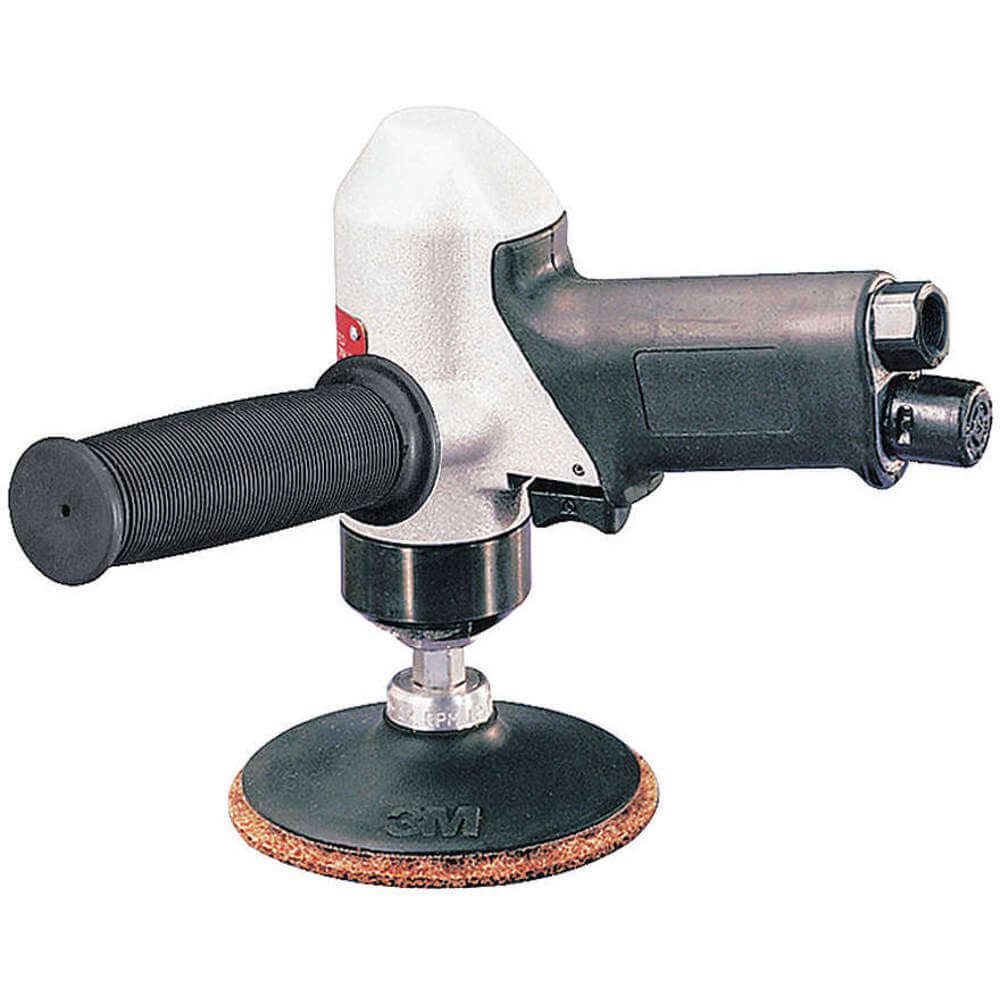

DYNABRADE 50321 Air Disc Sander Industrial 0.7 Hp 4-1/2 In

Item: AA4VKB
Model: 50321
Cross Ref: 13F679
23 In Stock.

Ships within 2 days via

We deliver to your doorstep under DAP terms. Customs clearance is for your account

$1,244.56
10% off
$1,120.10 /unit (ex. VAT)
Add To Cart
Request Quote

Unlock 30-day payment terms

Business customers can apply for Net 30
No fees, No interest, Fast approval.

FREE delivery on orders over $ 150.00

Payment

Specifications

Item Air Disc Sander
Abrasive Attachment Type Threaded Shank
Air Consumption 32 CFM
Air Inlet Size 1/4"
Air Inlet Type NPT
Air Pressure 90 psig
Average Cfm @ 15 Sec. Run Time 8 CFM
Backing Pad Size Included 4 1/2"
Cfm @ Full Load 32 CFM
Duty Heavy
Exhaust Location Rear
Exhaust Type Standard Rear
Features Center Hole Abrasive Discs, Gearless For Reduced Maintenance And Downtime
Free Speed 11000 RPM
Grip Type Pistol
Handle Material Rubber
Horsepower 0.7 hp
Hose Inside Dia. 3/8"
Housing Material Aluminum
Hp 0.7 hp , 7/10 hp
Includes Disc Pad
Max. Air Flow 26 SCFM
Max. Rpm 11000 RPM
Maximum Abrasive Size 5"
Maximum Speed 11000 RPM
Min. Hose Size 3/8"
Minimum Abrasive Size 4 1/2"
Pad Face Type Metal Assembly
Pad Size 4 1/2"
Product Type Air-Powered Disc Sander
Required Pressure 90 psi
Sound Level 67 dBA
Speed Settings Fixed
Spindle Gender Male
Spindle Size 5/8"-11
Spindle Thread Size 5/8"-11
Standards Ce, Eac
Throttle Trigger
Tool Dia./pad Size 4 1/2"
Tool Height 6.1"
Tool Length 6.5"
Tool Style Pistol Grip
Tool Weight 2.9 lbs.
Tool Width 2"
Vacuum Type Non Vacuum
Variable Speed No
Wattage 522 W

Product Details

Dynabrade 50321 air disc sander is suitable for grinding and smoothening surfaces of hard materials, such as wood, metal and plastic.

Shipping Information

Height (cm) 14.29
Length (cm) 16.83
Width (cm) 5.08
HS Code 8460908080
Country Of Origin US
Weight (kg) 1.53

Features

  • It includes a disc pad assembly for easy installation / removal of slotted centre-hole abrasive discs.
  • It features a precision-balanced 0.7 hp motor to deliver a fast rotary action with speeds up to 11000 rpm.
  • This industrial duty tool features a compact, ergonomic design which provides maximum control and comfort.
  • It also comes with a removable side handle for added comfort and easy operation in hard-to-reach spaces.
  • The sander is governor controlled to maintain speed under heavy load and includes a muffler to reduce sound level.

Frequently Asked Questions

How to disassemble the disc mount assembly?

  • Remove the disc mount assembly and side handle.
  • Place machine housing in a soft jaw vise. Do not overtighten the vise to prevent damage.
  • Turn the cover of the disc clockwise and remove it.
  • Pull the motor assembly from the housing.
  • Remove the muffler cap by using a 12 mm hex key to unscrew it from the housing.
  • Unscrew the inlet bushing and remove.

What is the function of a throttle control lever?

A throttle lever is suitable for controlling the speed of the sander and eliminating the pressure point on the palm to reduce operator fatigue.

What is the purpose of a safety lock?

The safety lock lever prevents accidental throttle operation when not in use.
