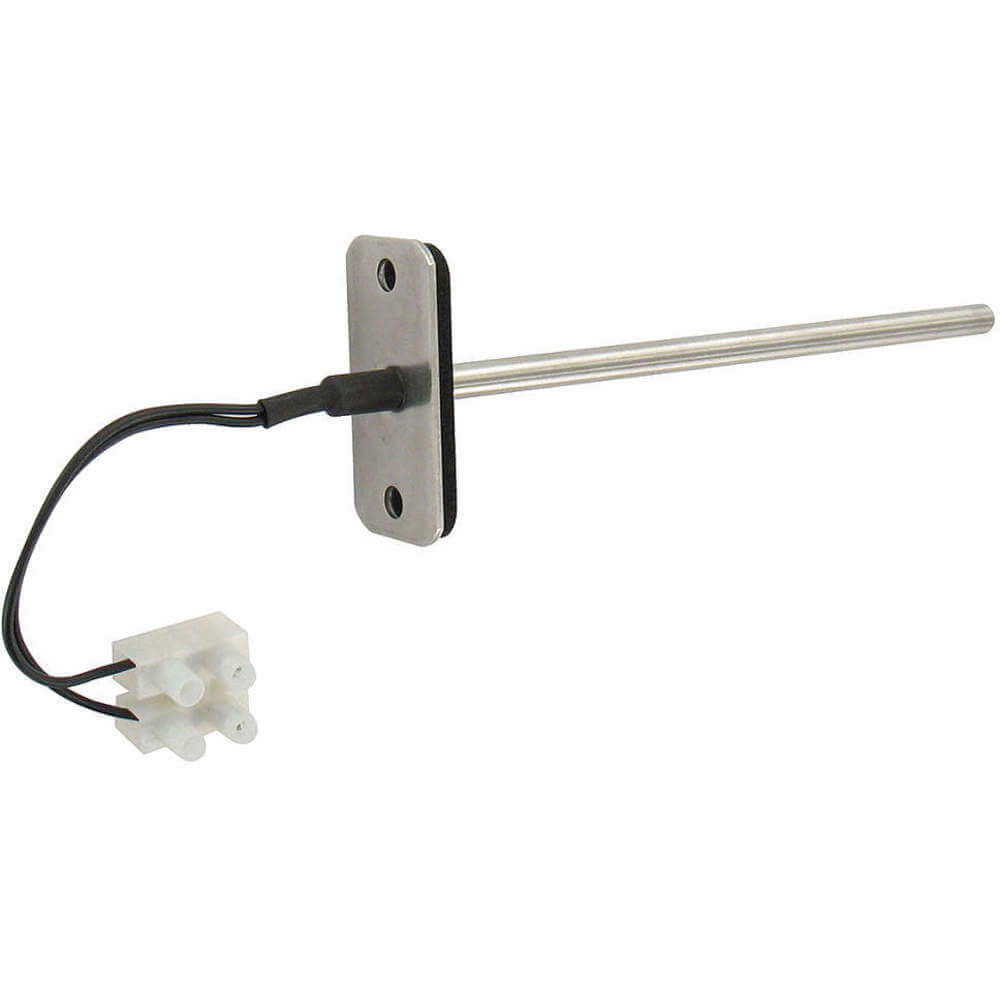

| Item | Duct Temperature Probe |
|---|---|
| Accuracy | ±0.28°F, ±0.15°C (32°F, 0°C) |
| Cable Length | 4" |
| Connection Type | Flange, Probe Only |
| Connector Type | Terminal Block |
| For Air | Yes |
| For Application | Ahu Monitoring, Building Automation, Chiller Or Boiler Loops, Vav Temperature Sensing |
| For Gases | Yes |
| For Liquids And Gels | Yes |
| For Solids | No |
| For Surfaces | No |
| Includes Signal Converter | No |
| Includes Thermowell | No |
| Length | 6" |
| Manufacturer Warranty Length | 1 yr. |
| Maximum Temperature °c | 150°C |
| Maximum Temperature °f | 302°F |
| Minimum Temperature °c | -40°C |
| Minimum Temperature °f | -40°F |
| Number Of Wires | 2 |
|---|---|
| Opening/diameter | 0.235" |
| Probe Bend | Straight |
| Probe Connector | Bare Wire |
| Probe Dia. | 1/4" |
| Probe Diameter | 0.25" |
| Probe Length | 6" |
| Probe Material | Stainless Steel |
| Probe Sheath Material | Grade 304 Stainless Steel |
| Probe Size | 1/4" x 6" |
| Resistance | 1000 ohms |
| Rtd Temp. Sensor Accuracy | -/+ 0.15° C @ 0° C |
| Rtd Type | 2 Wire 1000 ohms |
| Sensor Type | Rtd |
| Temp. Limit (deg. F) | -40°F to +140°F |
| Temperature Measuring Element | RTD, Pt 1000 ohms |
| Temperature Range | -40°F to +302°F |
| Thermistor Temp. Sensor Accuracy | -/+ 0.22 Deg. C @ 25 Deg. C |
| Use | Air And Gases |
| Height (cm) | 7.62 |
|---|---|
| Length (cm) | 22.86 |
| Width (cm) | 30.48 |
| HS Code | 9025198080 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 0.18 |
