| Item | Straight Line Action Clamp |
|---|---|
| Accommodates Workpiece Variation | No |
| Application | Assembly And Test, Tensioning Devices, Welding |
| Arm Length | 2.03" |
| Base Mounting Centers | 1.38" x 1.63" |
| Base Mounting Style | Flange |
| Body Material | Steel |
| Exerted Force Applied Force - Pulling | 23:1 |
| Exerted Force Applied Force - Pushing | 36:1 |
| Fastener Thread Size | 3/8" |
| Handle | Straight |
| Handle Orientation | Horizontal |
| Height Under Arm | 0.81" |
| Holding Capacity | 2500 lbs. |
| Holding Capacity - Maximum | 2500 lbf. |
| Includes | Ergonomic Grip |
| Includes Locking Handle | No |
| Includes Spindle | No |
| Locking Position | Extended, Retracted |
| Material | Steel |
|---|---|
| Mounting Base | Flange |
| Mounting Holes Center To Center - Long Side | 3" |
| Mounting Holes Center To Center - Short Side | 1.38" |
| Overall Depth | 3.05" |
| Overall Height | 3.05" |
| Overall Length | 7.63" |
| Overall Width | 2 1/4" |
| Plunger | Round |
| Plunger Height | 0.81" |
| Plunger Shape | Round |
| Plunger Thread | 3/8"-16 |
| Plunger Thread Size | 3/8"-16 |
| Plunger Travel | 2" |
| Recommended Spindle Model No. | 210203 |
| Spindle Model Number | 210203 |
| Tip Diameter | 5/8" |
| Toggle Lock Plus | No |
| Type | Straight Line Action |

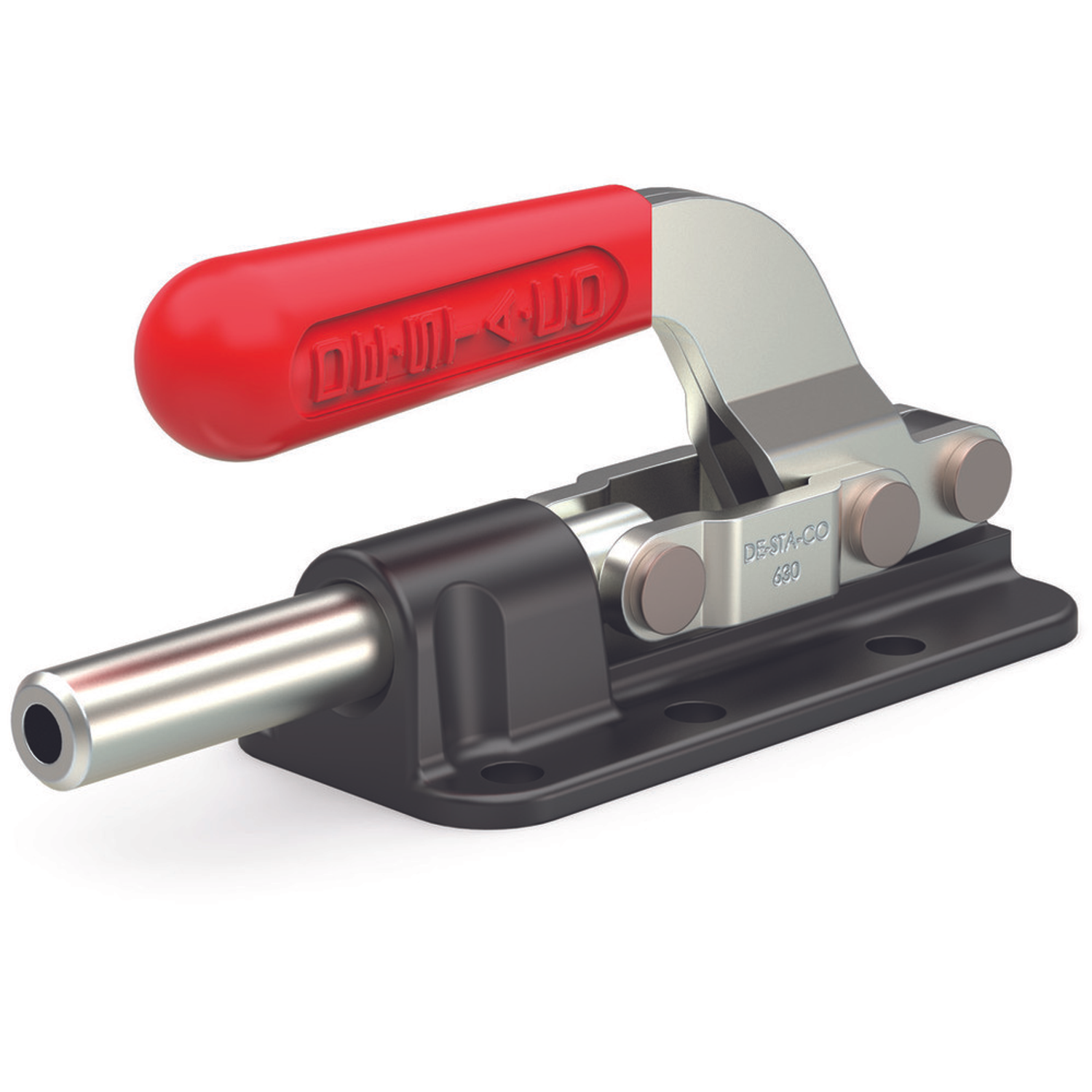

Destaco 630 straight line action clamp is designed for holding workpieces against a vertical surface in woodworking & manufacturing facilities. It is suitable for tensioning devices, assembly & testing and welding applications. This carbon steel clamp features zinc plated finish for delivering resistance against wear / damage in harsh industrial conditions. Its handle locks in both extended & retracted positions that enables the user to use this clamp either in push or pull type configuration. This feature makes this plunger clamp usable in confined spaces & tough to reach areas. Destaco 630 clamp comes with a threaded plunger that accommodates a hex head spindle assembly, thereby making the clamp's plunger length easily adjustable, depending upon the application requirement. The clamp's metal handle features a large plastic grip that ensures user comfort for prolonged usage. It comes with a flanged style base with two pairs of mounting holes for ease of installation on flat surfaces / workbenches. This flanged base design of these Destaco 630 Series clampsalso enables the user to easily uninstall the clamp just by removing the screws.
| Height (cm) | 5.84 |
|---|---|
| Length (cm) | 22.86 |
| Width (cm) | 19.05 |
| HS Code | 8205700090 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.945 |
Yes, a similar carbon steel, flanged base, straight line action clamp (Destaco 630-M) with M10 style plunger thread is also available.
Clamps are application flexible tools that are used to hold a workpiece securely in its place for temporary operations. They are used in a range of applications like furniture making, metal working, construction, carpentry and welding.
Destaco straight line clamps are manual operated push / pull style clamps that are used for various applications including welding, woodworking, tensioning devices and for performing assembly & testing operations.
Unlike straight line action pneumatic clamps, regular manual style clamps from Destaco feature separate handles for engaging the plunger to hold the workpiece in place.
Certain straight line action clamps like Destaco 630 clamp, feature a long threaded plunger that is manually fastened using a plastic grip handle. These clamps also feature a two way locking handle (retracted or extended position) for enabling the user to use this clamp either in push or pull type configuration.
The holding capacity or the holding force depicts the clamp's capability to hold down the equipment or a sheet metal on the assembly line or to perform any other manufacturing process.
For ensuring smooth operation & durability of mechanical clamps, it is recommended to use a coupling grease like Mobil XTC.
The red coloured handles on Destaco clamps denote a recognisable area and make the worker / operator aware about the location of the operating handle and also specify the time when the user should grab it. Its colour has no additional significance to the working of the clamp.
Yes, carbon steel clamps from Destaco are zinc plated which make them capable of withstanding & minimising wear and being used in harsh industrial environments. For applications requiring clamping operation in outdoor conditions, stainless steel clamps are also available.
