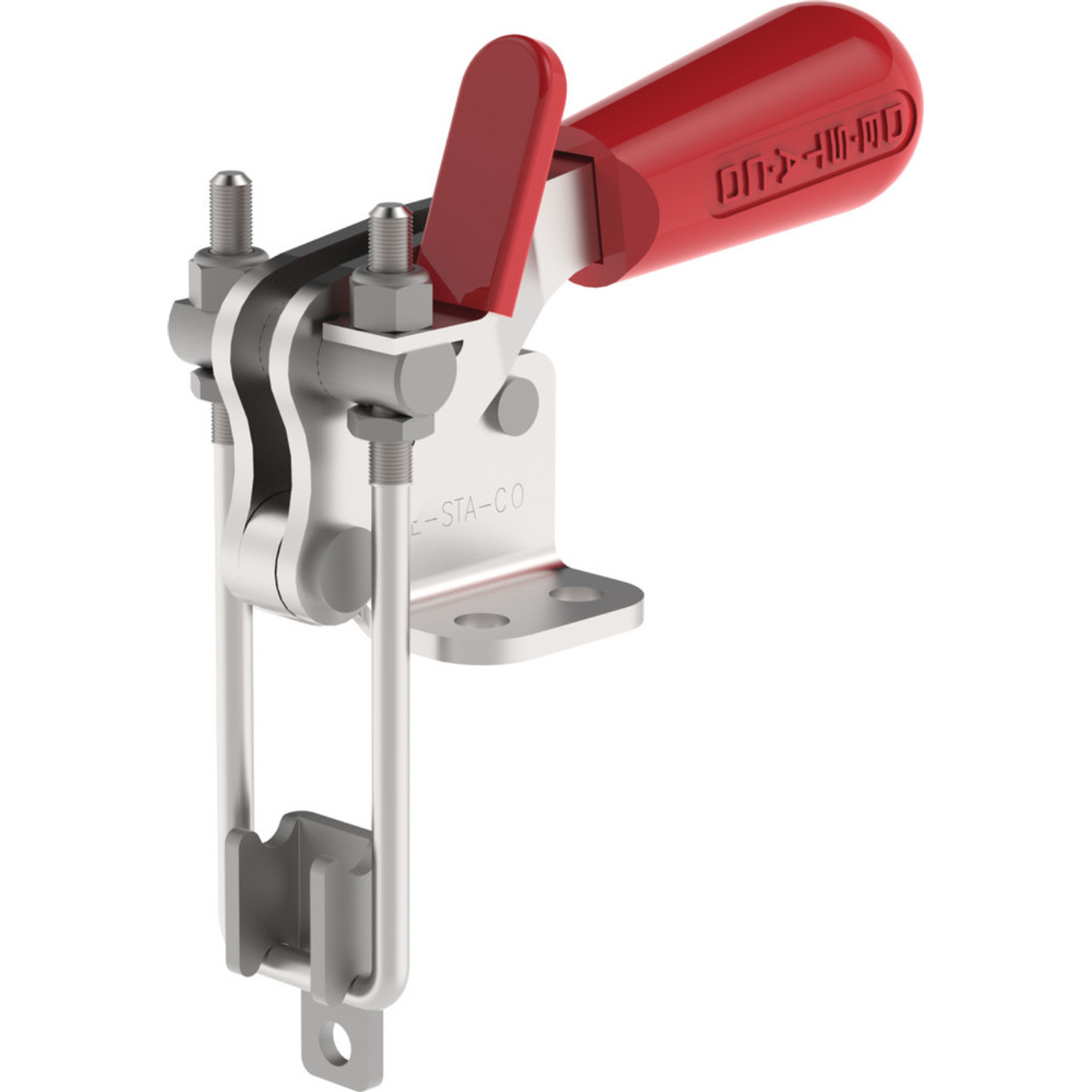

DESTACO 334-SS Pull Action Latch Clamp, 1000 lb Capacity, Flanged Base

Does the brand offer vertical pull action latch clamps in other constructions?

Yes, in addition to Destaco 334-SS stainless steel latch clamp, the brand also supplies carbon steel latch clamps (Destaco 334 & Destaco 334-R).

What is a vertical pull action latch clamp?

Destaco pull action latch clamps have horizontally positioned handles having vertical U hook design which makes them suitable for latching applications on lids, doors, drums, vessels, containers & access covers, as well as assembly & moulding operations.

How do vertical pull action latch clamps work?

Certain U hook style latch clamps (like Destaco 334-SS vertical pull action clamp) feature a long U hook that is manually fastened using a handle. A locking assembly is also screwed onto the workpiece to hold the clamp's U hook, thereby keeping tension between the clamp & workpiece for ensuring secure clamping.

Which grease is recommended to be used with Destaco clamps when rebuilding?

Whenever you're dealing with the brand's mechanical clamps, it is recommended to use a coupling grease like Mobil XTC.

What does holding capacity mean in terms of clamps?

The holding capacity or the holding force depicts the clamp's capability to hold down equipment or sheet metal on the assembly line or during similar manufacturing processes.

Does the brand offer vertical pull action latch clamps in other configurations?

Destaco also offers a wide range of vertical handle toggle clamps in a range of configurations & styles and constructions (stainless steel & zinc plated carbon steel).

Does the red colour of Destaco clamp handles mean anything?

The coloured handles have no such significance, except to denote a recognisable area. This is done to alert the operator about the location of operating handle and where & when should he grab it.

What does clamping force mean?

Clamping force is the amount of force actually applied to a workpiece by closing & locking the clamp. It is normally less than the stated holding capacity. The actual clamping force depends on various factors, such as cylinder bore, cylinder area, spindle position (clamping arm length) and available air pressure. In most cases, the clamping force is approximately 2 to 3 times the force exerted by a pneumatic cylinder.

Are Destaco clamps rust resistant?

Yes, carbon steel clamps from Destaco are zinc plated for withstanding & minimising wear against harsh industrial environments. For applications that require clamping in outdoor conditions, stainless steel clamps are also available.
