Vertical Handle Toggle Clamps

Handle Orientation	Maximum Holding Capacity	Body Material	Overall Depth	Height Under Arm	Handle Material	Price
Vertical	-	Steel	242.4 mm	1.84"	Polyamide	$128.36
Horizontal	269 lbf.	Steel	114.3 mm	59.6 mm	Polyamide	$161.06
Horizontal	-	Stainless Steel	88.2 mm	46.5 mm	Polyamide	$164.03
Horizontal	-	Stainless Steel	63.7 mm	25.4 mm	Polyamide	$211.83
Vertical	207 lbf.	Stainless Steel	175.7 mm	37.6 mm	Polyamide	$196.89
Vertical	-	Stainless Steel	184.2 mm	32.7 mm	Polyamide	$151.34
Horizontal	-	Stainless Steel	73.9 mm	32.2 mm	Polyamide	$145.16
-	-	Steel	2.51"	-	-	$124.07
-	-	Steel	2.91"	-	-	$142.84
Vertical	-	Steel	247.4 mm	62.3 mm	Polyamide	$139.51
+ See More

DESTACO

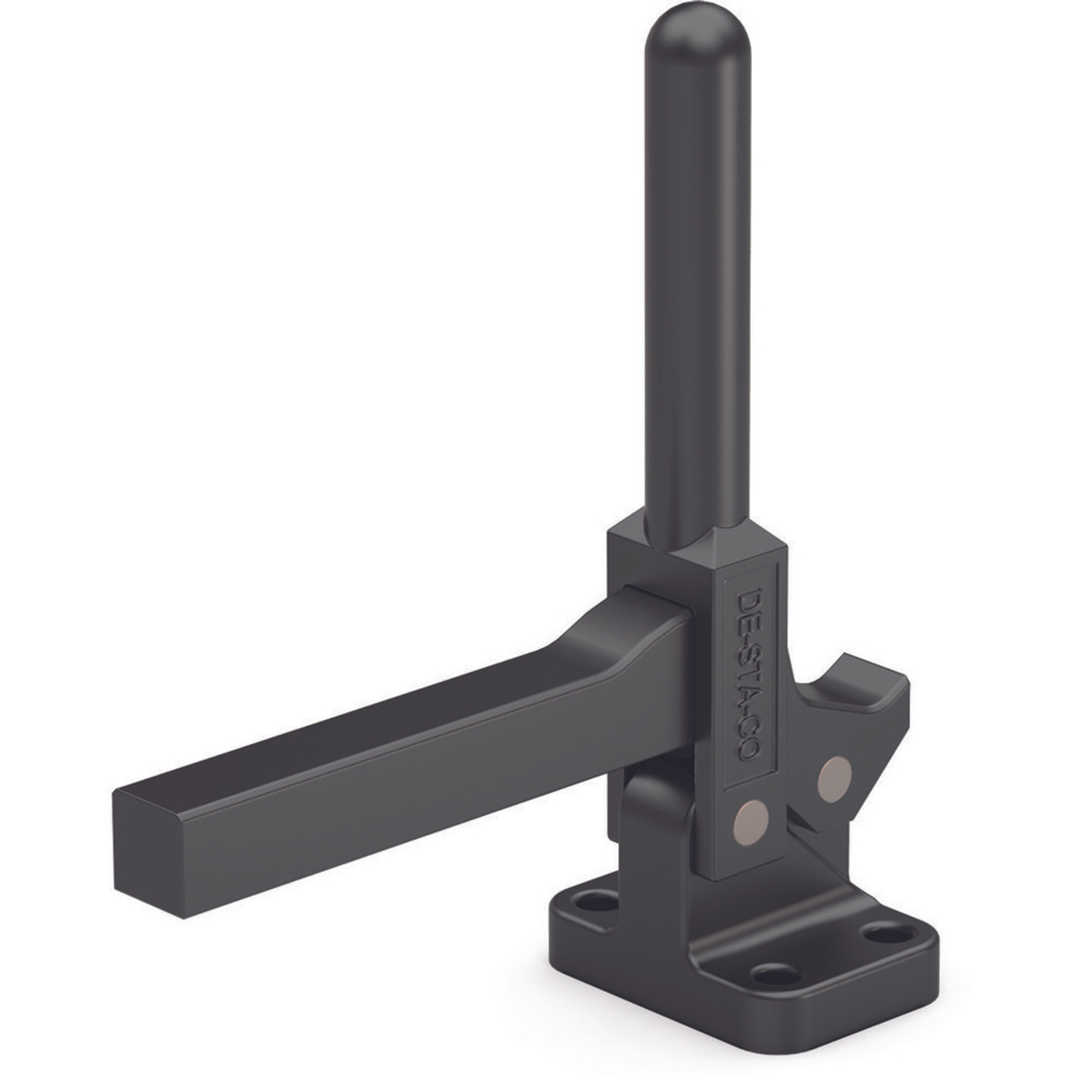

7-101, 7-58, 7-59, 7-60 Heavy Duty Cam Action Series

Clamp Bar Opening	Base Length	Handle Opening	Bar Width (in.)	Base Width	Base Style	Handle	Handle Style	Price
80°	1 1/4"	80°	1/2"	1 3/4"	Flanged	Vertical	Straight	$101.40
95°	1.69"	95°	14/25"	2 1/4"	Flange	Vertical	Straight	$267.03
95°	2.06"	95°	0.63"	2 1/2"	Flanged	Vertical	Straight	$321.43
80°	2 11/25"	80°	22/25"	2 22/25"	Flange	Vertical	Straight	$408.57

DESTACO

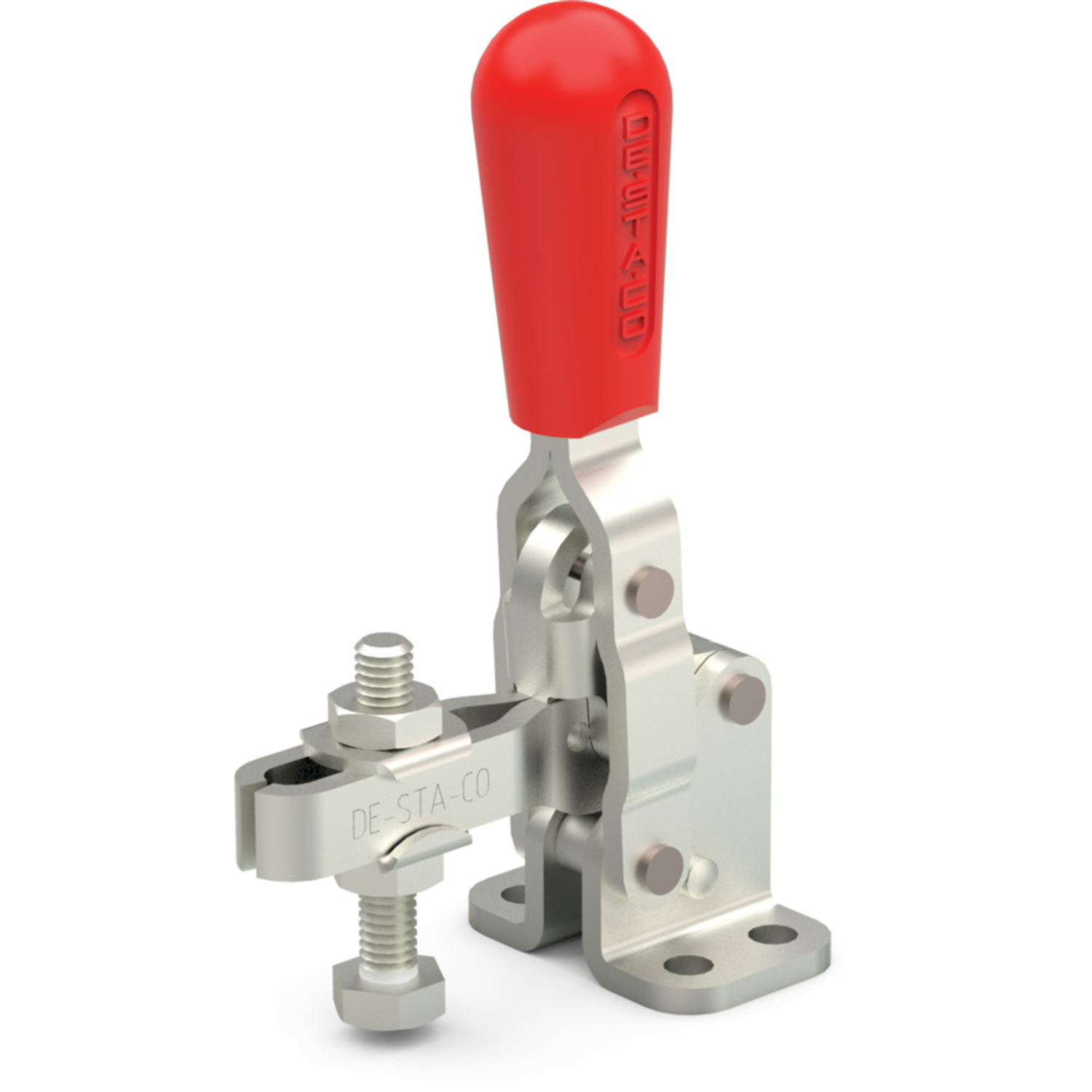

202 Series Vertical Hold Down Clamps

Base Mounting Style	Arm Style	Type	Clamp Arm Style	Base Mounting Centers	Spindle	Height Under Arm	Arm Length	Price
-	-	Vertical Handle Hold Down	Solid Bar	0.50" x 1.06"	Flat Cushion Neoprene	-	-	$24.86
-	-	Vertical Handle Hold Down	U Bar	0.50" x 1.06"	Flat Cushion Neoprene	-	-	$26.57
Flange	U BAR	T Handle	U Bar	0.50" x 1.06"	Flat Tipped Neoprene	0.93"	1.73"	$47.74
Bar	U BAR	Vertical Hold Down	U Bar	1/2"	Neoprene Tipped	1.13"	1.73"	$29.79
Flange	U BAR	Vertical Handle Hold Down	Long U Bar	0.50" x 1.06"	Neoprene	0.92"	2.29"	$28.31
Bar	Solid Bar	Vertical	Solid Bar	-	-	1.12"	1.08"	$31.39
-	-	Vertical	Open U Bar	-	-	-	-	$17.88
-	-	Vertical	Open U Bar	-	-	-	-	$17.88
Flange	Solid Bar	T Handle	Solid Bar	-	-	0.74"	1.08"	$49.96

DESTACO

2002 Series Vertical Hold Down Clamps

Clamp Bar Opening	Base Length	Handle Style	Handle Opening	Bar Width (in.)	Base Width	Base Style	Bar Style	Price
75°	1.34"	Straight	66°	1/2"	1 19/25"	Flanged	Solid	RFQ
75°	1.34"	Straight	66°	1/2"	1 19/25"	Flanged	Solid	RFQ

DESTACO

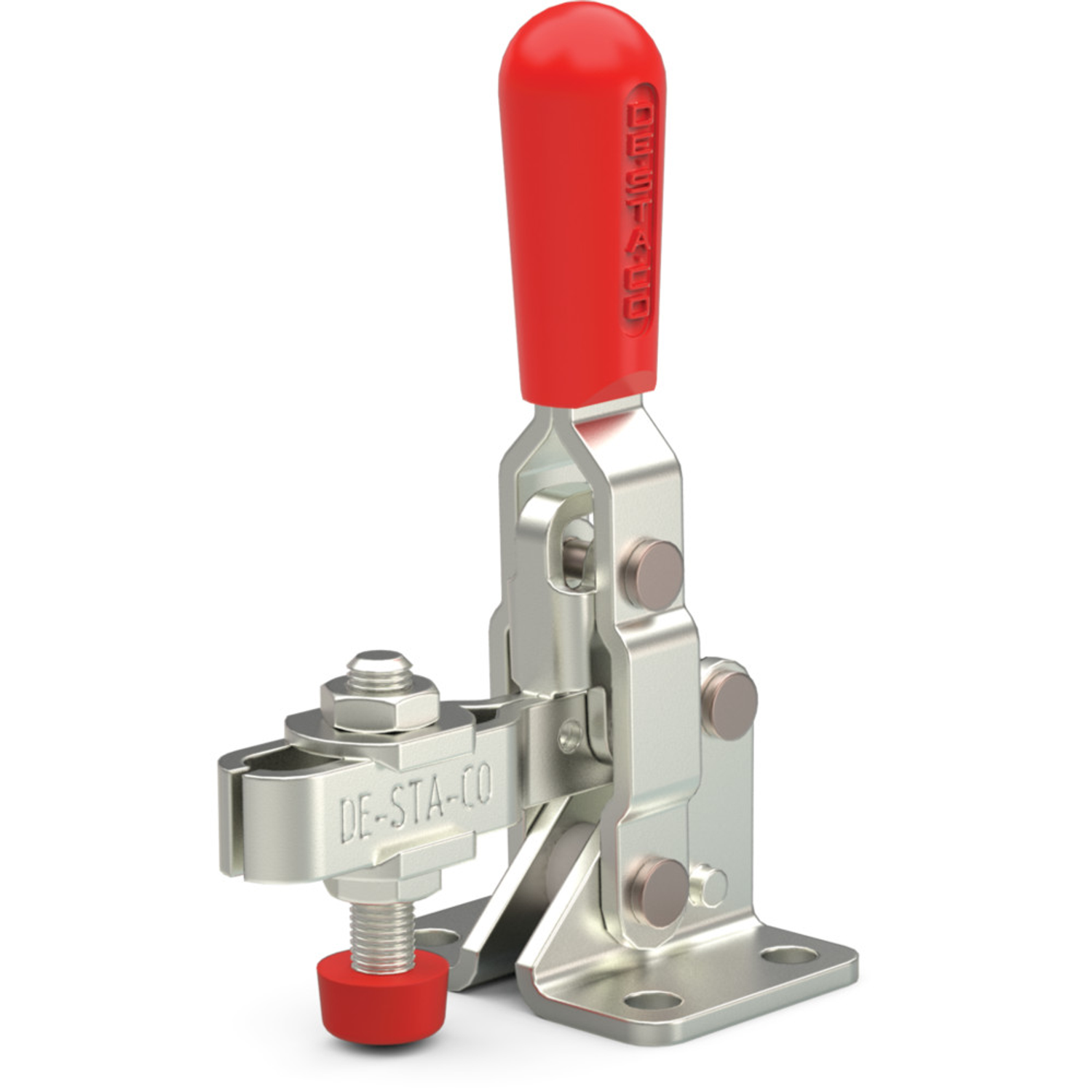

201 Series Vertical Hold Down Clamps

Base Mounting Style	Tip Material	Type	Height Under Arm	Arm Length	Body Material	Overall Depth	Overall Width	Price
Flange	Neoprene	Vertical Handle Hold Down	0.63"	1.03"	Steel	3.08"	2 1/25"	$23.76
Flange	Stainless Steel	Vertical Handle Hold Down	0.62"	1.02"	Stainless Steel	3.08"	2 1/25"	$58.59
Bar	Neoprene	Vertical	0.88"	1.04"	Steel	3.53"	0.42"	$30.06
Flange	Neoprene	T Handle	0.63"	1.04"	Steel	2.25"	1 23/25"	$49.73

DESTACO

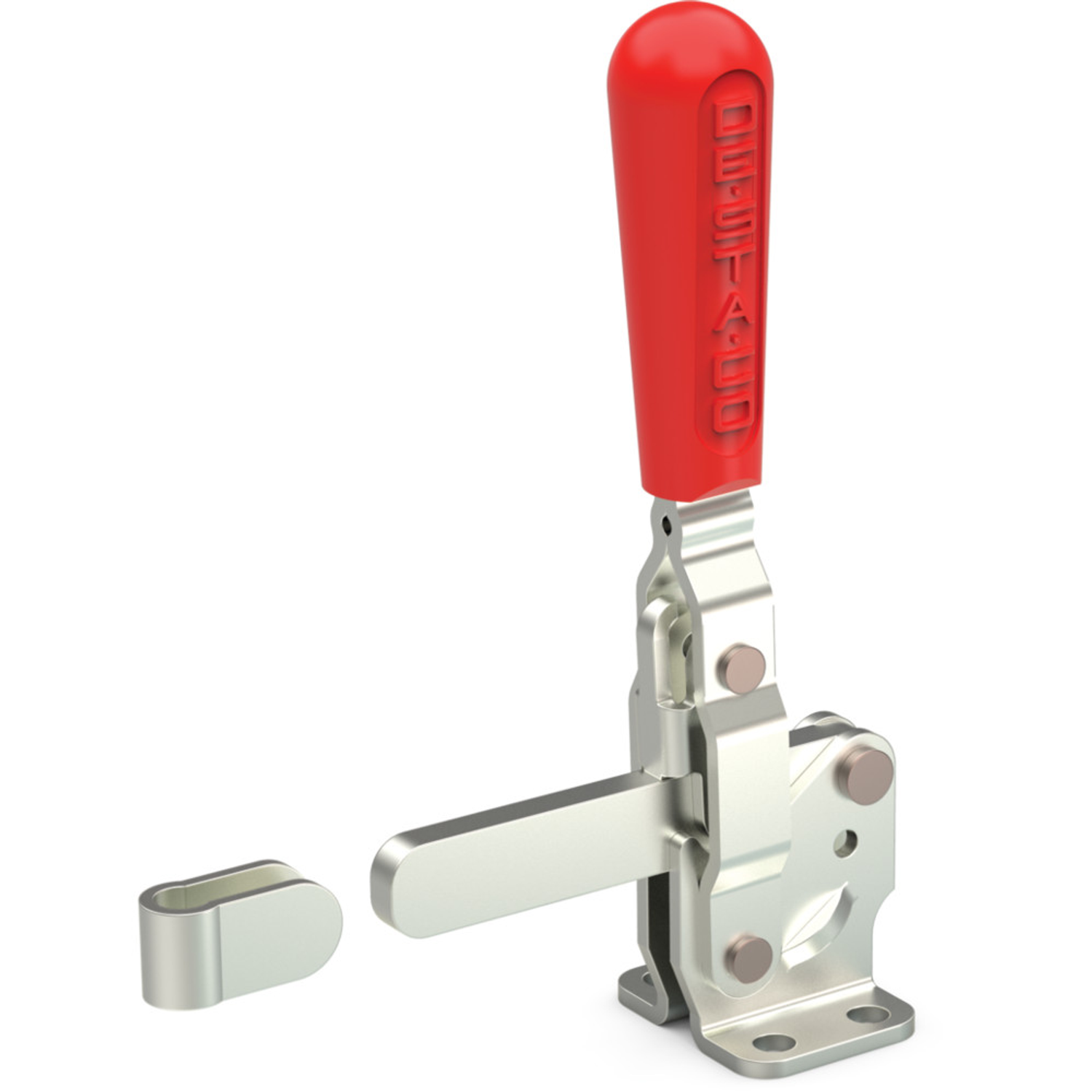

207 Series Vertical Hold Down Clamps

Clamp Bar Opening	Handle Opening	Base Width	Clamp Arm Style	Type	Handle	Base Length	Handle Style	Price
99°	57°	-	-	Vertical	Vertical	1.38"	Straight	$21.56
99°	57°	1.73"	Open U Bar	Vertical	Vertical	1.38"	Straight	$21.56
90°	57°	1"	Solid Bar	Vertical	Vertical	1.38"	Straight	$37.71
96°	56°	1.73"	U Bar	Vertical	Vertical	1.38"	Straight	$142.49
-	-	-	-	-	-	-	-	$56.93
-	-	-	-	-	-	-	-	$44.23
-	-	-	-	-	-	-	-	RFQ

DESTACO

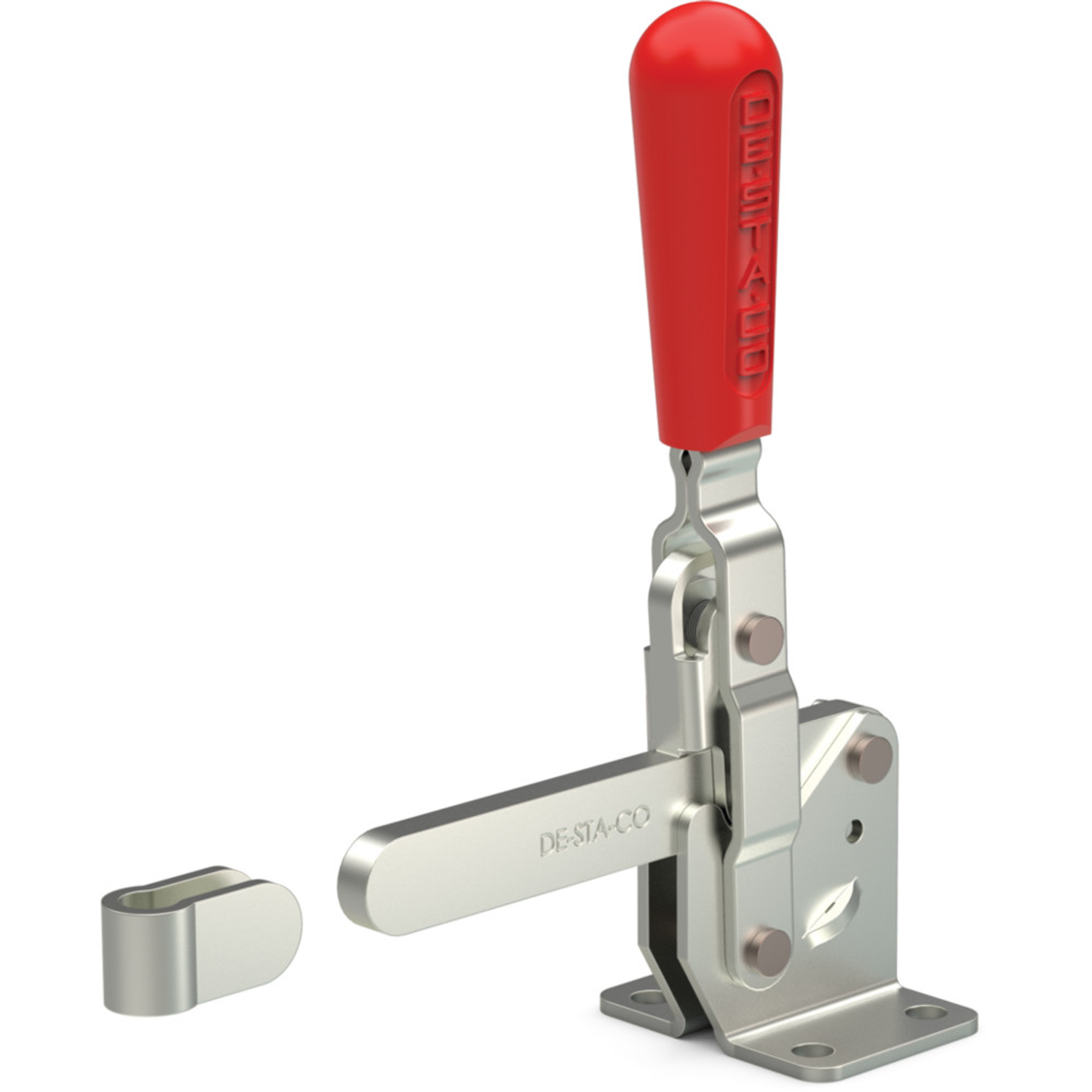

210 Series Vertical Hold Down Clamps

Includes Locking Handle	Tip Material	Type	Clamp Arm Style	Base Mounting Centers	Height Under Arm	Arm Length	Body Material	Price
-	-	Vertical Handle Hold Down	Solid Bar	1.25" x 1.77"	-	-	-	$60.33
No	Neoprene	Vertical Handle Hold Down	U Bar	1.26" x 1.77"	1.67"	3.63"	Steel	$52.66
No	Stainless Steel	Vertical Handle Hold Down	U Bar	1.25" x 1.77"	1.69"	3.62"	Stainless Steel	$125.59
Yes	Neoprene	Vertical Handle Hold Down	U Bar	1.25" x 1.78"	1.67"	3.65"	Steel	$110.90
No	Neoprene	T Handle	U Bar	-	1.67"	3.65"	Steel	$91.60
-	-	Vertical	U Bar	-	-	-	-	$30.80
-	-	Vertical	Solid Bar	-	-	-	-	$117.86
-	-	-	-	-	-	-	-	$51.83

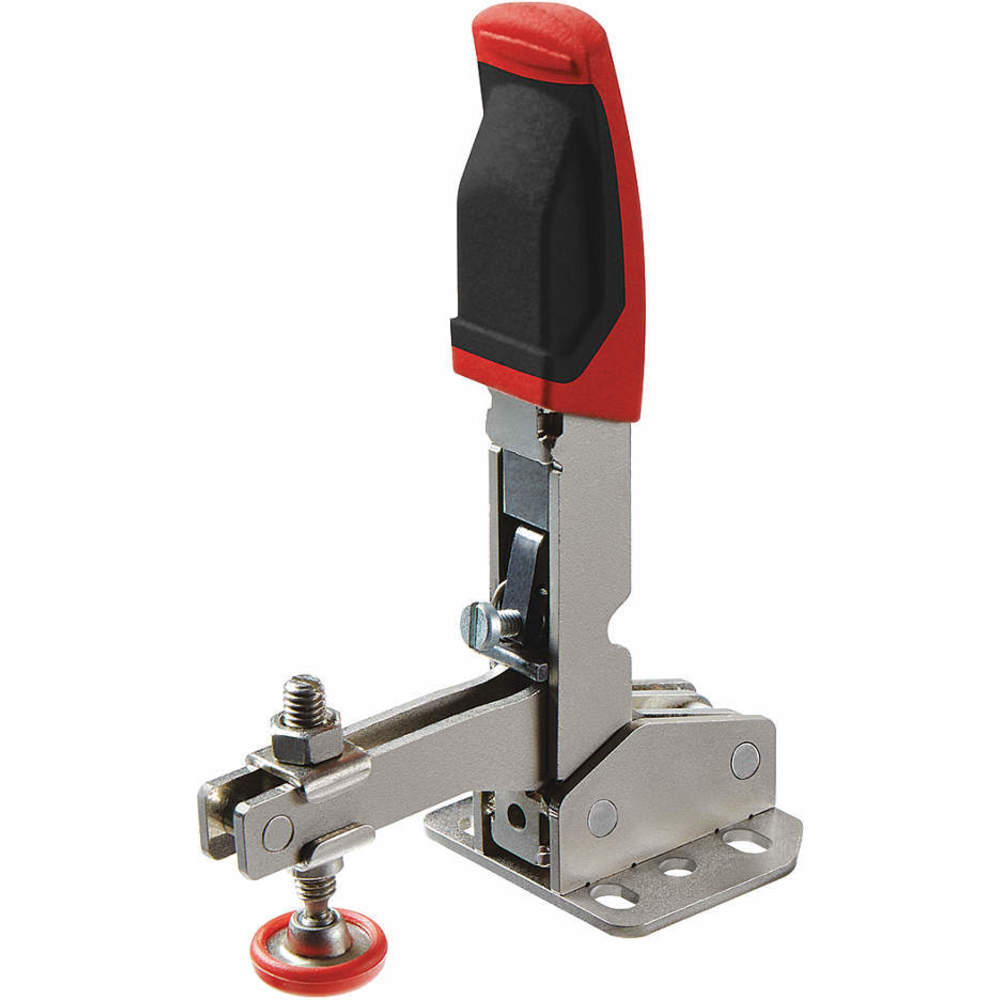

BESSEY

Base Mounting Style	Overall Depth	Fastener Thread Size	Includes Locking Handle	Handle Orientation	Tip Material	Diameter	Spindle	Price
Flange	1 1/4"	M5	No	Horizontal	Polyethylene	0.562"	Nickel Plated Steel	$58.06
Front	1.25"	M6	No	Horizontal	Polyethylene	0.562"	Nickel Plated Steel	$57.37

Toggle Clamp Vertical Hold, Stainless Steel

Clamp Arm Opening Angle	Handle	Diameter	Base Mounting Centers	Angle	Height Under Arm	Arm Length	Overall Depth	Price
95°	95°	1/5"	0.50" x 1.06"	95°	0.89"	1.33"	4.09"	$68.57
100°	100°	7/25"	0.75" x 1.25"	100°	1.25"	2.88"	5.55"	$76.24
112°	106°	0.34"	1.25" x 1.78"	106°	1.73"	3.29"	8.11"	$51.91

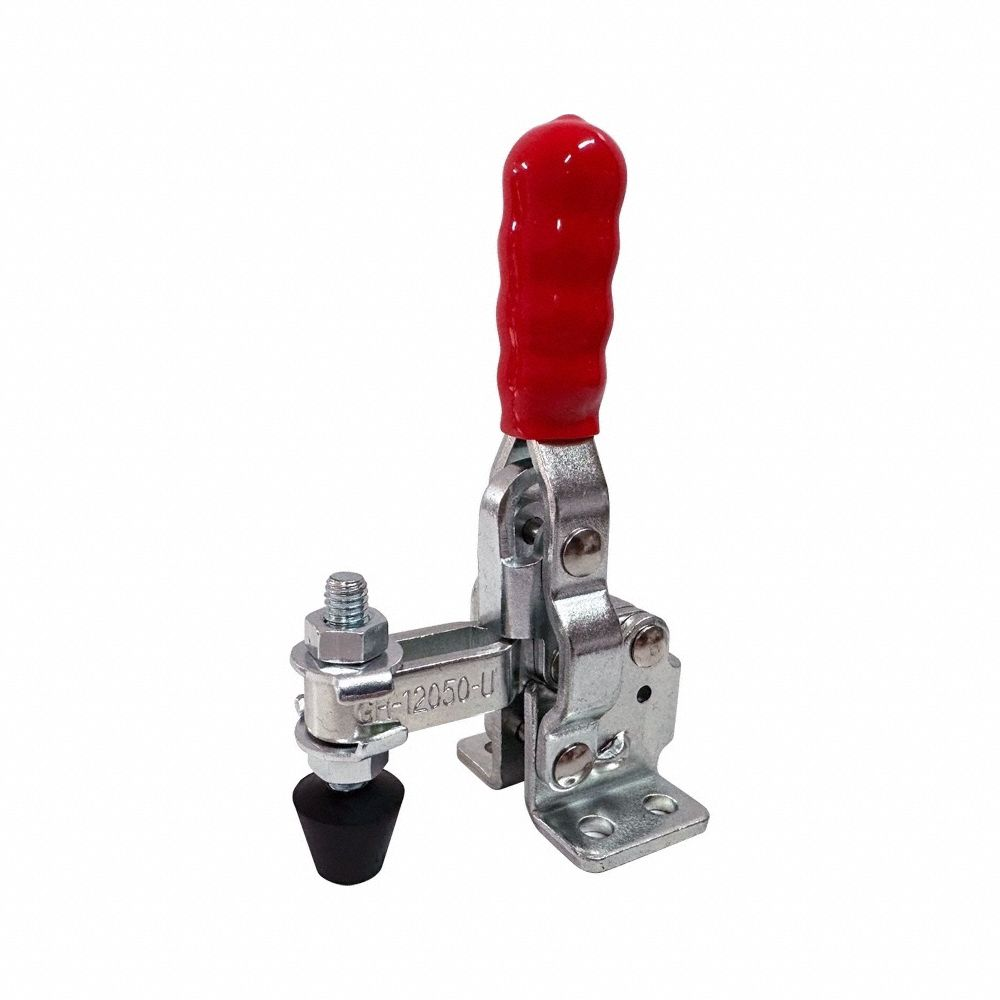

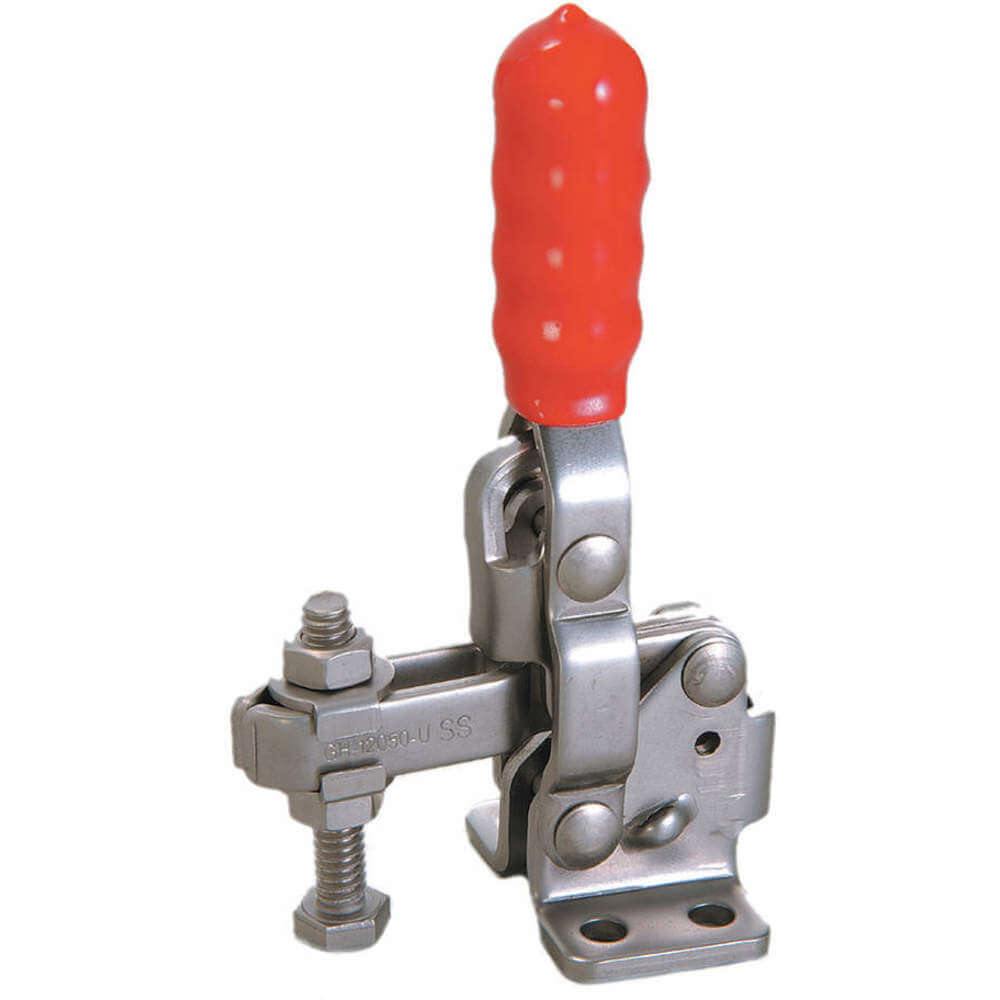

APPROVED VENDOR

Tip Material	Clamp Arm Opening Angle	Diameter	Base Mounting Centers	Angle	Height Under Arm	Arm Length	Body Material	Price
Steel	96°	1/5"	0.53" x 0.66"	94°	0.75"	1.46"	Steel	$23.51
Steel	93°	0.22" x 0.34"	1.02" x 0.98"	94°	0.98"	2.4"	Steel	$16.79
Steel	90°	0.26" x 0.36"	1.02" x 1.12"	94°	1.34"	3.11"	Steel	$18.94
Steel	90°	0.34" x 0.42"	1.62" x 1.61"	94°	1.77"	4.25"	Steel	$28.66
Stainless Steel	90°	0.17" x 0.27"	0.53" x 0.63"	90°	0.3"	0.82"	Stainless Steel	$42.59
Stainless Steel	85°	0.22" x 0.25"	1.03" x 0.87"	85°	0.99"	2.24"	Stainless Steel	$57.67
Stainless Steel	93°	0.22" x 0.34"	1.02" x 0.98"	94°	0.98"	2.4"	Stainless Steel	$29.27
Stainless Steel	90°	0.26" x 0.35"	0.91" x 0.87"	90°	1.37"	2.82"	Stainless Steel	$36.66

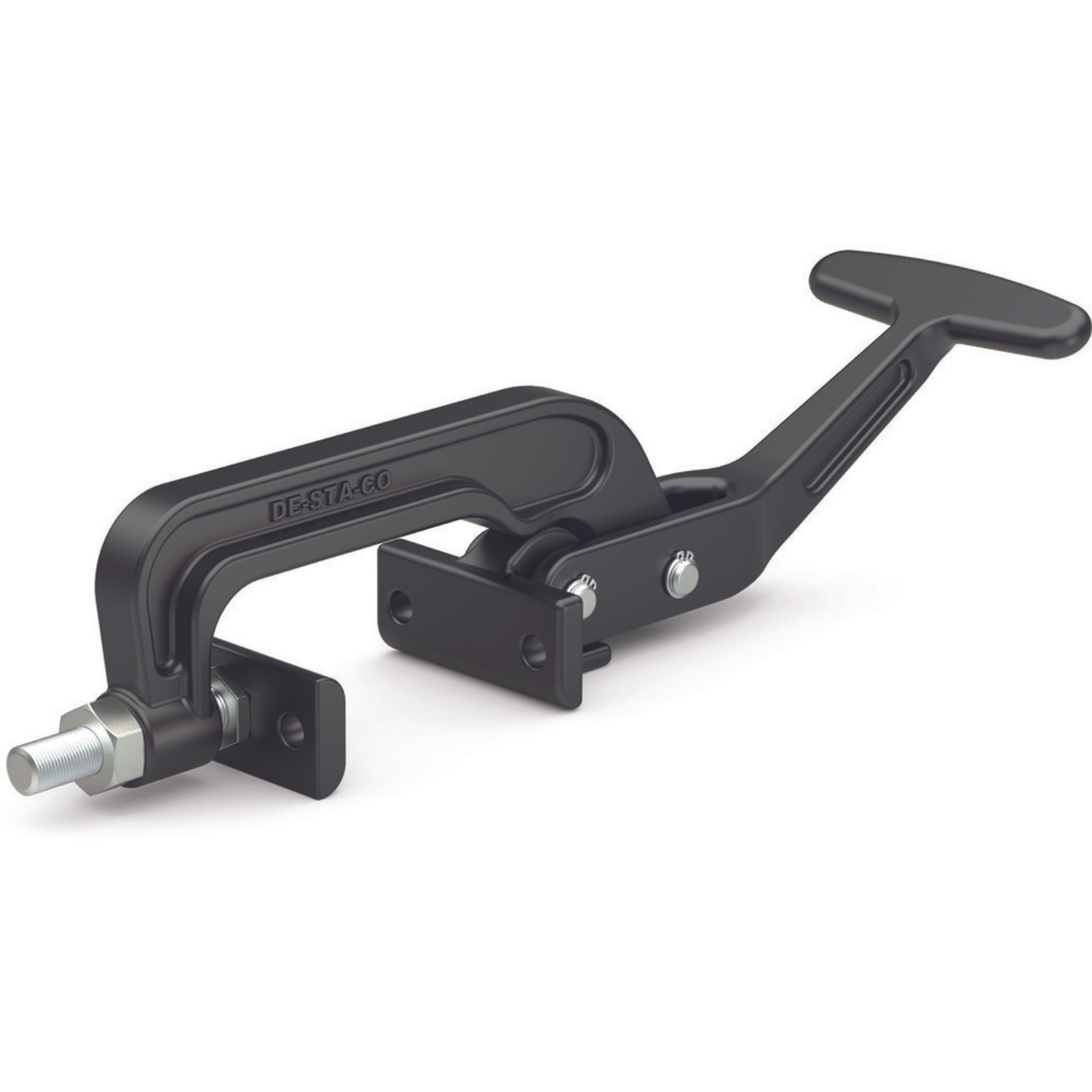

353 Series Pull Action Latch Clamps

Max. Jaw Opening	Hook Type	Price
1.39"	Parting Line	$65.15
2.57"	Parting Line	$135.23

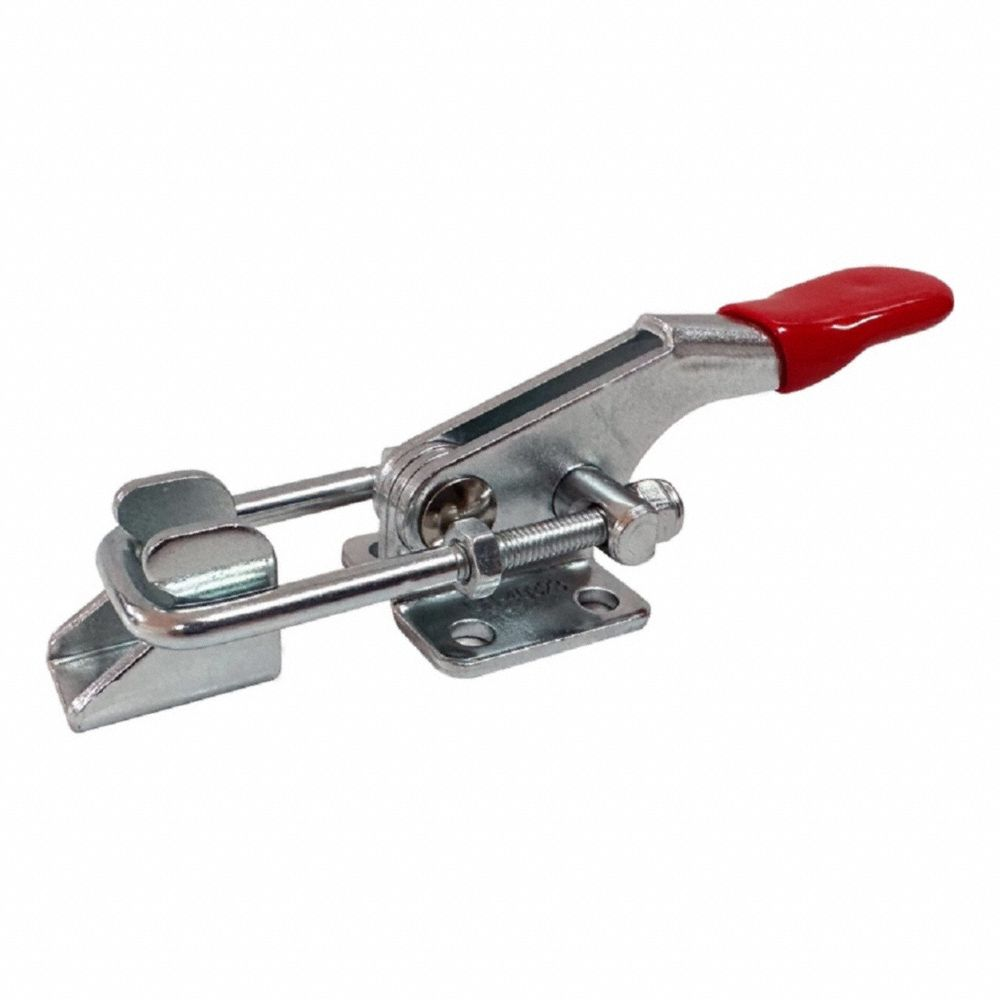

APPROVED VENDOR

Base Mounting Style	Handle	Overall Depth	Overall Width	Fastener Thread Size	Plunger Travel	Includes Locking Handle	Handle Orientation	Price
Flange	90°	1.42"	1"	#10	-	No	Vertical	$48.74
-	-	-	-	-	-	-	-	$68.84
Through-Hole	Straight	3.97"	1.13"	3/4"-16	1.57"	No	Vertical	$59.71
Through-Hole	Straight	5.62"	1.57"	1"-14	2.63"	No	Vertical	$116.37

317 Series Vertical Hold Down Clamps

Clamp Arm Style	Type	Handle	Clamp Bar Opening	Handle Opening	Base Length	Handle Style	Bar Width (in.)	Price
U Bar	Vertical	Vertical	185°	60°	-	-	-	$52.09
Solid Bar	Vertical	Vertical	185°	60°	1.38"	Straight	0.63"	$54.59

DESTACO

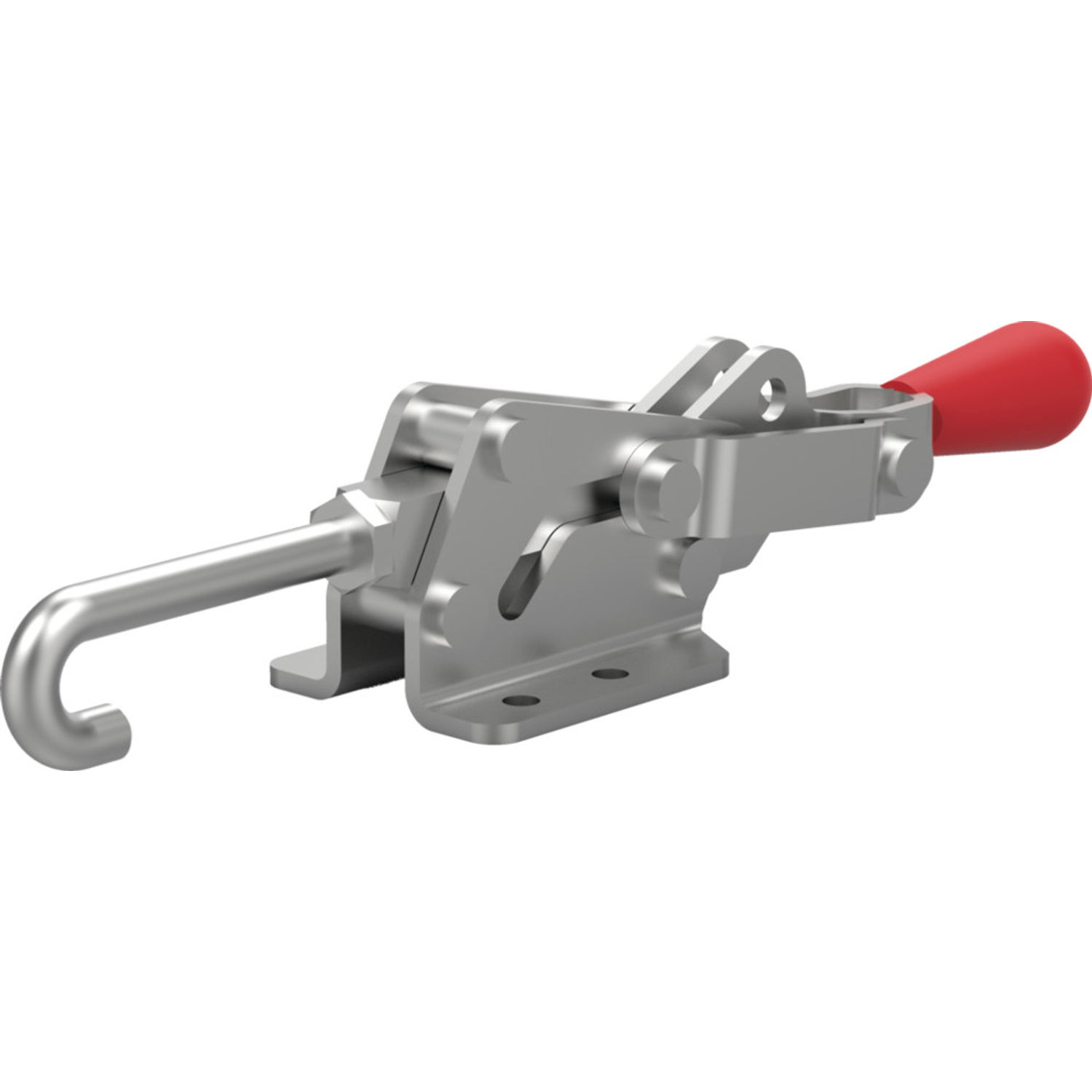

3031, 3051 Series Pull Action Latch Clamps

Base Length	Handle Style	Bar Width (in.)	Base Width	Hook Type	Price
2.03"	Straight	0.31"	1.93"	J-Hook	$93.59
2.03"	Straight	0.31"	1.93"	J-Hook	$125.74
-	-	-	-	-	$89.76
-	-	-	-	-	$96.84
-	-	-	-	-	$149.80

DESTACO

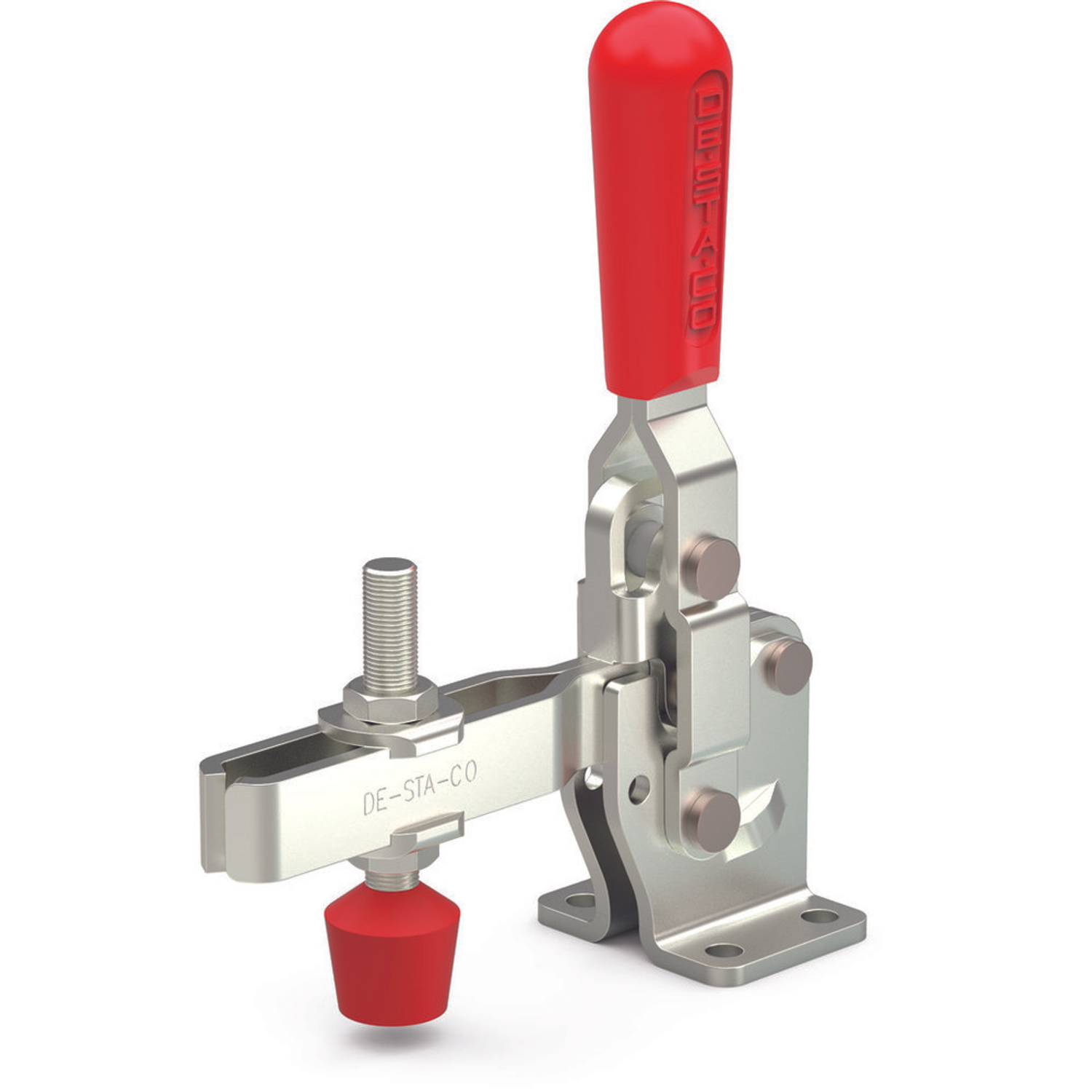

247, 267 Series Vertical Hold Down Clamps

Tip Material	Clamp Arm Opening Angle	Clamp Arm Style	Type	Clamp Bar Opening	Handle Opening	Base Length	Bar Width (in.)	Price
Neoprene	120°	U Bar	Vertical Handle Hold Down	120°	67°	-	-	$78.73
Steel	140°	U Bar	Vertical Handle Hold Down	140°	72°	-	-	$126.06
-	-	U Bar	Vertical	120°	67°	2"	0.87"	$51.38
-	-	Solid Bar	Vertical	140°	72°	3"	1 1/4"	$178.21
-	-	Solid Bar	Vertical	120°	67°	2"	0.87"	$82.66
-	-	-	-	-	-	-	-	RFQ
-	-	U Bar	-	-	-	-	-	$52.31
-	-	-	-	-	-	-	-	$86.76
-	-	-	-	-	-	-	-	RFQ

DESTACO

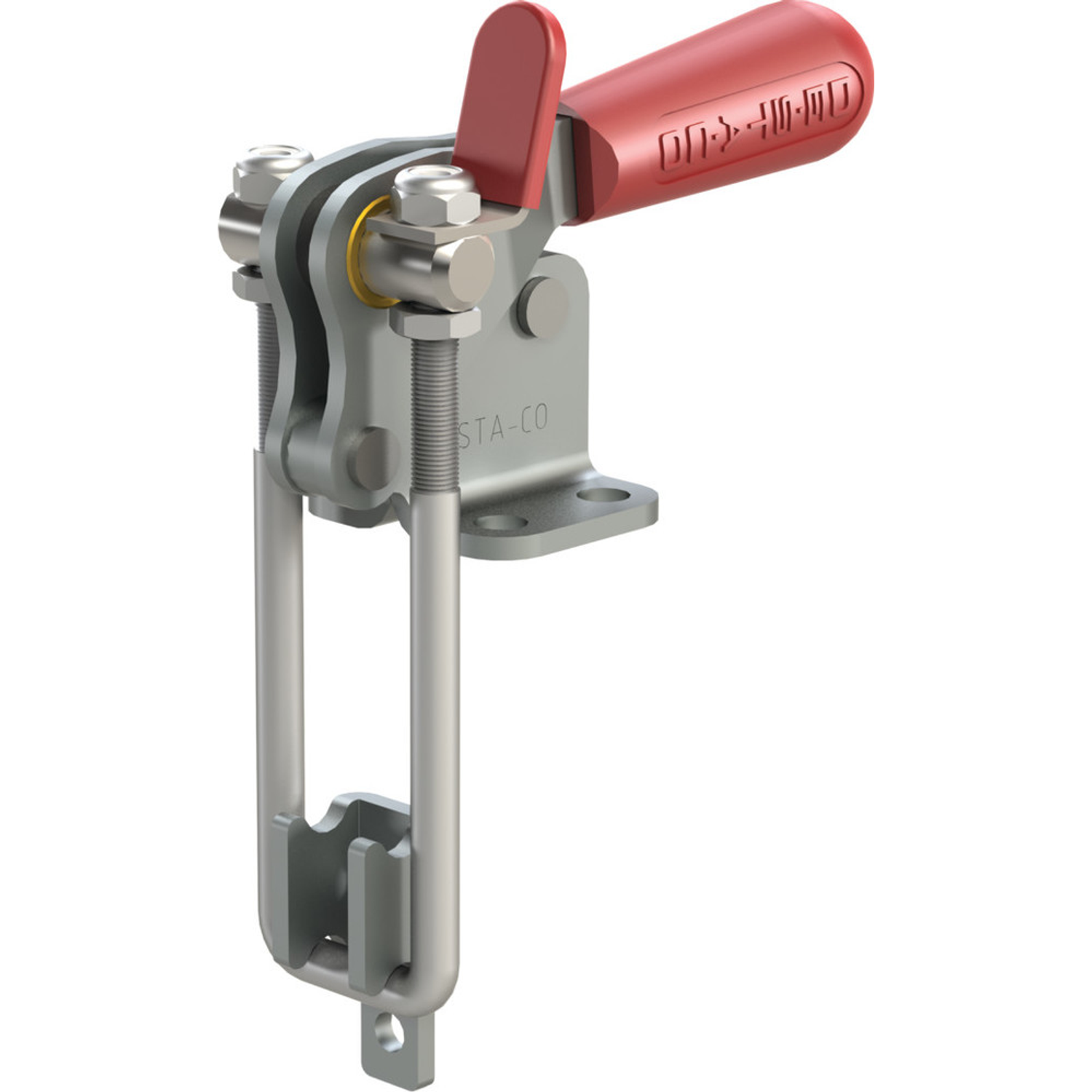

324 Series Pull Action Latch Clamps

Base Mounting Style	Includes Locking Handle	Handle Orientation	Type	Diameter	Base Mounting Centers	Hook Type	Body Material	Price
Flange	No	Horizontal	Vertical Latch	1/5"	0.50" x 0.88"	Vertical U	Steel	$37.11
Flange	No	Horizontal	Vertical Latch	1/5"	0.50" x 0.88"	Vertical U	Steel	$83.10

DESTACO

334 Series Pull Action Latch Clamps

Base Mounting Style	Includes Locking Handle	Handle Orientation	Type	Diameter	Base Mounting Centers	Hook Type	Body Material	Price
Flange	No	Horizontal	Vertical Latch	7/25"	0.75" x 1"	Vertical U	Steel	$47.10
Flange	No	Horizontal	Vertical Latch	7/25"	0.75" x 1"	Vertical U	Steel	$95.06
-	-	-	-	-	-	-	-	$82.06

DESTACO

344 Series Pull Action Latch Clamps

Base Mounting Style	Includes Locking Handle	Handle Orientation	Type	Diameter	Base Mounting Centers	Hook Type	Body Material	Price
Flange	No	Horizontal	Vertical Latch	0.34"	1.25" x 1.44"	Vertical U	Steel	$71.41
Flange	No	Horizontal	Vertical Latch	0.34"	1.25" x 1.44"	Vertical U	Steel	$187.67
-	-	-	-	-	-	-	-	$153.56

DESTACO

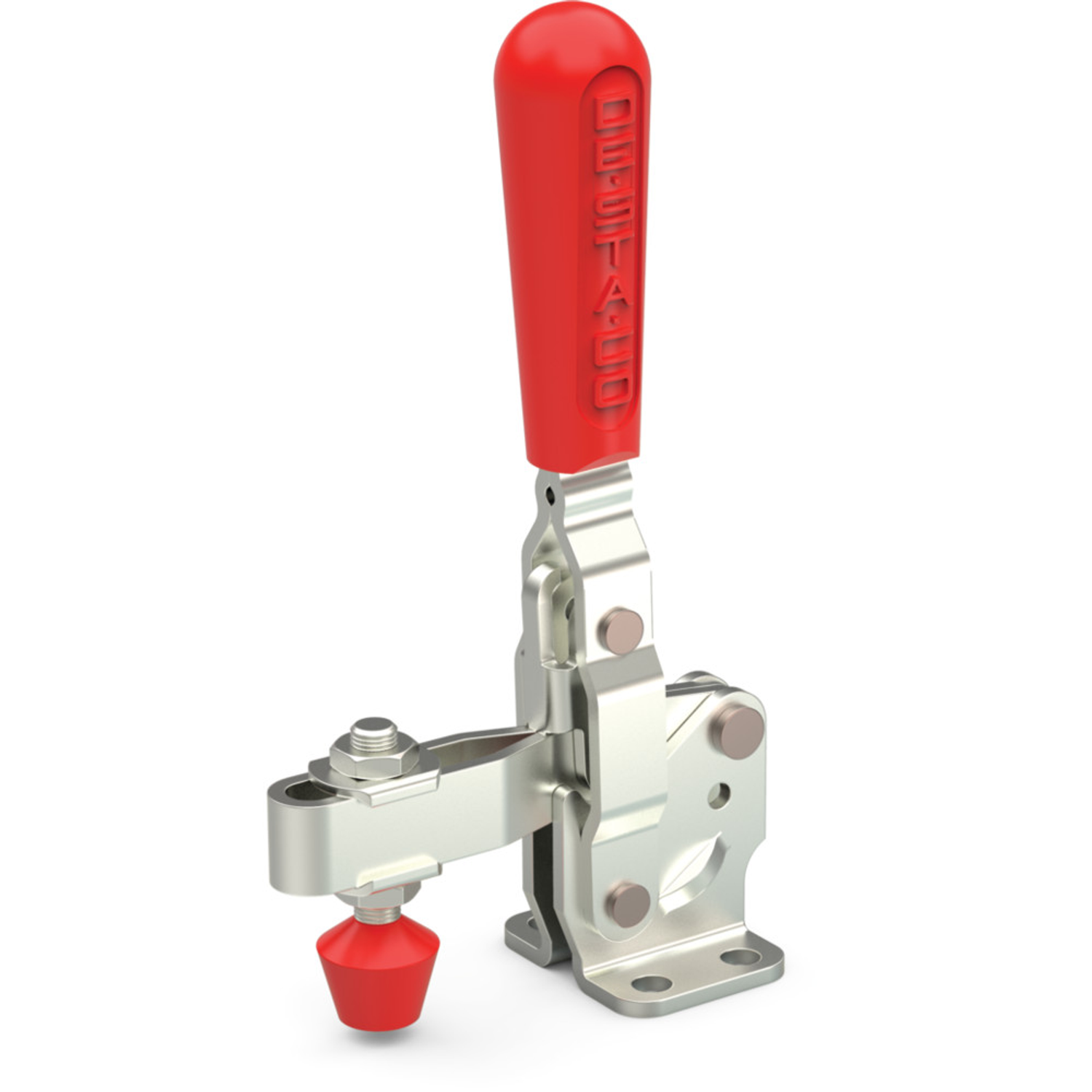

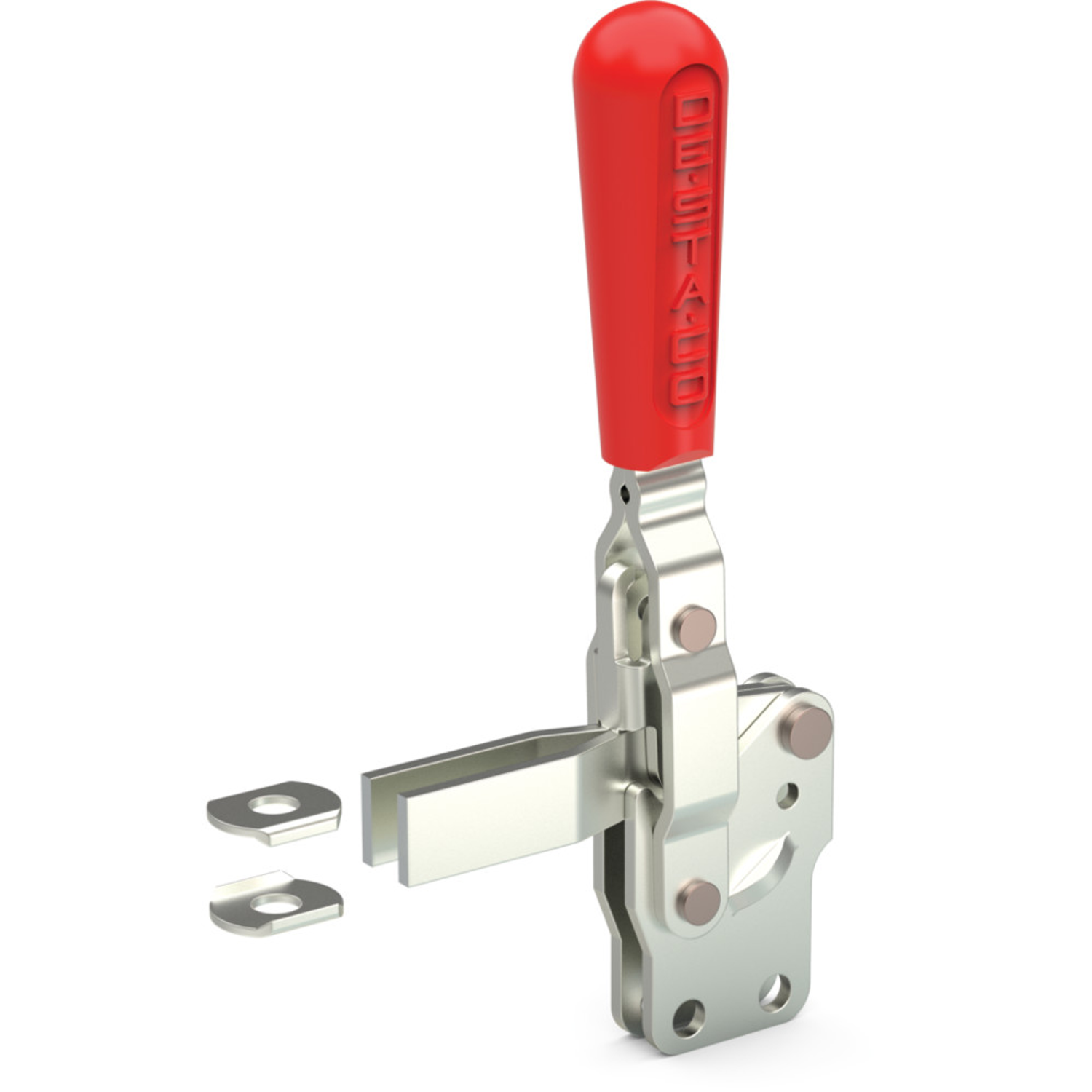

207 Series Vertical Hold Down Clamps, Flanged Base, U Bar

Includes Locking Handle	Tip Material	Clamp Arm Style	Arm Length	Body Material	Overall Depth	Base Mounting Style	Handle Orientation	Price
No	Neoprene	U Bar	2.14"	Steel	7.48"	Flange	Vertical	$36.33
No	Neoprene	Long U Bar	3.85"	Steel	7.48"	Flange	Vertical	$36.26
No	Stainless Steel	U Bar	2.85"	Stainless Steel	5.63"	Flange	Vertical	$97.74
Yes	Neoprene	U Bar	2.14"	Steel	7.48"	Flange	Vertical	$79.13
-	-	Open U Bar	-	-	-	-	-	RFQ

DESTACO

5105, 5110 Series Heavy Duty Vertical Hold Down Clamps

Clamp Bar Opening	Handle Opening	Bar Width (in.)	Base Length	Type	Handle	Handle Style	Clamp Arm Style	Price
74°	138°	0.87"	-	Vertical	Vertical	Straight	Solid Bar	$158.69
89°	159°	0.51"	-	Vertical	Vertical	Straight	Solid Bar	$130.17
89°	159°	0.51"	-	Vertical	Vertical	Straight	Solid Bar	$78.46
74°	138°	0.87"	-	Vertical	Vertical	Straight	Solid Bar	$112.40
74°	138°	0.87"	2 1/2"	Vertical	Vertical	Straight	Solid Bar	$142.84
89°	159°	0.51"	1.62"	Vertical	Vertical	Straight	Solid Bar	$131.17
89°	159°	0.51"	1.62"	Vertical	Vertical	Straight	Solid Bar	$78.33
74°	138°	0.87"	2 1/2"	Vertical	Vertical	Straight	Solid Bar	$101.17

DESTACO

344-R Series Pull Action Latch Clamps

Hook Type	Base Mounting Style	Includes Locking Handle	Handle Orientation	Handle Style	Bar Width (in.)	Base Width	Base Length	Price
U-Hook (Vertical)	-	-	-	Straight	1.13"	1 14/25"	1.94"	$99.29
U-Hook (Vertical)	-	-	-	Straight	1.13"	1 14/25"	1.94"	$103.84
U-Hook (Vertical)	-	-	-	Straight	1.13"	1 14/25"	1.94"	$101.54
Vertical U	Flange	Yes	Vertical	Straight	1.13"	1 14/25"	-	$134.31
-	-	-	-	-	-	-	-	$204.21

DESTACO

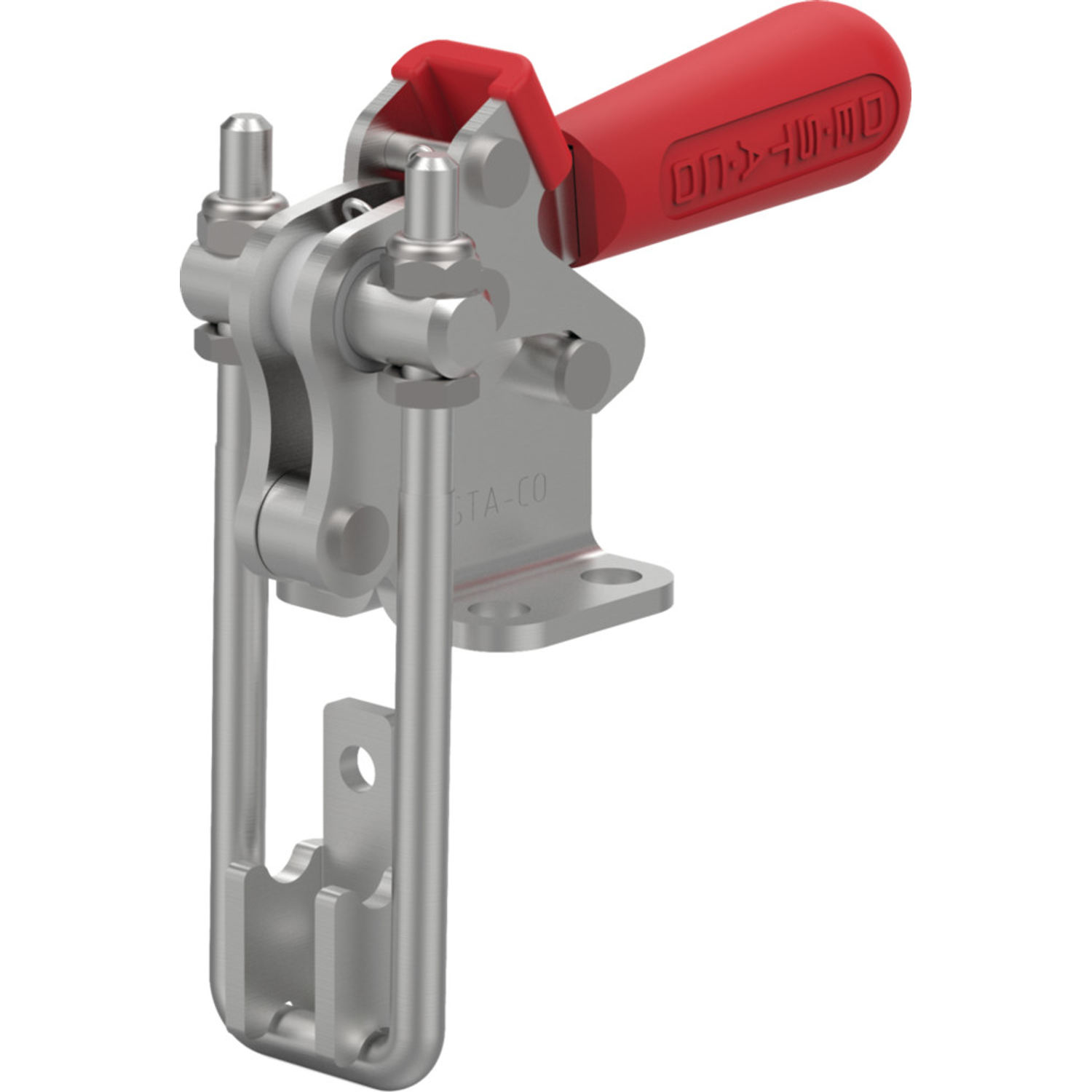

334-R Series Pull Action Latch Clamps

Hook Type	Base Mounting Style	Includes Locking Handle	Handle Orientation	Base Length	Handle Style	Bar Width (in.)	Base Width	Price
U-Hook (Vertical)	-	-	-	1.38"	Straight	1.13"	1 14/25"	$77.92
U-Hook (Vertical)	-	-	-	1.38"	Straight	1.13"	1 14/25"	$76.81
U-Hook (Vertical)	-	-	-	1.38"	Straight	1.13"	1 14/25"	$75.66
Vertical U	Flange	Yes	Vertical	1.38"	Straight	1.13"	1 14/25"	$86.71
-	-	-	-	-	-	-	-	$133.41

DESTACO

2010 Series Vertical Hold Down Clamps, U Bar

Base Mounting Style	Includes Locking Handle	Arm Style	Type	Height Under Arm	Overall Depth	Overall Width	Diameter	Price
Flange	No	U BAR	Vertical Handle Hold Down	1.7"	9.08"	7.51"	0.34"	$71.41
Flange	Yes	U BAR	Vertical Handle Hold Down	1.7"	9.08"	7.51"	1.7"	$128.30
-	-	-	Vertical	-	-	-	-	$87.67
Bar	No	Open U Bar	Vertical	2.62"	10"	3/4"	-	$85.10

DESTACO

2010 Series Vertical Hold Down Clamps, Solid Bar

Includes Locking Handle	Base Mounting Style	Handle Orientation	Maximum Holding Capacity	Arm Style	Clamp Arm Opening Angle	Type	Handle	Price
Yes	Flange	Vertical	1400 lbf.	Solid Bar	78°	Vertical	Vertical	$152.69
-	-	-	-	-	-	Vertical	Vertical	$85.02
-	-	-	-	-	-	Vertical	Vertical	$76.80
No	Flange	Vertical	1400 lbf.	Solid Bar	78°	Vertical	Vertical	$80.80

DESTACO

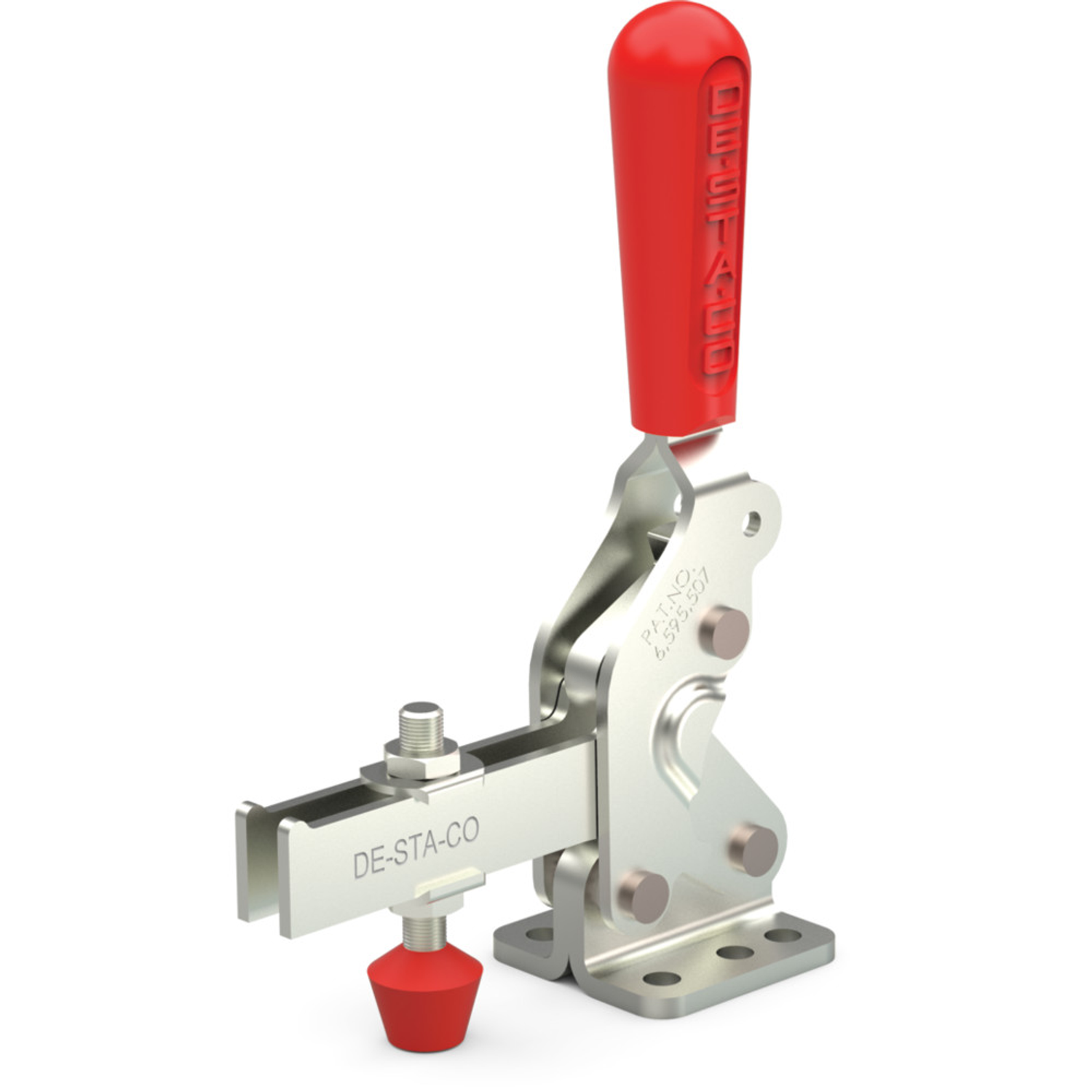

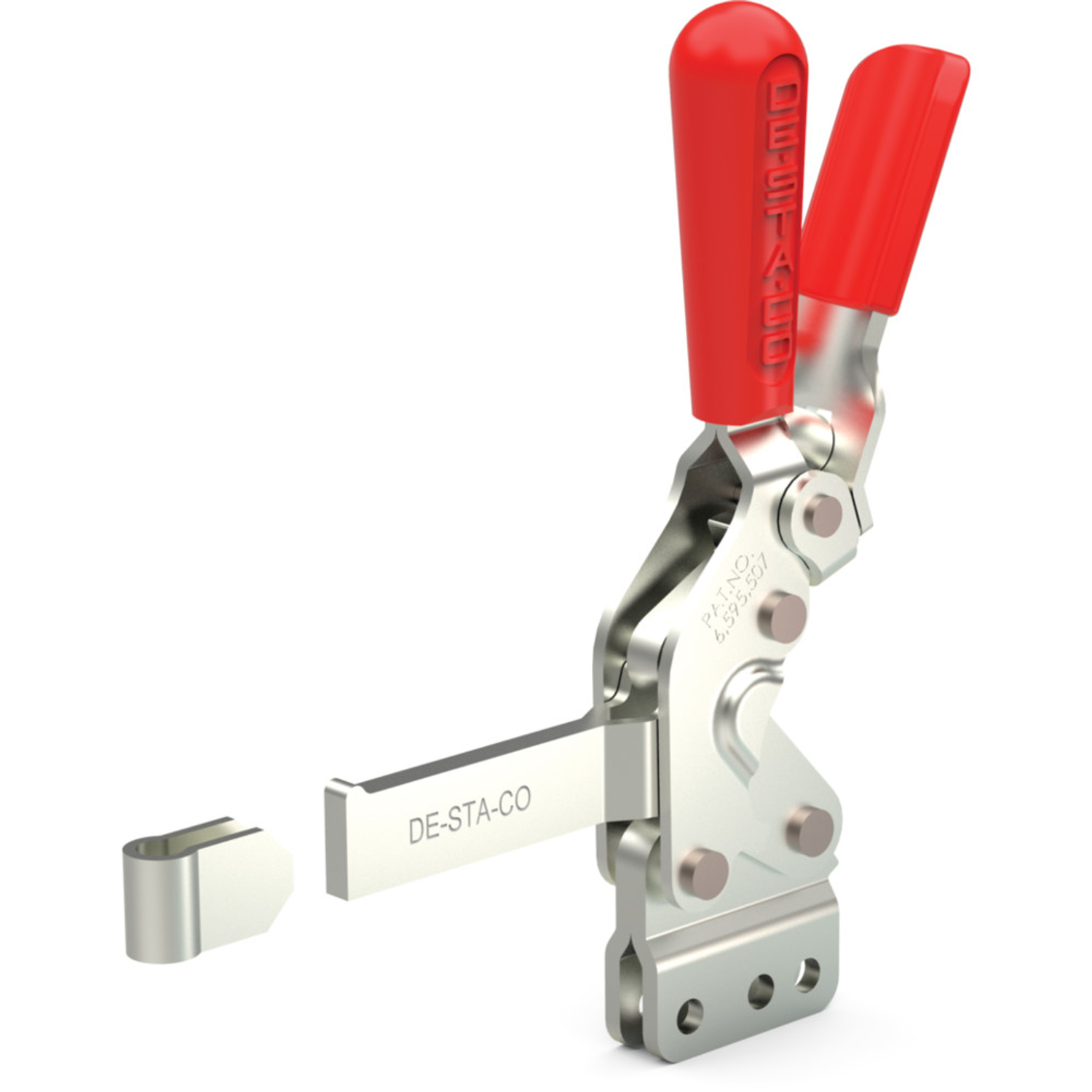

2007 Series Vertical Hold Down Clamps, Solid Bar

Type	Handle	Clamp Bar Opening	Base Length	Handle Style	Handle Opening	Clamp Arm Style	Bar Width (in.)	Price
Vertical	Vertical	76°	1.94"	Straight	64°	Solid Bar	-	$124.23
Vertical	Vertical	76°	1.94"	Straight	64°	Solid Bar	3/4"	$59.16
Vertical	Vertical	76°	1.94"	Straight	64°	Solid Bar	-	$123.27
Vertical	Vertical	76°	1.94"	Straight	64°	Solid Bar	-	$63.61

DESTACO

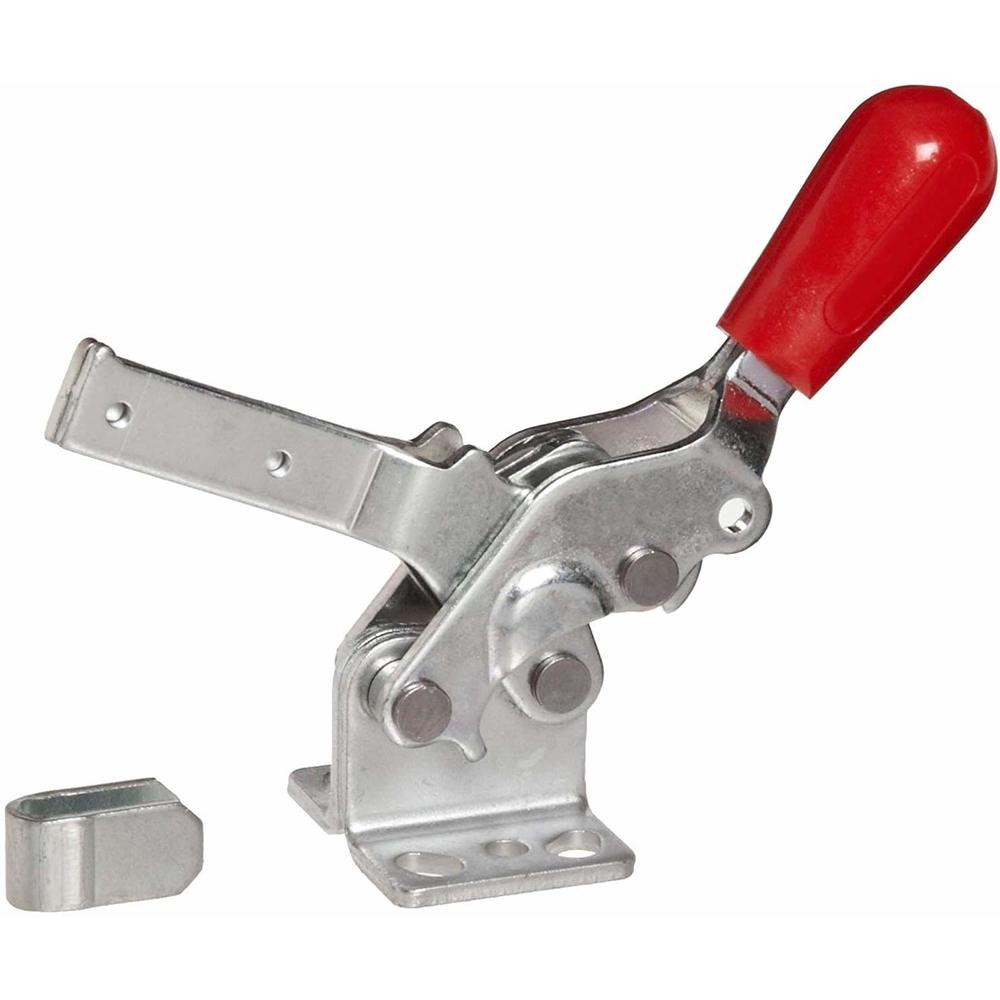

2002 Series Vertical Hold Down Clamps, Solid Bar

Type	Handle	Clamp Bar Opening	Base Length	Handle Style	Handle Opening	Bar Width (in.)	Clamp Arm Style	Price
Vertical	Vertical	75°	1 9/25"	Straight	66°	1/2"	Solid Bar	$43.73
Vertical	Vertical	75°	1 9/25"	Straight	66°	1/2"	Solid Bar	$84.03
Vertical	Vertical	75°	1 9/25"	Straight	66°	1/2"	Solid Bar	$35.94
Vertical	Vertical	75°	1 9/25"	Straight	66°	1/2"	Solid Bar	$78.80

DESTACO

207 Series Vertical Hold Down Clamps, Straight Base, Solid Bar

Type	Clamp Arm Style	Handle	Clamp Bar Opening	Handle Opening	Base Length	Handle Style	Bar Width (in.)	Price
Vertical Hold Down	Long Solid Bar	Vertical	99°	57°	-	-	-	$40.70
Vertical	Solid Bar	Vertical	99°	57°	1.38"	Straight	0.63"	$42.27
Vertical	Long Solid Bar	Vertical	99°	57°	1.38"	Straight	0.63"	$41.50

DESTACO

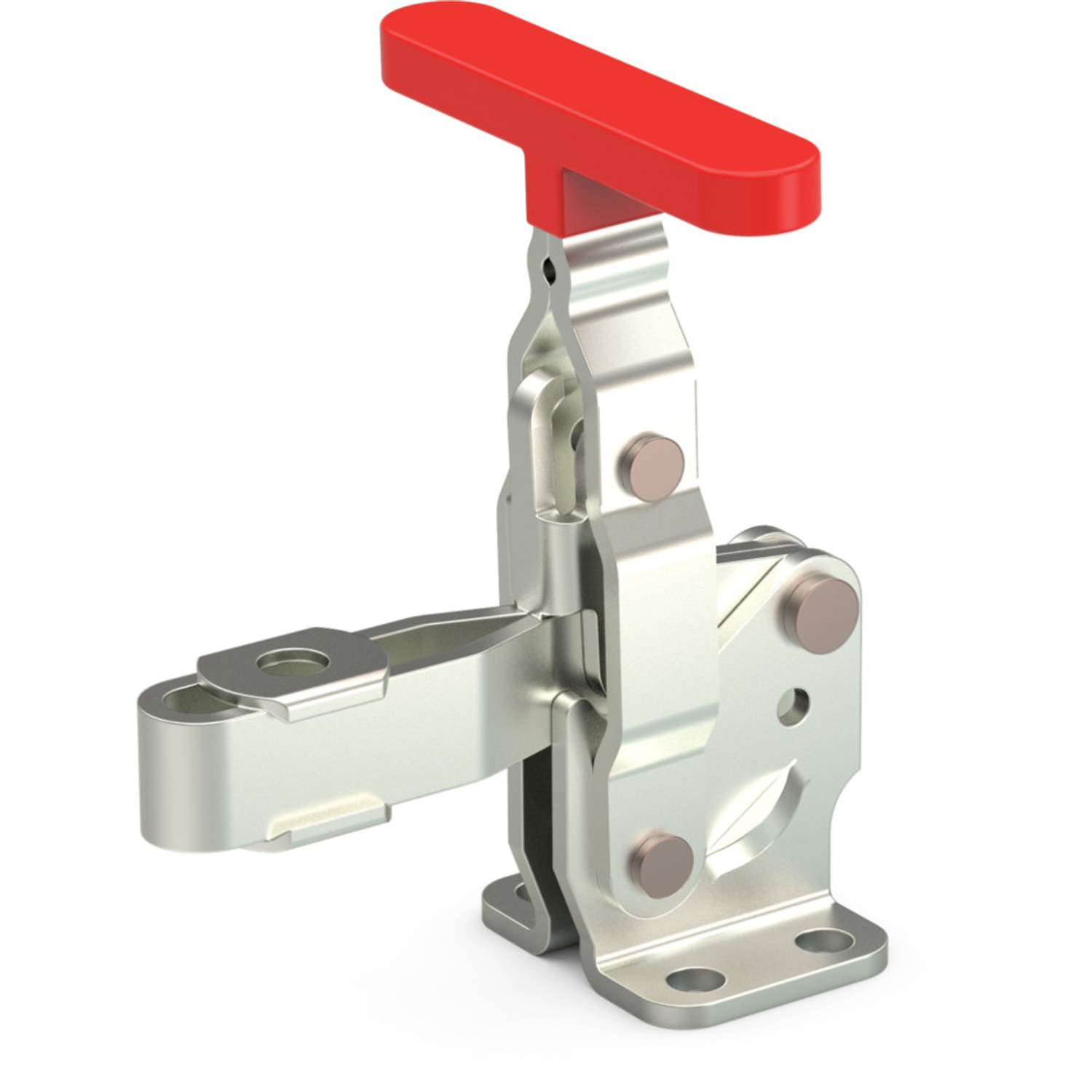

207 Series Vertical Hold Down Clamps, Flanged Base, T Handle

Clamp Arm Style	Base Mounting Style	Includes Locking Handle	Handle Orientation	Arm Style	Tip Material	Clamp Arm Opening Angle	Type	Price
U Bar	-	-	-	-	-	-	T Handle	$42.30
Long U Bar	Flange	No	Vertical	U BAR	Neoprene	99°	T Handle	$57.14

DESTACO

324-R Series Pull Action Latch Clamps

Hook Type	Base Mounting Style	Includes Locking Handle	Handle Orientation	Base Length	Handle Style	Bar Width (in.)	Arm Length	Price
U-Hook (Vertical)	-	-	-	1"	Straight	0.81"	-	$112.49
U-Hook (Vertical)	-	-	-	1"	Straight	0.81"	-	$52.92
U-Hook (Vertical)	-	-	-	1"	Straight	0.81"	-	$51.75
Vertical U	Flange	Yes	Vertical	1"	Straight	0.81"	1.46"	$71.41

DESTACO

344-M Series Pull Action Latch Clamps

Base Length	Handle Style	Bar Width (in.)	Base Width	Hook Type	Price
1.94"	Straight	1 3/4"	2 3/25"	U-Hook (Vertical)	$66.47
1.94"	Straight	1 3/4"	2 3/25"	U-Hook (Vertical)	$68.76
1.94"	Straight	1 3/4"	2 3/25"	U-Hook (Vertical)	$71.04

DESTACO

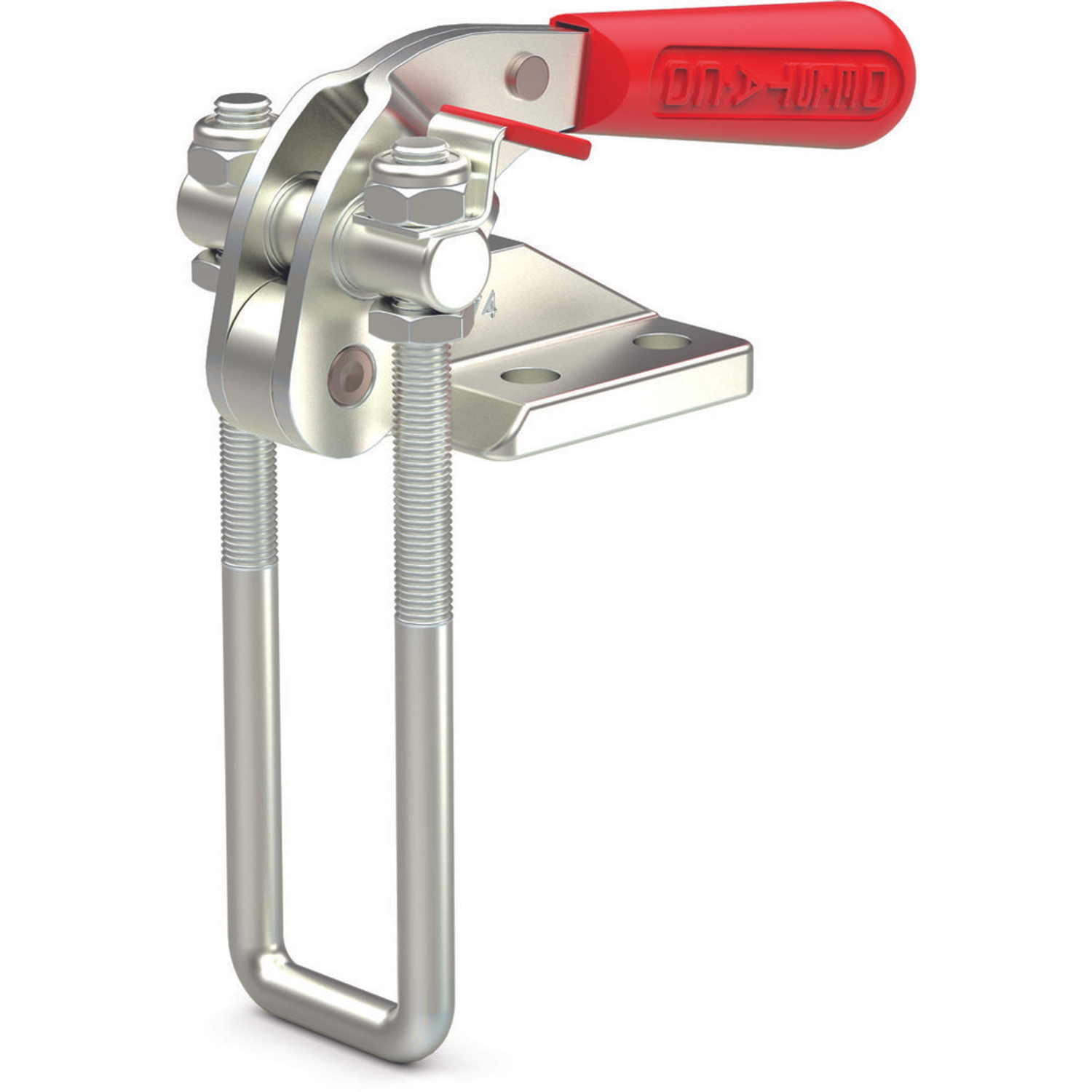

374-M Series Pull Action Latch Clamps

Base Length	Handle Style	Bar Width (in.)	Base Width	Hook Type	Price
2.43"	Straight	1 3/4"	2 1/2"	U-Hook (Vertical)	$174.55
2.43"	Straight	1 3/4"	2 1/2"	U-Hook (Vertical)	$172.26
2.43"	Straight	1 3/4"	2 1/2"	U-Hook (Vertical)	$176.80

DESTACO

500 Series Weldable Vertical Hold Down Clamps

Height To Top Of Clamp Arm	Spring Clip	Base Length	Base Width	Clamp Bar Opening	Clamp Arm Style	Type	Handle	Price
2 3/4"	Yes	1 3/25"	0.39"	200°	Weldable	Vertical	Vertical	$304.39
6.46"	Yes	2.58"	-	200°	Weldable	Vertical	Vertical	$277.99
4 19/25"	Yes	1.97"	0.63"	200°	Weldable	Vertical	Vertical	$272.76
3 23/25"	Yes	1 3/4"	-	200°	Weldable	Vertical	Vertical	$147.85
5.29"	Yes	2.09"	22/25"	200°	Weldable	Vertical	Vertical	$169.76
3.89"	Yes	1.38"	12/25"	200°	Weldable	Vertical	Vertical	$174.61
3.89"	No	1.38"	12/25"	200°	Weldable	Vertical	Vertical	$108.52
1 23/25"	No	3/4"	1/4"	200°	Weldable	Vertical	Vertical	$84.95
5.29"	No	2.09"	22/25"	200°	Weldable	Vertical	Vertical	$103.69
2 11/25"	No	-	0.51"	200°	Weldable	Vertical	Vertical	$86.65
+ See More

DESTACO

385 Series Pull Action Latch Clamps

Base Mounting Style	Includes Locking Handle	Handle Orientation	Type	Base Length	Handle Style	Bar Width (in.)	Base Width	Price
Flange	No	Horizontal	Horizontal	-	-	-	-	$168.39
-	-	-	-	3.39"	Straight	2.13"	3.15"	RFQ
-	-	-	-	-	-	-	-	$380.20

DESTACO

527 Series Vertical Hold Down Clamps

Clamp Bar Opening	Clamp Arm Style	Type	Handle	Base Length	Handle Style	Handle Opening	Bar Width (in.)	Price
195°	Solid Bar	Vertical	Vertical	1.83"	Straight	65°	3/4"	$210.40
195°	Solid Bar	-	-	-	-	-	-	$107.21

DESTACO

2002 Series Vertical Hold Down Clamps, U-Bar

Base Mounting Style	Includes Locking Handle	Arm Style	Clamp Arm Opening Angle	Type	Clamp Bar Opening	Handle Opening	Clamp Arm Style	Price
Flange	No	U BAR	75°	Vertical Handle Hold Down	75°	66°	U Bar	$34.29
Flange	Yes	U BAR	75°	Vertical Handle Hold Down	75°	66°	U Bar	$61.34
Bar	Yes	Open U Bar	75°	Vertical	75°	66°	Open U Bar	$78.46
Flange	No	Open U Bar	90°	Vertical	90°	72°	U Bar	$35.91
Flange	Yes	Open U Bar	75°	Vertical	75°	57°	Open U Bar	$81.93
Bar	No	Open U Bar	75°	Vertical	75°	66°	U Bar	$35.66

DESTACO

324-M Series Pull Action Latch Clamps

Base Length	Handle Style	Bar Width (in.)	Hook Type	Price
1"	Straight	0.81"	U-Hook (Vertical)	$30.90
1"	Straight	0.81"	U-Hook (Vertical)	$30.59
1"	Straight	0.81"	U-Hook (Vertical)	$33.20

DESTACO

533, 535 Series Heavy Duty Vertical Hold Down Clamps

Base Length	Base Width	Type	Handle	Clamp Bar Opening	Handle Style	Handle Opening	Clamp Arm Style	Price
2.95"	-	Vertical	Vertical	120°	Straight	90°	Long Solid Bar	$167.70
2 9/25"	-	Vertical	Vertical	120°	Straight	90°	Long Solid Bar	$139.03
2 9/25"	1 3/4"	Vertical	Vertical	120°	Straight	90°	Long Solid Bar	$145.68
2.95"	2.13"	Vertical	Vertical	120°	Straight	90°	Long Solid Bar	$175.95

DESTACO

5905, 5910, 5915 Series Heavy Duty Vertical Hold Down Clamps

Clamp Bar Opening	Base Length	Handle Opening	Bar Width (in.)	Base Width	Base Mounting Style	Includes Locking Handle	Handle Orientation	Price
135°	3.51"	70°	0.51"	0.59"	-	-	-	$92.64
147°	2"	74°	1"	3 22/25"	Flange	No	Vertical	$193.87
132°	2 1/4"	71°	3/4"	3/4"	-	-	-	$122.83
132°	1 1/2"	71°	3/4"	2 19/25"	-	-	-	$126.33
135°	1 1/2"	70°	0.51"	2.13"	-	-	-	$101.66

DESTACO

548, 578 Series Heavy Duty Vertical Hold Down Clamps

Base Length	Base Mounting Style	Includes Locking Handle	Handle Orientation	Arm Style	Clamp Arm Opening Angle	Type	Handle	Price
4.02"	Bar	No	Vertical	Solid Bar	199°	Vertical	Vertical	$387.53
3 1/4"	-	-	-	-	-	Vertical	Vertical	$270.56

DESTACO

2007 Series Vertical Hold Down Clamps, U Bar

Base Mounting Style	Includes Locking Handle	Arm Style	Clamp Arm Style	Type	Height Under Arm	Overall Depth	Overall Width	Price
Flange	No	U BAR	U Bar	Vertical Handle Hold Down	1 1/4"	7.17"	4.82"	$46.83
Flange	Yes	U BAR	U Bar	Vertical Handle Hold Down	1 1/4"	7.17"	4.82"	$88.67
Bar	No	U BAR	U Bar	Vertical	1.68"	7.94"	1 1/4"	$47.59
Bar	Yes	Open U Bar	Open U Bar	Vertical	1.68"	7.94"	1 1/4"	$106.77
-	-	-	U Bar	-	-	-	-	$80.90

DESTACO

207 Series Vertical Hold Down Clamps, Straight Base, U Bar

Clamp Arm Style	Arm Length	Base Mounting Style	Includes Locking Handle	Handle Orientation	Arm Style	Tip Material	Clamp Arm Opening Angle	Price
U Bar	2.14"	Bar	No	Vertical	U BAR	Neoprene	99°	$33.52
Long U Bar	3.84"	Bar	No	Vertical	U BAR	Neoprene	99°	$40.16
Open U Bar	-	-	-	-	-	-	-	RFQ

DESTACO

334-M Series Pull Action Latch Clamps

Base Length	Handle Style	Bar Width (in.)	Base Width	Hook Type	Price
1.31"	Straight	1.13"	1 14/25"	U-Hook (Vertical)	$48.07
1.31"	Straight	1.13"	1 14/25"	U-Hook (Vertical)	$50.33
1.31"	Straight	1.13"	1 14/25"	U-Hook (Vertical)	$49.22

DESTACO

207 Series Vertical Hold Down Clamps, Flanged Base, Solid Bar

Type	Clamp Arm Style	Handle	Clamp Bar Opening	Handle Opening	Base Length	Handle Style	Bar Width (in.)	Price
Vertical Handle Hold Down	Solid Bar	Vertical	99°	57°	-	-	-	$32.90
Vertical	Long Solid Bar	Vertical	99°	57°	1.38"	Straight	0.63"	$86.97

DESTACO

528 Series Heavy Duty Vertical Hold Down Clamps

Base Mounting Style	Includes Locking Handle	Handle Orientation	Arm Style	Handle	Clamp Bar Opening	Base Length	Handle Style	Price
Flange	No	Vertical	Solid Bar	Vertical	180°	1.77"	Straight	$196.03
-	-	-	-	Vertical	180°	1.77"	Straight	$181.54

DESTACO

202 Series Vertical Hold Down Clamps, Stainless Steel

Arm Style	Type	Clamp Arm Style	Height Under Arm	Arm Length	Overall Width	Fastener Thread Size	Base Mounting Style	Price
U BAR	Vertical Handle Hold Down	U Bar	0.92"	1.73"	3 14/25"	1/4"-20	Flange	$68.89
Solid Bar	Vertical	Solid Bar	0.93"	1.08"	1.57"	3/16"	Flange	$58.88

BESSEY

Diameter	Base Mounting Centers	Height Under Arm	Arm Length	Overall Depth	Fastener Thread Size	Base Mounting Style	Includes Locking Handle	Price
1/5"	0.50" x 1.10"	0.69"	1.97"	5.08"	M6	Flange	No	$53.07
1/4"	1" x 1.57"	0.88"	2.48"	6.38"	M8	Flange	No	$57.73

Latch Clamp Stainless Steel Horizontal

Type	Diameter	Base Mounting Centers	Hook Type	Height Under Arm	Body Material	Overall Depth	Base Mounting Style	Price
Horizontal Handle Hold Down	0.17"	0.63" x 0.75"	Horizontal U	0.47"	Stainless Steel	1.23"	Flange	$64.21
Horizontal Handle Hold Down	1/4"	0.75" x 1.25"	Horizontal U	0.53"	Stainless Steel	1.65"	Flange	$70.73
Horizontal Handle Hold Down	0.33"	1.25" x 1.78"	Horizontal U	1.75"	Steel	2.51"	Flange	$35.19
Horizontal Handle Hold Down	0.33"	1.63" x 1.50"	Horizontal U	0.92"	Stainless Steel	3"	Flange	$84.89
Vertical Handle Hold Down	0.21"	0.51" x 0.87"	Vertical U	Not Specified	Stainless Steel	3.96"	Flange	$53.51
Vertical Handle Hold Down	7/25"	0.75" x 1"	Vertical U	Not Specified	Stainless Steel	4.93"	Flange	$68.74

DESTACO

Hold Down Toggle Clamps

Base Mounting Style	Includes Locking Handle	Handle Orientation	Maximum Holding Capacity	Arm Style	Clamp Arm Opening Angle	Clamp Bar Opening	Height Under Arm	Price
Bar	No	Vertical	750 lbf.	Solid Bar	103°	103°	2 1/5"	$71.41
Flange	Yes	Horizontal	350 lbf.	U Bar	92°	92°	0.89"	$115.40
Flange	Yes	Horizontal	500 lbf.	U Bar	92°	92°	1.29"	$107.64
Flange	Yes	Vertical	600 lbf.	U Bar	75°	75°	0.95"	$93.74
Flange	Yes	Vertical	1000 lbf.	U Bar	76°	76°	1 1/4"	$118.33
Flange	No	Vertical	600 lbf.	U Bar	75°	75°	0.95"	$71.41
Flange	No	Vertical	1000 lbf.	U Bar	76°	76°	1 1/4"	$89.26
Flange	No	Vertical	500 lbf.	Solid Bar	99°	99°	1 1/4"	$37.57
Flange	Yes	Horizontal	200 lbf.	U Bar	90°	90°	12/25"	$76.77

Description

Vertical handle toggle clamps are used in heavy duty vertical clamping operations due to their high clamping capacities and reliability. Raptor Supplies is an authorized vertical handle toggle clamp distributor for various brands like Destaco, Clamp right, Bessey etc which are available in different bar size, base length, base width, diameter and load capacity.

Frequently Asked Questions

Are there maintenance requirements for vertical hold-down clamps?

Regular maintenance includes cleaning, lubrication of moving parts and inspection for any signs of wear or damage.

What are the key considerations when selecting a vertical hold-down toggle clamp?

Consider factors such as clamping force, handle operation and the specific requirements of your application. Ensure that the chosen clamp is suitable for vertical clamping tasks and meets the load and size specifications of your workpieces.

Can vertical toggle clamps be used for CNC machining applications?

Yes, vertical handle toggle clamps are often used in CNC machining applications to secure workpieces in a vertical orientation, ensuring stability during the machining process.

Are plunger action toggle clamps suitable for vertical clamping?

Plunger action toggle clamps are designed for applications where a straight-line action is required. While they can be used in certain vertical applications, vertical handle toggle clamps are more specifically tailored for vertical clamping tasks.

What is the purpose of a pull action latch in a vertical toggle clamp?

The pull action latch in a vertical toggle clamp secures the clamp in the closed position, ensuring a reliable and stable hold on the workpiece.

How do you release the clamping force with a vertical clamp?

Releasing the clamping force is typically achieved by lifting the vertical handle and disengaging the toggle mechanism.

Welcome to Your U.S. Store!

ChatMRO - Conversational Commerce for Industrial Parts

Vertical Handle Toggle Clamps

Description

Frequently Asked Questions

Are there maintenance requirements for vertical hold-down clamps?

What are the key considerations when selecting a vertical hold-down toggle clamp?

Can vertical toggle clamps be used for CNC machining applications?

Are plunger action toggle clamps suitable for vertical clamping?

What is the purpose of a pull action latch in a vertical toggle clamp?

How do you release the clamping force with a vertical clamp?

Popular Search Queries

Explore More
