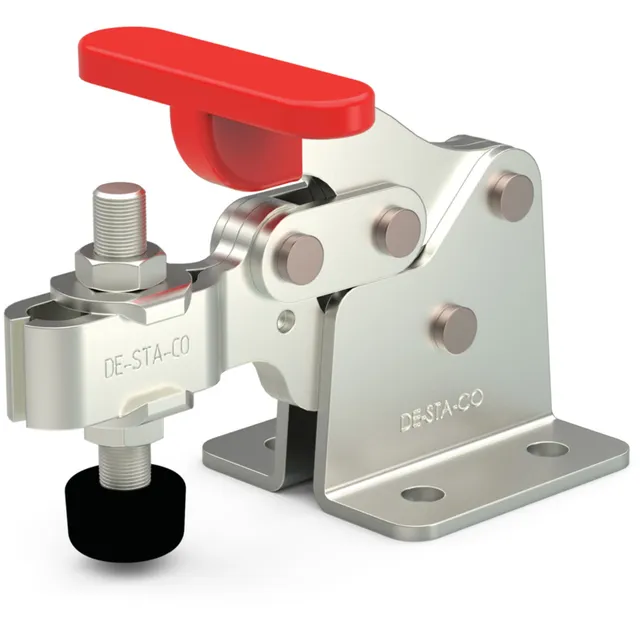

DESTACO 309-U Horizontal Hold Down Clamp, U Hook, Flanged Base, Steel, 750 lb

Horizontal hold down clampsare ideal for using the movement of a handle placed parallel to the base in locked position to push the clamping arm & the attached spindle against the workpieces. They are suitable for applications that require repeated clamping / detaching of the workpiece throughout the operation. Destaco 309 Serieshorizontal hold down clamps is equipped with a U clamping bar to attach adjustable spindle assemblies for keeping the workpieces stationary & preventing them from loosening or slipping throughout the operation. They have compact design for minimising space requirements for clamp installation & usage. These hold down clamps have maximum holding capacity of 750 lb. Destaco 309-U horizontal hold down clamp is used to hold workpieces against flat surfaces during woodworking, light machining, metalworking, manufacturing & closure operations. This manual clamp has steel construction for a long life cycle and minimising regular damage / wear due to harsh usage. It features a T shaped handle for ease of operation from either side or from behind the clamp. Raptor Supplies also offers this clamp in variants having stainless steel construction for corrosion resistance; Toggle Lock Plus mechanism to prevent its accidental opening during the operation.

Destaco 309-U horizontal hold down clamp is used for closing various fixtures, such as drums, lids, covers and chamber & access doors. It can also be used in light machining, woodworking, welding & assembly operations in automotive, transportation, aerospace and food & packaging industries.

• Destaco 309-U horizontal hold down clamp features U bar to attach spindle assemblies for secure holding of workpieces.
• It has an easy to hold T handle for operating from either side or behind to minimise user fatigue over prolonged usage.
• This clamp has compact design for ease of use in confined spaces.
• The clamp has flange base mounting style for installation on horizontal surfaces.
• It provides a clamp bar opening of 90 degrees and handle opening of 168 degrees.
• This clamp has a maximum holding capacity of 750 lb.
• It has steel construction for structural rigidity, durability and preventing bending / breaking under heavy loads.
• The clamp arm has a height of 1.31 inches and length of 2.68 inches.

• Destaco 309208: Raptor Supplies delivers these flat tip bonded neoprene spindles for holding down workpieces using Destaco 309-U manual clamp.
• Destaco 235106: These flanged washers help in tightening & fixing the spindles at a fixed location.

• Destaco 309-U horizontal hold down clamp is designed in compliance with ISO 9001:2015 & ISO 14001:2015 standards for environmental health, user safety and efficient performance of the clamp.

• Destaco 309-U hold down clamp can be quickly mounted to the flat surfaces or workpieces using two pairs of threaded holes on the base for secure installation.
• When required, this clamp can be easily removed by unscrewing it using a simple screwdriver.
