Destaco 213-U-L | Flanged Base Horizontal Clamp, 0.85 Inch Clamp Arm, 150 lb

Q: Which grease is recommended for use with Destaco clamps when rebuilding?

For ensuring smooth operation &amp; durability of mechanical clamps, it is recommended to use a coupling grease like Mobil XTC.

Specifications

Item	Horizontal Hold Down Clamp
Bar Width (in.)	0.37"
Base Length	1"
Base Width	1.06"
Clamp Arm Length	0.85"
Clamp Arm Style	Open U Bar
Clamp Bar Opening	90°
Handle Opening	60°

Handle Style	Straight
Handle Type	Horizontal
Height Under Clamp Arm	0.65"
Holding Capacity	150 lbs.
Material	Steel
Mounting Base	Flange
Overall Height	1.39"
Toggle Lock Plus	No

Product Details

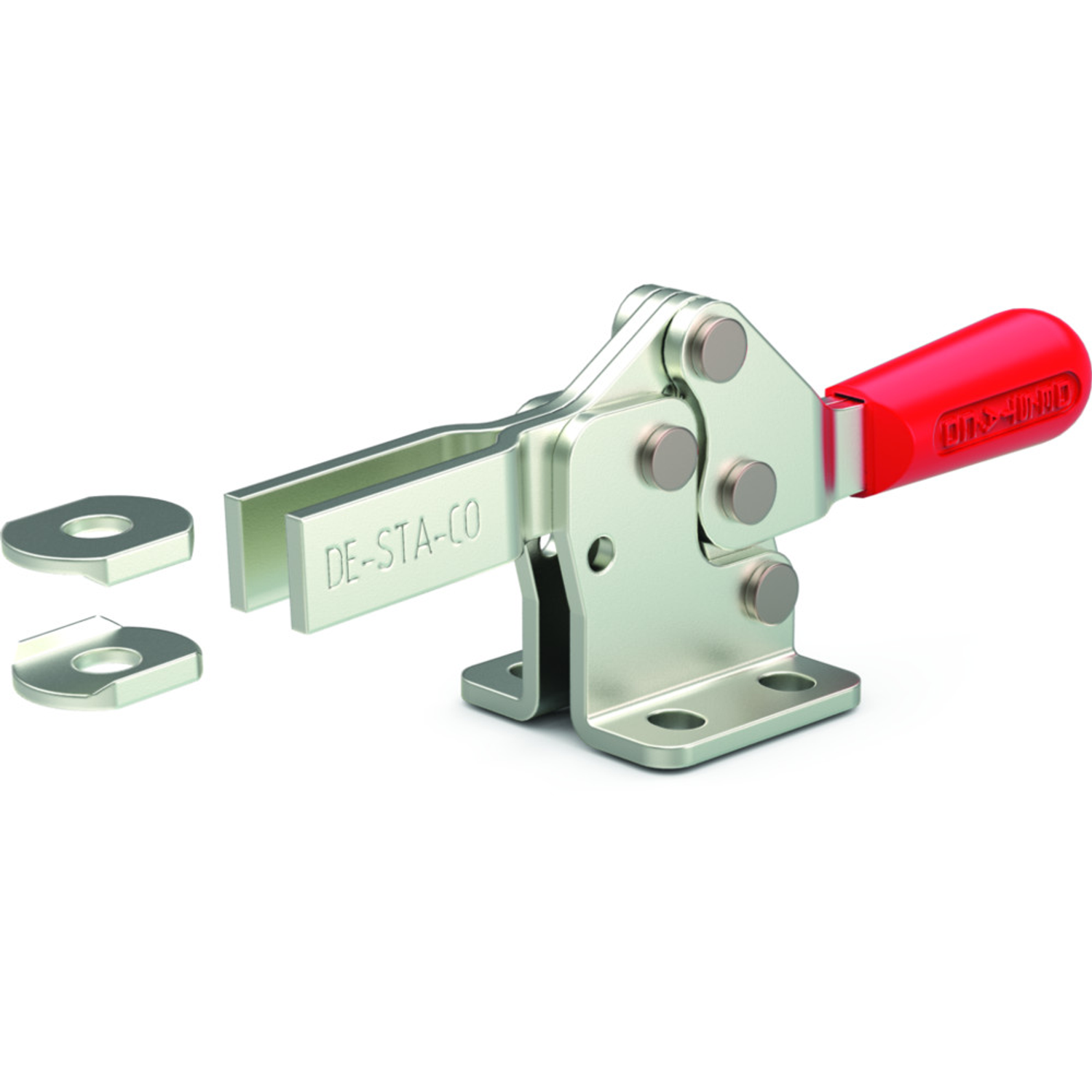

Destaco 213-U-L horizontal hold down clamp is suitable for holding down workpieces against flat surfaces in manufacturing and woodworking facilities. This flanged base horizontal clamp is ideal for applications that require working on the same workpiece repeatedly. It features a low profile design that minimises the space requirement for clamp installation & usage, thereby enabling ease of operation in confined spaces. Destaco horizontal hold down clamp's U shaped bar is designed for enabling quick spindle adjustment along the holding bar length. This enables the worker to adjust the toggle clamp according to the size of the workpiece. The open style U bar enables attaching arm extensions on site for accommodating various applications. This Destaco toggle clamp features a flat tip neoprene spindle that keeps the workpiece stationary throughout the operation & prevents it from loosening / slipping. Destaco 213-U-L horizontal hold down locking clamp has carbon steel construction for ensuring strength & abrasion resistance while preventing bending / breaking under heavy loads. Destaco 213 Series clampsare available in flat cushion neoprene & hex head stainless steel spindle variants on Raptor Supplies.

Shipping Information

Height (cm)	4.6
Length (cm)	4.14
Width (cm)	0.91

Country Of Origin	US
Weight (kg)	0.081

Uses

Destaco 213-U-L horizontal hold down clamp is designed for performing assembly operations, checking closures & fixtures and for woodworking applications in various industrial facilities. This clamp can also be used for food & packaging and welding operations.

Features

Destaco 213-U-L horizontal hold down toggle locking clamp comes with an adjustable flat tip neoprene spindle that securely grips the workpiece in place & prevents unwanted workpiece movement during operation.
The clamp's carbon steel construction minimises damage / wear against harsh industrial environments.
Destaco horizontal hold down clamp features a low profile design for ensuring ease of clamping in confined spaces.
It features a flanged base with two pairs of mounting holes for ease of installation on flat surfaces / workbenches.
Its handle features a plastic grip for preventing hand slippage mid operation.
Destaco also offers a wide range of low profile horizontal hold down clamps in a range of configurations & styles like J hook style clamping arms, low profile T style handles & Toggle Lock Plus enabled clamps.

Compatible Accessories

Destaco 102111 flanged washer is used to maintain sufficient load for tightening bolts & gaskets of a flange.

Standards and Approvals

Destaco 213-U-L horizontal hold down clamp is manufactured in compliance with international industry standards like ISO 9001:2015 & ISO 14001:2015.

Installation

Destaco 213-U-L horizontal hold down clamp has a flanged base with two pairs of mounting holes for enabling secure installation on flat surfaces / workbenches. Upon requirement, this toggle clamp can be easily removed by simply unscrewing the 4 screws using a screwdriver.

Documentation

Frequently Asked Questions

Does the brand offer horizontal hold down clamps in other base mounting styles?

Yes, in addition to this flanged base variant, Destaco also offers straight base (Destaco 213-UB & Destaco 213-UB-L) horizontal hold down clamps.

How do horizontal hold down clamps work?

Some U bar style clamping arm clamps feature a hex head stainless steel spindle that is manually operated using a handle / lever. This handle movement pushes the spindle against the workpiece and prevents it from moving mid operation, thereby ensuring secure clamping.

What is a horizontal hold down clamp?

Destaco horizontal hold down clamps are designed for keeping a workpiece stationary against a flat surface / workbench, for various industrial applications like metalworking and woodworking.

What does holding capacity mean in terms of clamps?

The holding force or the holding capacity depicts the clamp's capability to hold down sheet metal or equipment on assembly lines or during manufacturing processes.

What is the difference between a vertical & horizontal toggle clamp?

The difference lies in the orientation of the handle when the clamp is in the locked position. A vertical clamp handle is positioned vertically (perpendicular to the base) when in locked position, while in the case of a horizontal toggle clamp, it is positioned horizontally (parallel to the base).

What does clamping force mean?

Clamping force is the amount of force actually applied to a workpiece by closing & locking the clamp. It is normally less than the stated holding capacity. The actual clamping force depends on various factors, including cylinder bore, cylinder area, spindle position (clamping arm length) and available air pressure. In most cases, the clamping force is approximately 2 to 3 times the force exerted by a pneumatic cylinder.

Which grease is recommended for use with Destaco clamps when rebuilding?

For ensuring smooth operation & durability of mechanical clamps, it is recommended to use a coupling grease like Mobil XTC.

What does the red colour of the handle of Destaco clamps mean?

The red coloured handles on Destaco clamps just denote a recognisable area. This is done to alert the worker / operator where the operating handle is and where he should grab it. Its colour has no additional significance to the working of the clamp.
