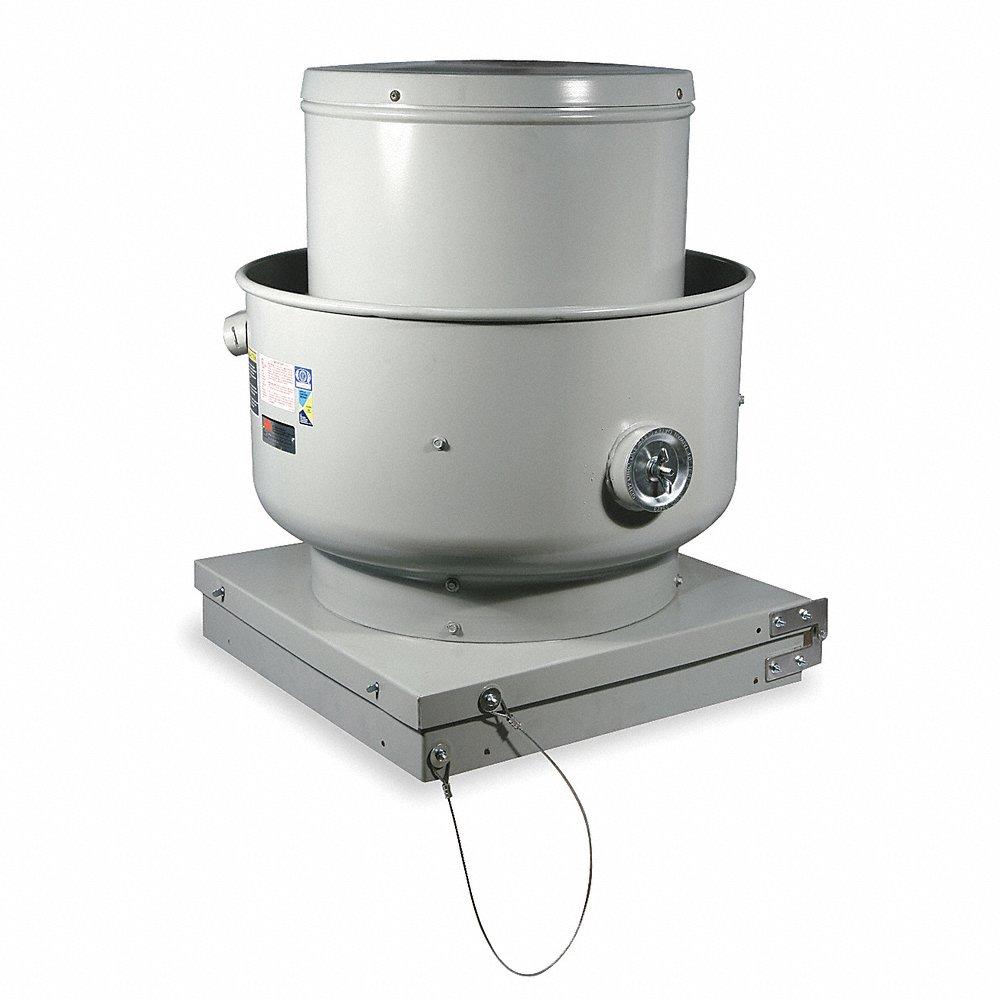

| Item | Upblast Ventilator |
|---|---|
| Application | Kitchens |
| Assembled/unassembled | Unassembled |
| Assembly | Unassembled |
| Base Dia. | Not Applicable |
| Base Height | 6.3" |
| Base Length | 29 1/8" |
| Base Shape | Square |
| Base Size | 29 1/8" x 29 1/8" |
| Base Width | 29 1/8" |
| Bearing Type | Regreasable Pillow Block |
| Brake Hp | 1 57/100 bhp |
| Compatible Curb Grainger Part No. | 2EUG9 |
| Current | 4.8/2.4A |
| Damper Size | 23" x 23" |
| Dimension A | 29 1/8" |
| Dimension B | 35 3/8" |
| Dimension C | 34" |
| Dimension D | 21" |
| Drive Package Included | Yes |
| Drive Package With Motor Included | Yes |
| Drive Type | Belt Drive |
| Duty Rating | Severe |
| Electrical Connection | Power Cord |
| Exhaust Airflow @ 0.000 In Sp | 6187 CFM |
| Exhaust Airflow @ 0.125 In Sp | 5992 CFM |
| Exhaust Airflow @ 0.250 In Sp | 5798 CFM |
| Exhaust Airflow @ 0.375 In Sp | 5610 CFM |
| Exhaust Airflow @ 0.500 In Sp | 5421 CFM |
| Features | Clean Out Port Provides Easy Wheel Access, Heat Baffle Provides Longer Motor Life |
| For Air Type | Kitchen Air |
| For High-static Pressure Applications | No |
| Frequency | 60 Hz |
| High-efficiency Motor | No |
| Housing Color | Gray |
| Housing Finish | Polyester Coated |
|---|---|
| Housing Length | 35 2/5" |
| Housing Material | Steel |
| Housing Width | 35 2/5" |
| Includes | Clean Out Port, Drive Package, Heat Baffle, Hinged Base, Nema 1 Junction Box |
| Includes Drive Package | Yes |
| Includes Drive Package With Motor | Yes |
| Includes Motor | Yes |
| Maximum Fan Speed | 1100 RPM |
| Maximum Inlet Air Temperature | 400°F |
| Maximum Static Pressure | 1.25 in. wc |
| Motor Enclosure | Open Dripproof |
| Motor Hp | 1 1/2 hp |
| Motor Location | Out Of Airstream |
| Motor Speed | 1100 RPM |
| Mount Type | Roof Curb |
| Mounting Location | Roof |
| Nameplate Voltage | 208-230/460V AC |
| Number Of Speeds | 1 |
| Overall Dia. | 35 3/8" |
| Overall Height | 40 1/4" |
| Phase | 3 |
| Propeller Shaft Dia. | 1" |
| Requires | Roof Curb For New Installations |
| Resistance Properties | Spark Resistant |
| Safety Features | Windband |
| Shaft Dia. Wheel End | 1" |
| Sound Level | 18.6 Sones @ 1.250 in Sp And 5 Ft, 19.3 Sones @ 1.000 in Sp And 5 Ft, 19.8 Sones @ 0.875 in Sp And 5 Ft, 20.0 Sones @ 0.750 in Sp And 5 Ft, 21.0 Sones @ 0.375 in Sp And 5 Ft, 21.0 Sones @ 0.500 in Sp And 5 Ft, 21.0 Sones @ 0.625 in Sp And 5 Ft, 22.0 Sones @ 0.250 in Sp And 5 Ft, 23.0 Sones @ 0.000 in Sp And 5 Ft, 23.0 Sones @ 0.125 in Sp And 5 Ft |
| Spark Resistant Construction Type | A |
| Speed Controllable | No |
| Wheel Dia. | 21 1/4" |
| Wheel Finish | Nonstick Coated |
| Wheel Material | Steel |
| Wheel Type | Backward Inclined |
| Standards | AMCA SOUND AND AIR, UL/CUL 762 |
| Weight (kg) | 136.683 |
|---|
