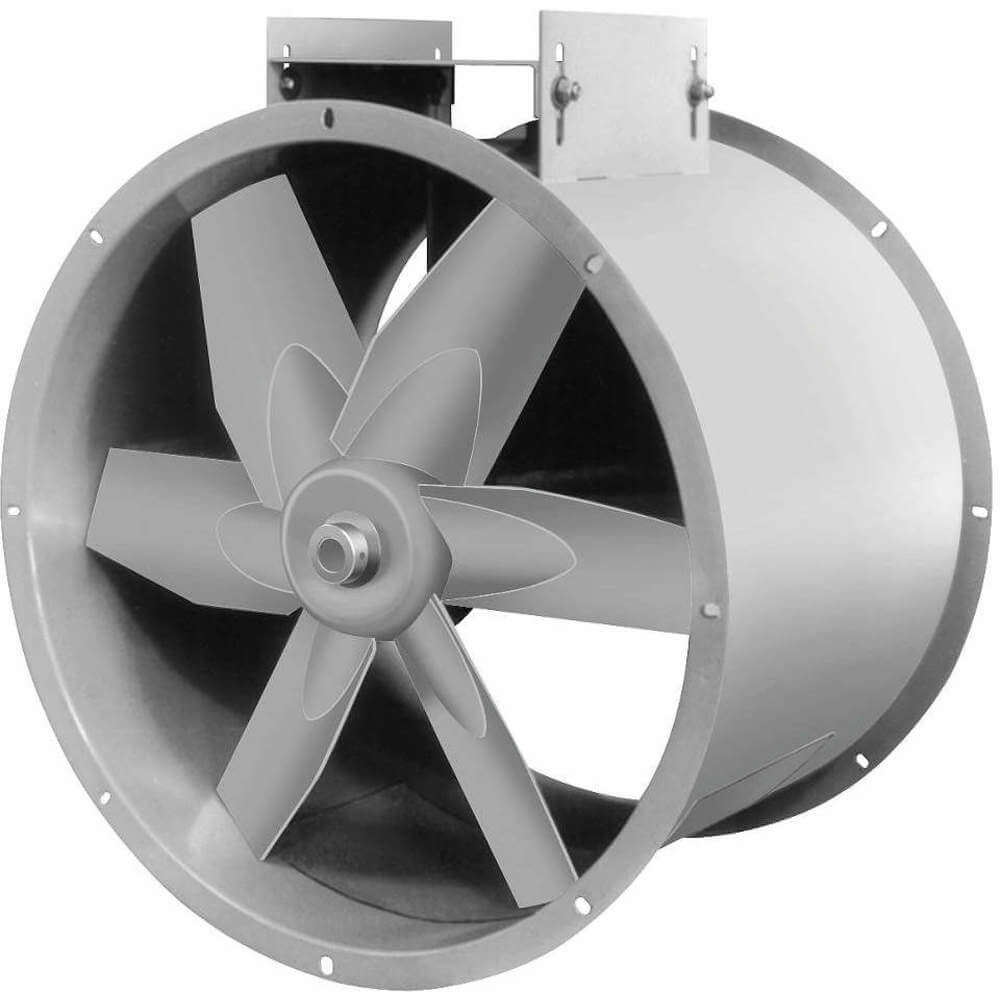

| Item | Tubeaxial Fan |
|---|---|
| Airflow @ 0.000 In Sp | 6470 CFM |
| Assembled/unassembled | Unassembled |
| Assembly | Unassembled |
| Bearing Type | Ball Bearing |
| Blade Dia. | 24" |
| Blade Finish | Baked Enamel |
| Blade Material | Steel |
| Body Dia. | 24 1/2" |
| Bolt Circle Dia. | 0.312" , 25 3/4" , 5/16" |
| Brake Horsepower | 82/125 hp |
| Cfm @ 0.000-in. Sp | 6470 CFM |
| Cfm @ 0.125-in. Sp | 6096 CFM |
| Cfm @ 0.250-in. Sp | 5678 CFM |
| Cfm @ 0.375-in. Sp | 4600 CFM |
| Current | 11/5.4-5.5A |
| Dimension A | 27" |
| Dimension B | 16 3/4" |
| Dimension C | 24 5/16" |
| Dimension D | 18" |
| Dimension E | 5/16" |
| Drive Type | Belt Drive |
| Features | Dual Belt, Corrosion Resistant Baked Enamel Coated Steel Blades, Variable Pitch Drives |
| For Air Type | Emergency Smoke |
| Full Load Amps | 11/5.4-5.5A |
| Height | 37 1/4" |
| Housing Dia. W/mtg. Flange | 27" |
| Housing Dia. W/o Mtg. Flange | 24 1/8" |
| Housing Finish | Baked Enamel |
| Housing Material | Steel |
| Hz | 60 Hz |
| Includes | Belt Guard |
| Includes Drive Package | Yes |
| Includes Motor | Yes |
| Includes Motor & Drive Package | Yes |
|---|---|
| Inlet Dia. | 24 5/16" |
| Max. Ambient Temp. | 200°F |
| Max. Bhp | 82/125 bhp |
| Max. Depth | 18" |
| Max. Motor Height | 10" |
| Maximum Fan Speed | 1199 RPM |
| Maximum Inlet Air Temperature | 200°F |
| Maximum Noise Level @ 5 Feet | 29 sones |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Hazardous Location Rating | Not Rated |
| Motor Horsepower | 3/4 hp |
| Motor Hp | 3/4 hp |
| Motor Rpm | 1725 RPM |
| Motor Type | Capacitor Start |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Position | Horizontal/Vertical |
| Nameplate Voltage | 115/208-230V AC |
| No. Of Speeds | 1 |
| Number Of Blades | 6 |
| Outlet Dia. | 24 7/16" |
| Overall Dia. | 27" |
| Overall Height | 37 1/4" |
| Overall Length | 18" |
| Phase | 1 |
| Propeller Shaft Dia. | 1" |
| Resistance Properties | Corrosion Resistant |
| Shaft Dia. | 1" |
| Smoke Control Maximum Temperature | 1000°F For 15 Min, 500°F For 4 Hrs. |
| Speed | 1199 RPM |
| Voltage | 115/208-230V |
| Width | 26 7/8" |
| Standards | AMCA, CULUS |
| Height (cm) | 2.54 |
|---|---|
| Length (cm) | 2.54 |
| Width (cm) | 2.54 |
| HS Code | 8414510010 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 81.594 |
| Style | Model | Blade Material | Housing Material | Cfm @ 0.000-in. Sp | Motor Enclosure Design | Phase | Voltage | Motor Hp | Bolt Circle Dia. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 166206A | Aluminum | Steel | - | - | - | - | - | - | $2,125.55 | |
| B | 166293 | Stainless Steel | Stainless Steel | - | - | - | - | - | - | $6,357.41 | |
| C | 166258 | Steel | Steel | - | - | - | - | - | 0.312" | $2,857.38 | |
| D | 7AF67 | Aluminum | Steel | 5730 CFM | Totally Enclosed Fan Cooled | 1 | 115/208-230V | 1/2 hp | 25 3/4" | $2,737.52 | |
| D | 7AF68 | Aluminum | Steel | 5730 CFM | Totally Enclosed Fan Cooled | 1 | 115/208-230V | 1/2 hp | 25 3/4" | $3,063.32 | |
| D | 7AF69 | Aluminum | Steel | 5730 CFM | Totally Enclosed Fan Cooled | 3 | 208-230/460V | 1/2 hp | 25 3/4" | $2,760.42 | |
| D | 7AF70 | Aluminum | Steel | 5730 CFM | Totally Enclosed Fan Cooled | 3 | 208-230/460V | 1/2 hp | 25 3/4" | $3,069.39 |
