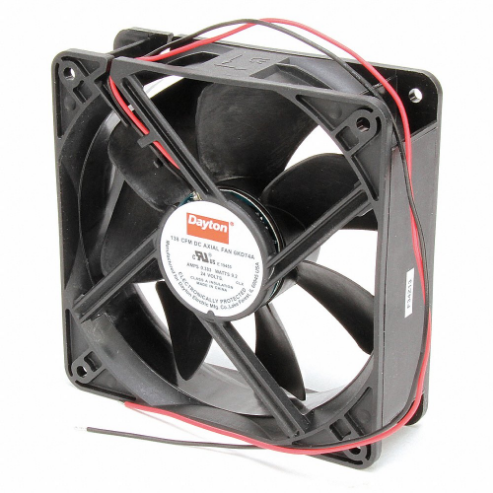

| Item | Axial Fan |
|---|---|
| Amps | 0.383A |
| Bearing Type | Ball |
| Blade Material | Polybutylene Terephthalate |
| Cfm @ 0.000-in. Sp | 45 CFM |
| Color | Black |
| Depth | 1 1/2" |
| Electrical Connection - Fans | Lead Wires |
| Environmental Applications | Equipment Cooling |
| Fan Shape | Square |
| Fan Voltage | 24V DC |
| Height | 4 11/16" |
| Housing Finish | Black Painted |
| Housing Material | PBT Plastic |
| Ip Rating | IP20 |
| Max. Ambient Temp. | 158°F |
|---|---|
| Motor Design | Brushless DC |
| Motor Insulation | Class A |
| Motor Type | Brushless DC |
| Mounting Eye O.c. | 4 1/8" |
| Mounting Position | Horizontal/Vertical |
| Rpm | 3100 RPM |
| Shape | Square |
| Sound Level | 48 dBA |
| Standards | Rohs Compliant |
| Thermal Protection | Impedance |
| Voltage | 24V DC |
| Wattage | 6.2 W |
| Watts | 9.2 W |
| Width | 4 11/16" |
| Height (cm) | 12.45 |
|---|---|
| Length (cm) | 12.7 |
| Width (cm) | 4.83 |
| HS Code | 8414596090 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 0.315 |
| Style | Model | Height | Depth | Housing Material | Voltage | Electrical Connection | Bearing Type | Mounting Eye O.c. | Cfm @ 0.000-in. Sp | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 2RTD1 | 4 11/16" | 1 1/2" | Aluminum | 115V AC | Terminals | Sleeve | 4 1/8" | 115 CFM | $69.76 | |
| B | 2RTD3 | 4 3/4" | 1 1/2" | Aluminum | 230V AC | Terminals | Sleeve | 4 1/8" | 31 CFM | $63.37 | |
| C | 2RTD9 | 4 11/16" | 1 1/2" | Aluminum | 230V AC | Terminals | Sleeve | 4 1/8" | 99/87 CFM | $45.37 | |
| D | 2RTE1 | 4 11/16" | 1 1/2" | Aluminum | 230V AC | Terminals | Ball | 4 1/8" | 115/95 CFM | $71.41 | |
| E | 2RTE4 | 2 3/8" | 1" | PBT Plastic | 115V AC | - | Zero Friction Air | 1 15/16" | 239/203 CFM | $34.70 | |
| F | 2RTE8 | 3 1/8" | 1" | PBT Plastic | 115V AC | - | Zero Friction Air | 2 13/16" | 29/28 CFM | $46.49 | |
| G | 2RTF9 | 2 3/8" | 1" | PBT Plastic | 12V DC | - | Zero Friction Air | 1 15/16" | 31.5 CFM | $28.56 |
