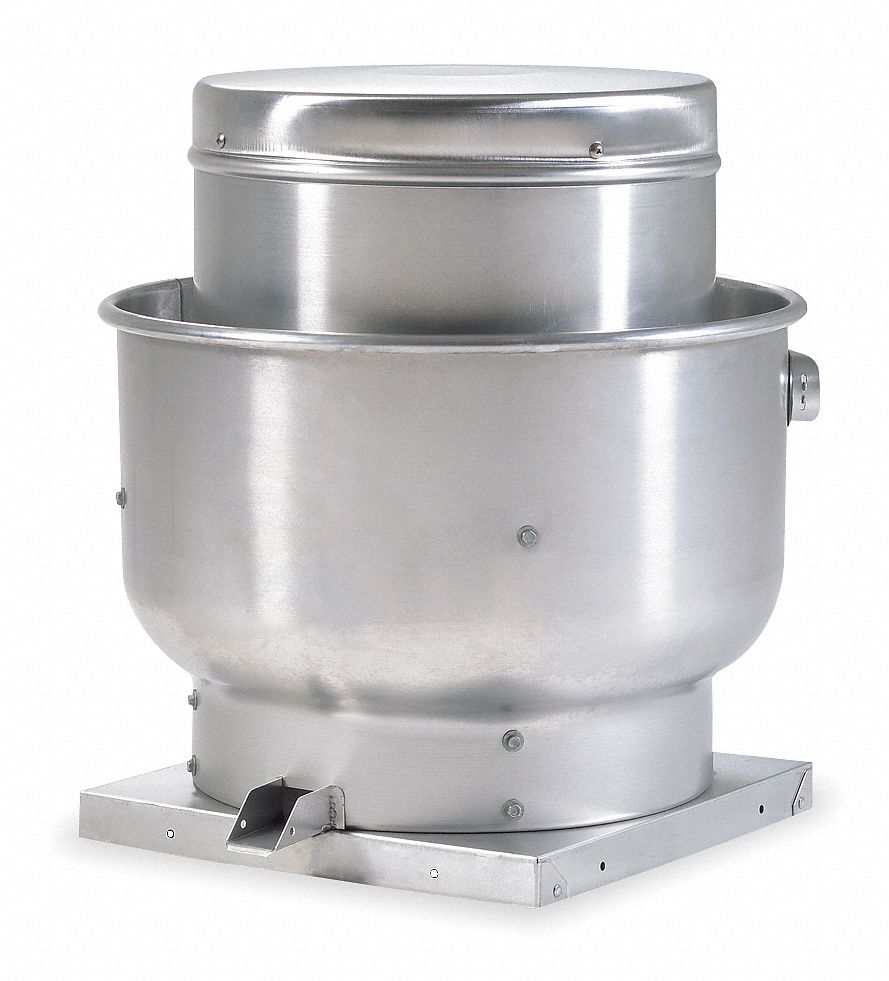

| Item | Upblast Ventilator |
|---|---|
| Application | Industrial And Commercial Buildings, Restaurants, Schools |
| Assembled/unassembled | Assembled |
| Assembly | Assembled |
| Base Dia. | Not Applicable |
| Base Height | 1.8" |
| Base Length | 42" |
| Base Shape | Square |
| Base Size | 42" x 42" |
| Base Width | 42" |
| Cfm @ 0.000-in. Sp | 14727 CFM |
| Cfm @ 0.125-in. Sp | 14497 CFM |
| Cfm @ 0.250-in. Sp | 14266 CFM |
| Cfm @ 0.500-in. Sp | 13788 CFM |
| Cfm @ 0.750-in. Sp | 13223 CFM |
| Cfm @ 1.000-in. Sp | 12614 CFM |
| Cfm @ 1.500-in. Sp | 11191 CFM |
| Compatible Curb Manufacturer Part Number | 24Y860, 2RB75 TO 2RB77, 2RB79 TO 2RB82, 2ZV82 TO 2ZV85 |
| Cutout Length | 37 1/2" |
| Drive Package With Motor Included | Yes |
| Drive Type | Belt Drive |
| Duty Rating | Standard |
| Exhaust Airflow @ 0.000 In Sp | 14727 CFM |
| Exhaust Airflow @ 0.125 In Sp | 14497 CFM |
| Exhaust Airflow @ 0.500 In Sp | 13788 CFM |
| For Air Type | Kitchen Air |
| For High-static Pressure Applications | No |
| High-efficiency Motor | No |
|---|---|
| Housing Material | Aluminum |
| Includes | Nema 1 Junction Box |
| Includes Drive Package | Yes |
| Includes Drive Package With Motor | Yes |
| Includes Motor | Yes |
| Maximum Ambient Temperature | 300°F |
| Maximum Inlet Air Temperature | 300°F |
| Maximum Static Pressure | 2 in. wc |
| Motor Enclosure | Open Dripproof |
| Motor Horsepower | 5 hp |
| Motor Location | Out Of Airstream |
| Mount Type | Roof Curb |
| Mounting Location | Roof, Wall |
| Mounting Orientation | Horizontal, Vertical |
| Nameplate Voltage | 208-230/460V AC |
| Number Of Speeds | 1 |
| Overall Dia. | 50" |
| Overall Height | 37 3/4" |
| Overall Width | 50" |
| Phase | 3 |
| Sones @ 0.250-in. Sp @ 5 Ft. | 32 sones |
| Sound Level | 32 Sones @ 0.125 in Sp And 5 Ft, 32 Sones @ 0.250 in Sp And 5 Ft, Sones @ 0.500 in Sp And 5 Ft |
| Speed Controllable | No |
| Wheel Dia. | 30 1/2" |
| Wheel Material | Aluminum |
| standard | AMCA SOUND AND AIR, UL/CUL 762 |
| Country Of Origin | USA |
|---|
| Weight (kg) | 171.9 |
|---|
