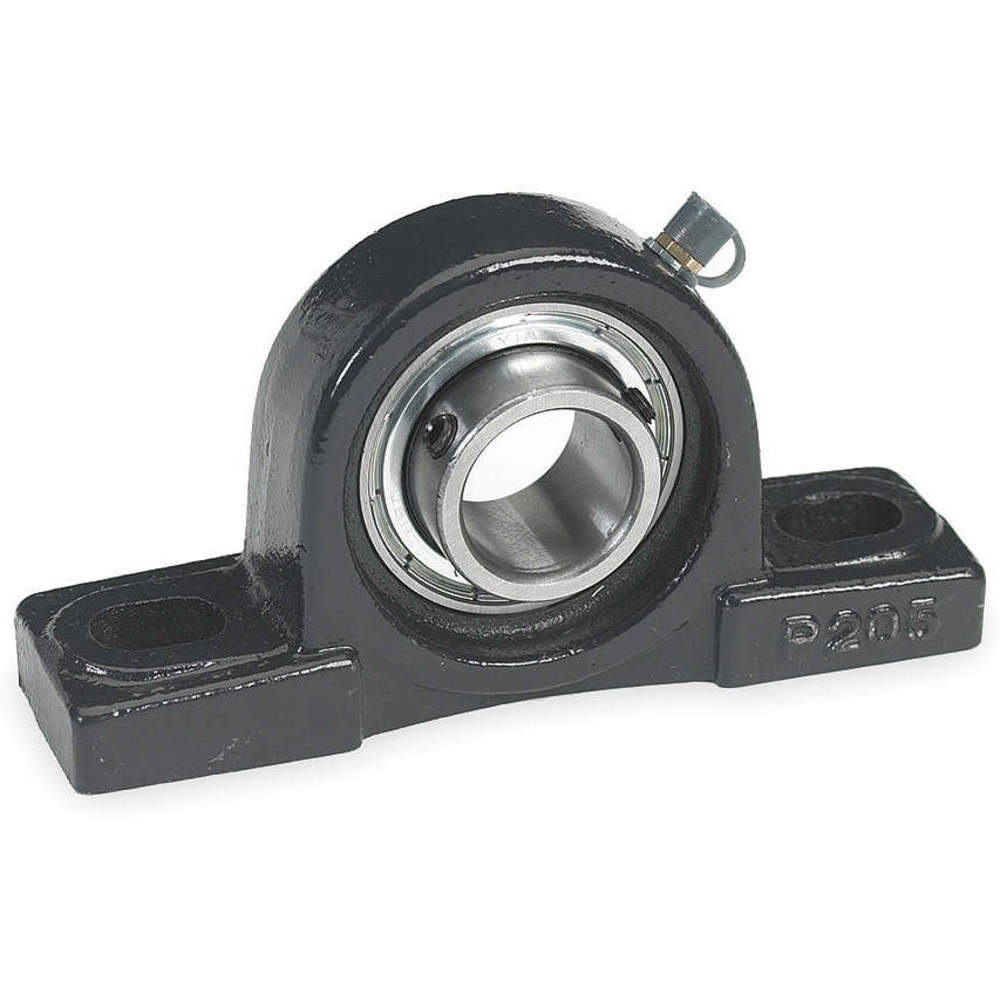

| Item | Mounted Ball Bearing |
|---|---|
| Bearing Housing Material Type | Cast Iron |
| Bearing Insert Material | Alloy Steel |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | Grade 52100 |
| Bolt Center To Center Length | 4 3/4" |
| Bolt Hole Size | 0.656" |
| Bolt Size | 1/2" |
| Bore Dia. | 1.187" |
| Bore Diameter | 1 3/16" |
| Bore Type | Cylindrical |
| Center Height | 1 11/16" |
| Closure | Double Sealed |
| Closure Type | Double Sealed |
| Color | Gray |
| Dynamic Load Capacity | 4382 lbs. |
| Dynamic Radial Load Capacity | 4382 lbf. |
| Finish | Painted |
| Grade | Grade 52100 |
| Housing Material | Cast Iron |
| Housing Material Finish | Painted |
| Includes | (2) Set Screws, Oiler Cap |
| Insert | Ball Bearing |
| Insert Finish | Chrome Plated |
| Insert Material | Steel |
|---|---|
| Insert Type | Radial Ball |
| Lock Type | Set Screw |
| Lubricant Material | Ngli #2 Equivalent |
| Material | Steel |
| Maximum Temperature | 200°F |
| Minimum Temperature | -20°F |
| Mount Hole Center-to-center Length | 4 3/4" |
| Mount Type | Bolt Through |
| Mounting Bolt Size | 1/2" |
| Mounting Hole Center | 4 3/4" |
| Mounting Surface To Shaft Center | 1 11/16" |
| Mounting Surface To Shaft Center Height | 1 11/16" |
| Number Of Bolts | 2 |
| Number Of Mounting Holes | 2 |
| Overall Height | 3.312" |
| Overall Length | 6 1/2" |
| Overall Width | 1 7/8" |
| Shaft Locking Type | Set Screws |
| Split Housing | Not Split |
| Static Load Capacity | 2517 lbs. |
| Static Radial Load Capacity | 2517 lbf. |
| System Of Measurement | Inch |
| Type | Ball |
| Height (cm) | 8.41 |
|---|---|
| Length (cm) | 16.51 |
| Width (cm) | 4.76 |
| HS Code | 8483208040 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 1.4175 |
| Style | Model | Shaft Locking Type | Housing Material | Overall Length | Overall Width | Bore Dia. | Lubricant Material | Overall Height | Mount Hole Center-to-center Length | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 3CUR1 | Set Screws | Cast Iron | 4 7/8" | 1.218" | 1/2" | Ngli #2 Equivalent | 2 1/4" | 3 5/8" | $74.39 | |
| A | 3CUR2 | Set Screws | Cast Iron | 4 7/8" | 1.218" | 5/8" | Ngli #2 Equivalent | 2 1/4" | 3 5/8" | $101.93 | |
| A | 3FCN1 | Set Screws | Cast Iron | 6 1/2" | 1 7/8" | 1 1/4" | Ngli #2 Equivalent | 3.312" | 4 3/4" | $96.21 | |
| B | 3FCN9 | Set Screws | Cast Iron | 5" | 1 1/2" | 1/2" | Ngli #2 Equivalent | 2.468" | 3 3/4" | $77.60 | |
| B | 3FCP1 | Set Screws | Cast Iron | 5" | 1 1/2" | 5/8" | Ngli #2 Equivalent | 2.468" | 3 3/4" | $71.13 | |
| B | 3FCP2 | Set Screws | Cast Iron | 5" | 1 1/2" | 3/4" | Ngli #2 Equivalent | 2.484" | 3 3/4" | $70.46 | |
| B | 3FCP3 | Set Screws | Cast Iron | 5" | 1 1/2" | 7/8" | Ngli #2 Equivalent | 2 3/4" | 4 1/8" | $88.26 |
