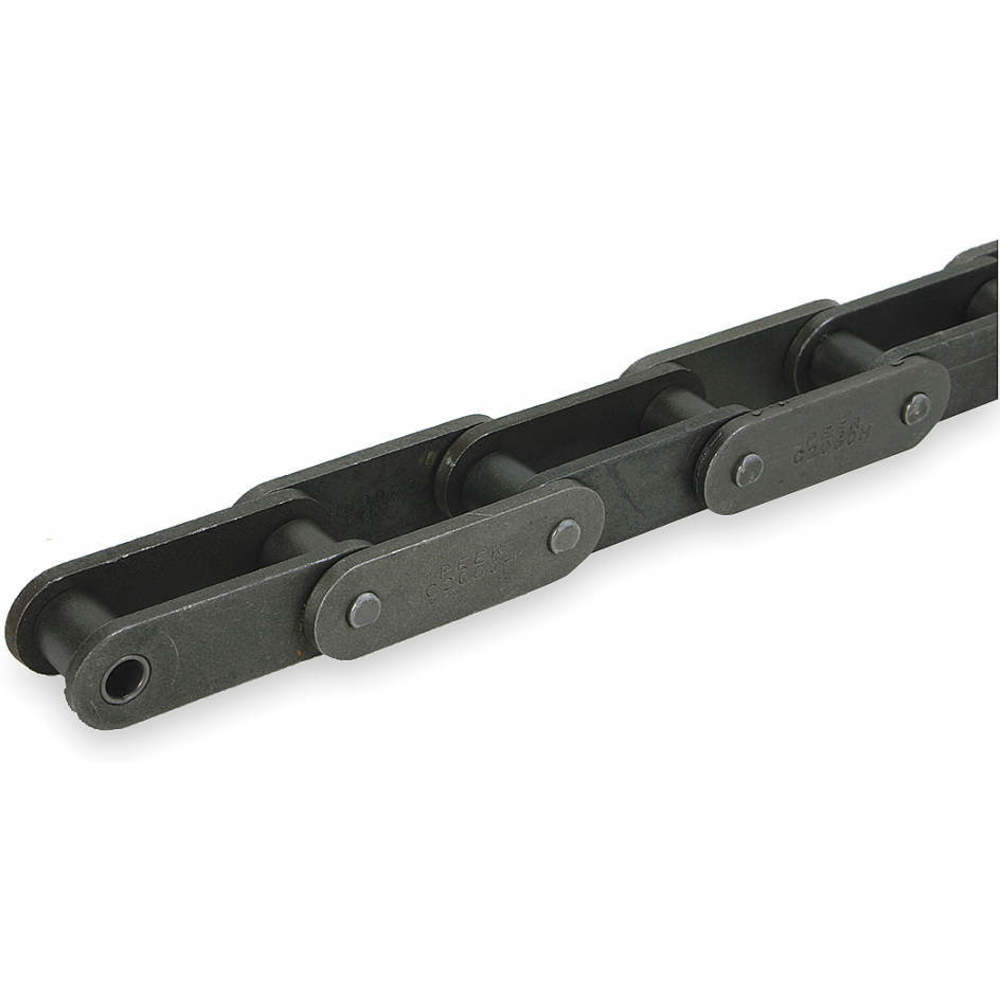

| Item | Roller Chain |
|---|---|
| Application | Transport Applications Such As Material Handling, Packaging, Bottlers And More |
| Breaking Strength | 6600 lbs. |
| Bushing Dia. (in.) | 0.28" |
| Chain Number | C2050 |
| Chain Overall Width | 0.86" |
| Chain Roller Dia. | 2/5" |
| Connecting End To Center Line | 0.453" |
| Features | Heat-Treated For Higher Tensile Strength |
| Finish | Painted |
| Heavy Series | No |
| Hole Dia. | 0.199" |
| Industry Chain Pitch | 1 1/4" |
| Inside Pin Dia. | 1/5" |
| Inside Width | 3/8" |
| Length | 10 ft. |
| Material | Steel |
| Max. Allowable Load | 960 lbs. |
| Maximum Operating Temperature | 150°F |
| Minimum Operating Temperature | 10°F |
| Number Of Strands | 1 |
| Outside Pin Dia. | 1/5" |
| Overall Length | 10 ft. |
|---|---|
| Overall Width | 0.856" |
| Pin Hole Diameter | 1/5" |
| Pin Length | 0.86" |
| Pin Link Plate Thickness | 2/25" |
| Pin Outside Diameter | 1/5" |
| Pitch | 1 1/4" |
| Plate Height | 0.593" |
| Plate Thickness | 2/25" |
| Rivet End To Center Line | 0.403" |
| Roller Bushing Width | 3/8" |
| Roller Chain Item | Roller Chain |
| Roller Chain Type | Conveyor |
| Roller Dia. | 13/32" |
| Roller Link Plate Height | 0.593" |
| Series | Conveyor Series |
| Size | C2050 |
| Tensile Strength | 4880 lbf. |
| Type | Conveyor |
| Width Between Roller Link Plates | 3/8" |
| Working Load Limit | 721 lbs. |
| Height (cm) | 2.54 |
|---|---|
| Length (cm) | 7.62 |
| Width (cm) | 7.62 |
| HS Code | 7315110045 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 2.475 |
| Style | Model | Breaking Strength | Tensile Strength | Pitch | Overall Width | Roller Dia. | Width Between Roller Link Plates | Rivet End To Center Line | Connecting End To Center Line | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 2YDY1 | 3960 lbs. | 3125 lbf. | 1" | 0.697" | 5/16" | 0.312" | 8/25" | 0.377" | $89.61 | |
| A | 2YDY3 | 12100 lbs. | 7227 lbf. | 1 1/2" | 1.248" | 15/32" | 1/2" | 0.586" | 0.662" | $162.74 | |
| A | 2YDY4 | 19800 lbs. | 19800 lbs. | 2" | 1.512" | 5/8" | 5/8" | 0.699" | 0.813" | $428.40 |
