| Item | Inline Duct Blower |
|---|---|
| Amca Fan Class | Not Rated |
| Assembly | Unassembled |
| Bearing Type | Sealed Pillow Block |
| Drive Type | Belt Drive |
| Features | Bearing Cover And Motor Cover Included To Help In Lengthening Service Life, Collars To Simplify Duct Connections, And Panels On Each Side To Provide Quick Access To Internal Fan Components |
| For Air Type | Clean |
| For Ventilation Type | Exhaust, Make Up, Return, Supply |
| Height | 17" |
| Housing Finish | Galvanized |
| Housing Material | Steel |
| Includes | Access Panels |
| Includes Drive Package With Motor | No |
| Inlet Dia. | 7 3/4" |
| Inlet Duct Connection Height | 11 7/8" |
| Inlet Duct Connection Width | 11 7/8" |
| Manufacturer Warranty Length | 1 yr. |
| Max. Depth | 21" |
| Max. Inlet Temp. | 160°F |
| Max. Motor Height | 12 1/2" |
| Maximum Airflow | 1090 CFM |
| Maximum Motor Hp | 3/4 hp |
| Maximum Static Pressure | 2.5 in. wc |
|---|---|
| Minimum Airflow | 424 CFM |
| Minimum Fan Speed | 2645 RPM |
| Minimum Motor Hp | 1/4 hp |
| Minimum Motor Speed | 1833 RPM |
| Mounting Orientation | Multiposition |
| Mounting Position | Horizontal/Vertical |
| Outlet Dia. | 7 3/4" |
| Outlet Duct Connection Height | 11 3/4" |
| Outlet Duct Connection Width | 11 7/8" |
| Outlet Height | 11 7/8" |
| Outlet Width | 11 7/8" |
| Overall Depth | 21" |
| Overall Height | 11 7/8" |
| Overall Width | 15" |
| Shaft Dia. | 3/4" |
| Type | Belt Drive Centrifugal, Less Drive Package |
| Wheel Dia. | 11" |
| Wheel Material | Aluminum |
| Wheel Type | Backward Incline |
| Width | 17" |
| Standards | AMCA CERTIFIED, UL/CUL 705 |
| Height (cm) | 30.16 |
|---|---|
| Length (cm) | 53.34 |
| Width (cm) | 38.1 |
| HS Code | 8414596060 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 40.05 |
| Style | Model | Max. Inlet Temp. | Phase | Wheel Diameter | Height | Motor Hp | Motor Enclosure Design | Voltage | Wheel Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

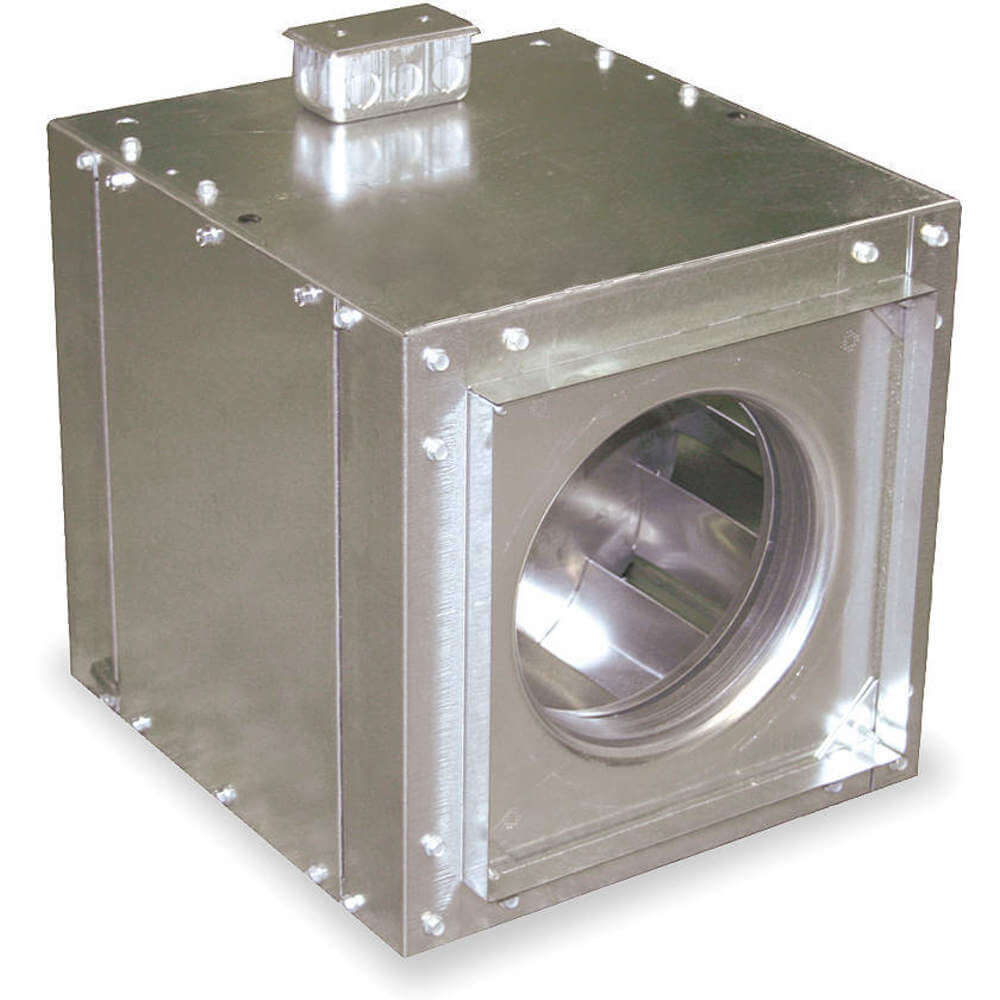

| A | 10C387 | 104°F | 1 | 11" | - | 1/12 hp | Totally Enclosed Air Over | - | Backward Inclined | $1,341.15 | |
| A | 10C388 | 104°F | 1 | - | 21" | 1/12 hp | Totally Enclosed Air Over | - | Backward Inclined | $1,291.80 | |

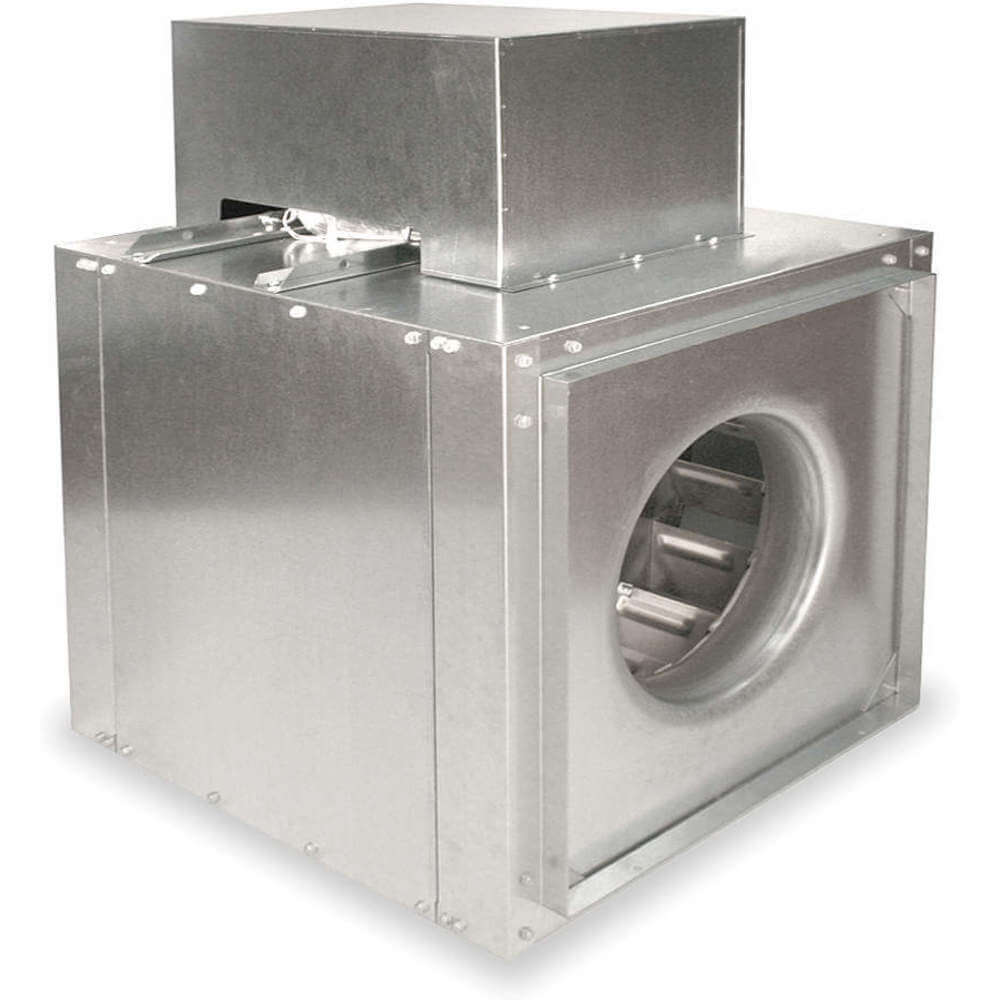

| B | 10C389 | 160°F | - | 13" | - | - | - | - | Backward Inclined | $1,772.70 | |
| B | 10C393 | 160°F | - | - | 28" | - | - | - | Backward Inclined | $2.50 | |
| A | 2RB87 | 120°F | 1 | - | 17" | 1/4 hp | Open Air Over | - | Backward Incline | $1.25 | |
| B | 2RB89 | 160°F | - | - | 17" | - | - | - | Backward Incline | $1.25 | |
| B | 5AV78 | 160°F | - | - | 26" | - | - | - | Backward Incline | $1.25 |
