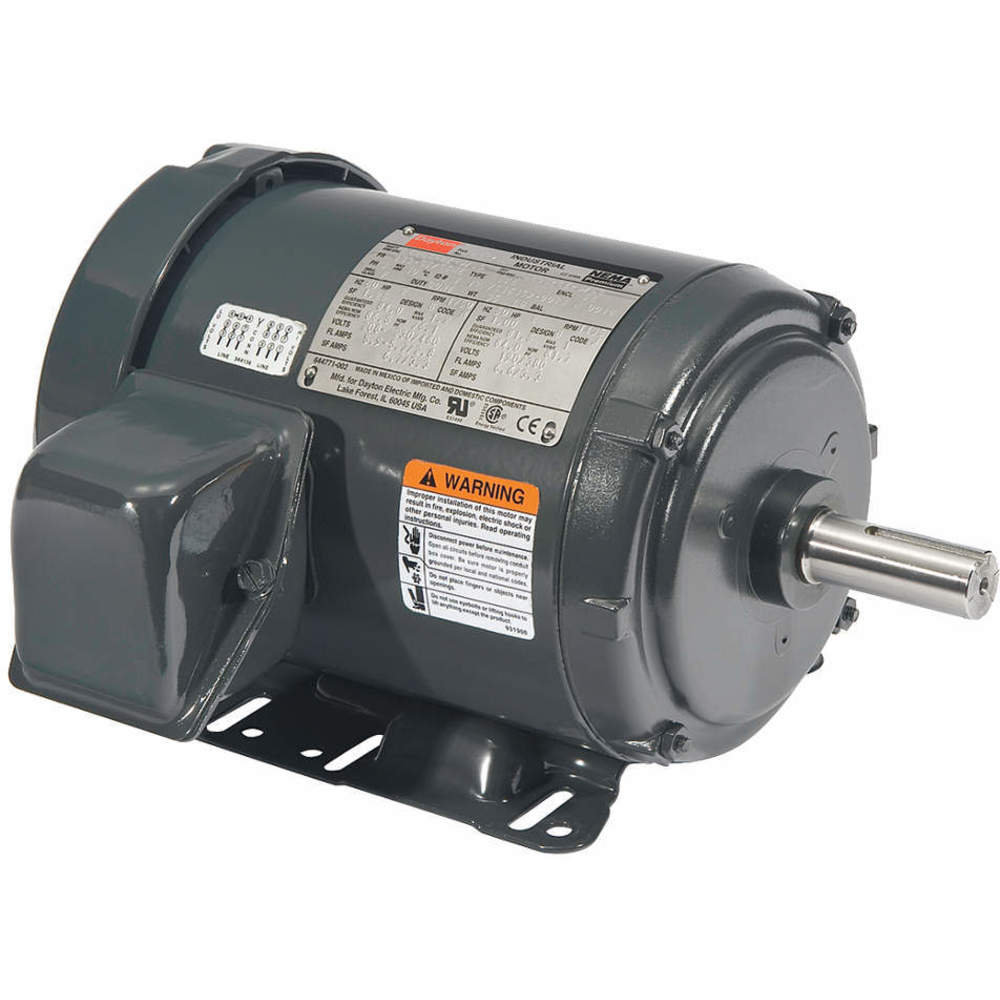

DAYTON 2NKY1 Motor 3 Phase 2 Hp 3490 208-230/460 Eff 85.5

Item: AC2WJR

Model: 2NKY1

Check Availability

In Stock.

Get it by Wednesday, Feb 11

£9.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates

Full Load Amps

We deliver to your doorstep under DAP terms. Customs clearance is for your account

~~$1,200.44~~

10% off

$1,080.40 /unit (ex. VAT)

Add To Cart

Request Quote

Business customers can apply for Net 30
No fees, No interest, Fast approval.

Payment

Delivery

Specifications

Item	General Purpose Motor
Ambient Temp.	104°F
Base Type	Rigid Base
Bearing Type	Ball
Cc Number	CC003A
Duty Cycle	Continuous
Efficiency	85.5%
Efficiency Group	Premium
Frame	143-5T/56HZ
Frame Material	Steel
Frequency	50/60 Hz
Full Load Amps	4.8/2.4A
Green Certification Or Other Recognition	NEMA Premium Rated
Hp	2 hp
Insulation Class	Class F
Inverter Rated	Yes
Length Less Shaft	10 3/8"
Manufacturers Warranty Length	3 yrs.
Max. Ambient Temp.	40°C
Motor Application	General Application
Motor Bearings	Ball
Motor Design	3 Phase
Motor Enclosure Design	Totally Enclosed Fan Cooled

Motor Frame Material	Rolled Steel
Motor Mounting Position	All Angle
Motor Mounting Type	Rigid Base
Motor Service Factor	1.25
Motor Shaft Design	Keyed
Motor Shaft Rotation	Clockwise/Counter Clockwise
Motor Type	Three Phase
Mounting Type	Rigid Base
Nameplate Rpm	3505 RPM
No. Of Speeds	1
Nominal Efficiency	85.5%
Overall Length	12 3/4"
Phase	3
Rpm Range	Over 3600 RPM
Service Factor	1.25
Shaft Dia.	7/8"
Shaft Length	2 1/4"
Standards	Csa, Ul
Thermal Protection	None
Voltage	230/460V AC
Warranty	3 yrs.
Motor Thermal Protection	None
