| Item | Exhaust Fan |
|---|---|
| Assembled | Unassembled |
| Bearing Size | 3/4" |
| Blade Dia. | 24" |
| Blade Finish | Galvanized |
| Blade Material | Steel |
| Cfm Range | 4105-6003 CFM |
| Dimension A | 28" |
| Dimension D | 1" |
| Dimension E | 13 5/8" |
| Dimension F | 24 3/8" |
| Drive Package Included | No |
| Drive Package With Motor Included | No |
| Fan Style | Panel |
| Flange Depth | 1" |
| Flange Width | 28" |
| For Cut-out Diameter | 26 1/2" |
| For Cut-out Height | 26 1/2" |
| For Cut-out Width | 26 1/2" |
| For Maximum Motor Horsepower | 3/4 hp |
| For Maximum Motor Speed | 1352 RPM |
| For Minimum Motor Horsepower | 1/4 hp |
| For Minimum Motor Speed | 932 RPM |
| Frame Finish | ZincPlated |
| Frame Material | Steel |
| Guard Type | Not Available |
| Height | 28" |
| Housing Material | Steel |
| Hp | 1/4 hp to 3/4 hp |
| Includes Drive Package With Motor | No |
|---|---|
| Includes Motor | No |
| Max. Ambient Temp. | 104°F |
| Max. Depth | 18" |
| Maximum Airflow | 6003 CFM |
| Maximum Static Pressure | 0.75 in. wg |
| Method Of Construction | Stamped |
| Minimum Airflow | 4105 CFM |
| Mounting Location | Wall |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Position | Horizontal/Vertical |
| Number Of Blades | 6 |
| Overall Depth | 18" |
| Overall Dia. | 24" |
| Overall Height | 28" |
| Overall Width | 28" |
| Promotion Restriction | Not Eligible For Promotion |
| Propeller Dia. | 24" |
| Propeller Material | Steel |
| Requires | Wall Collar And Shutter For New Installation |
| Rpm Range | 785-1148 RPM |
| Shaft Dia. | 3/4" |
| Shaft Diameter | 3/4" |
| Type | Standard Duty Belt Drive Less Drive Package |
| Ventilation Type | Exhaust |
| Venturi Clearance Dia. | 24 3/8" |
| Venturi Depth | 4 3/8" |
| Venturi Dia. | 24 3/8" |
| Width | 28" |
| Height (cm) | 71.12 |
|---|---|
| Length (cm) | 45.72 |
| Width (cm) | 71.12 |
| HS Code | 8414596090 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 20.7 |
| Style | Model | Overall Height | Motor Hp | Housing Material | Mounting Location | Drive Type | Rpm Range | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|

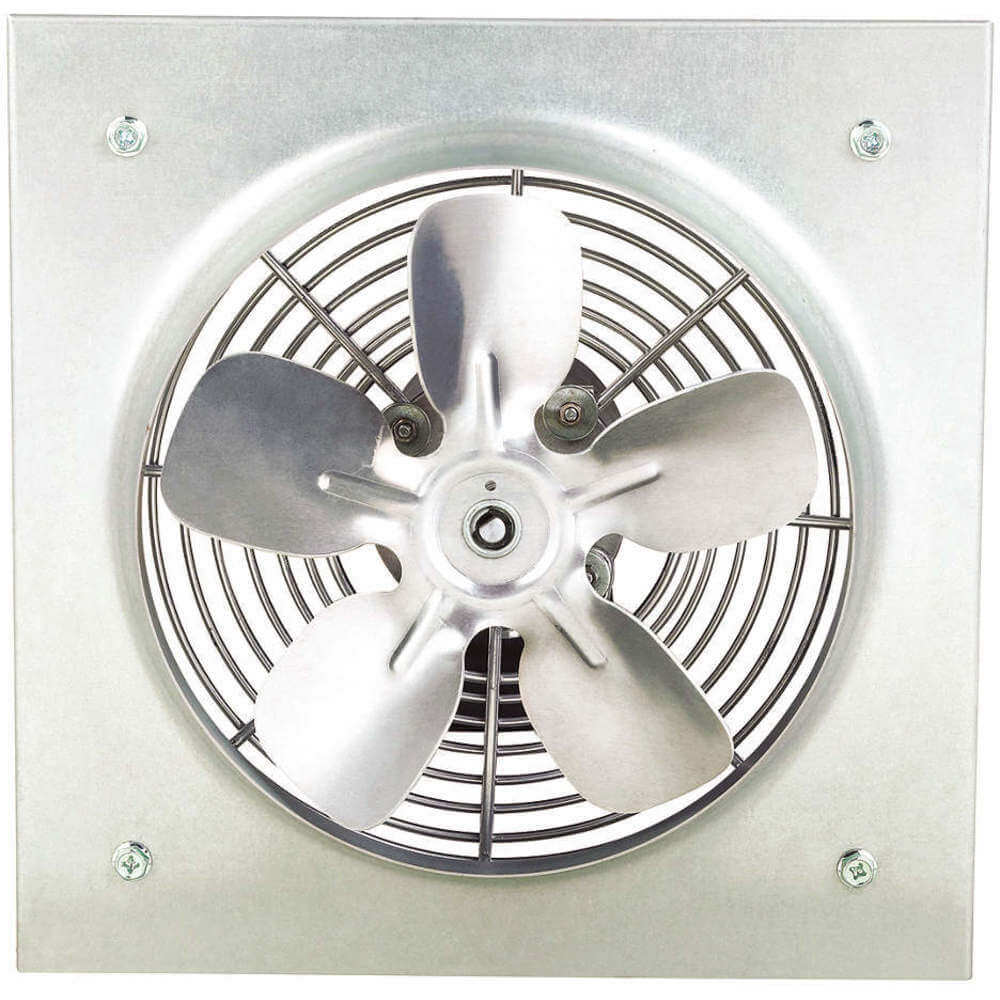

| A | 10D952 | 12" | 1/30 hp | Steel | Wall | Direct Drive | - | $221.04 | |
| A | 10D953 | 14" | 1/30 hp | Steel | Wall | Direct Drive | - | $219.00 | |
| B | 10D955 | 18" | 1/20 hp | Steel | Wall | Direct Drive | - | $250.05 | |
| C | 60RG45 | 14 1/2" | - | Steel | - | - | - | $863.89 | |
| C | 60RG46 | 14 1/2" | - | Steel | - | - | - | $847.76 |
