| Item | Washdown Air Circulator |
|---|---|
| Air Flow | 4750 CFM |
| Air Velocity (fpm) @ 40 Ft | 240 FPM |
| Air Velocity (fpm) @ 60 Ft. | 155 FPM |
| Air Velocity @ 10 Ft. | 900 FPM |
| Air Velocity @ 20 Ft. | 590 FPM |
| Amps | 2.9/1.5A |
| Assembled | Yes |
| Assembly Required | No |
| Bearing Type | Ball |
| Blade Dia. | 20" |
| Blade Material | Aluminum |
| Color | Gray |
| Depth | 24" |
| Drive Type | Direct Drive |
| Environmental Applications | Industrial |
| Fan Accessory Style | Washdown |
| Fan Housing Material | Steel |
| Fan Mounting Location | Wall |
| Fan Style | Washdown |
| Guard Material | Steel |
| Height | 29 3/8" |
| Height Adjustment | Fixed Height |
| Housing Material | Steel |
| Hz | 60 Hz |
| Includes | Wall Bracket, Safety Support Cable, Conduit Box |
| Max. Ambient Temp. | 104°F |
| Max. Depth | 23" |
|---|---|
| Mobile/stationary | Stationary |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Hp | 1/4 hp |
| Motor Insulation | Class F |
| Motor Insulation Class | Class F |
| Motor Type | Permanent Split Capacitor |
| Mounting Location | Wall |
| Nema Plug Configuration | Hardwired |
| Number Of Blades | 3 |
| Number Of Speeds | 1 |
| Oscillating | No |
| Oscillating/non-oscillating | Non Oscillating |
| Oscillation | Non Oscillating |
| Outside Dia. | 23" |
| Phase | 1 |
| Product Type | Industrial Painted Washdown Fan |
| Rpm | 1100 RPM |
| Shaft Dia. | 1/2" |
| Sound Level | 76 dBA |
| Thermal Protection | Automatic Reset |
| Voltage | 115/230V AC |
| Watts | 280 W |
| Wheeled Base | Stationary |
| Width | 23" |
| Wire Guard Finish | Zinc Plated |
| standard | CULUS LISTED, OSHA COMPLIANT WIRE GUARDS, UL 507 |
| Height (cm) | 42.93 |
|---|---|
| Length (cm) | 58.93 |
| Width (cm) | 58.42 |
| HS Code | 8414596090 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 16.7445 |
| Style | Model | Blade Dia. | Number Of Speeds | Voltage | Motor Hp | Sound Level | Guard Material | Max. Ambient Temp. | Thermal Protection | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

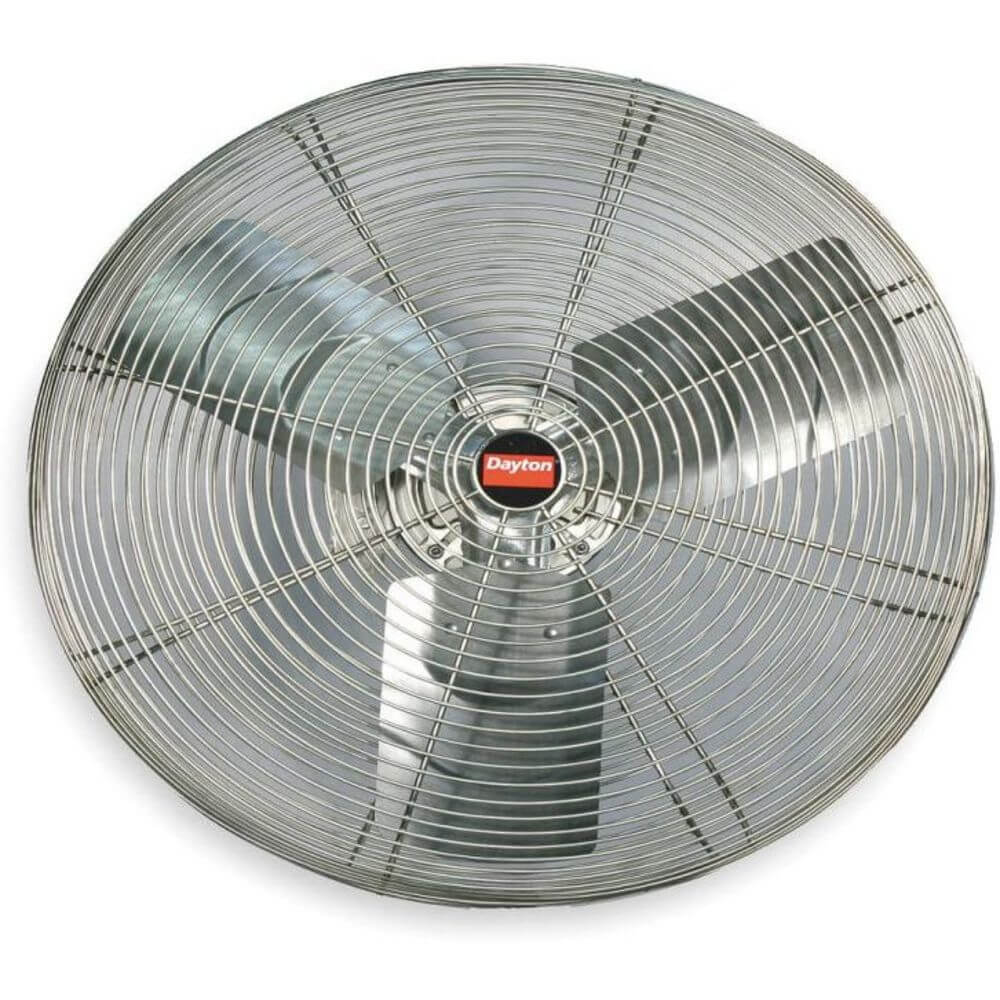

| A | 1VCG1 | 24" | 1 | 115/230V AC | 1/3 hp | 77 dBA | Steel | 104°F | Automatic Reset | $1,176.32 | |
| B | 1VCG2 | 30" | 1 | 115/230V AC | 1/2 hp | 77 dBA | Steel | 104°F | Automatic Reset | $579.00 | |
| C | 70830 | 20" | 2 | 115V AC | 1/15 hp | 68 dBA | Stainless Steel | 105°F | Automatic | $1,691.19 | |
| C | 70831 | 24" | 1 | 115/230V AC | 1/4 hp | 77 dBA | Stainless Steel | 105°F | Automatic | $2,145.16 | |
| C | 70832 | 30" | 1 | 115/230V AC | 1/3 hp | 81 dBA | Stainless Steel | 105°F | Automatic | $2,096.17 |
