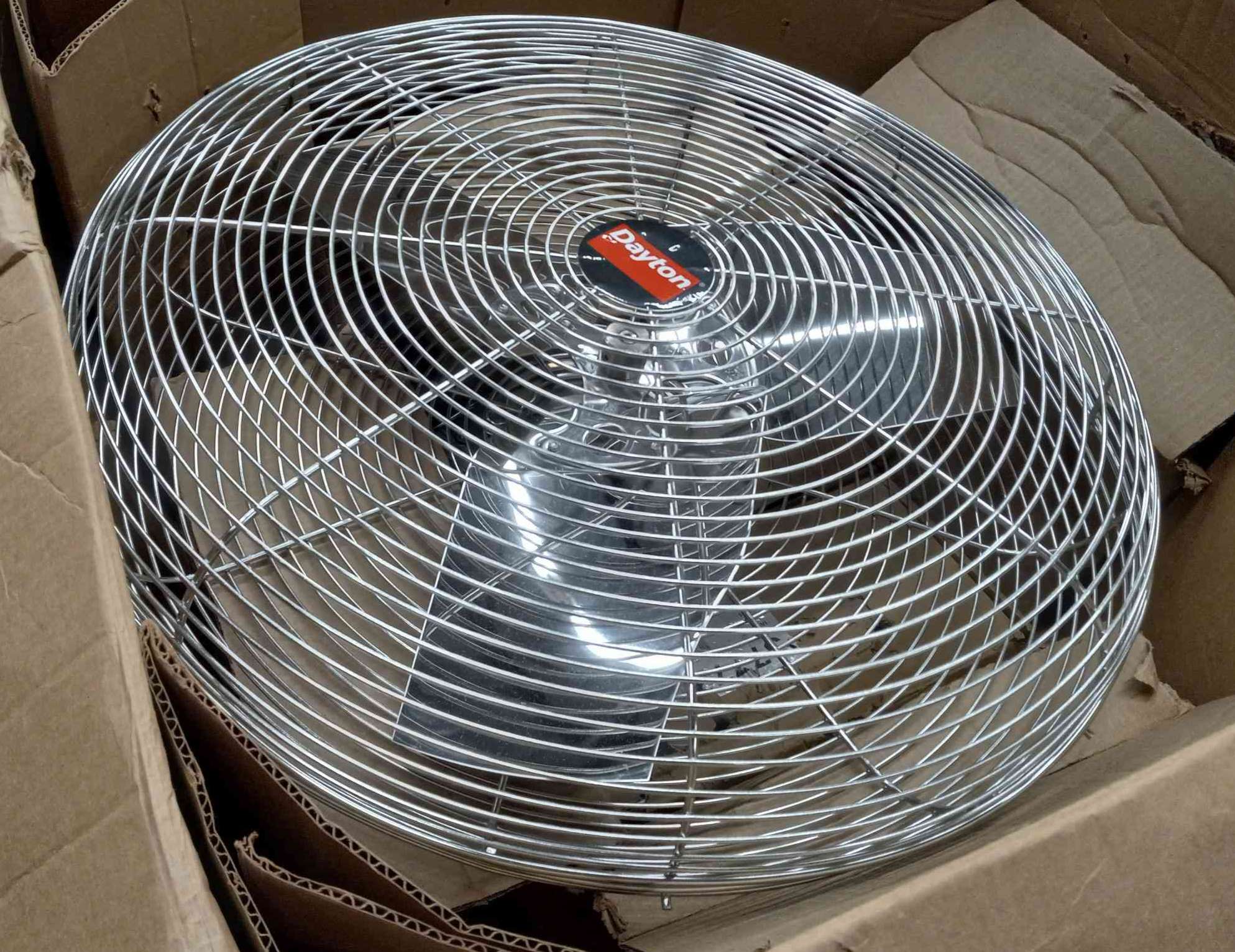

| Item | Washdown Air Circulator |
|---|---|
| Air Flow | 5220 CFM |
| Air Velocity (fpm) @ 40 Ft | 198 FPM |
| Air Velocity (fpm) @ 60 Ft. | 135 FPM |
| Air Velocity (fpm) @ 80 Ft. | 10 FPM |
| Air Velocity @ 10 Ft. | 875 FPM |
| Air Velocity @ 20 Ft. | 600 FPM |
| Amps | 3.28/1.68A |
| Assembled | Yes |
| Assembly Required | No |
| Bearing Type | Ball |
| Blade Dia. | 24" |
| Blade Grade | Grade 304 |
| Blade Material | Stainless Steel |
| Cfm/watt | 17.6 CFM/W |
| Depth | 15" |
| Drive Type | Direct Drive |
| Environmental Applications | Industrial |
| Fan Housing Material | Steel |
| Fan Mounting Location | Wall |
| Guard Grade | Grade 304 |
| Guard Material | Stainless Steel |
| Height | 33" |
| High Cfm | 5220 CFM |
| Housing Material | Stainless Steel |
| Hz | 60 Hz |
|---|---|
| Includes | Mounting Bolts, Secondary Safety Support Cable, Stainless Steel Wall Bracket |
| Max. Ambient Temp. | 105°F |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Hp | 1/4 hp |
| Motor Insulation | Class B |
| Motor Insulation Class | Class B |
| Motor Type | Permanent Split Capacitor |
| Mounting Location | Wall |
| Number Of Blades | 3 |
| Number Of Speeds | 1 |
| Oscillating/non-oscillating | Non Oscillating |
| Oscillation | Non Oscillating |
| Outside Dia. | 33" |
| Phase | 1 |
| Product Type | Industrial Stainless Steel Washdown Fan |
| Rpm | 1075 RPM |
| Shaft Dia. | 1/2" |
| Sound Level | 77 dBA |
| Thermal Protection | Automatic |
| Voltage | 115/230V AC |
| Wattage | 295/280 W |
| Wheeled Base | Stationary |
| Width | 33" |
| Wire Guard Finish | Electro Polish |
| Height (cm) | 46.23 |
|---|---|
| Length (cm) | 74.93 |
| Width (cm) | 74.93 |
| HS Code | 8414513000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 24.345 |
| Style | Model | Blade Dia. | Number Of Speeds | Voltage | Motor Hp | Sound Level | Guard Material | Max. Ambient Temp. | Thermal Protection | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1VCF9 | 20" | 1 | 115/230V AC | 1/4 hp | 76 dBA | Steel | 104°F | Automatic Reset | $477.51 | |
| B | 1VCG1 | 24" | 1 | 115/230V AC | 1/3 hp | 77 dBA | Steel | 104°F | Automatic Reset | $1,176.32 | |
| A | 1VCG2 | 30" | 1 | 115/230V AC | 1/2 hp | 77 dBA | Steel | 104°F | Automatic Reset | $579.00 | |
| C | 70830 | 20" | 2 | 115V AC | 1/15 hp | 68 dBA | Stainless Steel | 105°F | Automatic | $1,691.19 | |
| C | 70832 | 30" | 1 | 115/230V AC | 1/3 hp | 81 dBA | Stainless Steel | 105°F | Automatic | $2,096.17 |
