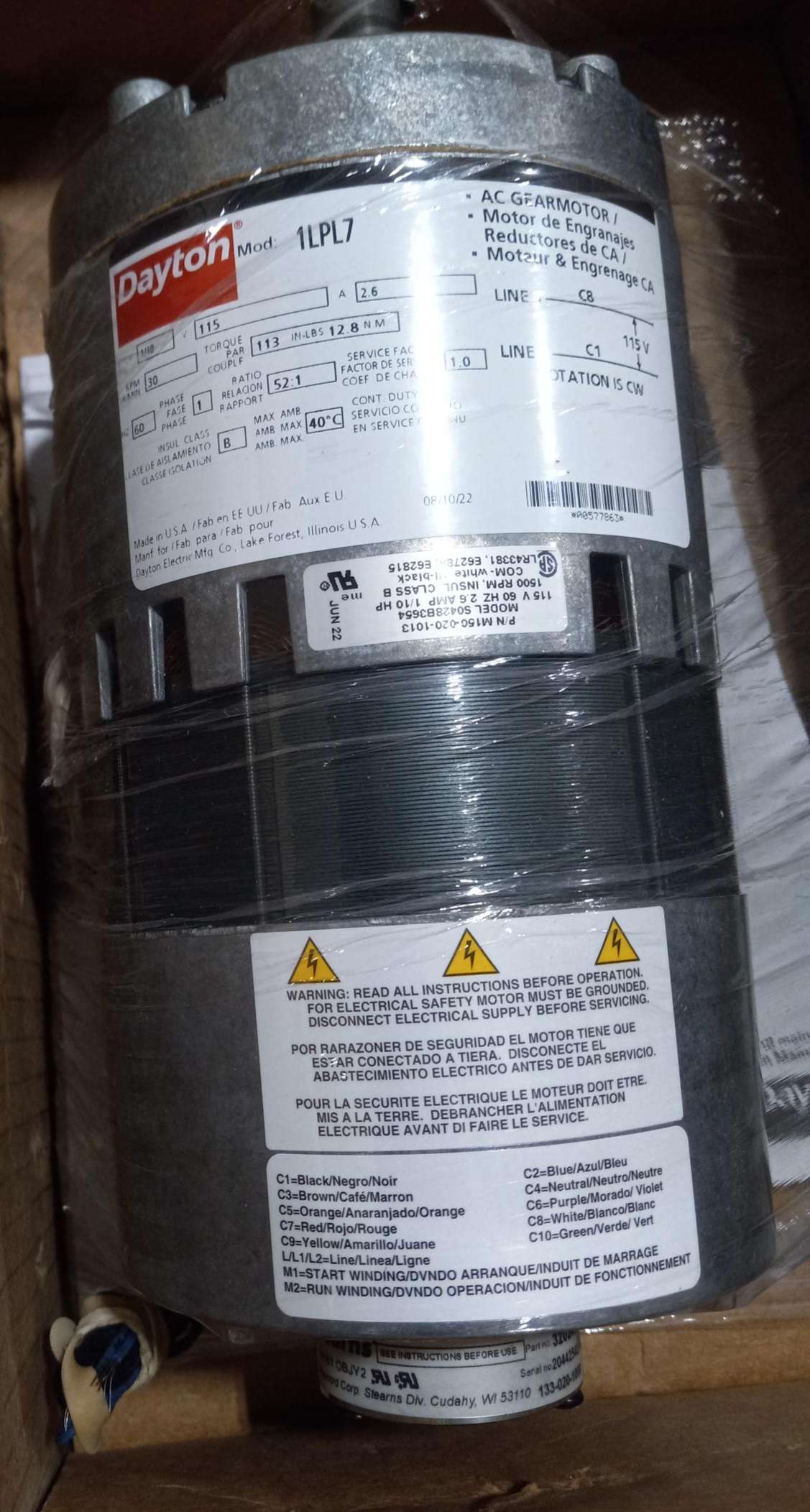

DAYTON 1LPL7 Ac Gearmotor 30 Rpm Open 115v

Item: AB2EXA

Model: 1LPL7

Check Availability

In Stock

Get it by Tuesday, Feb 24

£9.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates

Nameplate RPM

Input Hp

We deliver to your doorstep under DAP terms. Customs clearance is for your account

~~$1,037.07~~

5% off

$985.22 /unit (ex. VAT)

Add To Cart

Request Quote

Business customers can apply for Net 30
No fees, No interest, Fast approval.

Apply Now

Payment

Delivery

Specifications

Item	AC Gearmotor
Amps	2.6A
Bearing Type	Ball On Motor, Porous Bronze Sleeve On Case
Brake Type	Disc
Enclosure Type	Open
Finish	Unpainted
Full Load Amps	2.6A
Gear Case Material	Die Cast Zinc
Gear Material	Acetyl, Steel
Gear Ratio	52:1
Gearmotor Brake Type	Disc
Gearmotor Enclosure	Open
Gearmotor Mounting Position	All Angle
Gearmotor Shaft Orientation	Parallel
Gearmotor Shaft Type	Single
Gears	Acetyl, Steel
Housing Material	Die Cast Zinc
Input Hp	1/10 hp
Inverter Rated	No
Inverter Rating	521
Keyway Depth	5/8"
Keyway Size	#605
Keyway Type	Woodruff
Keyway Width	3/16"
Length Less Shaft	8 22/25"
Lubrication	Grease Filled
Max. Ambient Temp.	40°C
Maximum Torque	113 lbs.-in.

Motor Thermal Protection	None
Mount Hole Center-to-center Length	1 1/2"
Mount Hole Center-to-center Width	4"
Mount Type	Any Position
Mounting	All Position
Mounting Orientation	Any Angle
Nameplate Rpm	30 RPM
Nameplate Rpm Range	16-30 RPM
No. Of Output Shafts	1
Number Of Output Shafts	1
Operating Voltage	115V AC
Output Shaft Dia.	5/8"
Output Shaft Height	3 1/2"
Output Shaft Length	1 1/2"
Overall Height	4 18/25"
Overall Width	4.63"
Overhung Load	150 lbs.
Phase	1
Reversible Shaft Output	No
Rpm Range	16-30 RPM
Seals	Lip Type On Output Shaft
Shaft	Single Output
Shaft Dia.	5/8"
Shaft Orientation	Parallel
Thermal Protection	No
Type	Shaded Pole
standard	CSA CERTIFIED, UL RECOGNIZED
