| Item | Enclosed Limit Switch |
|---|---|
| Ac Contact Rating | 15A @ 480V |
| Actuator Length | 1.56" |
| Actuator Length - Limit Switch | 1 14/25" |
| Actuator Style | Roller Lever Plunger |
| Actuator Style - Limit Switch | Plunger, Roller Lever |
| Actuator Type | Roller Arm Plunger |
| Amps | 15A |
| Basic Actuator Style | Plunger |
| Basic Actuator Style (limit Switch) | Plunger |
| Body Depth | 1.01" |
| Body Height | 1.76" |
| Body Height - Limit Switch | 1 19/25" |
| Body Style | Miniature |
| Body Style - Limit Switch | Miniature |
| Body Width | 3.39" |
| Boot Sealed Actuator | No |
| Boot Sealed Actuator - Limit Switch | No |
| Contact Form | SPDT |
| Dc Contact Rating | 15A @ 480V |
| Directional Movement | Linear |
| Display Qty | 1 |
| Electrical Connection | Screw Terminals |
| Ip Rating | IP60 |
|---|---|
| Limit Switch Style | General Purpose Limit Switch |
| Max. Operating Force | 20 ozf |
| Maximum Operating Force | 20 ozf |
| Mounting - Limit Switch | Surface |
| Mounting Hole Diameter - New | 0.21" |
| Mounting Hole Horizontal Center To Center Distance | 31 mm |
| Mounting Hole Spacing - Limit Switch | 2.95" x 1.22" |
| Mounting Hole Vertical Center To Center Distance | 75 mm |
| Mounting Style | Surface |
| Movement | Horizontal |
| Nema Enclosure Rating | 1 |
| Number Of Mounting Holes | 2 |
| Operating Force | 20 oz. |
| Operating Temp. Range | -14°F to +176°F |
| Operating Temperature - Maximum | 176°F |
| Operating Temperature - Minimum | -14°F |
| Overtravel - New | 6/25" |
| Pretravel | 0.16" |
| Roller Diameter | 3/4" |
| Standards | Ce, Csa, Ul Listed |
| Stem Thread - Limit Switch | No Stem |
| Height (cm) | 6.1 |
|---|---|
| Length (cm) | 10.67 |
| Width (cm) | 8.89 |
| HS Code | 8536509055 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 0.2745 |
| Style | Model | Contact Form | Actuator Style | Electrical Connection | Ip Rating | Operating Force | Boot Sealed Actuator | Basic Actuator Style (limit Switch) | Movement | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

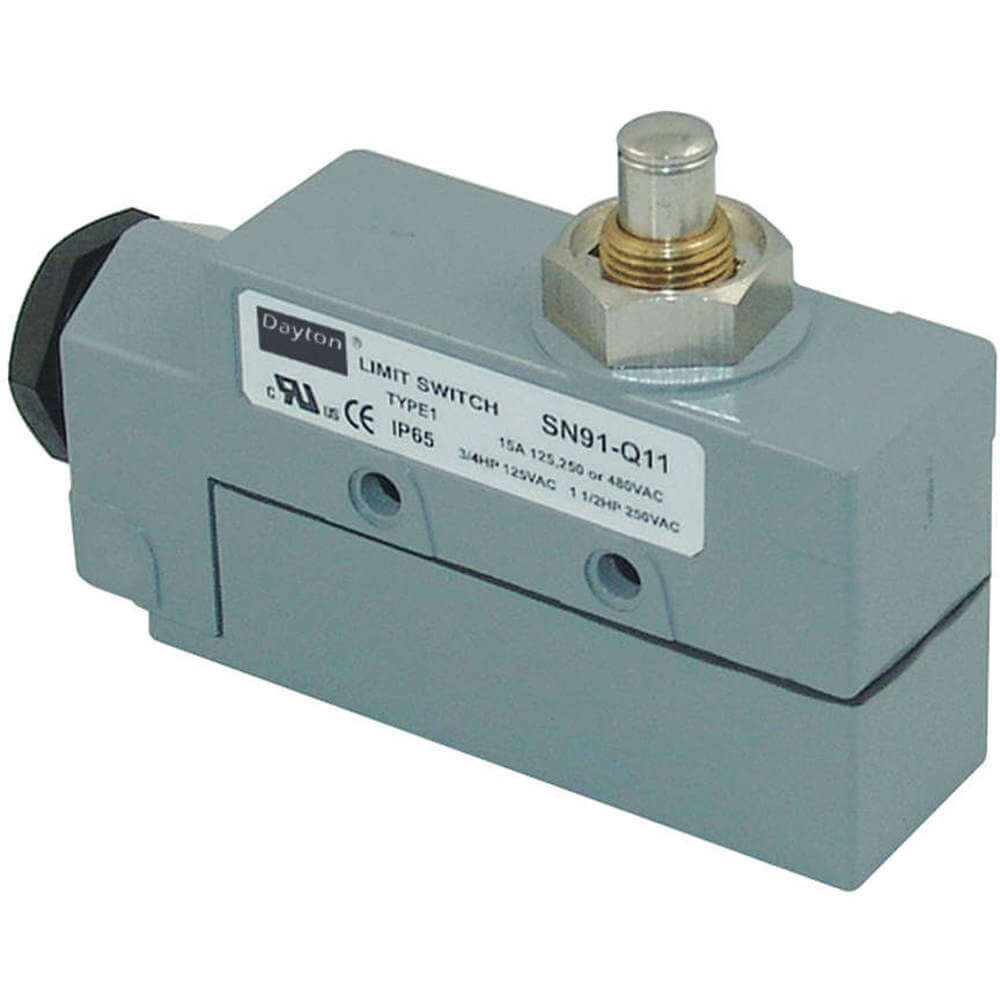

| A | 12T906 | SPDT | Plunger | Screw Terminals | IP60 | 9 oz. to 12 oz. | No | Plunger | Vertical | $49.36 | |
| B | 12T908 | SPDT | Plunger | Screw Terminals | - | 9 oz. to 12 oz. | No | Plunger | Vertical | $52.36 | |

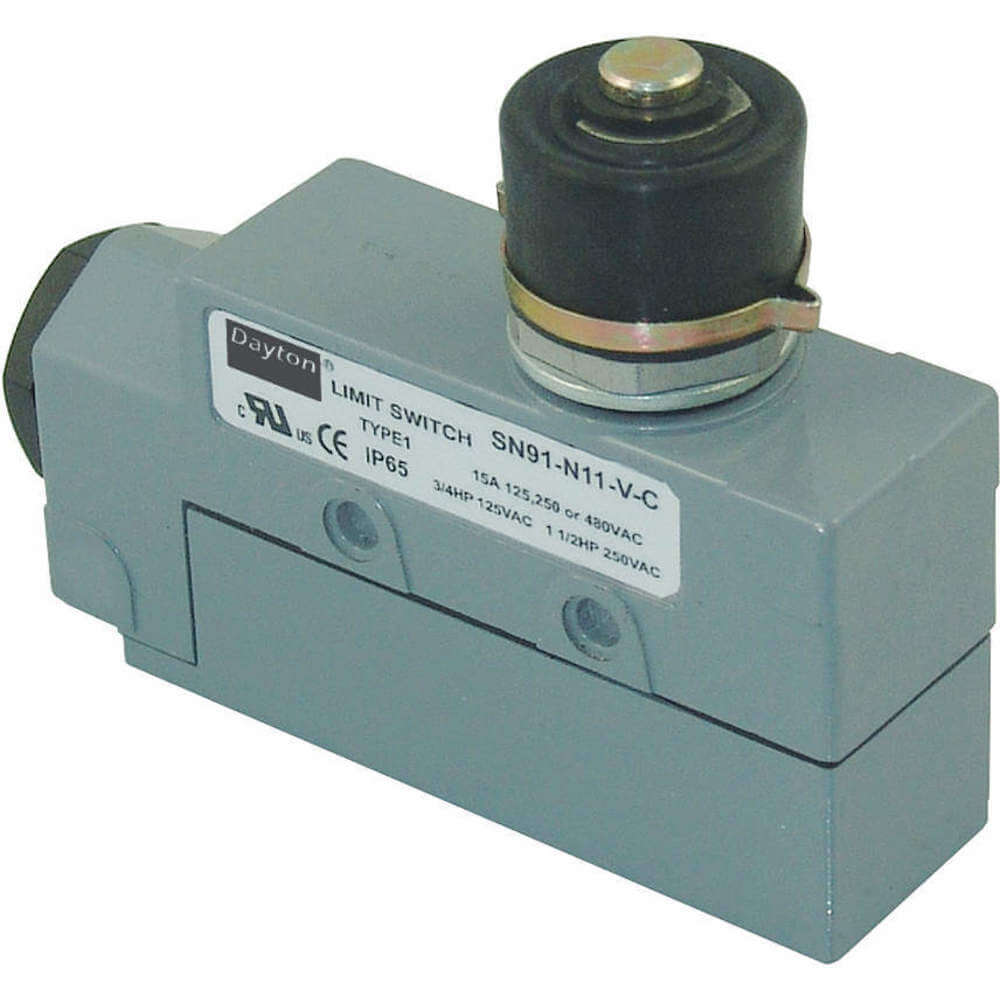

| C | 12T910 | SPDT | Plunger | Screw Terminals | IP65 | 28 oz. | Yes | Plunger | Vertical | $55.33 | |

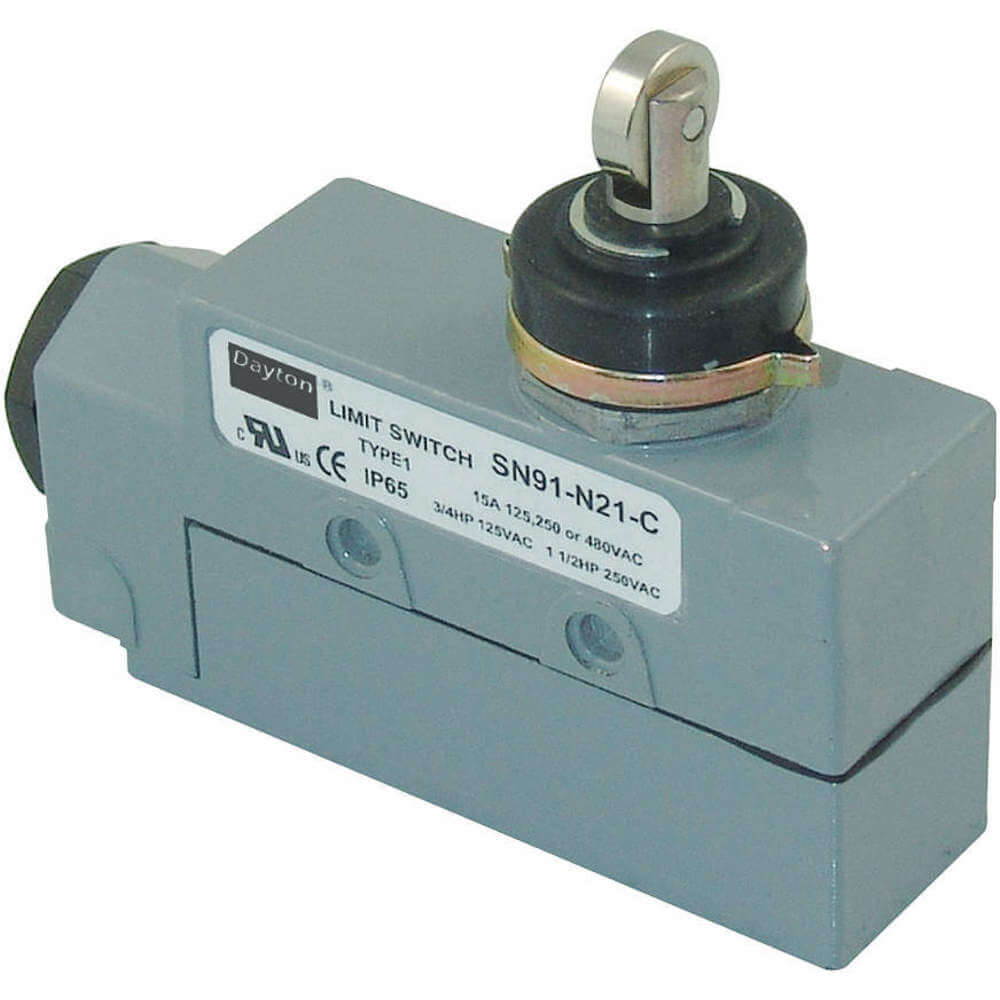

| D | 12T912 | SPDT | Roller Plunger | Screw Terminals | IP65 | 18 oz. | Yes | Plunger | Vertical | $65.80 | |

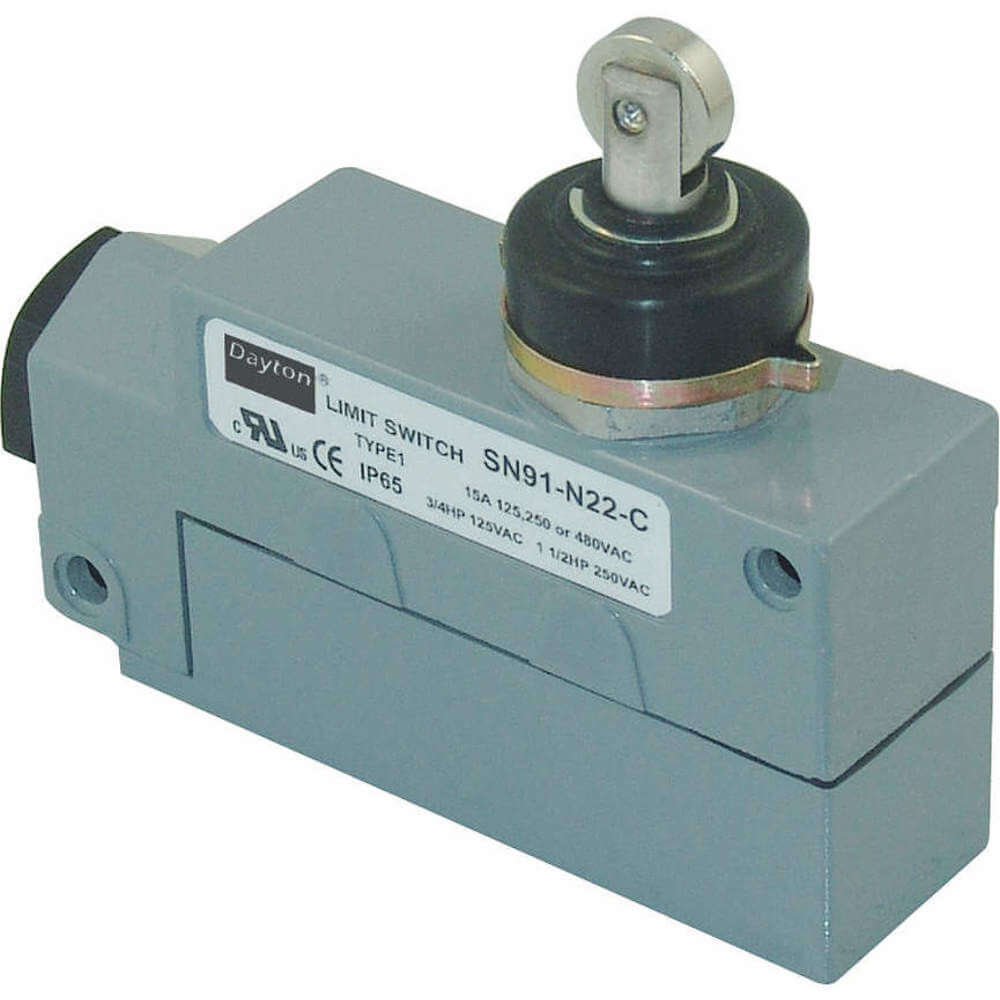

| E | 12T917 | SPDT | Plunger | Screw Terminals | - | 18 oz. | Yes | Plunger | Vertical | $122.17 | |
| F | 12T919 | SPDT | Cross Roller Plunger | Screw Terminals | IP65 | 18 oz. | Yes | Plunger | - | $66.93 | |
| G | 12T924 | SPDT | Wobble Stick | Screw Terminals | IP65 | 5 oz. | Yes | Wobble Stick | Omnidirectional | $82.10 |
