| Item | Dc Speed Control |
|---|---|
| Ac Input Voltage | 120/240V AC |
| Accepts Tach Feedback | Yes |
| Current/torque Limit | None |
| Dc Speed Control | SCR |
| Depth | 4.13" |
| Display Type | LED |
| Dynamic Braking | No |
| Enclosure Rating | NEMA 4X |
| Enclosure Type | Enclosed |
| External Switches | None |
| Follower Circuit | Yes |
| Frame | NEMA 4X |
| Height | 1.66" |
| Higher Voltage Motor Output Power | 1/25 hp to 1 hp |
| Hp @ Higher Voltage | 1/25 hp to 1 hp |
| Hp @ Lower Voltage | 1/50 hp to 1/2 hp |
| Input Type | Digital |
| Input Voltage | 120/240V AC |
| Ir Compensation | Closed Loop |
| Length | 1.66" |
| Linear Acceleration | 2 sec. to 4 sec. |
| Lower Voltage Motor Output Power | 1/50 hp to 1/2 hp |
| Max. Amps | 5A |
|---|---|
| Max. Linear Acceleration | 4 sec. |
| Max. Linear Deceleration | 4 sec. |
| Min. Linear Acceleration | 2 sec. |
| Min. Linear Deceleration | 2 sec. |
| Minimum Linear Acceleration | 2 Sec |
| Mount Type | 1/8 DIN |
| Mounting Type | Din |
| Operating Temp. | -10°C to +45°C |
| Output Voltage | 90/180V DC |
| Overall Depth | 4.63" |
| Overall Height | 1.66" |
| Overall Width | 3.62" |
| Power On Light | No |
| Product Type | Dc Speed Control |
| Rotation | Single Direction |
| Series | Series MD |
| Speed Control | SCR |
| Speed Range | 100:1 |
| Speed Regulation | +/-1/2 RPM Of Set Speed |
| Width | 3.62" |
| standard | CULUS LISTED, ROHS |

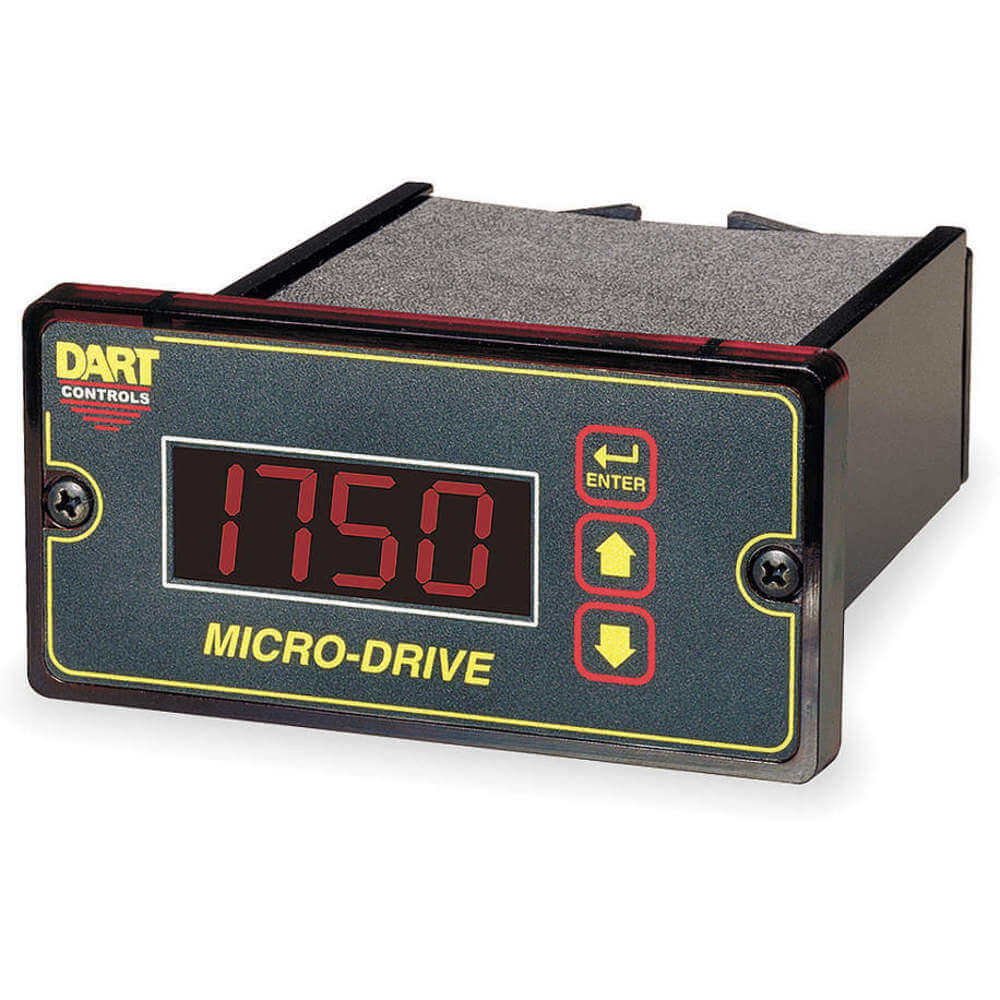

Dart MD10P DC speed control is used in industrial applications to regulate the speed of direct current (DC) motors. This speed control can influence the rotational speed of motors & machinery, directly affecting the machine operation. It is crucial for the quality and the outcome of the work.
| Height (cm) | 6.86 |
|---|---|
| Length (cm) | 20.32 |
| Width (cm) | 12.19 |
| HS Code | 8504404000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.63 |
It has an operating temperature ranging from -10 to 45 degrees C.
It has standard cutout dimensions of 1/4 DIN and 1/8 DIN for easy panel installation.
It features an LED that allows easy setting by pushing Up & down push buttons on the front panel.
| Style | Model | Max. Amps | Speed Control | External Switches | Overall Depth | Hp @ Lower Voltage | Hp @ Higher Voltage | Overall Width | Linear Acceleration | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

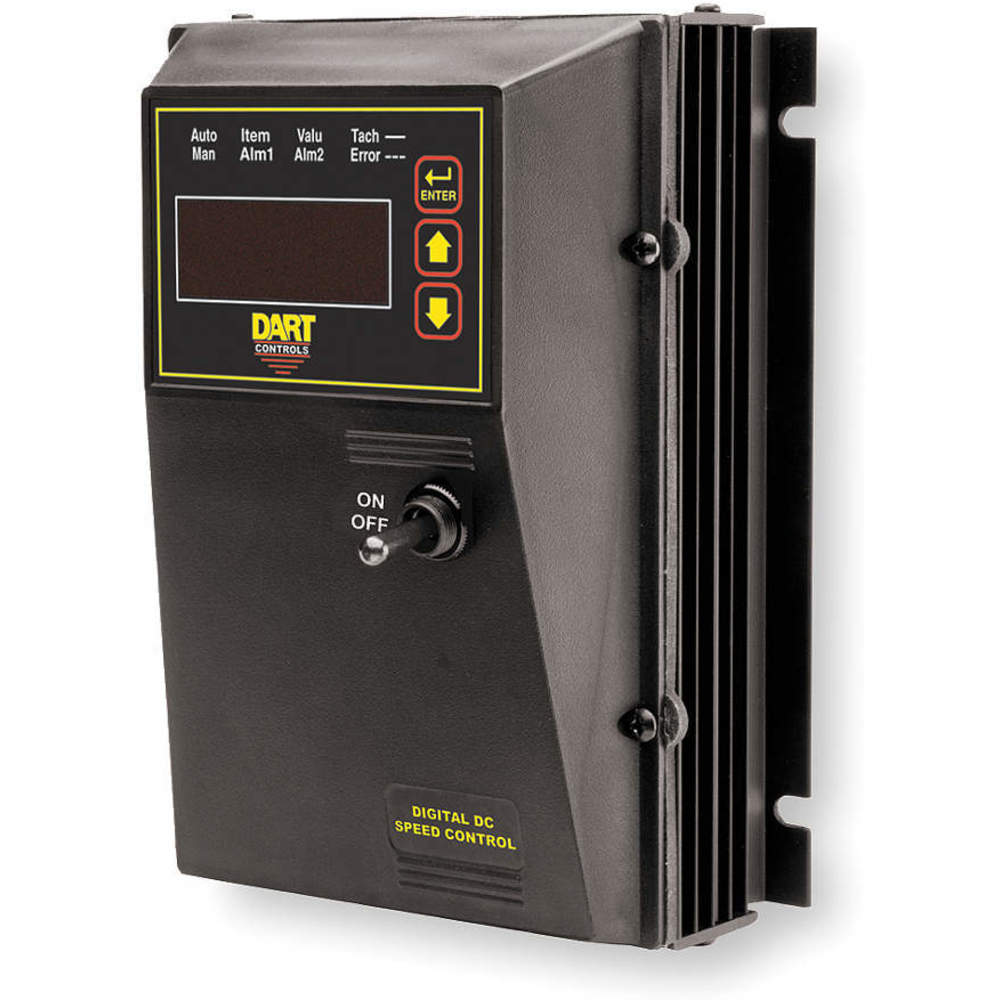

| A | MD3E | 10A | SCR | On/Off | 3.9" | 1/8 hp to 1 hp | 1/4 hp to 2 hp | 5.13" | 0 sec. to 30 sec. | $1,788.47 | |

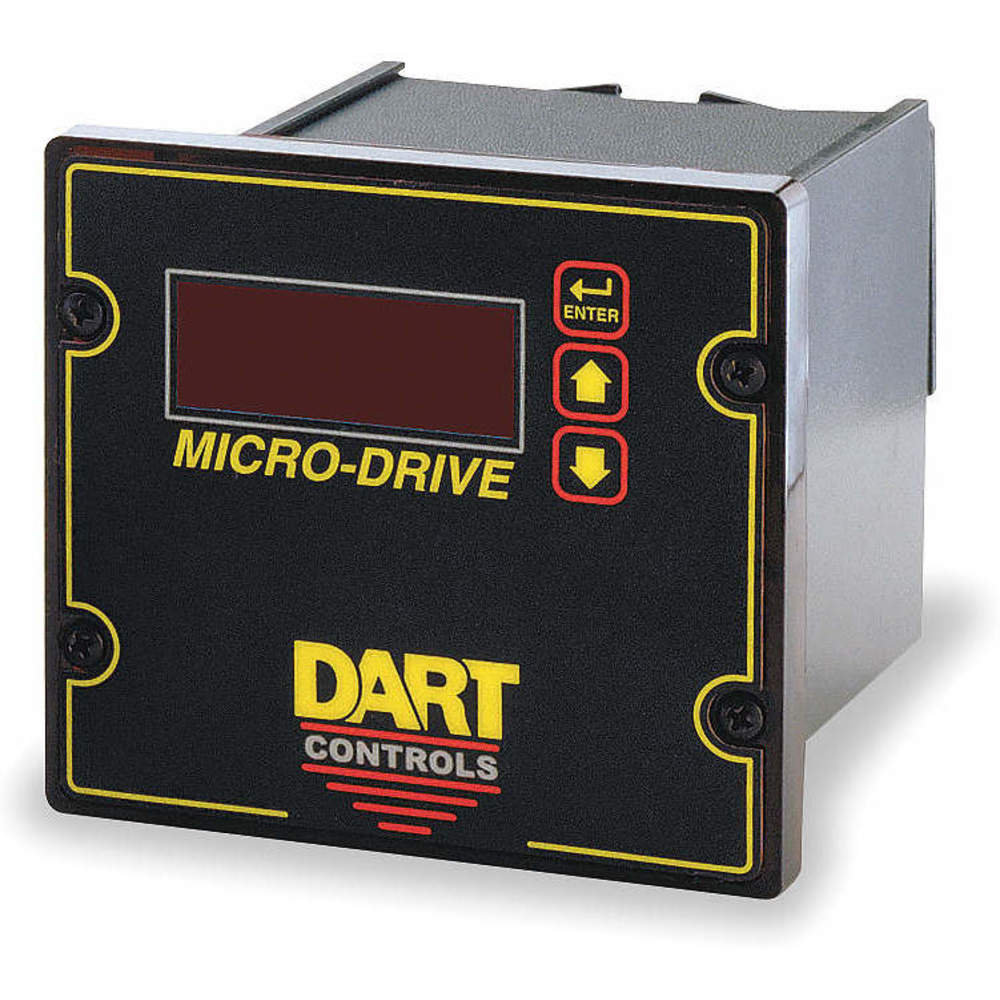

| B | MD3P | 10A | SCR | Clockwise/Counter Clockwise | 4.63" | 1/8 hp to 1 hp | 1/4 hp to 2 hp | - | 0 sec. to 30 sec. | $1,626.31 | |

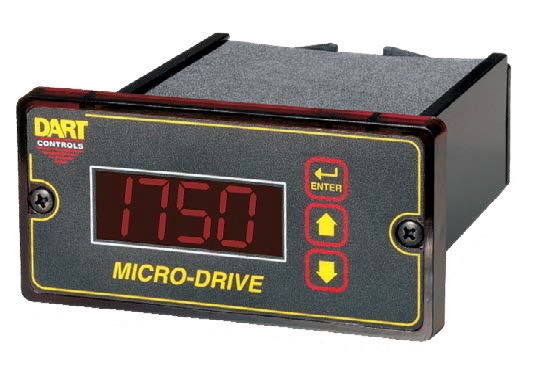

| C | MD10P-1 | 5A | - | - | 4.63" | 1/8 hp to 1/2 hp | 1/4 hp to 1 hp | 3.62" | Adjustable | $1,887.31 | |
| C | MD10P-9 | 5A | Digital SCR | - | 4.63" | 1/8 hp to 1/2 hp | 1/4 hp to 1 hp | 3.62" | - | $614.40 | RFQ
|
| C | MD10P-P | 5A | Digital SCR | - | 4.63" | 1/8 hp to 1/2 hp | 1/4 hp to 1 hp | 3.62" | Adjustable | $630.40 | RFQ
|

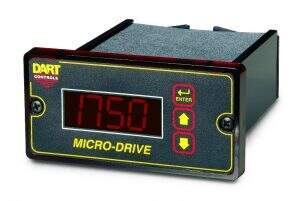

| D | MD3P-1 | 10A | Digital SCR | - | 4.63" | 1/8 hp to 1 hp | 1/4 hp to 2 hp | 3.62" | Adjustable | $718.40 | RFQ
|
| D | MD3P-9 | 10A | Digital SCR | - | 4.63" | 1/8 hp to 1 hp | 1/4 hp to 2 hp | 3.62" | - | $694.40 | RFQ
|
