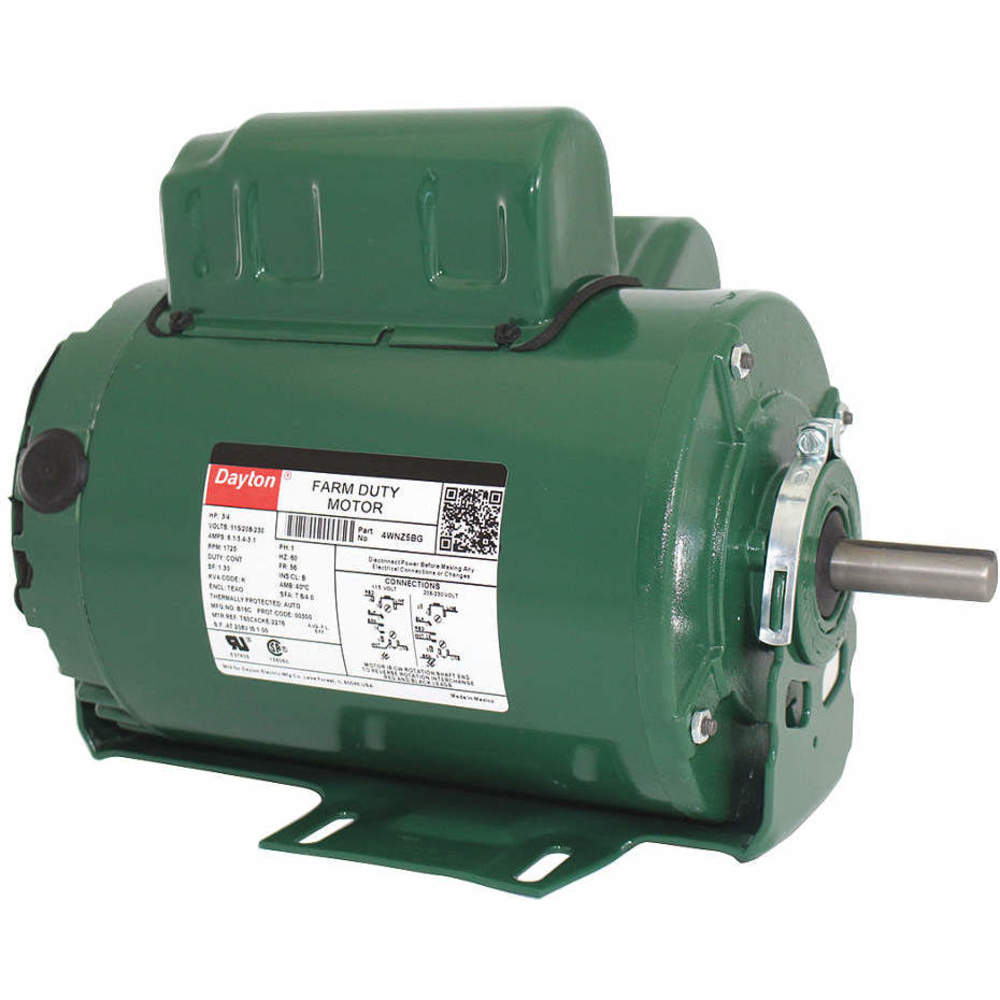

| Item | Poultry Fan Motor |
|---|---|
| Application | Replacement Use In Agricultural Exhaust Fans |
| Bearing Type | Ball |
| Bearings | Ball |
| Capacitor Required | Yes |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Finish | Enamel |
| Frame | 56 |
| Frame Material | Rolled Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 9/4.5A |
| Hp | 1 hp |
| Includes | Gasketed Wiring Compartment Cover |
| Ins. Class | Class B |
| Length Less Shaft | 10 13/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
|---|---|
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.3 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Belt Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| Number Of Speeds | 1 |
| Overall Length | 12 13/16" |
| Phase | 1 |
| Service Factor | 1.3 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2" |
| Shaft Type | Keyed |
| Thermal Protection | Automatic |
| Usable @ 200v | Yes |
| Usable @ 208v | Yes |
| Voltage | 115/230V AC |
| Standards | CSA CERTIFIED, UL RECOGNIZED |
| Height (cm) | 25.4 |
|---|---|
| Length (cm) | 40.64 |
| Width (cm) | 20.32 |
| HS Code | 8501406040 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 40 |
| Style | Model | Voltage | Motor Mounting Type | Motor Sub Application | Hp | Motor Service Factor | Service Factor | Mounting Type | Overall Length | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | PD6104AV2 | 115/230V AC | Cradle Base | Belt Drive Fan/Blower | - | - | 1.3 | Cradle Base | 12 5/8" | $735.69 | |
| B | 4WNZ5 | 115/208-230V AC | Cradle Base | Agricultural Fan | 3/4 hp | - | 1.3 | Cradle Base | 11 13/16" | $552.66 | |
| C | 4WNZ6 | 115/208-230V AC | Rigid Base | Agricultural Fan | 3/4 hp | - | 1.3 | Rigid Base | 12 3/8" | $606.60 | |
| D | 5JKW9 | 115/208-230V AC | Cradle Base | Agricultural Fan | 1/2 hp | 1.4 | 1.4 | Cradle Base | 11 13/16" | $711.90 |
