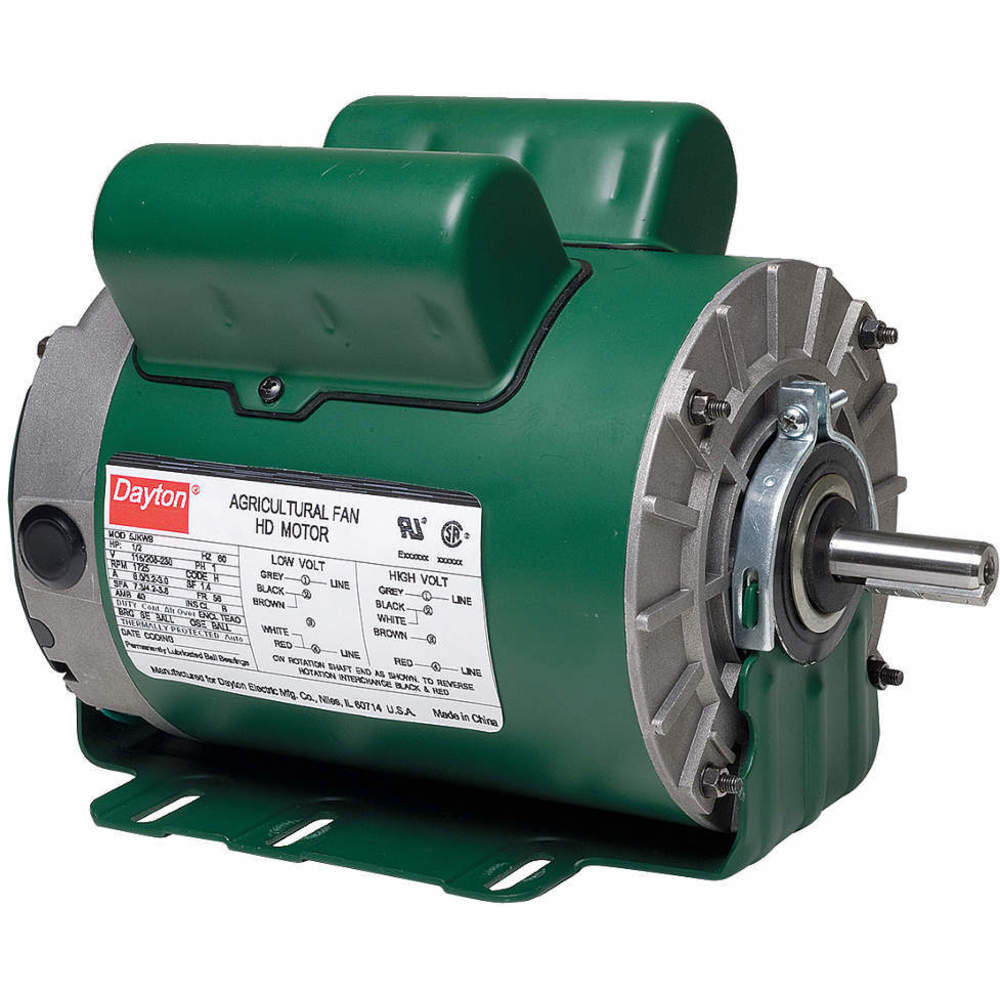

| Item | Poultry Fan Motor |
|---|---|
| Application | Agricultural Exhaust Fans |
| Bearing Type | Ball |
| Bearings | Ball |
| Capacitor Required | Included |
| Duty | Continuous Air Over |
| Duty Cycle | Continuous |
| Efficiency | 80.5% |
| Finish | Epoxy Coated |
| Frame | 56 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 4.6/2.4-2.6A |
| Hp | 1/2 hp |
| Includes | Gasketed Terminal Acces Cover, Shaft Key And Shaft Slinger |
| Ins. Class | Class B |
| Length Less Shaft | 9 15/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Frame Material | Rolled Steel |
|---|---|
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1.4 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Agricultural Fan |
| Motor Thermal Protection | Auto |
| Mounting Type | Cradle Base |
| Nameplate Rpm | 1725 RPM |
| Nominal Efficiency | 80.5% |
| Number Of Speeds | 1 |
| Overall Length | 11 13/16" |
| Phase | 1 |
| Replacement For | 4K123 |
| Service Factor | 1.4 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Shaft Type | Keyed |
| Thermal Protection | Automatic |
| Voltage | 115/208-230V AC |
| Standards | CSA CERTIFIED (258501), UL RECOGNIZED (E37403) |
| Height (cm) | 27.43 |
|---|---|
| Length (cm) | 33.02 |
| Width (cm) | 22.86 |
| HS Code | 8501404040 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 18.225 |
| Style | Model | Voltage | Motor Mounting Type | Motor Sub Application | Hp | Motor Service Factor | Service Factor | Mounting Type | Overall Length | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | PD6104AV2 | 115/230V AC | Cradle Base | Belt Drive Fan/Blower | - | - | 1.3 | Cradle Base | 12 5/8" | $735.69 | |

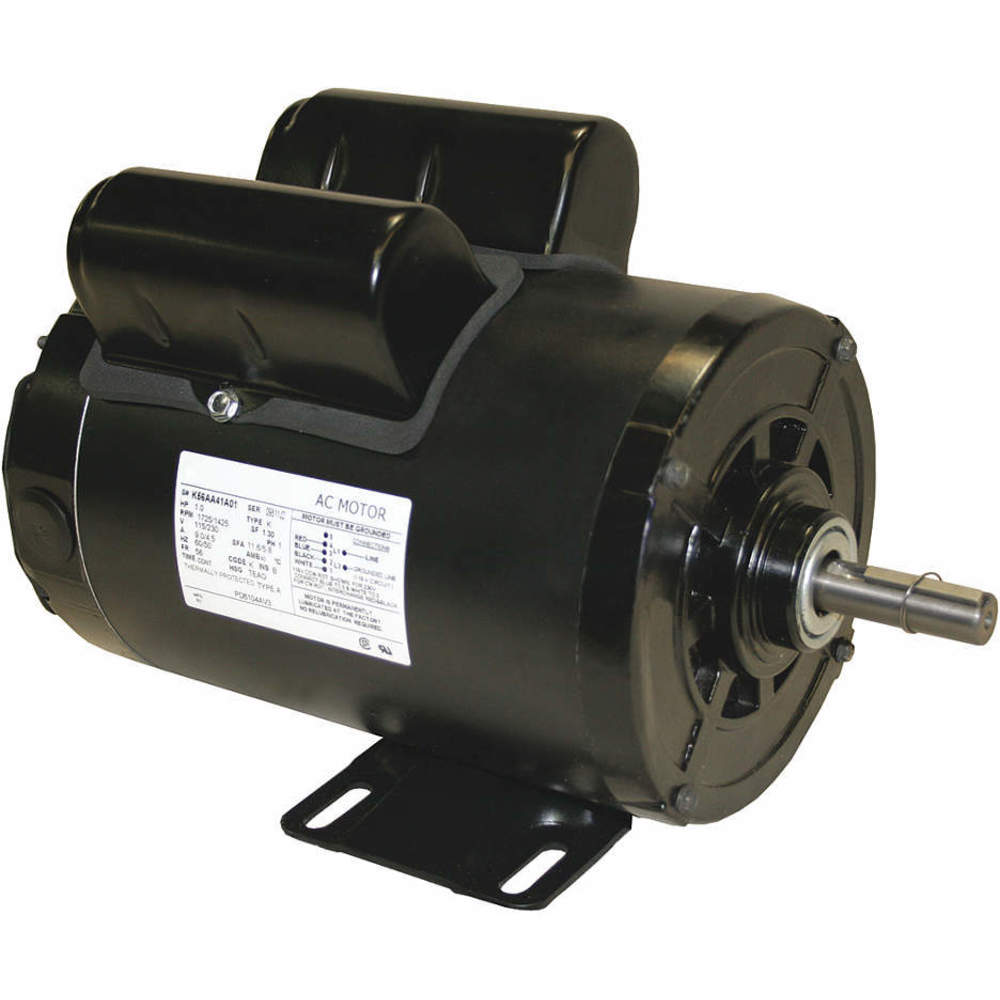

| B | PD6104AV3 | 115/230V AC | Rigid Base | Belt Drive Fan/Blower | 1 hp | 1.3 | 1.3 | Rigid Base | 12 13/16" | $597.97 | |

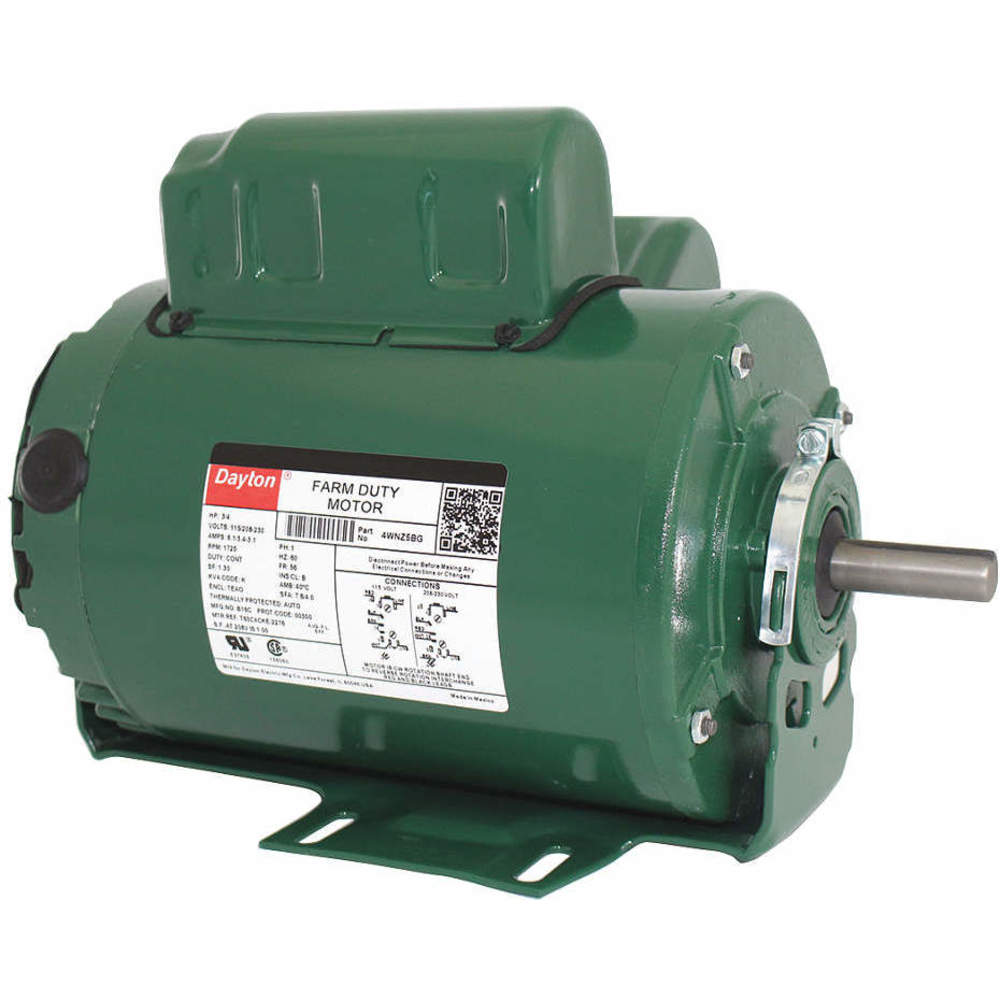

| C | 4WNZ5 | 115/208-230V AC | Cradle Base | Agricultural Fan | 3/4 hp | - | 1.3 | Cradle Base | 11 13/16" | $552.66 | |

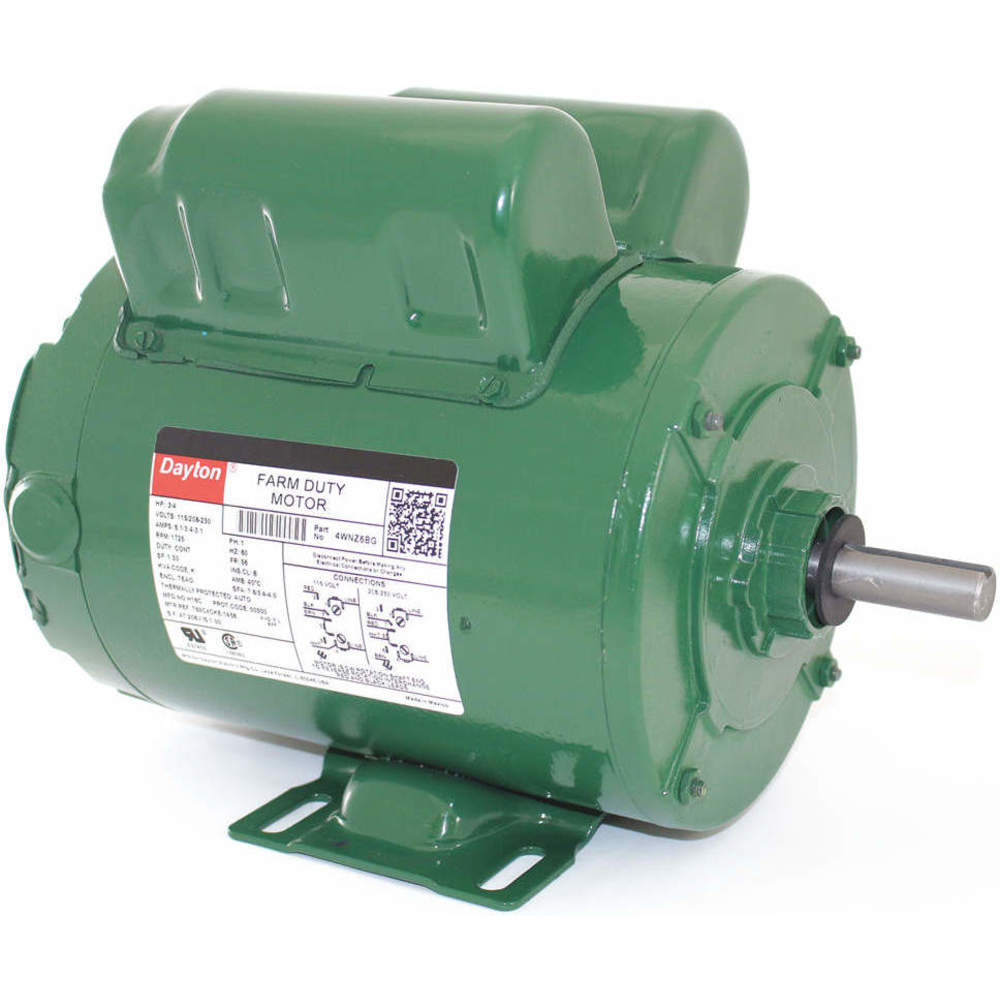

| D | 4WNZ6 | 115/208-230V AC | Rigid Base | Agricultural Fan | 3/4 hp | - | 1.3 | Rigid Base | 12 3/8" | $606.60 |
