| Item | OEM Replacement Motor |
|---|---|
| Bearing Type | Ball |
| Body Dia. | 5.7" |
| Capacitor Required | Included |
| Conduit Box Position | F3 |
| Frame | 48Y |
| Frame Material | Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 2.6A |
| Hp | 1/3 hp |
| Insulation Class | Class A |
| Length Less Shaft | 5 11/16" |
| Max. Ambient Temp. | 122°F |
| Motor Application | OEM Replacement |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
|---|---|
| Motor Shaft Rotation | Clockwise Lead End |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Automatic |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Cradle Base |
| Nameplate Rpm | 1625 RPM |
| No. Of Speeds | 1 |
| Number Of Shafts | 1 |
| Number Of Speeds | 1 |
| Overall Length | 8" |
| Phase | Single |
| Replacement For | 6127 |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 2 1/4" |
| Standards | Csa, Ul Recognized |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230V AC |
| Height (cm) | 17.3 |
|---|---|
| Length (cm) | 22.56 |
| Width (cm) | 22.38 |
| HS Code | 8501404040 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 15 |
| Style | Model | Voltage | Hp | Nameplate Rpm | Motor Enclosure Design | Frame | Motor Design | Motor Sub Application | Motor Mounting Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

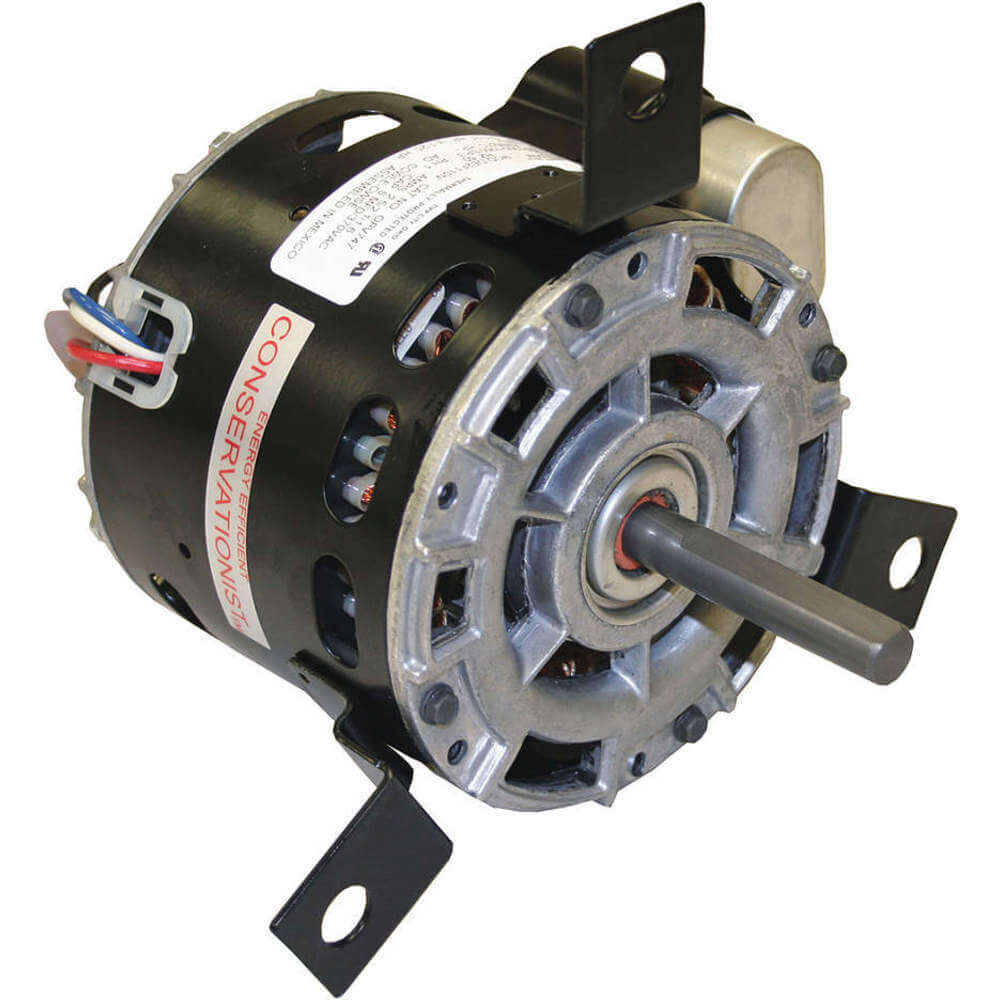

| A | OPV747 | 115V AC | 1/7 hp | 1550/1300/1050 RPM | Open Air Over | 42Y | Permanent Split Capacitor | Direct Drive Fan/Blower | Lug | - | RFQ
|

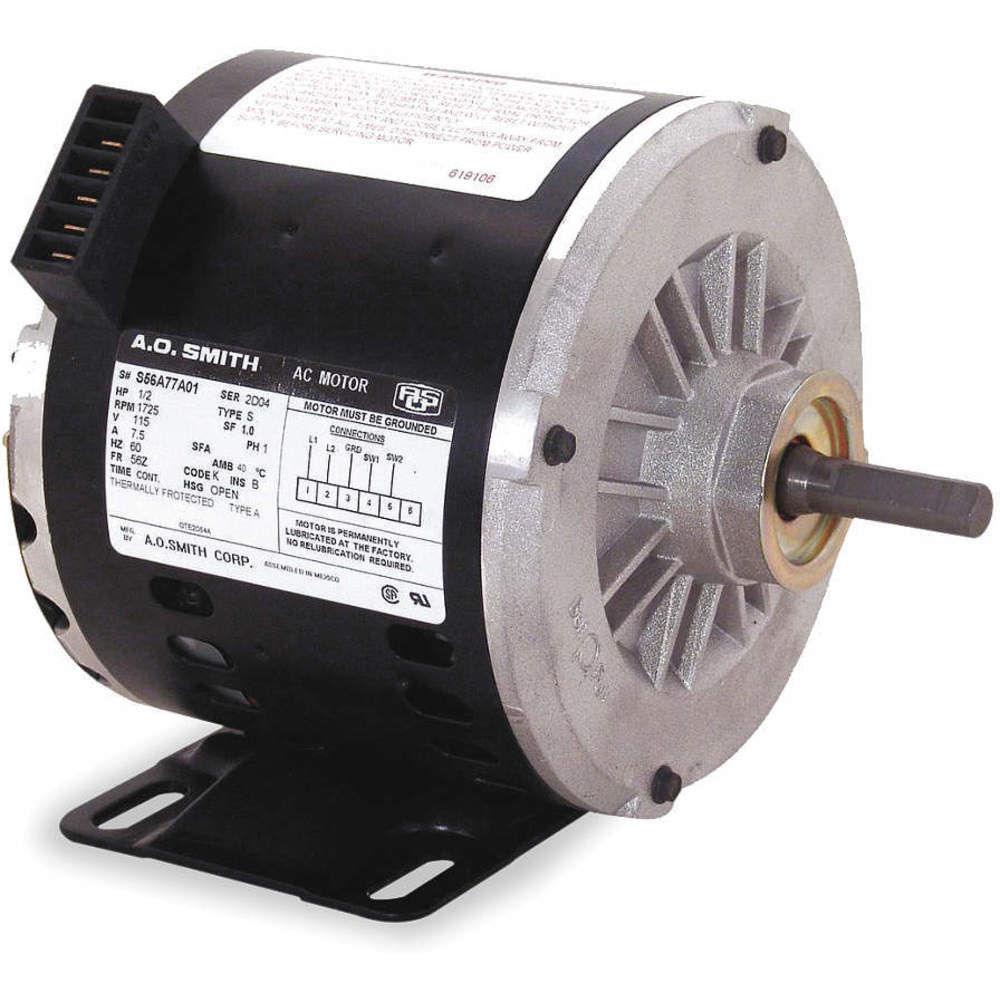

| B | OTEB2054AV1 | 115V AC | 1/2 hp | 1725 RPM | Open Dripproof | 56Z | Split-Phase | Belt Drive Fan/Blower | Rigid Base | $384.35 | |

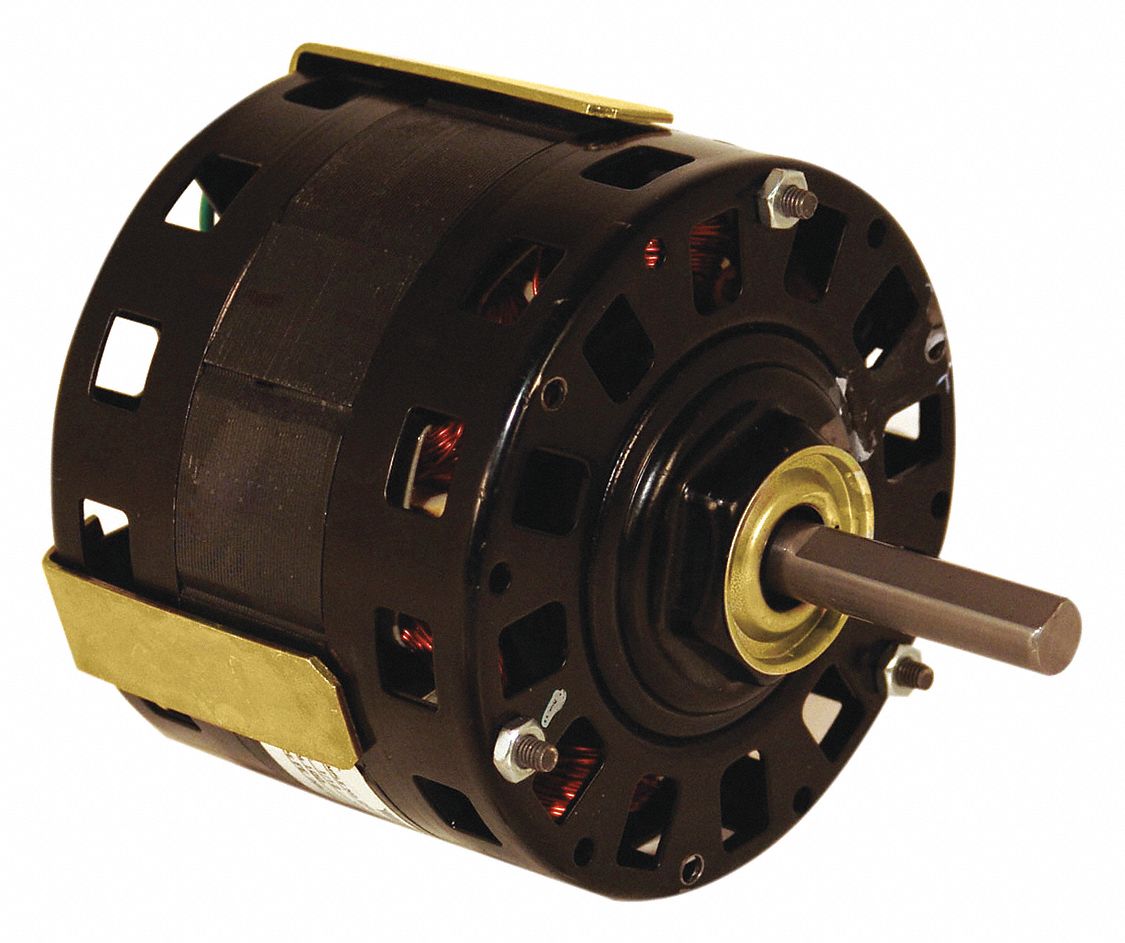

| C | BL6407 | 115V AC | 1/6 hp | 1000 RPM | Open Air Over | 42Y | Shaded Pole | Direct Drive Fan/Blower | Band | $240.08 | |

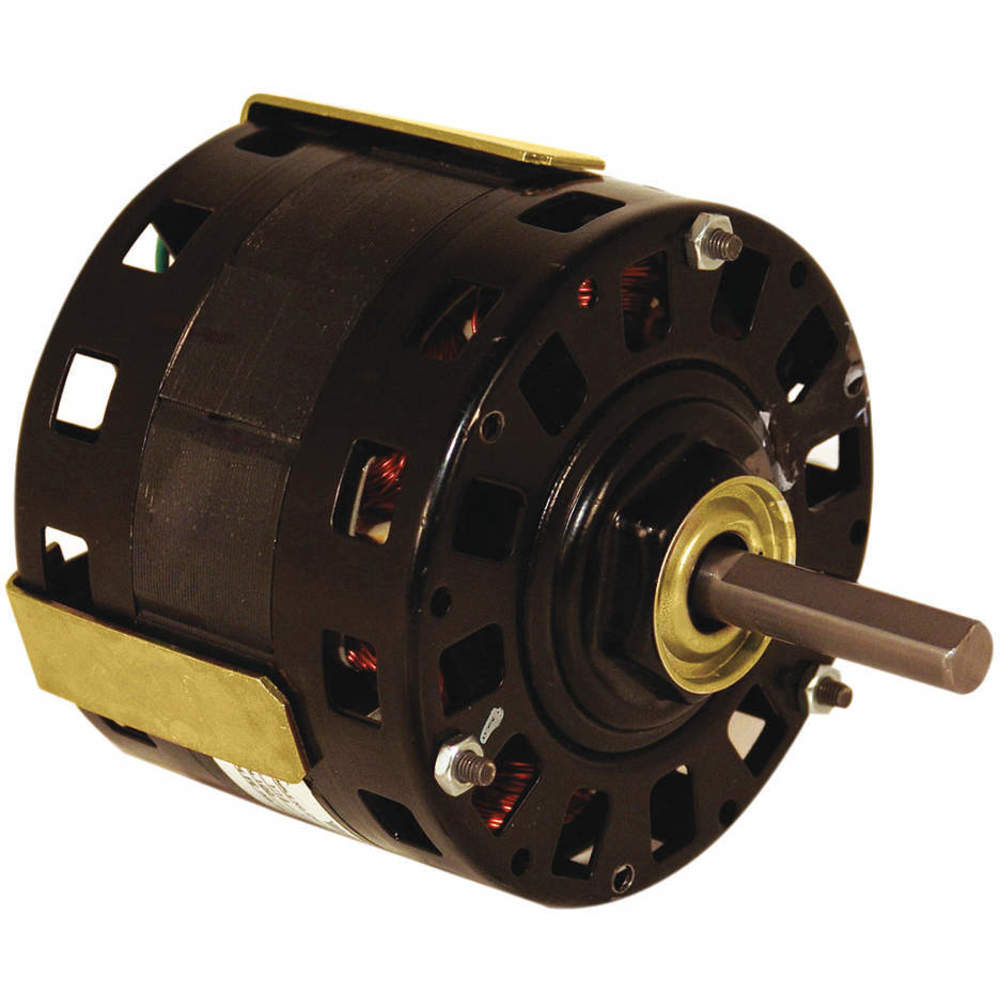

| D | BL6409 | 115V AC | 1/12 hp | 1050 RPM | Open Air Over | 42Y | Shaded Pole | Direct Drive Fan/Blower | Band | $205.61 | |
| E | OKB1058 | 230V AC | 1/2 hp | 825 RPM | Open Air Over | 48Y | Permanent Split Capacitor | Direct Drive Fan/Blower | Band | $345.00 | |
| F | ORM1076 | 115V AC | 3/4 hp | 1075 RPM | Open Air Over | 48Y | Permanent Split Capacitor | Direct Drive Fan/Blower | Band | $372.24 |
