| Item | Communication Cable |
|---|---|
| Application | Communications, Computer Systems, Control Systems |
| Cable Length | 1000 ft. |
| Cable Type | CMR |
| Color | Gray |
| Conductor Color Code Table Number | 5 |
| Conductor Gauge | 22 AWG |
| Conductor Size | 22 AWG |
| Conductor Type | Tinned Copper |
| Fire Rating | Riser |
| Fire Rating (data Cable) | Riser |
| Insulation Material | S R PVC |
| Jacket Color | Gray |
| Jacket Material | PVC |
| Length | 1000 ft. |
| Maximum Operating Temperature | 176°F |
| Maximum Voltage Rating | 300V |
| Minimum Operating Temperature | -4°F |
| Nec Article | 800 |
| Nec Article And Type | 800 CMR |
| Nominal Outside Dia. | 0.177" |
| Number Of Conductors | 3 |
|---|---|
| Number Of Pairs | 0 |
| Number Of Strands | 7 |
| Outside Dia. | 1/5" |
| Outside Diameter | 0.2" |
| Package Type | Reel In A Box |
| Package Type (data Cable) | Reel In A Box |
| Pairing | Unpaired |
| Power Limited | Power Limited |
| Product Type | Communication Cable |
| Shielded | Shielded |
| Shielded / Unshielded | Shielded |
| Shielding | Foil |
| Shielding Material | 100% Aluminum, 100% Polyester Flexfoil |
| Solid/stranded | Stranded |
| Spool/coil Length | 1000 ft. |
| Stranded / Solid | Stranded |
| Suggested Voltage Rating (data Cable) | 300V |
| Temp. Range | -4°F to +176°F |
| Voltage | 300V |
| Standards | CE 2006/95/EC, CSA CMG, ROHS COMPLIANT, UL 70, 000 BTU VERTICAL TRAY FLAME TEST |
| Height (cm) | 28.96 |
|---|---|
| Length (cm) | 27.69 |
| Width (cm) | 27.94 |
| HS Code | 8544493080 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 15.3225 |
| Style | Model | Number Of Conductors | Jacket Color | Jacket Material | Shielded | Cable Length | Insulation Material | Number Of Strands | Stranded / Solid | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | E1032S.18.10 | 2 | Gray | PVC | Unshielded | 500 ft. | Semi Rigid PVC | 7 | Stranded | $205.93 | |
| B | E3032S.18.86 | 2 | Natural | PVC | Unshielded | 500 ft. | PVC | 7 | Stranded | $248.64 | |

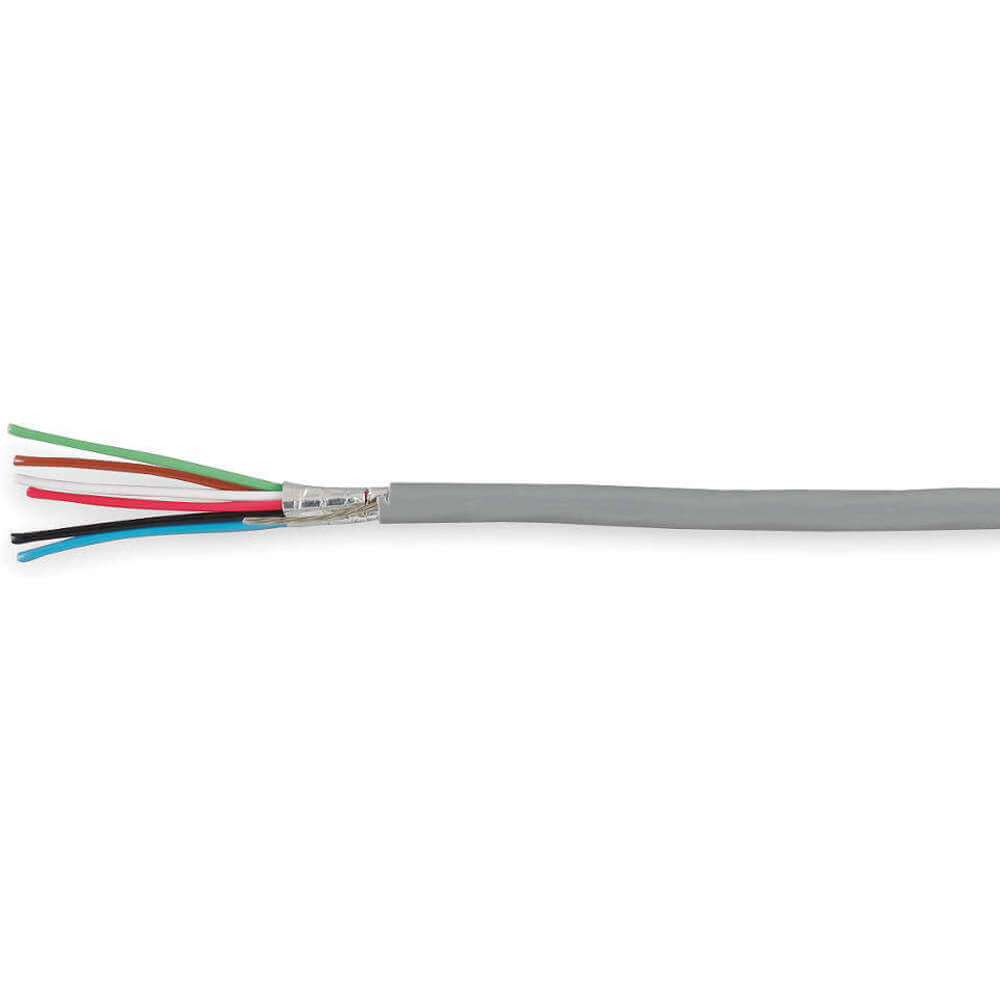

| C | E2006S.18.10 | 6 | Blue | PVC | Shielded | 500 ft. | Semi Rigid PVC | 7 | Stranded | $261.20 | |

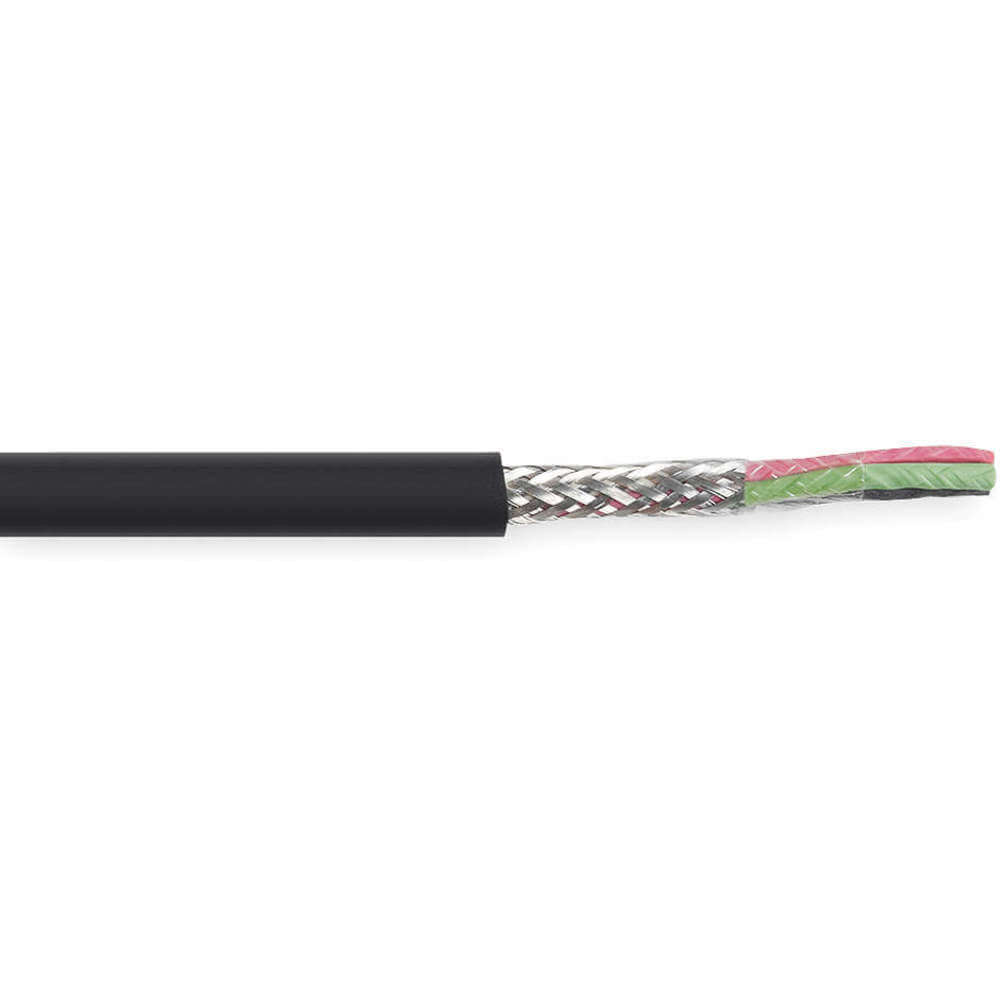

| D | C1305.41.01 | 4 | Black | Rubber | Shielded | 1000 ft. | Plastic | 26 | Stranded | $1,788.06 | |
| A | E1003S.41.10 | 3 | White | PVC | Unshielded | 1000 ft. | Semi Rigid PVC | 7 | - | $321.00 | |
| E | E1006S.41.10 | 6 | Blue | PVC | Unshielded | 1000 ft. | Semi Rigid PVC | 7 | - | $476.17 | |
| E | E1008S.30.10 | 8 | Yellow | PVC | Unshielded | 1000 ft. | Semi Rigid PVC | 7 | - | - | RFQ
|
