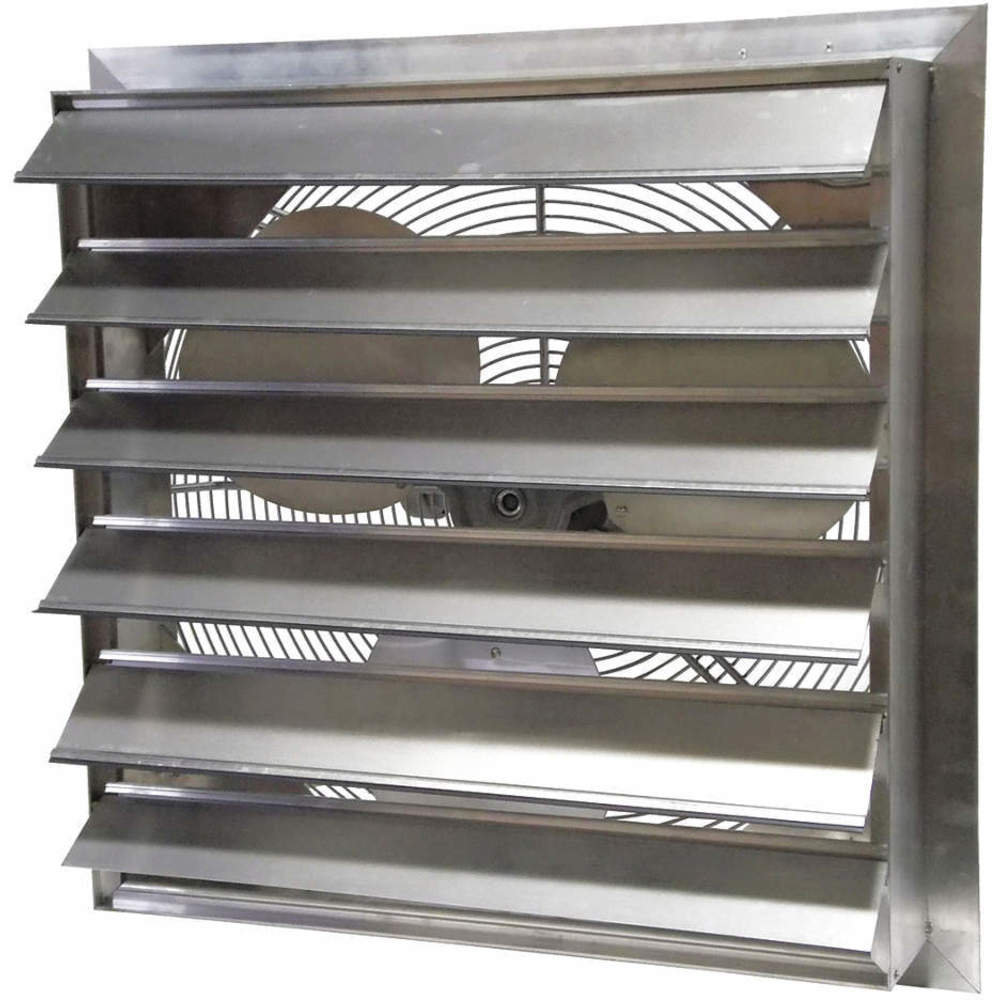

| Item | Exhaust Fan |
|---|---|
| Assembled | Assembled |
| Bearing Type | Ball |
| Blade Dia. | 42" |
| Blade Material | Aluminum |
| Cfm @ 0.000-in. Sp | 14900 CFM |
| Cfm @ 0.125-in. Sp | 13210 CFM |
| Cfm @ 0.250-in. Sp | 10800 CFM |
| Control Type | Rotary Dial |
| Discharge Direction | Horizontal |
| Drive Type | Direct Drive |
| Electrical Connection | Hardwired |
| Exhaust Airflow @ 0.125 In Sp | 13210 CFM |
| Exhaust/supply Fan Item | Exhaust Fan |
| Exhaust/supply Fan Motor Hp | 1 hp |
| Fits Square Opening | 45" x 45" |
| Flange Width | 15" |
| For Cut-out Height | 45" |
| For Cut-out Length | 45" |
| For Cut-out Width | 45" |
| For Maximum Wall Thickness | 5" |
| For Minimum Wall Thickness | 5" |
| Frame Finish | Powder Coated |
| Frame Material | Aluminum |
| Full Load Amps | 55A |
| Full Load Current | 5A |
| Guard Finish | Powder Coated |
| Guard Material | Steel |
| Guard Type | Intake |
| Height | 47 1/4" |
| Housing Material | Aluminum |
| Includes Dehumidistat | No |
| Includes Grill | No |
| Includes Motor | Yes |
| Max. Ambient Temp. | 104°F |
|---|---|
| Max. Depth | 17 3/4" |
| Max. Exhaust Airflow @ 0.000 In Sp | 14900 CFM |
| Maximum Noise Level | 49 sones |
| Method Of Construction | Stamped |
| Motor Enclosure | Totally Enclosed Air Over |
| Motor Enclosure Design | Totally Enclosed |
| Motor Horsepower | 1 hp |
| Motor Insulation | Class B |
| Motor Insulation Class | Class B |
| Motor Rpm | 850 RPM |
| Motor Type | Split Phase |
| Mounting Orientation | Horizontal |
| Mounting Position | Vertical |
| Nameplate Voltage | 230V AC |
| Noise Level @ 0.000 In Sp @ 5 Ft | 49 sones |
| Noise Level @ 0.100 In Sp @ 5 Ft | 49 sones |
| Number Of Blades | 3 |
| Number Of Fans | 1 |
| Number Of Speeds | 1 |
| Overall Depth | 16" |
| Overall Dia. | 47 3/4" |
| Overall Height | 47 3/4" |
| Overall Width | 47 3/4" |
| Phase | 1 |
| Propeller Dia. | 42" |
| Propeller Material | Aluminum |
| Speed Controllable | No |
| Type | Commercial Direct Drive, Industrial |
| Vent Design | Ductless |
| Ventilation Type | Exhaust |
| Wattage | 750 W |
| Width | 47 1/4" |
| Height (cm) | 123.44 |
|---|---|
| Length (cm) | 121.16 |
| Width (cm) | 50.29 |
| HS Code | 8414596095 |
|---|---|
| Country Of Origin | CA |
| Weight (kg) | 55.8 |
| Style | Model | Housing Material | Motor Rpm | Cfm @ 0.000-in. Sp | Voltage | Mounting Position | Motor Enclosure Design | Full Load Amps | Wattage | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | AX12-4 | Aluminum | 1725 RPM | 1670 CFM | 115/208-230V | Vertical | Totally Enclosed Air Over | 6.6/3.1-3.3A | 246 W | $1,462.19 | |
| A | AX14-4 | Heavy Duty Aluminum | 1725 RPM | 2190 CFM | 115/208-230V | Horizontal | Totally Enclosed Air Over | 6.6/3.1-3.3A | 250 W | $1,411.12 | |
| A | AX16-4 | Aluminum | 1725 RPM | 2580 CFM | 115/208-230V | Horizontal | Totally Enclosed Air Over | 6.6/3.1-3.3A | 250 W | $1,599.68 | |
| B | AX18-4 | Aluminum | 1725 RPM | 3200 CFM | 115/208-230V | Horizontal | Totally Enclosed Air Over | 6.6/3.1-3.3A | 250 W | $1,657.19 | |
| B | AX20-4 | Aluminum | 1725 RPM | 3640 CFM | 115/208-230V | Vertical | Totally Enclosed Air Over | 6.6/3.1-3.3A | 246 W | $1,706.19 | |
| C | AX24-4 | Aluminum | 1725 RPM | 5520 CFM | 115/208-230V | Horizontal | Totally Enclosed Air Over | 6.6/3.1-3.3A | 250 W | $1,737.06 | |
| D | P14-4 | Steel | 1725 RPM | 2190 CFM | 115/230V | Horizontal | Totally Enclosed Air Over | 6.6/3.1-3.3A | 250 W | $1,230.32 |
