| Item | Spring Foot Valve |
|---|---|
| Application | Pumps |
| Application - Valves | Pumps |
| Body Material | Brass |
| Connection Gender - Side 1 | Female |
| Connection Type | FNPT |
| Cracking Pressure | 0.5 psi |
| Design | Spring |
| Flow Design | Single |
| Flow Rate | 18 GPM |
| Foot Valve Design Type | Spring |
| Full Flow | No |
| Full Flow - Valves | No |
| Length | 4 3/4" |
| Material | Low Lead Brass |
| Max. Pressure (cwp) | 200 psi |
| Max. Pressure (steam) | Not Rated |
| Max. Steam Pressure - Valves | Not Rated |
| Max. Temp. | 190°F |
| Max. Water Pressure | 200 psi |
| Media Temp. Range | 35°F to 158°F |
| Media Temperature Range | 35°F to 158°F |
|---|---|
| Mounting Orientation | Horizontal, Vertical |
| Mounting Orientation - Valves | Horizontal, Vertical |
| Mounting Position | Horizontal/Vertical |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | 35°F |
| Overall Height | 2" |
| Overall Length | 4 3/4" |
| Overall Width | 2" |
| Pipe Or Tube Size - Valves | 1" |
| Screen Material | Stainless Steel |
| Seal Material | Buna-N |
| Seat Material | Bronze |
| Seat Material - Valves | Bronze |
| Size | 1" |
| Spring Material | Stainless Steel |
| Strainer Material | Stainless Steel |
| Strainer Material - Foot Valves | Stainless Steel |
| Valve Body Design | Inline |
| Standards | ASTM B62 |
| Height (cm) | 8.38 |
|---|---|
| Length (cm) | 18.8 |
| Width (cm) | 16.76 |
| HS Code | 8481301090 |
|---|---|
| Country Of Origin | ID |
| Weight (kg) | 0.3825 |
| Style | Model | Body Material | Pipe Size | Max. Temp. | Max. Water Pressure | Seal Material | Flow Rate | Overall Height | Strainer Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | FV-3TLF | Brass | 3/4" | 190°F | 200 psi | Buna-N | 13 GPM | 1 1/2" | Stainless Steel | $28.56 | |
| A | FV-5TLF | Brass | 1 1/4" | 190°F | 200 psi | Buna-N | 23 GPM | 2" | Stainless Steel | $51.34 | |
| A | FV-6TLF | Brass | 1 1/2" | 190°F | 200 psi | Buna-N | 25 GPM | 6 1/8" | Stainless Steel | $79.27 | |
| A | FV-8TLF | Brass | - | 190°F | 200 psi | Buna-N | 30 GPM | 7 1/2" | Stainless Steel | $113.97 | |

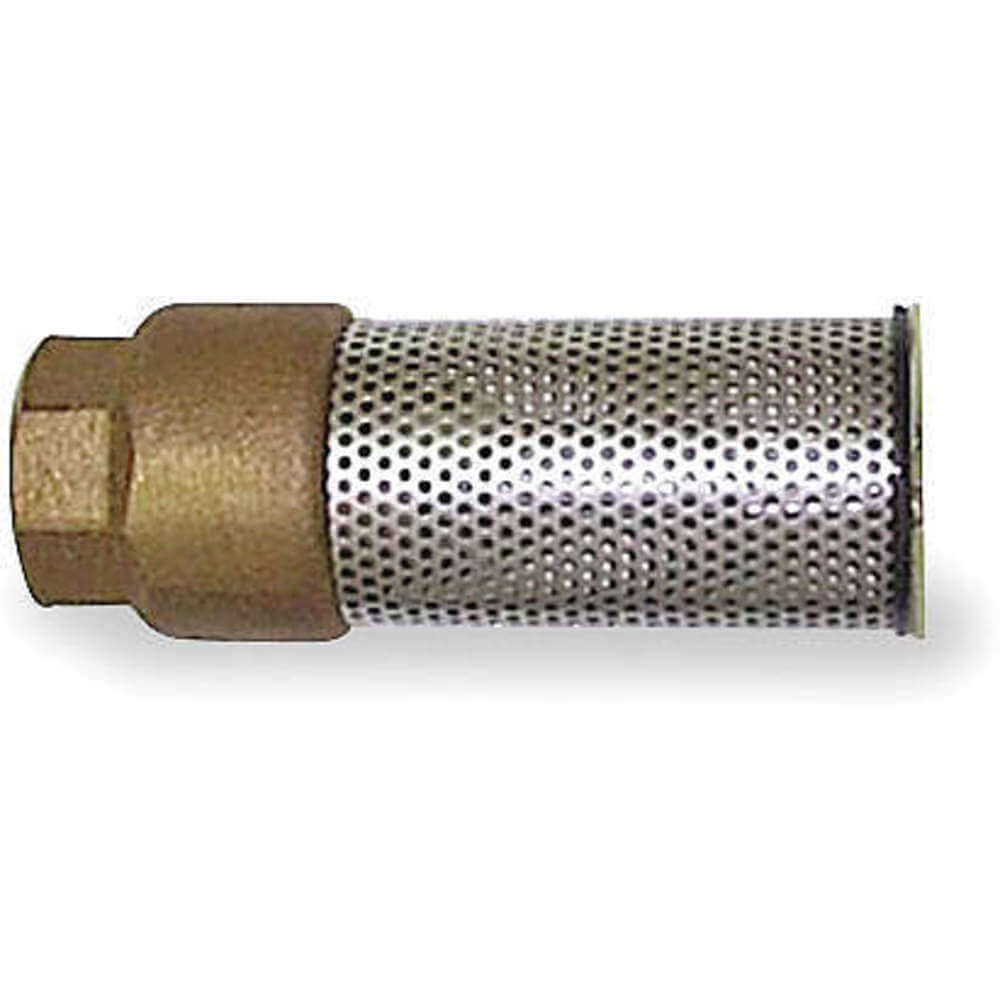

| B | 4100E | Bronze | - | 180°F | 250 psi | Buna N | 13 GPM | 1 1/2" | Stainless Steel | $71.03 | |
| B | 4101E | Bronze | - | 180°F | 250 psi | Buna N | 18 GPM | - | Stainless Steel | $79.74 | |
| B | 4102E | Bronze | 1 1/4" | 180°F | 250 psi | Buna N | 15 GPM | 4 7/8" | Stainless Steel | $71.41 |
