| Item | Fuse Block |
|---|---|
| Ac Voltage Rating | 600V AC |
| Amp Range | 101-200A |
| Amps | 110-200A |
| Blown Fuse Indicator | No |
| Body Material | Thermoplastic |
| Connector Type | Box Lug |
| Dc Voltage | 300V DC |
| Depth | 3" |
| Features | Short Circuit Protection |
| Fits Fuse Type | Industrial |
| For Fuse Size | 5 3/4" x 1 1/2", 5 3/4" x 1 5/8" |
| Fuse Block Design | Open |
| Fuse Block Style | Nonrejection |
| Fuse Current | 101-200A |
| Fuse Dia. | 1" |
| Fuse Holder Code | AC |
| Fuse Length | 5 3/4" |
| Fuse Overall Diameter | 1 5/8" |
| Fuse Overall Length | 8.7" |
|---|---|
| Fuse Type | Industrial |
| Fuse Ul Class | Class J |
| Height | 3 4/5" |
| Indicating / Nonindicating | Non Indicating |
| Length | 8.7" |
| Material | Thermoplastic |
| Max. Voltage | 600V |
| Mounting Style | Bolt-Down, Din Rail |
| Mounting Type | Bolt Down, DIN Rail |
| Number Of Poles | 2 |
| Spring Reinforced Clip | Yes |
| Visual Indication | Non Indicating |
| Voltage | 600V AC/300V DC |
| Voltage Rating | 600V AC/300V DC |
| Width | 5.3" |
| Wire Range | 6 AWG to 250 mcm |
| Wire Size | 6 AWG to 250 mcm |
| Height (cm) | 9.65 |
|---|---|
| Length (cm) | 17.14 |
| Width (cm) | 12.7 |
| HS Code | 8536908085 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 0.7245 |
| Style | Model | Number Of Poles | Amp Range | Height | Wire Size | Fuse Block Design | Fuse Length | Depth | Fuse Dia. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | JM60100-1CR | 1 | 61-100A | 2 4/5" | 14 AWG to 1/0 AWG | Open | 4 3/5" | 2 1/5" | 3/4" | $114.25 | |
| B | JM60100-2CR | 2 | 61-100A | 2 4/5" | 14 AWG to 1/0 AWG | Open | 4 3/5" | 2 1/5" | 3/4" | $250.56 | |
| C | JM60100-3CR | 3 | 61-100A | 2 4/5" | 14 AWG to 1/0 AWG | Open | 4 3/5" | 2 1/5" | 3/4" | $435.44 | |
| D | JM60200-1CR | 1 | 101-200A | 3 4/5" | 6 AWG to 250 mcm | Open | 5 3/4" | 3" | 1" | $219.44 | |
| E | JM60200-3CR | 3 | 101-200A | 3 4/5" | 6 AWG to 250 mcm | Open | 5 3/4" | 3" | 1" | $745.98 | |
| F | JM60400-1CR | 1 | 201-400A | 4 4/5" | 600 kcmil to 4 AWG | Open | 7 1/5" | 4 1/5" | 1 3/5" | $984.61 | |

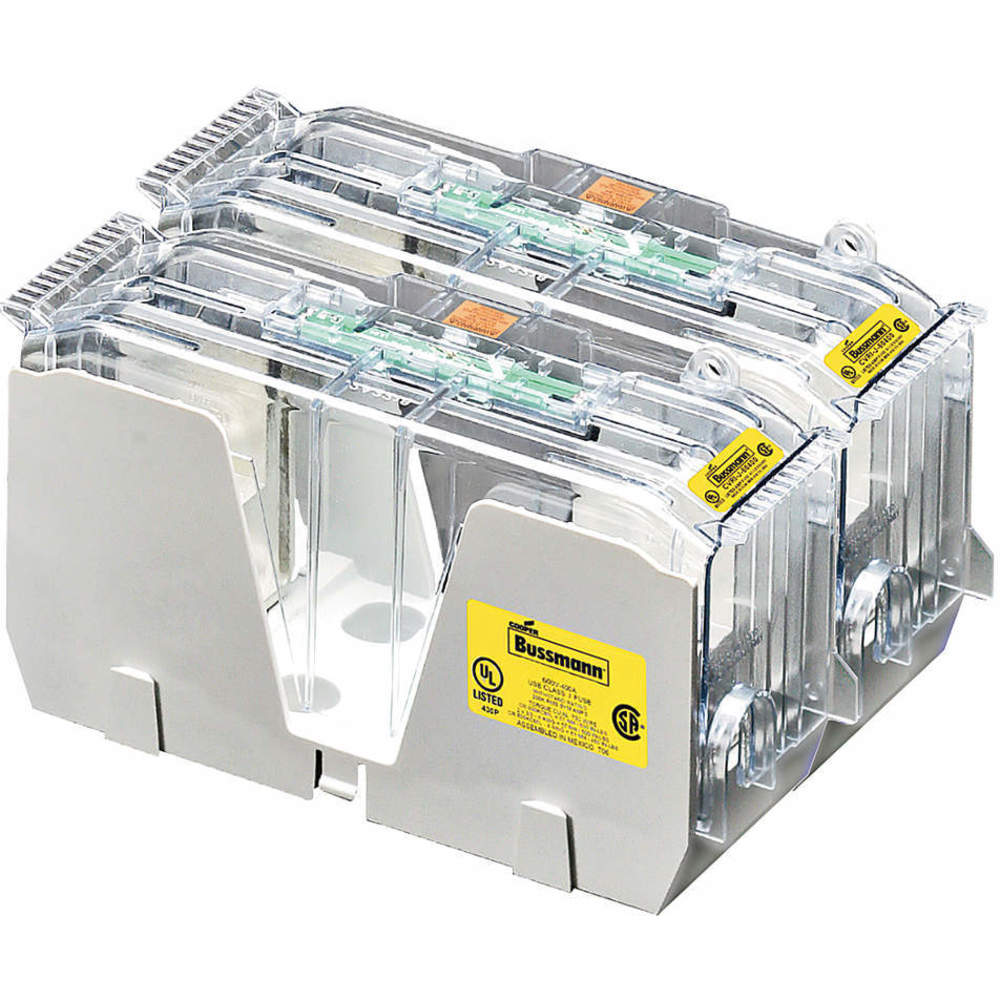

| G | JM60400-2CR | 2 | 201-400A | 4 4/5" | 600 kcmil to 4 AWG | Open | 7 1/5" | 4 1/5" | 1 3/5" | $1,247.48 |
