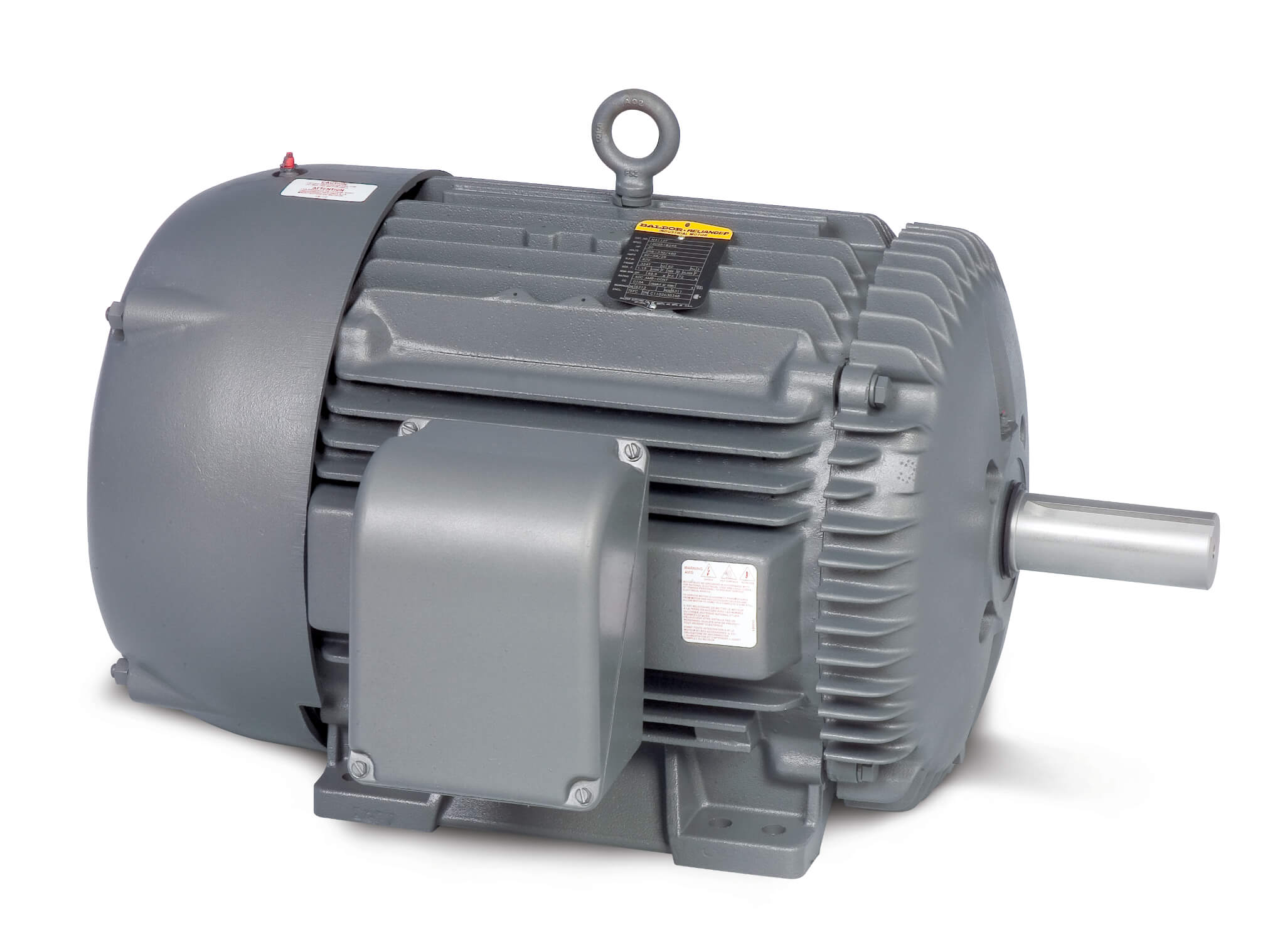

| Item | Definite Purpose Motor |
|---|---|
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 2.8/1.6A |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Break-down Torque | 5.2 lbs.-ft. |
| Class | Class B |
| Code | H |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Design Code | B |
| Duty | Continuous |
| Enclosure Design | TEFC |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 2.8/1.6A |
| Full Load Torque | 1.5 lbs.-ft. |
| Hp | 3/4 hp, 33/100 hp |
| Insulation Class | Class F |
| Inverter Code | Not Inverter |
| Lead | 6#18 |
| Line-line Res. @ 25° C | 20.2 ohms A Ph/0 ohms B Ph |
| Locked-rotor Torque | 3.3 lbs.-ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Type | Three Phase |
| Mounting Type | Foot Mounted |
|---|---|
| Multiplier | K |
| Nameplate Rpm | 1725/1140 RPM |
| Nema/iec | NEMA |
| No Load Amps | 1.4A |
| No. Of Motor Leads | 6 |
| No. Of Poles | 4, 6 |
| Overall Length | 13.23" |
| Phase | 3 |
| Proprietary | No |
| Pull-up Torque | 2.7 lbs.-ft. |
| Pulley Face Code | Standard |
| Revision | R |
| Rpm | 1140/1725 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Speed Code | 2S-2W-VT |
| Start Configuration | DOL |
| Starting Amps | 6.8A |
| Synchronous Rpm | 1800/1200 RPM |
| Type | 3524M |
| Voltage | 230V |
| Wire Size | 18 AWG |
| Xp Class And Group | None |
| Height (cm) | 33.33 |
|---|---|
| Length (cm) | 49.21 |
| Width (cm) | 34.92 |
| HS Code | 85015100 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 16.65 |
| Style | Model | Hp | Nameplate Rpm | Frame | Motor Enclosure Design | Mounting Type | Ambient Temp. | Revision | Service Factor | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | M1019 | 3/4 hp, 33/100 hp | 1725/1140 RPM | 56 | Open | Foot Mounted | 40°C | S | 1.15 | $1,484.96 | |
| A | M1020T | 1 hp, 11/25 hp | 1725/1140 RPM | 145T | Open | Foot Mounted | 60°C | B | 1.15 | $1,599.70 | |
| A | M1021T | 1 1/2 hp to 67/100 hp | 1725/1140 RPM | 182T | Open | Foot Mounted | 40°C | U | 1.15 | $1,938.20 | |
| A | M1022T | 2 hp to 89/100 hp | 1725/1140 RPM | 182T | Open | Foot Mounted | 40°C | S | 1.15 | $2,210.71 | |
| A | M1023T | 3 hp to 1 3/10 hp | 1725/1140 RPM | 184T | Open | Foot Mounted | 40°C | U | 1.15 | $2,574.07 | |
| A | M1024T | 5 hp, 2 1/5 hp | 1725/1140 RPM | 215T | Open | Foot Mounted | 40°C | V | 1.15 | $3,961.50 | |
| A | M1218 | 1/2 hp, 11/50 hp | 1750/1170 RPM | 56 | Open Dripproof | Rigid Base | 40°C | U | 1.15 | $2,042.20 |
