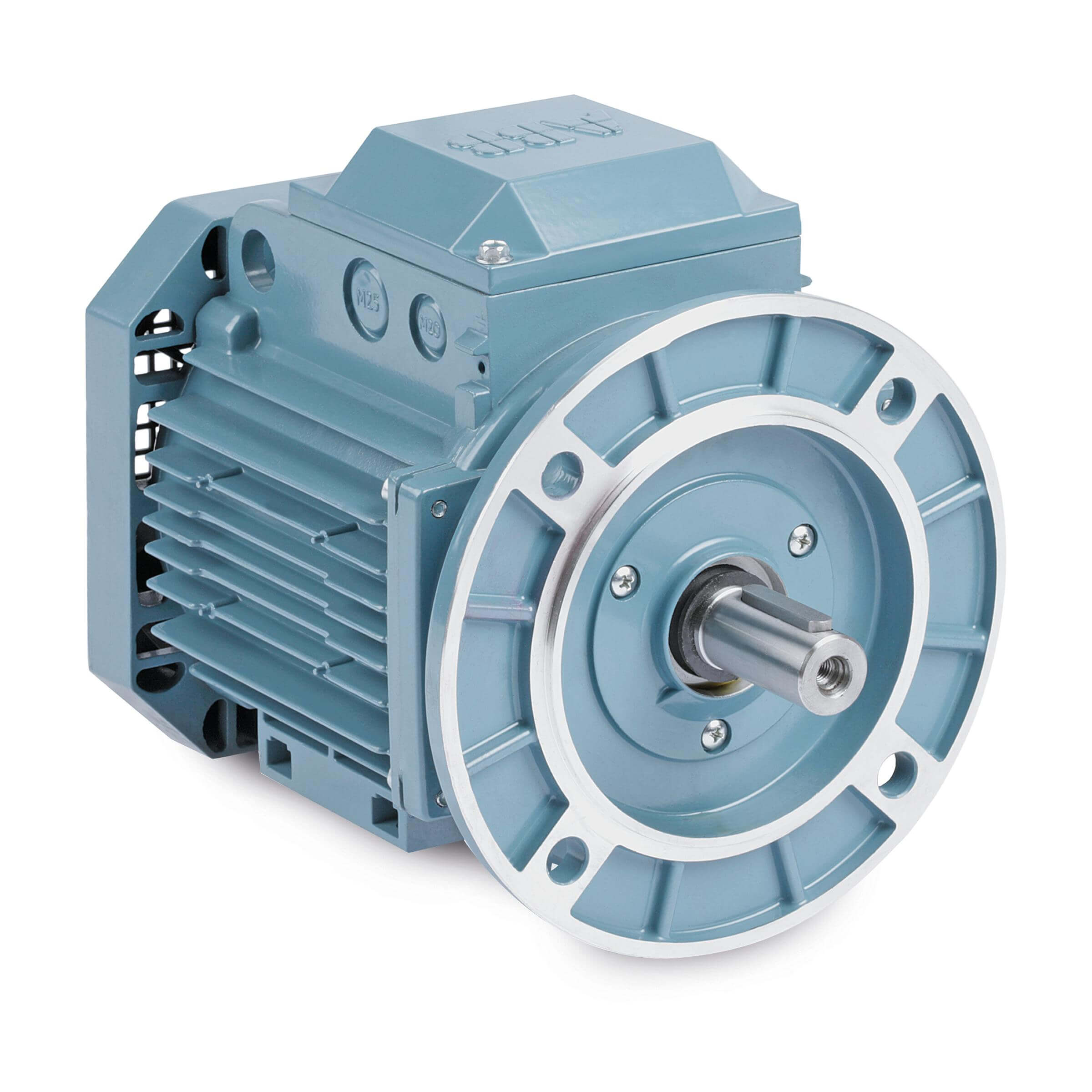

| Item | General Purpose Motor |
|---|---|
| Ambient Temp. | 40°C |
| Amps @ Voltage | 16.2A @ 230V, 9.3A @ 400V, 9.6A @ 380V |
| Amps @ Volts | 16.2A @ 230V, 9.6A @ 380V, 9.3A @ 400V |
| Auxillary Box | D End Top |
| Duty | S1 |
| Duty Cycle | Continuous |
| Enclosure Design | TEFC |
| Frame | 132 |
| Frequency | 50 Hz |
| Full Load Amps | 16.2A @ 230V, 9.6A @ 380V, 9.3A @ 400V |
| High Voltage Full Load Amps | 9.3A |
| Hp | 4 hp |
| Insulation Class | Class F |
| Ip Rating | IP55 |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
|---|---|
| Motor Type | Process Perfomance |
| Mounting Type | C Face, Footless |
| Nameplate Rpm | 974/970 RPM |
| Nema/iec | IEC |
| No. Of Speeds | 1 |
| Output @ Frequency | 4 kW @ 50 Hz |
| Output Kw | 4 kW |
| Phase | 3 |
| Rpm | 970/974 RPM |
| Synchronous Rpm @ Frequency | 1000 RPM @ 50 Hz |
| Synchronous Speed | 1000 RPM |
| Voltage | 230/380/400V |
| Voltage @ Frequency | 230V @ 50 Hz, 380V @ 50 Hz, 400V @ 50 Hz |
| Height (cm) | 63.5 |
|---|---|
| Length (cm) | 81.28 |
| Width (cm) | 39.37 |
| HS Code | 85015220 |
|---|---|
| Country Of Origin | FI |
| Weight (kg) | 97.2 |
