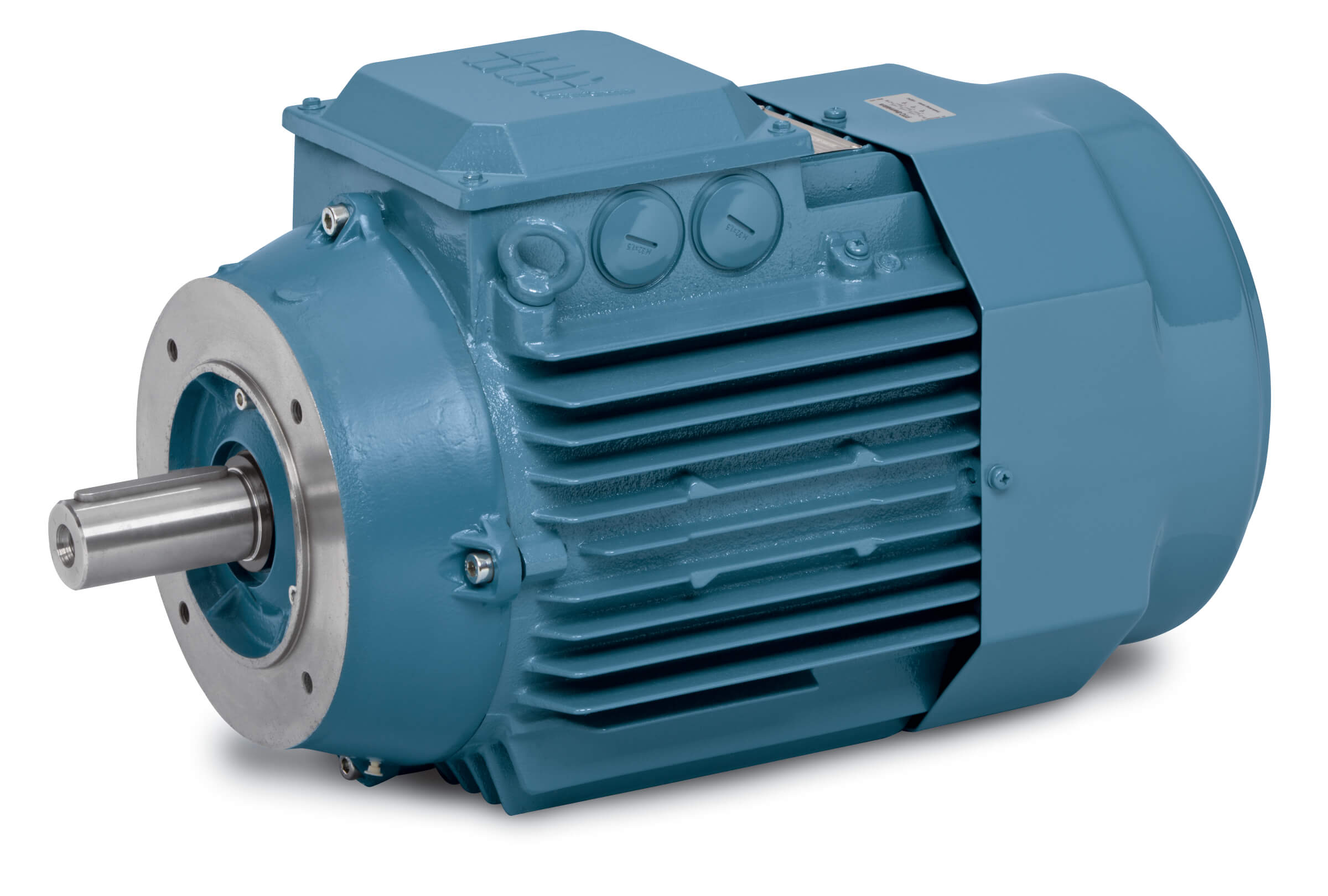

| Item | General Purpose Motor |
|---|---|
| Ambient Temp. | 40°C |
| Amps @ Volts | 12.1A @ 230V, 6.9A @ 400V, 7.1A @ 380V |
| Auxillary Box | D End Top |
| Duty | S1 |
| Duty Cycle | Continuous |
| Enclosure Design | TEFC |
| Frame | 132 |
| Frequency | 50 Hz |
| Full Load Amps | 6.9A |
| High Voltage Full Load Amps | 6.9A |
| Hp | 3 hp |
| Insulation Class | Class F |
| Ip Rating | IP55 |
|---|---|
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Type | Process Perfomance |
| Mounting Type | C Face, Footless |
| Nameplate Rpm | 973/977 RPM |
| Nema/iec | NEMA |
| No. Of Speeds | 1 |
| Output @ Frequency | 3 kW @ 50 Hz |
| Phase | 3 |
| Rpm | 973/977 RPM |
| Synchronous Rpm @ Frequency | 1000 RPM @ 50 Hz |
| Voltage | 230/380/400V |
| Voltage @ Frequency | 230V @ 50 Hz, 380V @ 50 Hz, 400V @ 50 Hz |
| Height (cm) | 60.96 |
|---|---|
| Length (cm) | 80.01 |
| Width (cm) | 39.37 |
| HS Code | 85015220 |
|---|---|
| Country Of Origin | FI |
| Weight (kg) | 94.0504 |
| Style | Model | Voltage | Nameplate Rpm | Hp | Frequency | Mounting Type | Frame | Rpm | Duty Cycle | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | EMM13036-PP | 230/380/400V | 973/977 RPM | 3 hp | 50 Hz | - | 132 | 973/977 RPM | Continous | $1,144.11 | |
| B | EMVM10036C-PP | 230/380/400V | 977/973 RPM | 3 hp | 50 Hz | C Face, Footless | 132 | 973/977 RPM | Continuous | $1,271.50 | |
| C | EMVM10036D-PP | 230/380/400V | 977/973 RPM | 3 hp | 50 Hz | C Face, Footless | 132 | 973/977 RPM | Continuous | $1,137.97 | |
| C | EMVM13046D-PP | 230/380/400V | 974/970 RPM | 4 hp | 50 Hz | C Face, Footless | 132 | 970/974 RPM | Continuous | $1,495.56 | |
| A | EMVM13226C-PP | 230/380/400V | 975/978 RPM | 11/5 hp | 50 Hz | - | 132 | 975/978 RPM | Continous | $1,122.63 | |
| D | MM09152-PP | 230/400/460V | 2900/3505 RPM | 1 1/2 hp | 50/60 Hz | - | 90 | 2900/3505 RPM | Continous | $407.46 | |
| D | MM28904-PP | 400/415/690V | 1483/1484 RPM | 90 hp | 50 Hz | Foot Mounted | 280 | 1483/1484 RPM | - | $9,693.13 |
